Replace failing shear pins with OEM #532403956–these are critical for the auger’s torque protection. Verify the impeller housing gasket matches your model’s engine displacement (most 24″ units use #7103206YP). The friction disc (part #532137517) requires inspection every 25 operating hours; excessive wear indicates misalignment between the gearcase and auger shaft. Keep the chute rotation cable (#532175029) tensioned at 12–15 lbs to prevent binding.
Check the ignition module (#532199008) for corrosion; a 0.4mm spark gap ensures reliable cold starts. Fuel line clamps (#532755205) should be replaced annually–ethanol degrades them faster than rubber. The skid shoes (#746008401) must be adjusted to 0.25″ ground clearance to prevent surface damage. For belt-driven models, the drive belt (#685002) stretches 3–5% under load; precut replacements avoid on-site modifications.
Inspect the scraper bar (#532171943) for wear–replace if grooves exceed 1/8″. The control panel wiring harness (#532194086) often fails at the throttle micro-switch connection; apply dielectric grease to prevent oxidation. For electric start versions, the battery (12V 18Ah) should maintain 12.6V when fully charged–any drop below 12.2V signals a failing alternator (#532132381). Hand warmer grips (#719121106) require periodic silicone lubricant to prevent cracking in sub-zero conditions.
Track idler wheels (#532403009) must rotate freely–seized bearings cause uneven belt wear. The auger blades (#532130773) need sharpening every 100 hours; dull edges reduce snow ejection by 30%. For two-stage units, the impeller shear bolts (#532403962) differ from the auger’s–mixing them risks gearcase damage. Replace the fuel filter (#532797105) when pressure drops below 4 psi to avoid carburetor flooding. The wheel drive gearbox (#532403205) requires SAE 80W-90 GL5 oil; overfilling causes foaming.
Essential Components Layout for Winter Equipment
Locate the impeller housing assembly by tracing the chute’s discharge path backward–it connects directly to the main gearbox via a 10-mm flange bolt pattern. Failure here often mimics auger dysfunction; verify gasket integrity before disassembly. Models post-2015 include a reinforced polymer variant (PN 492831XV), which requires torque specs of 18-22 Nm–over-tightening risks cracking the housing.
Auger Drive System Breakdown
Inspect shear pins (OEM #738073MA) every 10 hours of operation; these zinc-plated components degrade faster in wet, salty conditions. Replace with identical 3-mm diameter pins–aftermarket 3.5-mm substitutes will not engage the safety clutch, risking transmission damage. The auger’s hex shaft interfaces with the worm gear at a 30° angle; misalignment here generates noise above 2,400 RPM–re-grease with NLGI #2 synthetic lubricant after each repair.
A fuel pump priming sequence differs between single-stage and two-stage units: for the former, pump the primer bulb 5-7 times until resistance increases; for dual-stage variants, hold the throttle at 50% and prime 3-4 times only. Incorrect priming floods carburetors (Kawasaki KZ series), requiring float bowl drainage–remove the single 14-mm bolt on the base to access residual fuel.
Electrical Circuit Mapping
The ignition module (Stator #194003) mounts beneath the flywheel with two 6-mm Torx bolts–static discharge through improper handling destroys internal diodes, rendering the unit inoperable. Test continuity between terminals A-B (2-4 Ω) and A-C (infinite resistance) before re-installation. Snow ingress commonly corrodes the starter solenoid contacts; clean with 600-grit emery cloth and apply dielectric grease to threads.
Chute rotation cables (7×19 stranded steel, 2.5 mm diameter) stretch under cold load–adjust tension by turning the inline barrel adjuster clockwise in ¼-turn increments until blade clearance reaches 1.5 mm. Avoid exceeding 0.5 Nm torque on cable anchors; overtightening strips the aluminum alloy threading on 2018-2022 models.
Where to Locate Official Schematics for Your Winter Equipment
The primary source for manufacturer-approved breakdowns is Briggs & Stratton’s official site. Enter your model number in the search bar to access exploded views, service manuals, and replacement guides. Filter by “Illustrated Parts List” for a visual layout of components, often available in PDF format for offline reference.
Specialized Retailer Databases
| Retailer | Key Features | Direct Link |
|---|---|---|
| Jack’s Small Engines | Detailed schematics, part numbers, torque specs, and compatibility checks | Catalog |
| Partstree | Interactive diagrams with clickable components, real-time inventory status | Lookup Tool |
| Sears PartsDirect | OEM schematics, step-by-step repair guides, and 3D models for select units | Parts Directory |
For models manufactured after 2015, MTD’s portal hosts PDF archives under “Product Manuals.” Use the control-F function to locate sections like “Auger Assembly” or “Impeller Housing” within the document. Older units may redirect to archived PDFs via third-party hosts–verify the file name matches your model before downloading.
YouTube teardowns often complement static schematics. Search “[YourModelNumber] + disassembly” to find time-stamped breakdowns–creators like “RepairClinic” and “PartSelect” overlay part numbers directly onto the footage. Cross-reference these with the official guides to confirm measurements or assembly sequences.
Subreddits like r/smallengines and LawnSite forums archive user-uploaded schematics for discontinued lines. Post your model number with a request–moderators frequently pin verified links to threads. Include a photo of the engine tag for faster identification.
Hidden Manufacturer Archives
If standard searches fail, try ManualsLib–it indexes over 3.5 million manuals, including rare vintage units. Use advanced filters (brand: “Craftsman,” category: “Outdoor Power”) to narrow results. For North American models, ERI’s parts library maintains a 40-year catalog of microfiche scans, available by email request.

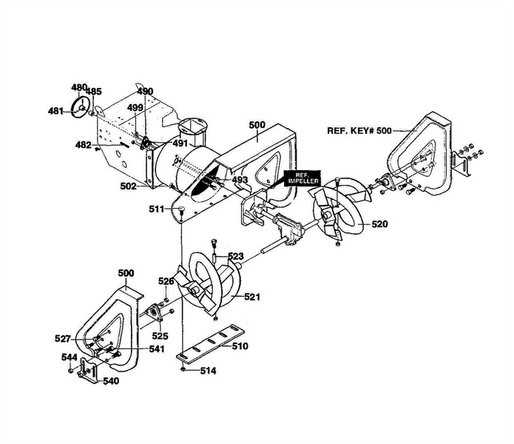

Critical Elements in a Two-Stage Snow Removal Unit’s Schematic Breakdown
Identify the auger assembly first–its helical blades cut through compacted ice while feeding it toward the impeller. Inspect the shear pins (typically 5/16″ diameter, grade 2 steel); these fragile bolts prevent catastrophic gearbox failure by shearing under excessive torque. Replace them with OEM-spec pins only; aftermarket alternatives risk damaging the drive system.
Examine the impeller housing for wear–its curved vanes direct expelled snow at precise angles to maximize discharge distance. Look for pitting or cracks, especially along weld seams where stress concentrates. A compromised housing reduces throwing efficiency by up to 30% and accelerates belt wear due to misalignment. Check the chute rotation gear (often a nylon worm gear) for stripped threads; lubricate it with dry PTFE spray every 10 operating hours.
Drive System and Auger Engagement
Trace the friction disc assembly–its adjustable spring tension controls forward/reverse speeds. Misalignment here causes jerky movement or premature belt slippage. Measure the disc’s thickness; replacement is needed if worn below 3.2mm. The idler pulley (positioned opposite the drive pulley) maintains belt tension; verify its bearing integrity by rotating it manually–grinding or lateral play warrants immediate replacement. Use only matched belts (4L-420 or equivalent); mismatched lengths trigger uneven wear and reduce auger RPM by 15-20%.
Locating and Procuring Original Equipment Components
Check the identification tag on the machine’s housing–common locations include under the chute, near the engine, or along the frame. The tag lists the model number, serial number, and manufacturing year, which simplifies matching components. If the tag is missing, measure critical dimensions of the worn piece (e.g., auger blade width, impeller diameter) and cross-reference with technical manuals specific to the equipment line. Authorized dealers maintain databases tied to these metrics, ensuring exact fitment.
Validating Component Authenticity
Inspect packaging for holographic seals, part numbers laser-etched directly onto metal surfaces, and QR codes linking to manufacturer documentation. Counterfeit pieces often lack weight consistency, precise machining marks, or proper heat-treatment colors (e.g., rainbow hues on gears). Request certification documents from suppliers–legitimate vendors provide traceability records tracing the component back to the original production batch.
Order through verified distributors listed on the official brand portal. Select filters for your exact model variant; generic search terms yield incompatible alternatives. Some dealers offer compatibility charts showing which older models share components–useful when stock is limited. For urgent repairs, note that cutting corners with aftermarket pieces voids warranty coverage and risks safety failures.
Step-by-Step Guide to Using a Schematic for Equipment Servicing
Locate the model number on your machine’s identification plate–it’s typically engraved near the engine housing or under the frame. Cross-reference this number with the version-specific blueprint to ensure compatibility. Generic schematics often lack precise measurements or obscure subassemblies, leading to misaligned bolts or incorrect fastener torque.
Download the official exploded view from the manufacturer’s portal or request a PDF through customer support. Third-party scans may omit critical annotations like torque specs, thread types (e.g., NPT vs. metric), or O-ring placement codes. Print the document at 100% scale–resizing distorts dimensions, making calibration tools useless.
Disassembly Protocol
- Label each fastener group with masking tape: note origin (e.g., “Auger cover–M6 x 1.0, zinc-plated”).
- Photograph wiring harness connectors before detachment–polarity labels wear off on older models.
- Store disassembled shafts in PVC tubes cut to length to prevent bending; auger blades warp at >1° misalignment.
- Apply rust penetrant (PB Blaster) 24 hours before removing seized impeller hubs–heat from a propane torch risks melting nylon spacers.
Compare worn components against the exploded view’s callouts. Impeller blades, for instance, show cracking at the leading edge first; check Callout #17’s fillet radius. Bearings (Callout #23) often fail silently–rotate by hand to detect gritty resistance. Use a bore gauge for crankshaft journals: out-of-round >0.001″ requires resizing.
Reassembly Checks
- Verify belt tension against Table A’s deflection values–excessive slack throws poly-V belts off pulleys within 45 hours.
- Torque fasteners in stages (e.g., ⅓, ⅔, full spec) to prevent housing distortion; cast aluminum cracks under uneven loading.
- Apply thread locker (Loctite 242 blue) only to set screws–permanent red compound bricks future adjustments.
- Test impeller clearance with a feeler gauge: minimum 0.015″ gap prevents ice packing.
- Run the unit dry for 30 seconds to seat seals; synthetic lubricant causes initial leaks until seals swell (~2 hours).
Archive annotated copies of the blueprint with service dates and torque values. Future repairs reference historical deviations–worn crankshaft bores, for example, drift 0.002″ per 100 operating hours. Retain failed components as reference: scoring patterns on impeller rings reveal foreign object ingestion (e.g., gravel vs. sand).
