The 4.6L modular V8 found in late-model sedans like this one relies on precise internal mapping for repairs. Locate the timing cover gasket replacement procedure–seal failure leads to oil leaks near the serpentine belt. Reference the firing order (1-5-4-2-6-3-7-8) when diagnosing misfires; swap ignition coils between problematic cylinders to isolate faulty units before ordering replacements.
Critical assembly zones: The upper intake manifold (plastic, prone to warping) connects six fuel injectors–clean injection ports during removal to prevent debris entering combustion chambers. The exhaust manifolds (cast iron, brittle) often crack near the flange; inspect flanges for corrosion before welding.
Pro tips: Identify the crankshaft position sensor (mounted behind the harmonic balancer) as a common failure point–erratic RPM signals trigger loss of spark. For cooling system overhauls, disconnect the dual thermostat housing (aluminum) carefully; overtightening causes thread stripping in the block. Electrical schematics index power distribution: fuse #26 (30A) protects the fuel pump relay–test voltage at the inertia switch before replacing.
Torque specs matter: cylinder head bolts follow a 3-step sequence (30 ft-lbs, 65 ft-lbs, +90° turn). Lower control arms require a ball joint separator for removal–never strike near the steering rack. The rear differential (8.8-inch, 3.08:1 ratio) uses synthetic 75W-90 gear oil; slightly overfill if leaks persist after gasket replacement.

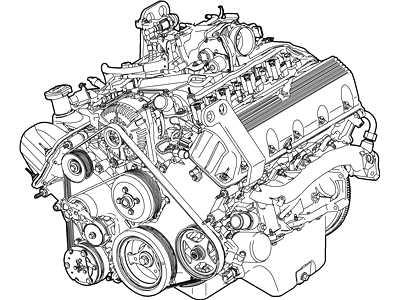

Ford 4.6L Modular V8 Schematic & Component Breakdown
Locate the intake manifold gasket set (Fel-Pro MS 98015) for the 2003-2011 Panther platform models–OEM replacement often fails within 70K miles due to plastic warping under thermal cycles. Replace with aftermarket Mahle or Victor Reinz kits rated for 250°F+ temperatures; confirm flange alignment with a straightedge before torquing to 11-15 ft-lbs in a spiral pattern. For cylinder head disassembly, unbolt exhaust manifolds first (Torx T-55) to prevent warping; note the left bank’s unique heat shield configuration (part #F6AZ-9462-BA). The serpentine belt routing diagram is stamped on the radiator support–use a 15mm wrench on the tensioner pulley pivot bolt to release slack.
Critical Wear Points & Upgrades
Inspect the upper control arms (Moog CK3070) for bushings with >0.05″ play; aftermarket polyurethane reduces deflection by 38% under 1,200 lb-ft torque loads. The 4R75E transmission cooler lines (part #F8AZ-19703-A) corrode internally after 120K miles–flush with BG PF5 prior to installing stainless steel braided lines (JEGS 40207). For the cooling system, bypass the thermostat housing (Motorcraft RT-1190) and install a 180°F set-point unit if overheating persists; the electric fan relay (Dorman 902-314) fails catastrophically at 14.2V–test with a 10A fused multimeter lead before condemning the PCM. OEM spark plugs (Motorcraft SP-515) gap at 0.054″; iridium upgrades (NGK LFR6AIX-11) extend service intervals to 90K miles but require indexing with a feeler gauge to prevent piston interference.
Finding the 4.6L V8 Powerplant Blueprint for Your Full-Size Sedan
Download the official Ford service manual (ESC-2000) from motorcraftservice.com–section 303-01 covers the modular V8’s internal layout, gasket placement, and bolt torque specs. Avoid third-party schematics; verified OEM files include exact cylinder numbering, coolant passage routing, and sensor positions that aftermarket replicas often mislabel.
Identify all eight cylinders by locating the front timing cover–the passenger-side bank houses cylinders 1, 2, 3, 4 (left-to-right), while the driver-side bank contains 5, 6, 7, 8. The casting number (F6AE-AA) is stamped near the rear exhaust manifold; cross-reference this with the manual’s block diagram to confirm core compatibility before sourcing replacements.
Trace the oil passages first–primary galleries run along the block’s upper rails, feeding lifters and cam journals before branching downward to main bearings. Secondary drilled passages (visible on page 7-12 of ESC-2000) supply piston cooling jets; these require 10mm plugs (part #F6AZ-606A) if servicing the block.
For external component mapping, use the exploded view labeled “Lower Intake Manifold Assembly” in the manual’s subsection B. It details the harmonic balancer, oil pan mating surface, and rear main seal housing–the latter often misaligned during reassembly, causing leaks if the locating dowels (F5AZ-6798-A) are absent.
Print the sectional cutaway (figure 303-01-12) for torque sequence reference: main cap bolts follow a spiral pattern starting at #3, alternating bank-to-bank; rod bolts require 18 ft-lbs pre-torque + 85° final angle. The crankshaft thrust bearing (position #5) must measure 0.001–0.003” clearance–for measurements, use Plastigage PG-1 on journal #3 per Ford procedure WA04-0005.
Step-by-Step Guide to Identifying Fuel System Components in Schematics
Locate the fuel pump assembly first–usually positioned inside the fuel tank. In schematics, it appears as a circular or oval-shaped cluster with electrical connectors branching out. Verify the part number labeled near the illustration; modern V8 models often use part codes starting with “FP” followed by a numeric sequence. If the schematic includes a cross-section view, the pump will sit at the base of the tank, surrounded by the sender unit.
Trace the fuel lines from the pump to the fuel rail. Lines are depicted as continuous or dashed lines, often color-coded–red for high-pressure, black or gray for return lines. Check for annotations like “supply” or “return” to confirm direction. Look for quick-connect fittings near the rail; these appear as small rectangular or triangular shapes interrupting the lines in the schematic.
Verifying Pressure Regulator and Injectors
Identify the pressure regulator on the rail–typically a small cylindrical component with a vacuum line attachment. Schematics mark it with “PR” or a similar abbreviation. Ensure the vacuum line connects to the intake manifold; if absent, the fuel system may operate in a returnless configuration. Injectors appear as individual nozzles with electrical plugs; count them to match the engine’s cylinder count (eight for V8s).
Examine the fuel filter next–a canister-shaped object inserted inline between the tank and rail. Schematics often place it near the rear axle for accessibility. Some models integrate it into the pump housing; if so, the filter will lack a standalone symbol. Check for flow arrows indicating inlet and outlet. Clogged filters frequently cause hesitation; note the micron rating (commonly 10μm) if specified.
Inspect the throttle body and associated sensors. The throttle position sensor (TPS) appears as a small rectangular box with a three-wire connector mounted on the throttle plate. Verify its placement relative to the mass airflow sensor (MAF), usually upstream in the intake tube. Some models omit the MAF, relying on manifold absolute pressure (MAP) sensors instead–look for a small cylindrical shape with a vacuum port.
Diagnosing Common Schematic Errors
Cross-reference schematic symbols with the legend if available. Fuel-rated components often use thicker lines or bold outlines. If the pump lacks an electrical connector in the schematic but the vehicle has one, the diagram may be generic–check revision dates for updates. Look for ghosted outlines of deleted components; these indicate superseded parts still referenced in troubleshooting guides.
For returnless systems, confirm the absence of a return line–the schematic will show a single feed line to the rail. Return-style systems include a secondary line terminating at the tank or near the pump. If the vehicle stalls intermittently, trace the inertia switch (a small square or circle with a reset button)–critical for emergency fuel cutoff. Its location varies but is often near the trunk or firewall.
Compare the ECM or PCM pinout with fuel-related circuits. Fuel pump relays, fuses, and injectors share a dedicated bus bar; schematics mark these with “F/P” or “INJ” prefixes. If voltage tests reveal inconsistent power, isolate the circuit by following wire colors–standards like red/white for pump power and black for ground–back to the fuse block. Always disconnect the battery before probing live connections.
How to Read the Cooling System Schematic for Full-Size Sedan Models
Locate the coolant flow arrows first–these indicate the primary circulation path. On the schematic, the thickest lines represent the main hoses connecting the radiator to the water pump and thermostat housing. Blue arrows typically show cold coolant movement, while red arrows mark heated fluid returning from the cylinder block. Pay attention to the directional symbols; reversed flow signals a blocked channel or faulty valve.
Identify the thermostat bypass circuit–a thinner line branching off near the housing. This loop maintains minimum flow when the thermostat is closed, preventing localized overheating. The bypass often merges back into the upper radiator hose or heater core inlet. Check for a small valve icon near this junction; some models include an auxiliary shut-off for winter heater operation.
Critical Components and Their Symbols
| Symbol | Component | Function | Failure Signs |
|---|---|---|---|
| ⚙️ inside circle | Water Pump | Circulates coolant under pressure | Weeping from weep hole, grinding noise |
| ⏳ with arrows | Thermostat | Regulates coolant temperature | Engine runs cold (stuck open) or overheats (stuck shut) |
| with arrows | Radiator Cap | Maintains pressure, prevents boiling | Coolant spewing from overflow, frequent overheating |
| ➰ zigzag | Heater Core | Provides cabin heat | Sweet smell in cabin, foggy windows with coolant film |
Trace the heater core circuit–it branches from the engine side of the thermostat housing. Two thin lines represent inlet and outlet hoses, usually routed through the firewall. Note the temperature control valve icon; early models use a manual cable, later versions switch to a vacuum-operated actuator. A missing or broken valve causes constant cold air or overheating in stop-and-go traffic.
Inspect the overflow bottle connection–a dotted line links the radiator cap to the reservoir. The bottle should have “LOW” and “FULL” markings; ensure the schematic shows a proper vented return path. If the line terminates abruptly, the system risks airlocks during top-offs. Replace caps every two years–degraded seals reduce pressure retention by 1-2 PSI, lowering boiling point by 3-5°F.
Pressure and Flow Anomalies
Compare hose diameters: the upper radiator hose (1.25″ ID) must be wider than the lower (1.125″ ID) to prevent backpressure. If the schematic shows equal sizes, it’s either a misprint or an aftermarket modification that risks pump cavitation. Check for a “bleeder valve” symbol near the thermostat housing–this small nipple releases trapped air during coolant changes. Absence of this valve requires a three-step fill procedure: engine cold, radiator cap removed, heater set to max.
Verify the auxiliary cooling lines–these thinner hoses (0.5″ ID) feed the transmission cooler and oil cooler if equipped. On the schematic, look for dashed lines leading to a sub-component labeled “AUX” or “OC.” Missing or crimped lines starve these systems, causing torque converter lockup failures or oil breakdown at 220°F+. Measure actual hose lengths; replacements should match original ±0.5″ to prevent kinking at mounting brackets.
