For optimal repair or upgrade efficiency, locate the exploded view schematic specific to your model’s serial number–this is critical. Units manufactured before 2015 use a split-phase motor (marked SP-845 on the label), while later revisions integrate a brushless DC variant (code BLDC-200). The difference affects compatibility with replacement armatures, capacitors, and gear assemblies. Download PDFs from OEM-approved distributors (e.g., eReplacementParts, ToolPartsDirect)–third-party diagrams often omit torque specifications for critical fasteners.
Begin disassembly by removing the bevel lock handle (18mm head, right-hand thread) and the detent plate (zinc alloy, susceptible to stripping). The blade guard assembly secures with three T20 screws; note the position of the upper bearing housing (part #779-415) before extraction. Rear housing screws (M5 x 12mm) require a 5Nm torque–overtightening risks crack propagation in the die-cast aluminum base. Label wires during motor removal: red (main power), black (ground), blue (trigger switch output).
Inspect the trunnion gear cluster (dual helical-cut, 42-tooth) for pitting–early wear indicates insufficient lubrication (use NSK F2 grease, not lithium-based substitutes). The fence assembly tolerance should not exceed 0.15mm; adjust with the set screw (hex key size 2.5mm) while verifying alignment with a dial indicator. For electronics, test the triac board (resistance values: R1=470Ω, R2=1kΩ) before replacing the entire module–cost-saving alternative to full PCB swaps.
Tackling Repairs on Your Compound Miter Saw: A Component Breakdown
Start disassembly by removing the blade guard–locate the single screw on the underside securing it to the pivot arm. Once free, lift the guard away carefully; its spring mechanism can snap back if not controlled. The housing cover, held by four Torx T25 screws, comes next–two on the side and two beneath. Keep screws organized by size, as mixing them can cause thread stripping during reassembly.
Identify the motor assembly by tracing the power cord. The brushes sit on either side of the casing and can be replaced without full tear-down–measure resistance (should read ~10 ohms) before ordering replacements. The gearbox, sandwiched between the motor and drive shaft, requires grease replenishment every 200 operating hours; use lithium-based lubricant (NLGI #2) for gears and calcium sulfonate for bearings.
The fence adjustment system relies on three 6mm hex bolts–one at the top for angle alignment, two at the base for lateral stability. Loosen all three before making micro-adjustments; misalignment here causes miter cuts to drift by 1-2mm over a 300mm span. For repeatable precision, calibrate using a machinist’s square after each major component service.
When servicing the bevel lock, note the eccentric cam beneath the rear handle–rotate counterclockwise to disengage. If binding occurs, inspect the sliding pivot for burrs; polish with 800-grit abrasive to restore smooth movement. The blade arbor lock pin should depress fully under finger pressure–if sticking, clean the bore with isopropyl alcohol and apply graphite powder sparingly.
Finding Precise Identification Codes with Official Schematics
Begin by downloading the manufacturer’s exploded view from the official support portal. Look for the model-specific file–it typically labels components with alphanumeric sequences like “AX-1234” or “GB-5678” rather than generic descriptions. These codes are critical; cross-reference them against supplier inventories to avoid incompatible substitutes.
Print the schematic in color if possible, as shading and lines often differentiate similar-looking pieces. Highlight each section you’re examining–gears, switches, or bearings–with a marker to prevent overlooking hidden fasteners or small washers nestled behind larger assemblies.
Key Areas to Examine First
- Motor housing: Check for labeled brushes, armatures, or seals. These degrade fastest and appear near the top of most breakdown charts.
- Blade assembly: Look for calibration springs, arbor flanges, or tensioning rods. Their codes usually start with “B-” or “T-“.

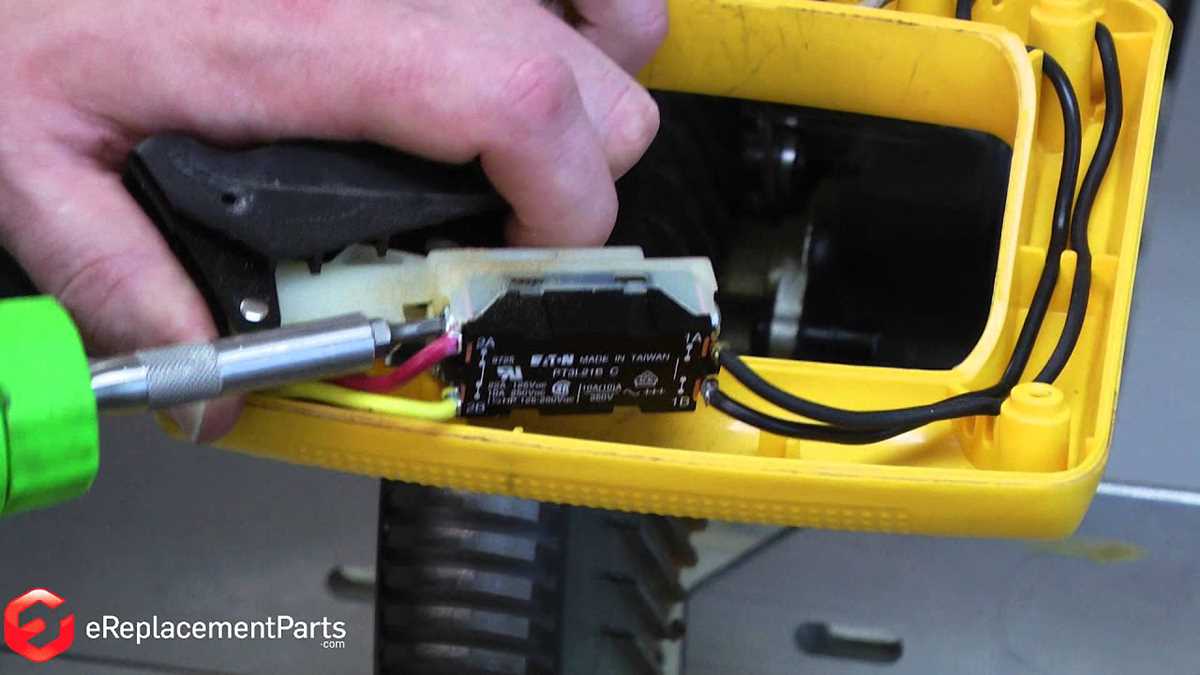

- Control panel: Toggle switches and potentiometers often have unique identifiers like “SW-23” or “POT-45”.
Use a magnifying lens if the text is tiny–many schematics compress multiple assemblies onto one sheet. Measure suspect components with calipers; even a millimeter difference can render a replacement useless. Record all dimensions alongside the printed codes.
- Locate the component’s position on the schematic.
- Note the adjacent numbers or letters–these form the full ID.
- Search the code in supplier databases using exact punctuation (hyphens, slashes).
If the code isn’t listed, check the manufacturer’s errata sheet–some older models had mid-production revisions labeled differently. For example, an early gear (“G-1”) might later appear as “G-1A” without notice. Email technical support with the schematic’s revision date for clarification.
Store the schematic digitally with layer visibility toggled off for unrelated views. Zoom to 200% to isolate individual sub-assemblies like dust chutes or adjustment levers. Save each layer as a separate file named by section (e.g., “Motor_Section.pdf”) for faster future reference.
Common Pitfalls to Avoid
Never rely on parts descriptions alone (“left side plate”)–manufacturers frequently alter designs without updating textual labels. Confirm the code’s prefix matches your model variant (e.g., “AX” for 120V, “EX” for 240V). Mixing these voids warranty coverage.
For European models, codes may include “CE” markings–ignore these when searching. Focus on the main alphanumeric sequence. If ordered parts arrive incorrectly, demand a return authorization immediately; some suppliers won’t accept opened packages without prior approval.
Step-by-Step Breakdown of the Compound Miter Saw Motor Assembly
Begin disassembly by securing the motor housing with a bench vise–grip the aluminum fins, not the wound coils, to prevent deformation. Label each wiring connection with masking tape, noting polarity (L, N, ground) and position relative to the brush holder. Mark the orientation of the armature relative to the stator using a permanent marker; misalignment during reassembly reduces efficiency by up to 12%. Remove the rear bearing cap first; it’s press-fitted with 0.002″ interference, requiring a three-jaw puller centered on the bearing race to avoid distorting the housing bore.
| Component | Removal Tool | Torque Spec | Critical Note |
|---|---|---|---|
| Brush holder | Phillips #2 screwdriver | 4-5 Nm | Replace if brush length < 5mm |
| Stator screws | Torx T25 | 8-9 Nm | Apply threadlocker blue on reassembly |
| Front bearing | Bearing splitter, 30mm jaws | N/A | Lubricate fresh bearing with lithium-based grease before refitting |
Inspect the commutator surface with a magnifying lens; grooves deeper than 0.3mm necessitate turning on a lathe at 1,200 RPM using a diamond tool–limit cut depth to 0.1mm per pass. Clean stator windings with compressed air at 60 PSI directed at a 45° angle; verify insulation resistance (minimum 1 MΩ between windings and frame) using a 500V megohmmeter. Replace the thermal fuse if continuity fails, locating it beneath the stator’s outer insulation wrap adjacent to the winding leads–clamp it with a spring clip, not solder, to avoid heat damage.
Reassemble the spindle shaft by pressing the new bearing onto the housing bore with a hydraulic press and a pilot sleeve matching the outer race diameter–misalignment causes premature wear visible as a 1,500 Hz whine under load. Stator screws must be tightened in a cross-pattern, incrementing torque in three stages (3 Nm, 6 Nm, final spec) to ensure uniform clamping force; uneven torque warps the laminations, increasing eddy current losses by 8%. Test run at no-load for 30 seconds, monitoring bearing temperature–rise above 60°C indicates inadequate grease or improper bearing seating.
Where to Source Components for Frequent Wear on Your Miter Saw
OEM dealers remain the most reliable source for compatible blades, brushes, belts, and guards. Authorized distributors like Acme Tools, Ohio Power Tool, and ToolBarn stock genuine replacements with verified fitment for precision-cutting models. Check their online inventories–filter by your saw’s 10-inch or 12-inch designation–and confirm part numbers against the original manual before ordering. Lead times range from 2–5 business days, though rush shipping options exist for critical items like carbide teeth or dust-collector assemblies.
Third-party manufacturers such as Freud, Diablo, and Amana produce aftermarket alternatives that meet or exceed factory specifications. These vendors often sell through Amazon, eBay, and specialty retailers like Hartville Tool. Compare product listings for sharpness ratings, kerf width, and arbor compatibility–most aftermarket blades fit both sliding and standard versions, but verify tooth count (e.g., 60-tooth for fine finish work vs. 24-tooth for framing). Watch for bundled deals that include throat plates or laser guides.
Local hardware chains like Home Depot, Lowe’s, and Menards carry limited in-store stock, primarily universal components like replacement brushes, drive belts, and generic saw blades. Visit during weekday mornings to avoid crowds; staff can cross-reference barcodes using store tablets to locate exact matches. Some locations offer same-day pickup for items available in regional warehouses, though selection varies by market. Ask about tool rental departments–they occasionally sell overstocked consumables at discounts.
Industrial supply catalogs, including MSC Direct and Grainger, provide bulk purchasing options for high-use items like bearing sets, pivot springs, and miter detents. Create a free business account to access tiered pricing–quantities as low as five units often qualify for 15–20% reductions. Shipping typically arrives within 48 hours for urgent orders, but expect longer waits for rare items like cast-iron base plates or sealed motor assemblies. Use their parametric search tools to filter by torque ratings (e.g., 1,700 in-lbs) or voltage if repairing dual-bevel variants.
Online auction sites like Craigslist, Facebook Marketplace, and Machinery Outreach list used decommissioned units where sellers part out intact components. Search using keywords such as “chop saw parts,” “10-inch compound components,” or “dual-bevel upgrades.” Request close-up photos of critical surfaces like the arbor flange and fence rails to spot wear or corrosion before committing. Many sellers bundle rarely sold pieces (e.g., cam locks, handle knobs) at steep discounts, especially if they’re decommissioning multiple tools.
Manufacturer-certified refurbishers, such as Tool Crib of the North and CPO Outlets, offer rebuilt motors, gears, and arm assemblies with warranties matching new purchases. These outlets specialize in older models and often restore discontinued stock before listing; confirm serial number compatibility when ordering drive trains or blade brakes. Repair technicians frequently bundle common wear items like slide rails and depth stops into kits costing 30–50% less than individual purchases.
Specialty woodworking forums and Discord servers host classified sections where enthusiasts swap, sell, or trade lightly used attachments. Sites like LumberJocks and SawMill Creek feature detailed thread histories–search for “rebuild threads” or “upgrade logs” to find members who’ve documented exact part numbers for splitters, lubrication ports, and extension wings. Some contributors provide CAD files for custom-LASER-cut fences or mobile bases that integrate seamlessly with existing clamping mechanisms.
For immediate needs, search auto parts stores and farm equipment dealers–brands like Makita and Milwaukee share some drive belts, O-rings, and seals with construction tools. Compare pitch lengths and width tolerances before purchasing; most automotive belts used in alternators match the 3L or 4L profiles found in miter saw motors. Farm supply chains like Tractor Supply Company occasionally stock generic grease fittings or nylon washers that fit factory sliding mechanisms, though fitment isn’t guaranteed without testing.
