Locate the engine assembly breakdown in section 3B of the manufacturer’s repair manual–it details every bolt, gasket, and housing connection for the 4-cycle motor. Missing this reference often leads to misalignment during reassembly, particularly with the crankshaft seal and flywheel cover. Use a 10mm socket for the mounting bolts; torque specifications are printed adjacent to each item on the exploded view.
For electrical troubleshooting, focus on the wiring harness schematic labeled “Control Module A.” Check for corrosion at the battery terminal block–clean with a wire brush and apply dielectric grease before reattaching leads. The solenoid diagram shows terminal numbering; label your cables during removal to avoid cross-connections that can blow the 30A fuse.
Replace steering components by referencing the rack-and-pinion subsection. The tie rod ends require a 17mm wrench, while the ball joints need a puller tool–tapping with a hammer risks damaging the spindle threads. Measure alignment angles after installation using a camber gauge; specifications vary between models with leaf springs versus torsion axles.
The brake system illustration distinguishes between hydraulic (front) and mechanical (rear) setups. Bleed the calipers following the sequence on the diagram to prevent air bubbles. Rear drum adjustments require rotating the star wheel until resistance is felt–over-tightening causes premature shoe wear.
Access the transmission assembly via the undercarriage panel. The differential schematic highlights the ring-and-pinion gears; mark them with paint before disassembly to maintain the gear mesh pattern. Lubricate bearings with synthetic 80W-90 oil, but avoid overfilling–the case should be 1/3 full to prevent leaks through the axle seals.
Where to Find Accurate Cart Component Breakdowns
Download the official manufacturer’s exploded view PDFs from the brand’s support portal. Search for the model year–common variations include 1994–2005 carry-over frames vs. 2006+ body styles–filtering for “electrical,” “suspension,” or “powertrain.” Paper manuals cost $25–$40 but often list outdated part numbers; verify replacements against current online catalogs before ordering.
Decoding Common Assembly Errors
If the rear leaf springs sag, swap only identical-length replacements–aftermarket kits vary by 0.25 inches, throwing wheel alignment. Measure unloaded eye-to-eye distance first; stock specs for 48V models sit at 28.5 inches. Bolts securing A-arms must meet 45 ft-lbs torque; under-tightening causes clunking over bumps, while over-torquing strips 6mm threads.
Label every removed bracket with masking tape noting orientation; front bumper mounts rotate left vs. right, but share identical bolt patterns. Hydraulic drum brakes usually leak at cylinder seals, requiring rebuild kits priced at $12; soak new seals in DOT 4 fluid 30 minutes pre-installation to prevent premature failure.
Where to Locate Manufacturer-Approved Golf Cart Component Schematics
Begin with the official manufacturer’s resource center, accessed directly via ezgo.com/owners/resources. This portal houses downloadable PDF schematics for every model variant produced since 2000, organized by year, serial number ranges, and functional assemblies. Registration is required but free; your serial plate data unlocks exact revision documents.
The Parts Lookup Tool embedded in the portal enables precise filtering. Input your vehicle’s production month and chassis code to retrieve factory-authorized exploded views. Each illustration includes annotated SKUs, torque specifications for fasteners, and OEM-replacement cross-references. Offline access is supported by saving PDFs; file sizes rarely exceed 2MB, ensuring quick downloads even on mobile networks.
Distributors under contract maintain mirrored archives. Authorized dealers like Pitstop Golf Cars and Golf Cart Tire Supply host identical schematic databases with additional warranty-compliance notes. Their platforms often integrate pricing widgets alongside diagrams–verify URL parameters to exclude promotional filters if seeking purely technical documents.
Comparison of Schematic Access Methods
| Source | Authentication | Update Frequency | Data Depth | Cost |
|---|---|---|---|---|
| Manufacturer Portal | Serial-based registration | Quarterly | Full OEM specs + torque values | Free |
| Authorized Dealers | None | Weekly | Exploded views with SKUs | Free |
| Third-Party Aggregators | Email submission | Variable | Limited to physical layouts | Subscription (average $9.99/mo) |
Obscure pre-2010 models benefit from enthusiast-curated forums. Buggies Gone Wild archives user-uploaded scans of rare paper manuals, cross-verified by serial number checks. Moderators tag threads with “Schematic Request” for targeted searches; response times average under 24 hours for documented variants. Exercise caution with CAD-derived schematics–they lack OEM validation stamps.
For emergency repairs, mobile apps like CartPro (iOS/Android) bundle compendiums of historical revisions. Their offline mode caches schematics based on GPS-detected dealer locations; battery consumption spikes during initial sync but stabilizes afterward. Network latency from rural areas may delay downloads; opt for low-resolution PNG exports if bandwidth is constrained.
Breaking Down Your Golf Cart: A Precision Guide
Begin by locating the main battery pack cover beneath the seat. Remove the securing bolts with a 10mm socket–most models use four, but verify against the schematic’s fastener count. Lift the cover straight up to avoid damaging the wiring harness beneath. Note the orientation of cables; label each terminal connection with masking tape to streamline reassembly. Misaligned reconnection can prevent startup or damage voltage regulators.
Next, tackle the rear bench. Flip the seatback forward to expose the hinge mechanism. Two 12mm bolts secure the frame to the chassis–support the weight while loosening to prevent sudden drops. Slide the entire assembly rearward slightly before lifting free. Check the schematic for hidden latches or alignment pins in this area; overlooking these can bend mounting brackets during removal.

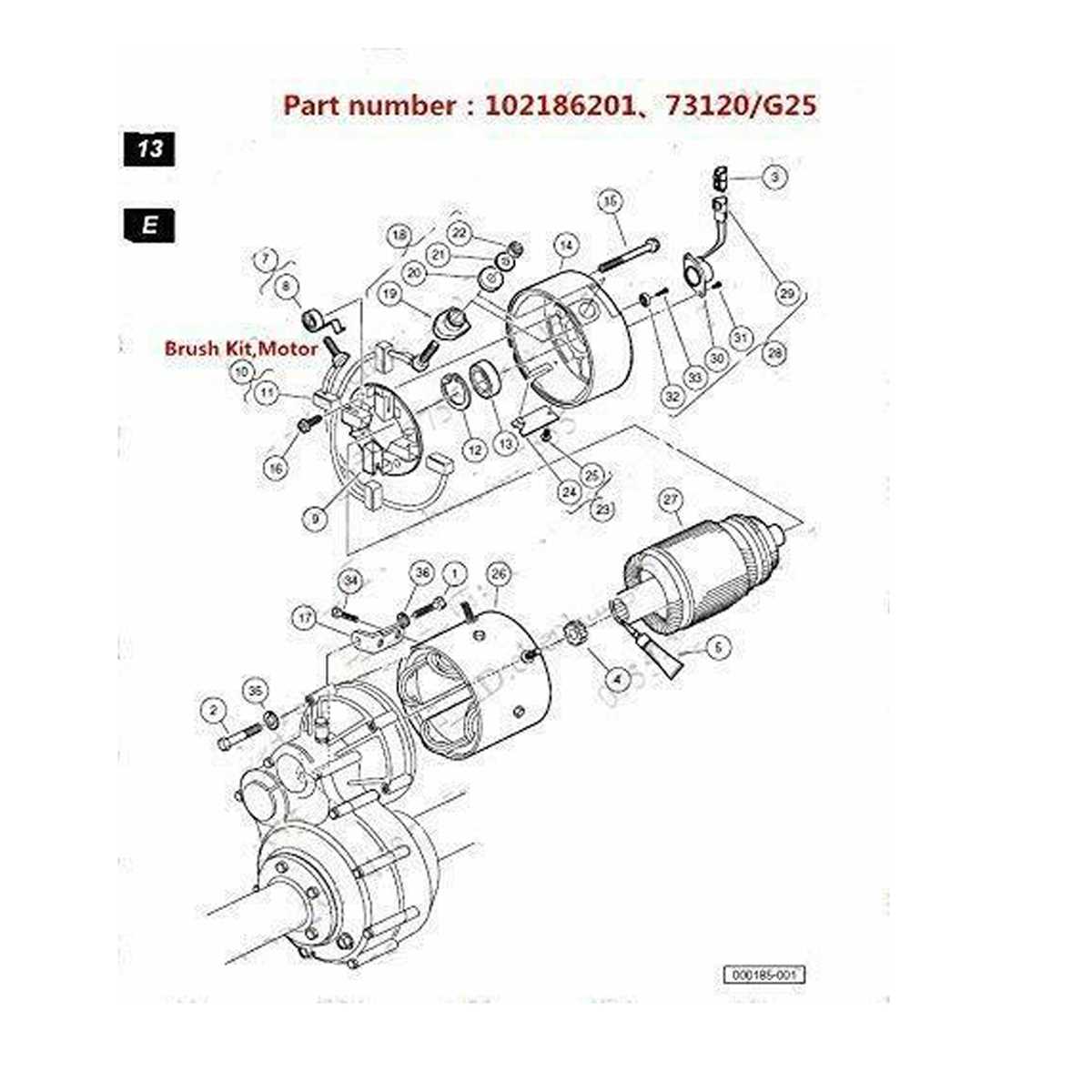

Disconnect the motor by first isolating power. Switch off the main breaker (if equipped) or disconnect the negative battery terminal. Remove the motor shroud–typically held by six Phillips screws–and set aside. The drive cable connects via a slip-fit terminal; pull straight out with firm, even pressure. Avoid twisting, as this can damage internal brushes. Reference the exploded view to identify the motor mount bolts before removing; some models use torque specs exceeding 30 ft-lbs.
To access the differential, remove the rear wheels. Loosen lug nuts before jacking up the cart to prevent wheel spin. Mark the original bolt positions on the brake drums–offset patterns matter for alignment. The differential cover bolts (usually 13mm) require a breaker bar; apply penetrating oil 15 minutes before removal if corrosion is present. Slide the axle shafts out gradually, noting shim placement for proper gear mesh during reinstallation.
- Drain all fluids before disassembling hydraulic components. The schematic shows reservoir locations–typically beneath the pedal assembly. Use a catch pan; some fluids may spray unexpectedly if seals are compromised.
- Inspect brake lines during removal. Trace each line to the master cylinder in the schematic; kinks or fractures will cause braking failure. Replace copper washers on fittings if leaks appear.
- Front suspension struts require a spring compressor. Do not attempt removal without one–compressed springs store lethal energy. Match thread pitch to the exploded view specifications.
When removing the steering column, first detach the key switch connector. The wiring colors correspond to the schematic’s pinout diagram–mismatches can fry the ignition module. The column clamp bolt (often 15mm) may be recessed; use a swivel socket. Slide the entire assembly up and out, rotating slightly to clear the shift selector if equipped. Check the steering rack for worn bushings before proceeding further.
Reassembly follows the reverse order, but verify torque specs against the service manual. Critical fasteners–like wheel bearing nuts–require precise tightening (typically 45 ft-lbs). Reconnect battery terminals last, ensuring polarity matches the labels from disassembly. Test each system progressively: lights, forward/reverse, and brakes before full operation. Consult the schematic’s troubleshooting section for fault codes if issues persist.
Locating Key Golf Cart Model Components Using Illustrated Guides
Begin by examining the rear assembly where the motor mounts to the chassis. Most electric cart schematics label this section with a numeric or alphanumeric code–typically found near the axle casing. Verify the exact model year first, as mounting brackets vary between early and late production runs. Misalignment here often causes excessive vibration during acceleration.
Trace the wiring harness along the undercarriage toward the controller housing. The main power cables–usually red (positive) and black (negative)–connect to bolt terminals with heat-shrink tubing. Look for fuse holders inline near the battery tray; blown fuses here interrupt current flow without visible damage. Replace fuses only with identical amperage ratings to prevent electrical fires.
Check the steering column assembly by removing the plastic shroud. The input shaft connects to a series of universal joints labeled in descending size toward the front wheel spindle. Worn joints produce a clunking noise when turning; lubricate with lithium-based grease every 500 operational hours or replace entirely if play exceeds 3mm.
Suspension and Drive Train Verification
Inspect the leaf springs for cracks–common failure points at the third leaf from the top. Each spring set should have uniform tension; uneven sag indicates weak or broken leaves. Torque U-bolts to 45-50 ft-lbs after reinstalling; overtightening distorts the axle alignment.
The transaxle typically appears on the left side of the rear axle when facing forward. Identify the differential fluid fill plug–marked with a hex-head bolt–before checking levels. Synthetic 80W-90 gear oil lasts longer than conventional blends in frequent stop-and-go usage. Drain plugs sit lower than fill plugs to prevent overfilling.
Finally, assess the braking system by rotating the rear wheels while engaging the pedal. Squealing noises signal glazed brake shoes; remove and lightly sand the friction surface to restore performance. Hydraulic brake lines should have no visible swelling or leaks–replace immediately if bulging occurs. Caliper pistons require periodic adjustment to maintain even pad wear.
