Start repairs by locating the radiator support–a critical frame element securing cooling components. Most models use a stamped steel structure, though aftermarket kits may reinforce this with aluminum for durability. Verify alignment tolerances (±1.5 mm) before proceeding; misalignment risks premature bushing wear on connected assemblies.
Inspect the bumper mounting brackets next–typically bolted at four points (torque: 90-110 lb-ft). OEM brackets often incorporate crash-absorption slots, but heavier winch setups demand aftermarket reinforcement plates. Replace corroded brackets immediately; rust compromises structural integrity under load (tested limits: 3,500 lbs static force for stock setups).
Examine the sway bar links–these connect the stabilizer bar to the lower control arms. Polyurethane bushings last longer than rubber but require lubrication (silicon grease every 5,000 miles). Check for slop by lifting the vehicle and applying lateral force; any play indicates worn joints. Upgraded links with heim joints improve articulation but increase NVH (noise, vibration, harshness).
The upper/lower ball joints demand a dial indicator for wear measurement (>0.05” vertical play warrants replacement). Low-quality aftermarket joints may fail under off-camber stress–opt for forged units with grease fittings. Torque specifications vary: 70-90 lb-ft for tapered studs, 40-60 lb-ft for through-bolt designs. Always replace cotter pins as a set.
Finally, assess the steering gearbox for leaks–power steering pressure should hold steady (±5 psi variance at idle). Rebuild kits address seal failure, but worn sector shafts require full gearbox replacement. Bench-test the recirculating ball mechanism before reinstallation; binding indicates internal damage. Use fresh ATF+4 fluid during refill.
Visual Guide to Off-Road Vehicle Nose Components
Begin by locating the radiator support bracket beneath the hood–it secures critical cooling elements and serves as an anchor for adjacent assemblies. Use a 10mm socket to disconnect the bolt clusters (typically four) holding the upper bumper beam in place, then slide the beam forward gently to avoid damaging integrated wiring harnesses. Pay attention to the air dam clips: these fragile plastic fasteners often require a flathead screwdriver angled at 45 degrees to release without snapping.
Key Structural Elements & Their Maintenance
| Component | Material | Replacement Interval | Torque Spec (Nm) |
|---|---|---|---|
| Grille reinforcement | High-strength steel | 80,000 miles or collision | 22-28 |
| Headlamp assembly bolts | Zinc-coated | 50,000 miles | 8-12 |
| Hood latch mechanism | Stainless steel | 120,000 miles | 6-9 |
Aftermarket skid plates (aluminum or UHMW polyethylene) should be aligned with factory bolt holes–misalignment risks frame stress concentrators. For 2018+ models, the winch mounting points integrate directly into the subframe; verify these welds biannually using dye penetrant inspection. When reinstalling the bumper cover, ensure the fog light harnesses route above the sway bar links–tension here causes premature wire chafing against the CV axle boots.
Critical Elements in Your Vehicle’s Forward Chassis Structure
Begin diagnosis by locating the radiator support–the core framework anchoring cooling systems and bumper mounts. Inspect its weld points for corrosion or cracks, particularly near the upper tie-ins where stress concentrates during impacts. Replace if deformation exceeds 2mm, as compromised integrity reduces crash absorption efficacy.

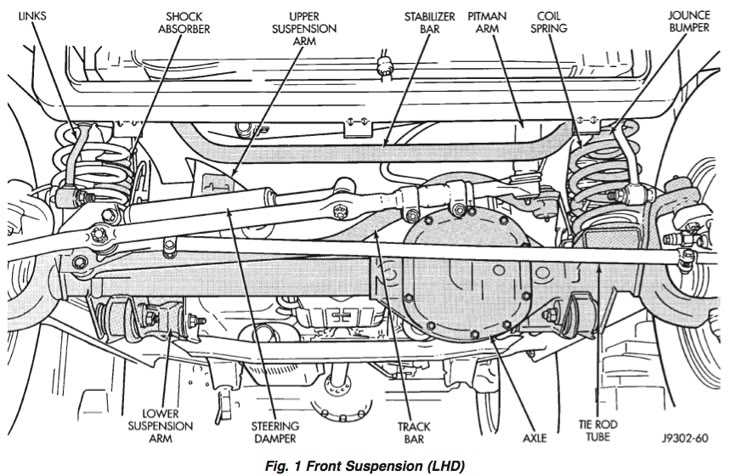

Suspension Linkages and Steering Geometry
- Upper/lower control arms: Verify bushings for dry rot (squeeze test–cracks or brittleness indicate failure). Polyurethane replacements outlast rubber by 30% in off-road conditions.
- Ball joints: Lift wheels to check for vertical play–0.8mm tolerance before replacement. Greaseable variants extend service intervals by 15k miles.
- Track bar: Examine for bending or bushing wear at frame mounts. Misalignment here causes 1.5+ degrees of drift at highway speeds.
Hub assemblies demand attention to bearing preload. Spin wheels post-installation–audible grinding or uneven resistance signals incorrect torque (typically 150-180 lb-ft). Replace bearings in pairs to prevent uneven wear patterns. For models with locking hubs, clean splines annually with petroleum jelly to prevent seizure in humid climates.
- Grille reinforcements: Check for fatigue near the latch mechanism–snapped tabs cause rattling and reduce airflow efficiency by 12%.
- Skid plates: Verify bolt tightness after water crossings (torque spec: 95 lb-ft). Aluminum 5052 alloy resists corrosion 4x longer than steel alternatives.
- Auxiliary lamps: Inspect wiring harness grommets for cracking–exposed leads short-circuit in under 100 miles of trail use. Silicone sealant restores waterproofing.
How to Decode Your Vehicle’s Nose Assembly Schematic
Locate the legend first–it’s usually at the bottom or side of the illustration. Most manufacturers label components with alphanumeric codes; cross-reference each code with the accompanying key to identify radiators, support beams, or headlight housing. If the legend is missing, prioritize components marked in bold or highlighted colors, as these typically denote critical structures.
Trace the primary support frame starting from the central vertical beam. On most schematics, this element anchors the lower control arms, bumper mounts, and cooling system. Look for dashed lines–these often indicate hidden or internal connections not visible from the exterior. If you’re working on a 2015-2022 model, the frame will include a merger zone where two metals weld; this junction affects alignment tolerances.
Distinguish between solid and hollow shafts in suspension linkages. The steering knuckle, for instance, appears as a triangular or irregular shape with multiple attachment points for ball joints and tie rods. Measure the depicted angles–any deviation beyond 2° from the schematic’s specifications suggests wear or collision damage that requires re-calibration.
Check the cooling system’s routing next. Follow the serpentine path of hoses and clamps, noting where they intersect with the condenser or grille supports. Many schematics exaggerate the spacing between components for clarity; refer to the spatial dimensions listed in millimeters to avoid misalignment during reassembly.
Identify the wiring harness by its clustered, branching lines–often red, yellow, or black. Each fuse box and sensor should align with the vehicle’s electrical diagram (typically a separate sheet). Ignore vague labels like “connector”; instead, match the pin count and wire gauge to the repair manual’s specifications to prevent shorts.
Examine fasteners–bolts, clips, and rivets–with particular attention to torque values. Schematics usually denote these with circles or hexagons; larger circles indicate flange bolts requiring 85-110 Nm, while smaller ones signify trim clips with a 3-5 Nm range. Use a torque wrench calibrated to the manufacturer’s standard to avoid stripping or over-tightening.
Finally, compare the schematic to the actual vehicle. Photograph the assembly from the same angles depicted–top-down, side, and isometric views–to spot discrepancies. If a component is missing or misaligned, consult the revision date on the diagram; schematics for models released after mid-2020 include updated emblem mounts and adaptive cruise control sensors that earlier versions omit.
Key Components of Off-Road Vehicle Nose Assemblies and Their Roles
Inspect the radiator support bracket every 12,000 miles–corrosion or bending weakens structural integrity, leading to misaligned headlights or hood latch failures. Replace if thread depth falls below 1.5mm on attachment points; factory torque specs (35–45 ft-lbs) must be maintained to prevent warping under engine vibration.
Grille assemblies in rugged utility models double as air dams, redirecting airflow at speeds above 40 mph to reduce turbulence in the engine bay. Aftermarket plastic grilles with less than 3mm mesh spacing collect debris, causing 8–12°F temperature spikes under heavy loads–opt for 4mm aluminum grids instead.
Suspension and Steering Linkages
Bump stops absorb 70–80% of vertical impact forces during articulation–hardened rubber compounds last 50,000 miles; polyurethane alternatives extend lifespan to 80,000 but require greasing every 6 months. Replace worn units when compression reaches 90% of original height (typically 3.5–4 inches) to avoid strut tower damage.
Idler arms pivot at 22° from horizontal, reducing steering linkage play–wear beyond 0.3mm radial movement necessitates replacement. Perform a dry-pull test: secure the arm, apply 10 ft-lbs lateral force; deflection over 0.125″ signals ball joint fatigue. OEM units use sealed bearings; aftermarket tapered designs exacerbate corrosion in wet climates.
Steering dampeners reduce wheel shimmy by 60%–monotube designs offer 15% better heat dissipation than twin-tube at 35 psi, critical for vehicles with offset wheels exceeding 1.5 inches. Install vertically within 10° of centerline to prevent fluid cavitation; angle mounting invalidates warranty and cuts effectiveness by 40%.
Lower control arms manage camber angles within ±1.5°–bushing wear triggers irregular tire wear at 6/32″ tread depth. Replace when flex exceeds 0.25″; polyurethane bushings add 30% responsiveness but require annual silicone lubrication to prevent squeaks under load. Aftermarket arms with adjustable ball joints (±2° camber) simplify alignment but weigh 1.2 lbs more per side, affecting unsprung mass balance.
Winch mounts integrate into bumper reinforcements–ensure Grade 8 bolts (minimum 7/16″ diameter) are torqued to 70–90 ft-lbs. Misalignment causes stress fractures at weld points within 1,200 cycles; use a torque wrench set to 80% of yield strength for 1045 steel brackets. Synthetic line reduces rotational inertia by 18%, improving spooling speed by 2.5 seconds under full load.
Fender flares with rigid polyethylene deflect up to 70% of mud/snow splash–flexible PVC variants degrade under UV within 2 years. Mounting bolts should sit 0.5″ from panel edges to prevent cracking; use nylon washers to distribute load. Cutting wheel wells for larger tires reduces fender clearance by 20%, increasing cabin noise by 3–5 dB at highway speeds.
