Start by identifying the door assembly latch (WPW10597359) if your unit fails to start or stalls during cycles. This switch, positioned near the control panel, often wears out after 3–5 years of regular use–especially in models with frequent heavy loads. Replace it by removing the outer door panel (six Torx #20 screws) and disconnecting the wiring harness first. Test continuity with a multimeter (0 ohms = functional) before reinstallation.
For drainage issues, inspect the fine filter (WPW10196664) and chopper assembly (W10737819) every 3 months. These parts trap food debris and require cleaning to prevent clogs that trigger error codes like F7/E7. If the filter is cracked or the chopper blades are dull, order replacements–original components last 2–3 times longer than universal alternatives. During reassembly, align the filter’s coarse mesh with the sump opening (misalignment causes leaks).
When the heating element (WPW10597242) malfunctions–detected by lukewarm water or extended cycles–check resistance (20–40 ohms = normal). Models with built-in water heaters use a single-element design; replacements cost $45–$75, but labor increases if the internal tub seal (WPW10405332) requires replacement simultaneously. Always disconnect power and water supply before servicing electrical components.

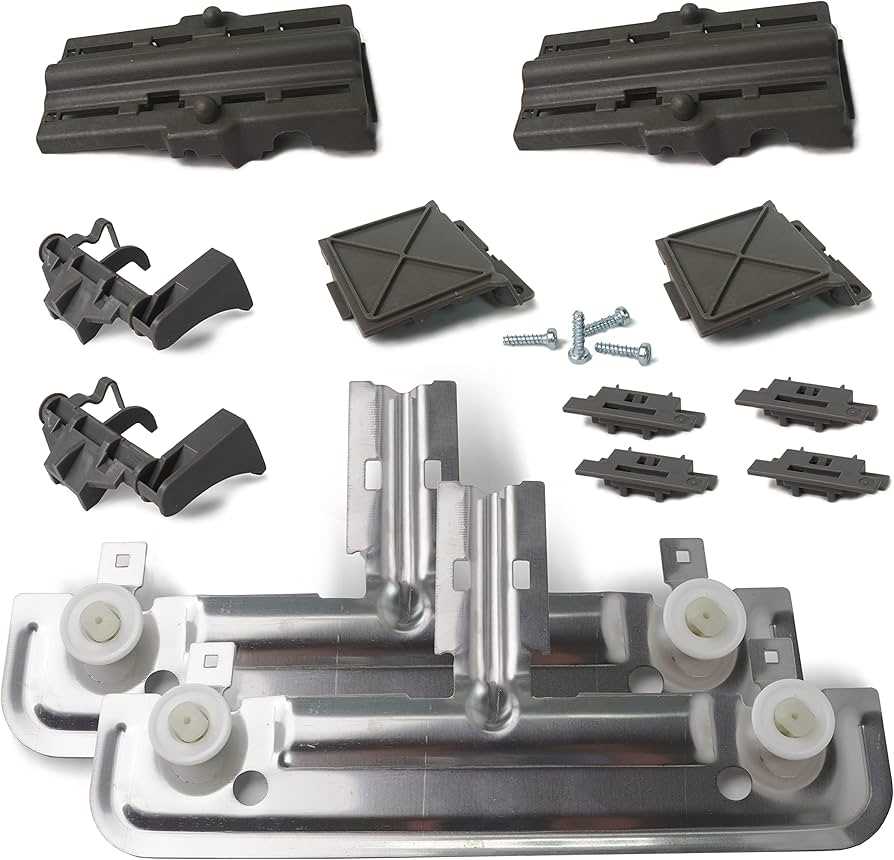

For upper rack functionality, verify the telescoping rail kit (WPW10546338). These rails bend easily under loads exceeding 20 lbs. If bent, replace both sides to maintain alignment–mismatched rails cause jams. Lubricate rollers with food-grade silicone grease during reassembly to extend lifespan. Lower rack wheels (WPW10196006) should rotate freely; seized wheels indicate worn bearings, requiring full wheel unit replacement.
To access the circulation pump (WPW10510594), remove the kickplate and disconnect the drain hose first. Failed pumps often produce loud whining noises or leave dishes dirty. Test with a multimeter (100–250 ohms = functional); if faulty, replace the entire pump assembly–individual components like impellers are rarely sold separately. Use plumber’s putty on the pump gasket to prevent leaks.
How to Locate and Replace Components in Your Built-In Dishwasher Model
Begin by securing the lower access panel–remove the toe kick by unscrewing the two front fasteners. This exposes the pump assembly, motor, and drain lines. Use a 1/4-inch nut driver for the screws; forcing them risks stripping the threads on newer units.
Identify the wash impeller by its stainless steel hub and six vanes. The part number, typically etched on the upper face, should match the schematic: 8193008 for the original OEM version. If corrosion is visible on the hub, replace the entire circulation pump rather than just the impeller–marginal performance gains rarely justify the labor.
For door latch issues, pry off the inner door liner using a plastic wedge. The micro-switch and spring-loaded catch sit above the control panel. Disconnect the wiring harness at the tab lock connector before removing the two screws that hold the latch mechanism. A multimeter set to continuity will confirm switch failure–replace only if readings exceed 0.5 ohms.
Electrical Components and Wiring Checks
The control board resides behind the top panel; remove the six Torx T20 screws securing it. Once exposed, check the ribbon cable connection–oxidation here causes intermittent power loss. Clean contacts with isopropyl alcohol on a lint-free swab. If the board shows bulging capacitors or scorch marks, order the exact replacement version W11175832; third-party boards frequently lack proper firmware calibration.
Heating elements are accessed via the base pan under the tub–lower the entire unit onto its back, then remove the ten-amp fuse protecting the heating circuit before probing. Resistance values should read between 20-30 ohms; anything below 15 ohms indicates internal shorting. Always disconnect household power at the breaker prior to any electrical test.
Spray arms require no tools for removal–rotate the upper arm counterclockwise until the bayonet lugs align and lift straight up. Inspect nozzles for lime scale; soak the arms in white vinegar for 30 minutes if flow reduces. The lower arm’s bearing assembly rarely fails, but if noise develops, replace the entire arm rather than attempting to lubricate the worn bearing.
Seal and Tub Maintenance
Replace the door seal annually if water drips from the lower edge during pre-wash. Peel the old gasket away from the tub flange; clean the groove with a cloth dampened in hot water. Press the new seal into place, ensuring the arrow on the seal aligns with the dishwasher’s right side. Run an empty cycle with dishwasher cleaner tablet to verify no leaks around the door hinge tension points.
How to Find the Authorized Service Manual for Your High-Capacity Dishwasher Model
Begin your search on the manufacturer’s support portal by entering the exact product serial number–usually found on the interior side panel or rear frame. This bypasses generic search results and directs you to the precise schematic for your appliance variant. The official site organizes documentation by model revision, so even minor suffix differences (e.g., “SAHZ0” vs. “SAHZ1”) yield distinct diagrams.
If the portal’s search function fails, navigate manually via the product category hierarchy: Appliances > Dishwashers > Built-In Models > 24″ Stainless Steel > [Your Unit]. This path filters out irrelevant exploded views for freestanding or compact units, ensuring you retrieve only the correct set of technical drawings.
- Locate the “Downloads” or “Manuals” tab–often positioned near warranty information.
- Select “Exploded View” from the dropdown menu, not “User Guide” or “Installation Instructions.”
- Verify the file’s date: schematic updates are released annually, so prioritize the latest version (2023 or newer).
For offline access, download the PDF and save it with a filename reflecting the revision (e.g., WDT970SAHZ0_RevB_2023.pdf). Store it in a dedicated folder alongside the owner’s manual and wiring schematics to consolidate all maintenance resources. Third-party hosting sites often repackage official documentation with malware; rely solely on the OEM’s domain.
Alternative Sources (Use With Caution)
If the manufacturer’s portal is inaccessible, authorized repair centers maintain private archives. Contact a local service provider–some offer PDF diagrams for a small fee, provided you confirm your appliance’s model number and purchase date. Specify you need the full breakdown, not just the parts list, as some centers truncate diagrams for simplicity.
- Search industry-specific forums (e.g., ApplianceBlog or iFixit)–members often upload scans of rare schematics.
- Cross-reference uploaded files with the indexing system from the official site to ensure accuracy.
- Avoid “universal” diagrams; these lack model-specific components like the turbidity sensor or detergent dispenser linkages.
For physical copies, check with specialty parts distributors–some ship printed exploded views as part of replacement kit orders. Request the “field service version”, which includes annotations for assembly torque specs and lubrication points, omitted in consumer-facing documents.
Locating Service Components by Reference Codes in the Technical Blueprint
Begin by cross-referencing the alphanumeric labels on the appliance’s inner panel with the illustrated layout. Each component–whether a pump, sensor, or gasket–is tagged with a distinct identifier (e.g., W10340123 or WP8270190) that directly corresponds to its position in the schematic. Verify these markings against the exploded view sections, where assemblies are broken down into individual elements. For instance, door mechanisms are often clustered under panel A-5, while the detergent dispenser falls under B-3.
The control board (label WP8274138) appears in zone C-1, adjacent to the power module (WP8270190) and thermal fuse (WP34001666). Misidentification often occurs when these proximities aren’t checked–confusing the fuse with nearby wiring harness clips (e.g., WPW10898741). To avoid errors, match the shape and pin configuration in the blueprint: the fuse has two flat terminals, while the harness clips feature locking tabs.
| Reference Code | Component Name | Schematic Zone | Key Characteristics |
|---|---|---|---|
| WP8274138 | Control Board | C-1 | Multi-pin connector, heat sink |
| WP8270190 | Power Module | C-1 | Rectangular housing, mounting holes |
| WPW10898741 | Wiring Harness Clip | C-2 | Plastic frame, snap-fit design |
| WP8578649 | Circulation Pump | D-4 | Impeller housing, inlet/outlet ports |
Water inlet valves (WPW10596644) and their solenoid coils (WP225324) are grouped in section E-2. The valves share a similar cylindrical profile, but the coils can be distinguished by their voltage rating–marked on a sticker–where 120V units differ from 240V variants. Replace only components with matching specs; installing an incompatible coil risks damage to the internal relay system.
For filter assemblies, note the dual-stage design in zone F-3: the coarse mesh (WP3388636) precedes the fine microfilter (WPW10899669). Reversing their order disrupts flow rates, triggering error codes like F7-E1. The microfilter’s housing includes a tamper-evident ring, absent on the coarse mesh, which must remain intact during reinstallation to maintain pressure integrity.
Step-by-Step Disassembly for Accessing Internal Components in Your High-Capacity Dishwasher
Before beginning, disconnect the appliance from power and water supply lines. Lay the unit on its back using sturdy padding to prevent scratches or damage to the exterior finish. Remove the lower kick plate by releasing the four locking clips–two on each side–using a flat-head screwdriver to pry them outward gently. Set the plate aside.
Locate the toe kick mounting screws beneath the door panel; these secure the outer shell. A Torx T20 bit is required–remove all six screws, keeping track of washers if present. Lift the front panel upward by sliding it forward at a 30-degree angle until the clips disengage from the frame. Support the door assembly to avoid strain on the hinge mechanism.
Inside the cavity, identify the circulation pump and heating element assembly. Disconnect the wiring harnesses by pressing the release tabs–mark each connector with colored tape to simplify reassembly. Remove the four 5mm hex bolts securing the pump housing to the base. Rotate the pump assembly counterclockwise 90 degrees to free it from the drain hose coupling, then lift straight out.
To access the control module, peel back the adhesive-backed insulation covering the upper left corner of the tub. Unscrew the single Phillips #2 screw holding the electronic control board bracket in place. Slide the board upward from its guide slots, taking care not to bend the delicate ribbon cables. For thermal fuse replacement, unclip the snap-fit terminal on the rear of the tub wall.
Examine the spray arms next. The lower arm removes by turning the center retaining nut counterclockwise with pliers–use a rag to prevent slippage. The upper arm requires removal of the rack assembly first; lift the rack past the stop point and pull outward. Depress the tabs on the arm’s hub while rotating it slightly to release. Check both arms for clogged jets or wear on the bearing surfaces.
For tub interior components, detach the detergent dispenser by removing three screws along the door edge. Disengage the linkage rod from the door catch mechanism before lifting the dispenser free. Lower spray tower removal involves unscrewing two hidden screws behind the lower rack guides–slide the tower upward after releasing the internal clips.
Reassembly follows the reverse sequence. Apply thread-locking compound to pump housing bolts to prevent vibration loosening. Reconnect wiring harnesses only after confirming secure clicks–test functionality by running a rinse cycle before restoring full water and power connections.
