For immediate troubleshooting, begin with the radiator assembly–positioned directly behind the grille. This component includes the cooling fan, condenser, and upper/lower mounting brackets, secured with 10mm bolts. Misalignment here often causes overheating; verify torque specs (8-12 ft-lbs) if leaks or vibrations occur.
The headlamp housing consists of three subcomponents: the lens, bulb socket, and adjustment motors. Access requires removing the plastic shroud (five T20 Torx screws). Check the wiring harness for corrosion–common after 60,000 miles–especially near the fuse box connector (located behind the left inner fender).
Isolate the bumper reinforcement beam by detaching the air ducts (two clips) and fog light assemblies (12mm bolts). The beam links to the frame via impact absorbers–replace these if cracks appear, as structural failure compromises crash safety. Use a torque wrench (35 ft-lbs) during reassembly to prevent warping.
The hood latch mechanism involves a primary release cable and secondary safety hook. Lubricate both with graphite powder or dry silicone spray every 24 months to avoid stiff operation. The cable’s sheath often frays near the firewall; splice repairs rarely last–opt for OEM replacements (part #73400-69010).
For the suspension crossmember, note the control arm bushings (inspect for bulging) and stabilizer bar links (listen for clunks). These wear faster in climates with road salt–use polyurethane bushings for longevity. The rack-and-pinion unit sits above, secured by three 14mm bolts; leaking seals here require immediate attention (fluid leaks mimic power steering failure).
Vehicle Nose Assembly Component Breakdown
For precise identification of assembly elements on a 2020–2023 sedan model, reference the official collision repair manual section CR-14B. Locate these components using OEM part codes: radiator support (53101-33201), hood latch (63140-33010), and bumper reinforcement (51095-33010). Replace only after verifying part compatibility with VIN-specific build sheets–mismatches in grille surround mounting points (53111-33230) often lead to improper fitment.
Key Replacement Workflow
| Component | Torque Spec (Nm) | Critical Alignment Points | Tool Required |
|---|---|---|---|
| Upper tie bar | 25 ± 3 | Match to condenser bracket slots | 10mm deep socket |
| Headlight housing | 7–9 | Ensure lens level at fender gap (≤1.5mm) | T25 star bit |
| Lower impact absorber | 18–22 | Verify crush box engagement | 14mm wrench |
When swapping the condenser (88440-33070), disconnect the A/C pressure switch first–failing to do so risks refrigerant discharge. Always cross-check fastener lengths against the service bulletin MT-058: threaded holes in the hood frame are prone to stripping if over-tightened beyond 12Nm. For vehicles equipped with adaptive cruise, recalibrate the radar module (88180-33401) using Techstream v18.1 after reinstalling the lower cover panel.
Critical Elements in the Sedan’s Anterior Framework
Begin by locating the radiator support, a reinforced structural member positioned at the vehicle’s nose. This component anchors the cooling system and absorbs minor impacts–inspect for corrosion near weld points, particularly in models manufactured before 2015, where galvanization was less consistent. Replace if deformation exceeds 5mm or if mounting holes exhibit elongation.
The upper and lower control arms govern wheel alignment and suspension geometry. The lower arm on most V40-V60 platforms integrates a ball joint pre-loaded to 8–12 Nm; over-torquing accelerates wear. When servicing, prioritize aftermarket arms with forged steel bushings–rubber variants degrade rapidly in climates with temperature swings exceeding 20°C daily. Verify camber angles post-installation; misalignment beyond ±0.5° reduces tire lifespan by up to 30%.
Headlamp assemblies on newer facelifts (2018+) employ adaptive LED modules with separate daytime running light housings. Disconnect the battery before handling–residual voltage in the auto-leveling system can damage calibration sensors. For halogen-based predecessors, replace bulbs in pairs; uneven lumen output disrupts oncoming traffic detection systems. Secure housing clips with dielectric grease to prevent moisture ingress, which causes premature reflector degradation.
The hood latch cable, often overlooked, should be inspected for fraying near the firewall grommet. A snapped cable necessitates interior panel removal–avoid jerky pulls during testing, as this can dislodge the secondary safety latch. Lubricate pivot points with PTFE spray; lithium-based grease attracts grime and binds under heat cycles. Consider upgrading to a billet aluminum release handle if frequent access is required.
Condenser coils suffer from micro-perforations due to road debris. Flush with a dedicated cleaner (pH-neutral) before refrigerant recharge; standard degreasers leave residues that impede heat exchange. For models with turbocharged engines, verify intercooler fins are unobstructed–blockages reduce efficiency by 12–18% at highway speeds. Use a fin comb to realign bent fins rather than replacing the entire unit.
The bumper reinforcement beam, typically made from high-strength steel, should be checked for micro-cracks using a flashlight at a 45° angle. Repairs are impractical–replace if cracks exceed 2cm. Aftermarket alternatives made from thermoplastics offer weight savings but lack energy absorption equivalent to OEM designs. Ensure tow hook cover is securely fastened; rattles here indicate improper torque on underlying bolts.
Power steering coolers, when present, often clog with sludge after 80,000 km. Flush the system with a dedicated fluid (compatible with synthetic esters) before replacing–universal fluids attack hoses in VZ-series engines. For hybrids, inspect the inverter coolant pipes for abrasion against the chassis; reroute if contact is detected. Use OEM-spec clamps when securing lines–generic clamps corrode faster and may loosen under vibration.
Step-by-Step Method to Locate and Replace Headlight Assemblies Using Visual Guides
Disconnect the vehicle’s battery before handling any electrical components. Remove the retaining clips or screws securing the protective cover behind the headlamp housing–typically three to five fasteners, depending on the model year. Gently pry the cover away with a plastic trim tool to avoid cracking the plastic.
Accessing the Headlight Assembly
Locate the mounting bolts holding the headlamp in place–usually two or three, positioned at the outer edge and top of the unit. Use a 10mm socket or appropriate size wrench to loosen them, then slide the assembly forward slightly to detach the wiring harness connector. Press the release tab on the connector and pull it apart with a firm, steady motion.
Align the new headlamp with the mounting points, ensuring proper seating before reattaching the bolts. Tighten them in a cross-pattern to distribute pressure evenly. Reconnect the wiring harness until it clicks, then test the headlights before securing the protective cover. Verify alignment by checking beam height against a flat surface at 7.6 meters.
If resistance is felt during installation, inspect for debris or misaligned tabs in the housing grooves. Some models require removing the grille or wheel well liner for full access–refer to the vehicle-specific schematic for exact positioning. Replace any damaged seals to prevent moisture intrusion.
Key Grille and Fascia Reinforcement OEM Codes for the 2018–2023 Sedan Models

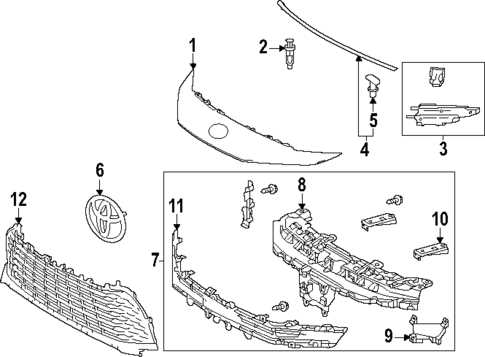

Replace a cracked upper grille frame with 81401-06210 for SE and TRD trims–this rigid ABS component resists flex under minor impacts, unlike aftermarket variants that often warpage with age or temperature shifts. For LE and XLE versions, use 81401-02270; both numbers include integrated clip bosses, eliminating the need for separate fasteners during reassembly. Verify the production month if your build falls near the 2020 refresh; early runs may still accept the pre-facelift code 81401-33260, while post-refresh units require a new mold.

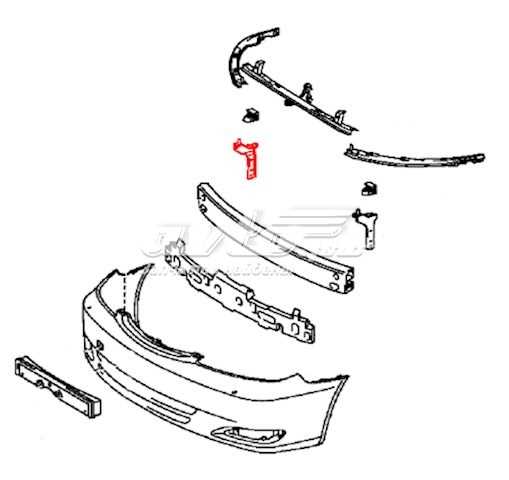

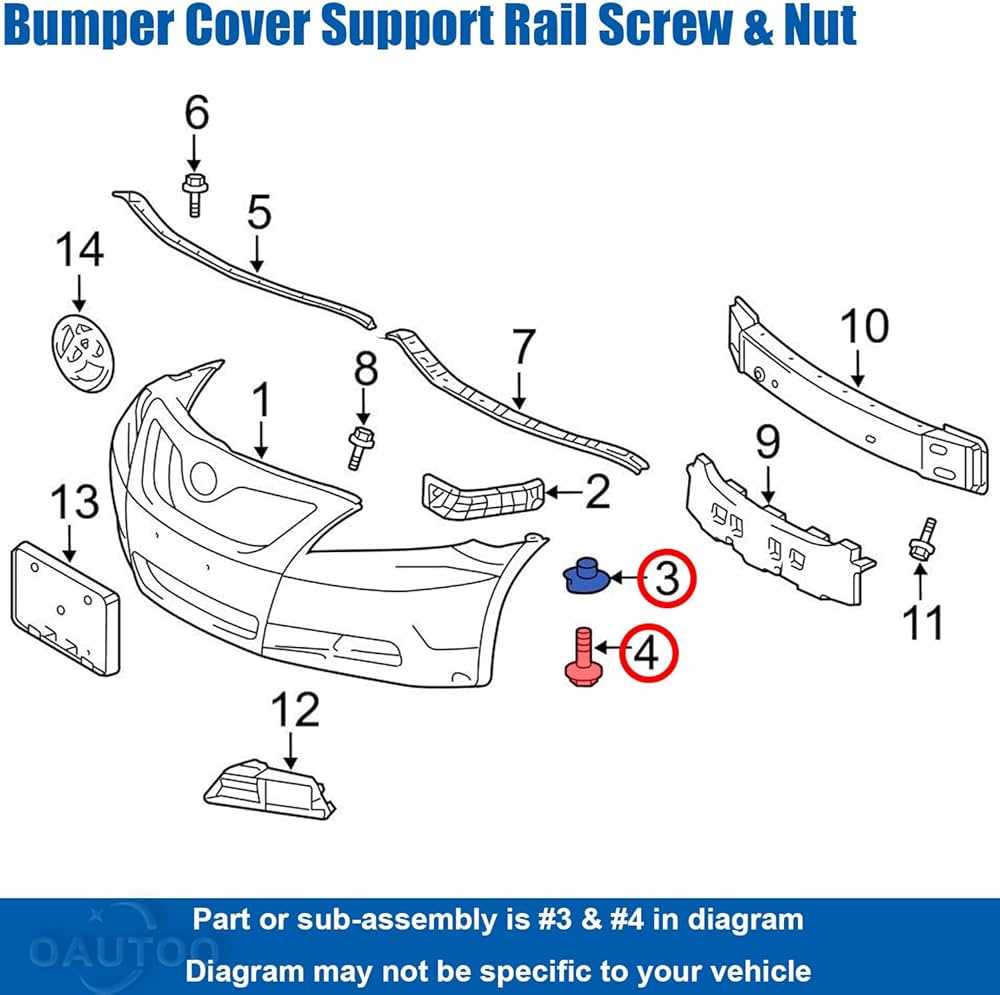

Bumper reinforcement brackets differ between North American and Japanese Domestic Market units: 52119-06100 fits US-spec models, featuring a wider center channel for tow hook clearance, whereas 52119-AA090 suits JDM builds with a narrower profile but thicker gauge steel. Both brackets bolt directly to the crash beam without additional hardware; torque the M8 bolts to 20 Nm in a star pattern to prevent stress fractures. Aftermarket crash beams often omit the secondary mounting tabs, risking misalignment during light collisions.
Radiator Support Variations by Trim and Engine Option
Install 53911-06140 for the 2GR-FKS V6 radiator support–its deeper contour houses an auxiliary oil cooler absent in the four-cylinder variant 53911-06120. Hybrid models merge the I4 unit but add three threaded bosses for the inverter coolant loop; omit these during retrofit or risk stripped threads. Both supports share identical bolt-hole spacing, yet the V6 version includes a reinforcing lip along the upper edge, tolerating higher torsional loads from larger condenser brackets.
Lower grille retainers 71149-06010 (LE) and 71149-06020 (SE/XLE) snap into square pockets molded into the fascia; avoid prying them loose–apply 70°C heat to the retaining tabs first, then slide downward. These tabs secure the active grille shutters; bending them damages the micro-switch linkage, causing permanent engine fan issues. For facelift grilles, use 71144-33540 instead–its revised geometry prevents wind whistle at highway speeds but cannot interchange with pre-facelift components.
Fog light housings 81291-02110 (halogen) and 81291-02250 (LED) attach via twin clip-in lugs inside the bumper cover, but the LED variant routes three additional wires to the junction block beneath the headlight–route these through the pre-cut grooves in the reinforcement bracket or risk pinching. Always swap the entire housing assembly rather than the bulb alone; corrosion on the reflector base distorts light output within six months, regardless of sealant used.
