Start repairs or upgrades by locating the engine assembly layout–identify the cooling system, air intake, and exhaust paths first. The factory service manual codes these sections under Section 3-5 for the all-terrain variant, but third-party schematics often mislabel the oil cooler as a transmission cooler. Verify the part number against the OEM list: 1476893 for the radiator fan, 2345672 for the serpentine belt tensioner. Avoid aftermarket replacements labeled “universal”–they fail under lateral load.
Suspension disassembly requires removing the front axle differential cover (torque spec: 32 ft-lbs) before accessing the CV joints. The transfer case schematic splits into two sub-diagrams: low-range gearset (visible in Exploded View Plate 8) and shift linkage (Plate 12). Procure seals from dealers–aftermarket seals swell within 800 hours due to incompatible rubber compounds. For the rear independent suspension, prioritize the shock absorber upper mount; cracking here precedes total failure.

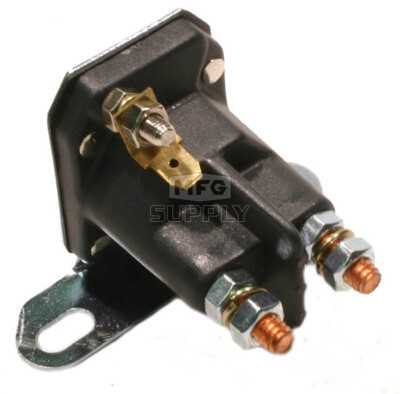

Electrical troubleshooting begins with the main wiring harness (color-coded in the service guide). The ECU pinout diagram (Page 142) isolates ground faults; measure resistance between Pin A3 and the chassis (12,000-15,000 miles–replace all four simultaneously to prevent misfires. The winch solenoid (Part #4072190) corrodes rapidly; relocate it to the battery tray for extended service life.
Brake system schematics omit the brake booster vacuum line, a frequent leak point. The master cylinder rebuild kit (5432981) includes seals, but the piston requires honing if scoring exceeds 0.1mm. Drivetrain components demand precision: the drive shaft U-joints (torque: 18 ft-lbs) must align within 0.5 degrees–refer to the Prop Shaft Assembly Diagram on Plate 22. For the cargo bed, note the hydraulic cylinder mounting points; stripped threads here necessitate thread inserts, not weld repairs.
Visual Breakdown for Off-Road Utility Vehicle Component Locations
Start by securing the factory service manual–model-specific schematics show exact bolt patterns, fluid capacities, and proprietary connectors that aftermarket charts often omit. Download the PDF from the manufacturer’s archive repository if physical copies are unavailable; cross-reference page numbers with part numbers to verify accuracy before ordering replacements.
Locate the engine assembly section–look for component grouping labeled “power train subframe.” The 3-cylinder powerplant uses a dual-stage air filtration system; replace both the primary foam element and secondary paper cartridge at 50-hour intervals when operating in dust-heavy environments. Fuel injectors require OEM-spec seals during rebuilds–generic substitutes cause lean mixtures and pre-detonation.
Inspect the drivetrain housing for the three-stage differential. The front and rear diffs share lubricant formulations but require different fill volumes: 1.8 quarts for the front, 2.2 quarts for the rear. Use synthetic 75W-90 GL-5; conventional oils shear under load, leading to clutch plate slippage and premature bearing wear. Torque differential cover bolts in a spiral sequence to 22 ft-lbs–overtightening distorts the gasket surface.
Hydraulic and Brake Circuit Identification
The auxiliary hydraulic pump mounts beneath the cargo bed–trace lines to the dual-action cylinder using the color-coded port diagram. Lines marked “red” handle 2,200 psi for lift functions; “blue” lines carry 1,200 psi for tilt. Replace high-pressure hoses in matched pairs–single replacements lead to pressure imbalances and erratic bed movement. Bleed the system after any disconnection; trapped air causes spongy operation and eventual seal failure.
Examine the brake master cylinder reservoir–it serves both front and rear circuits. Fluid must read “DOT 4” on the cap; anything lower boils under heavy braking, creating vapor lock. Rear calipers use phenolic pistons–never substitute metal; corrosion between the piston and bore locks the brake. Clean rotors with denatured alcohol only–brake cleaner leaves residues that contaminate pads.
Locating the Core Powertrain and Transmission Layouts
Begin by identifying the central assembly near the rear axle–this area houses the primary combustion unit and torque converter. Remove the rear cargo bed panel in under three minutes using a 10mm socket; it conceals the upper pulley system and coolant reservoir. Label three bolts (size 12) securing the shroud to avoid misplacement during reassembly.
Key Subsystems and Their Physical Placement
- Air intake: Positioned adjacent to the left wheel well, encased in a rectangular housing; disconnection requires releasing two spring clips.
- Fuel module: Located beneath the driver-side seat, accessed by removing a 15cm circular cover–electrical harness connects via a single 8-pin plug.
- CVT belt guard: Fastened directly over the transmission case with four Torx T30 screws; rotate counterclockwise to detach.
- Cooling lines: Durable silicone hoses (19mm diameter) run along the right frame rail–clamp points are marked with red zip ties.
Trace the drive shafts from the differential to each wheel hub: inner joints pivot on 17-tooth splines, outer joints use a 24mm nut torqued to 95 ft-lbs. Inspect rubber boots for cracks exceeding 3mm–replace immediately if degraded to prevent lubricant leakage and joint seizure.
Consult the official repair manual, page 47, for exploded views of the torque converter assembly. Note that the driven clutch (primary) has 10 sheave grooves, while the drive clutch (secondary) displays 12–their alignment tolerance is ±0.2mm. Lubricate bushings with molybdenum disulfide grease before reinstallation.
Diagnostic Checks Before Component Removal
- Attach a diagnostic scanner to the OBD-II port under the dashboard; error codes P0740 (torque converter lockup) or P0750 (shift solenoid) often indicate hydraulic failures.
- Check transmission fluid color: dark brown or burnt odor suggests overheating–drain and flush using Dexron VI fluid.
- Rotate each wheel manually; resistance or grinding noises point to faulty bearings–replace bearings in pairs.
- Examine wiring harness clips; brittle insulation near the exhaust manifold requires immediate repair to avoid shorts.
Use a boroscope to inspect the cylinder head without disassembly–insert through the spark plug hole to check piston ring wear (groove depth exceeding 0.5mm necessitates rebuild). Record all measurements using a digital caliper for baseline comparison during reassembly.
Store disassembled components in labeled trays sorted by subassembly (e.g., “shifting linkage rods,” “differential spider gears”). Cross-reference each part with the illustrated catalog’s reference numbers–mismatched components during installation void warranties and risk premature failure.

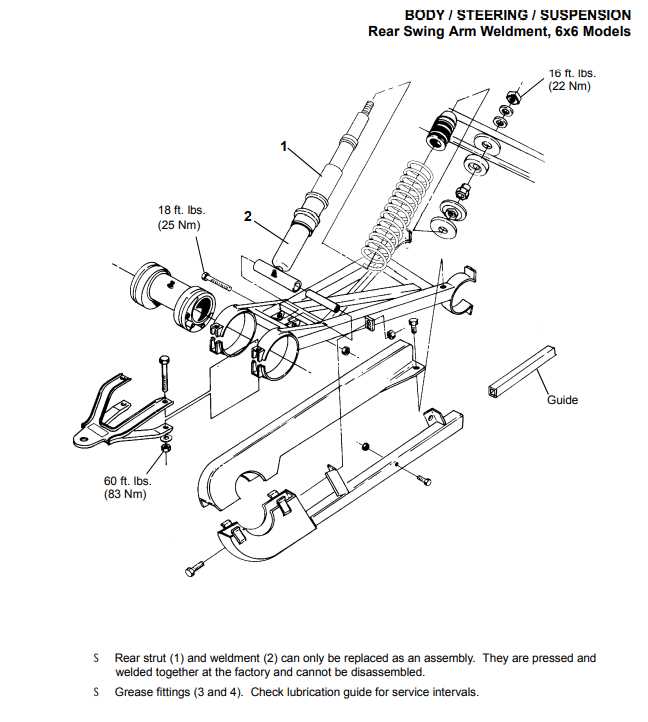

Identifying Suspension and Steering System Components in Off-Road Utility Vehicles
Locate the A-arms first–these control arms connect the wheel hub to the frame and absorb vertical loads. On a typical 6-wheel drive model, the front suspension includes upper and lower A-arms with replaceable bushings; check for wear by pressing a screwdriver against each bushing–excessive play indicates failure. Rear A-arms differ, often featuring a single trailing arm or dual transverse links for independent wheel articulation; measure alignment using a straightedge against the tire and frame–deviation exceeding 3mm suggests bent components.
Inspect shock absorbers next–identify monotube vs. twin-tube designs by their outer casing. Monotubes have a single reservoir and superior heat dissipation, critical for sustained off-road use, while twin-tubes are lighter but prone to fading on steep inclines. Test rebound by compressing the shock manually; slow return or hydraulic fluid leaks confirm replacement is needed. For models with sway bars, trace the linkage to the frame mounts–loose or corroded bushings here cause body roll and uneven tire wear under cornering loads.
Steering linkage breakdown
Start at the steering rack–secure bolt patterns vary by year, but 12-point flanges are common; torque to 45-55 ft-lbs. Tie rods connect to the rack via inner and outer sockets; check for play by lifting the front end and rocking the tire side-to-side–a clunk denotes worn sockets. Pitman and idler arms pivot at the centerlink; use a pry bar to test their mounts–movement here misaligns toe settings, degrading handling precision.
Ball joints require load testing–insert a jack under the lower A-arm and monitor for vertical travel while observing the joint. Lack of movement under 200 lbs of pressure indicates failure. Grease fittings should accept a zerk gun fully; blocked fittings accelerate wear. Replace any component showing more than 0.5mm of lateral play when levered with a 18-inch breaker bar. Always match OEM specifications for thread pitch and diameter when sourcing replacements–aftermarket parts with even minor deviations cause premature fatigue.
Wheel hubs house bearings sealed by snap rings–remove the retainer plate to access internal components. Press bearings out using a 5-ton hydraulic press targeted at the inner race; heat damage appears as blue discoloration or spalling. Pack new bearings with Moly EP grease before installation, ensuring zero moisture contamination. Torque axle nuts to 180-200 ft-lbs using a calibrated wrench–improper torque leads to overheating and bearing lockup under load.
Electrical Wiring and Battery System Layout for Off-Road Utility Vehicles
Begin troubleshooting by disconnecting the ground cable from the battery terminal–corrosion here mimics failed components. Use a multimeter set to 20V DC on all connection points; voltage below 12.4V indicates sulfation or parasitic drain. Check the fuse panel under the driver-side dashboard: fuses 8, 10, and 12 protect the ignition, fuel pump, and winch circuits respectively, each rated at 20A.
The dual-battery setup in long-wheelbase models requires parallel wiring with 4-gauge cables no longer than 18 inches per run. Terminal blocks marked “B+” and “B-” must maintain torque of 8-10 ft-lbs–loose connections cause resistance spikes measured at 0.2Ω or higher across joints. Test the main relay by applying 12V directly to pin 85; a click confirms operational status, while silent failure suggests coil burnout.
Locate the voltage regulator adjacent to the alternator. The stator output wire (yellow with red stripe) should read 13.8-14.4V AC at idle; readings below 13.2V AC signal stator failure. Inspect the rectifier diodes–reverse polarity test with a diode checker should show forward voltage around 0.6V; infinite resistance means open diode.
Key Circuit Pinouts and Color Codes
| Circuit Function | Wire Color | Connects To | Expected Voltage (Engine Off/On) |
|---|---|---|---|
| Ignition Switch Output | Red with black stripe | Fuse Block Terminal 1 | 0V / 12.6V |
| Starter Solenoid | Brown with white stripe | Main Starter Post | 0V / 11.5V (draw >200A) |
| HID Headlight (Low Beam) | Gray | Headlight Relay Pin 30 | 0V / 13.8V |
| Oxygen Sensor Heater | Orange with blue stripe | ECU Pin A7 | 0V / Pulse Width Modulated |
Replace the main ground strap if resistance exceeds 0.1Ω. The strap connects frame rail to engine block–verify continuity with engine supported to prevent false readings from engine mounts. Tail light circuits use two filaments; check bulb sockets for 0.5mm play that causes intermittent failures.
For persistent no-start conditions, probe the neutral safety switch–closed position should show continuity between pins; open position must measure infinite resistance. Map the ECU power feed: red wire on pin C1 delivers constant 12V, while black on C7 connects to chassis ground. Voltage drop across the 50A alternator fuse should not exceed 0.1V under load.
Battery Maintenance Schedule
| Task | Frequency | Tools/Procedure |
|---|---|---|
| Electrolyte Level Check | Monthly | Distilled water, hydrometer; specific gravity 1.265 ± 0.005 |
| Terminal Cleaning | Every 3 Months | Wire brush, dielectric grease; ensure |
| Load Test | Annually | Carbon pile tester; hold 9.6V for 15s @ 50% CCA |
| Parasitic Draw Test | Every Oil Change | Ammeter; current |
