Start by locating the hood assembly in section A-1 of the schematic–marked with fasteners at positions H-12 and H-14. These clamps require a T50 torx driver to avoid stripping. If corrosion is present, apply dielectric grease to bolts before reinstallation to prevent future rust seizures. The radiator support (labeled B-3) often requires alignment tools during replacement; use a laser level for precision.
For door panels (C-5 through C-8), disconnect the wiring harness first–focus on the power window regulator connector behind the interior handle. Factory diagrams show a hidden clip near the lower hinge; depress it with a flathead screwdriver before attempting removal. Replace weatherstripping if gaps exceed 2mm after installation to prevent wind noise.
Fenders (D-2/D-6) attach via eight 10mm bolts; discard any with thread damage–OEM replacements use M6x1.0 thread pitch. The side mirrors (E-9) have a three-wire connector for the blind-spot monitor; ensure continuity with a multimeter before reattaching. If the mirror housing cracks, use epoxy rated for polycarbonate to bond cracks before painting.
Tailgates (F-11) use a dual-lock mechanism–test both latches independently after servicing. The bed liner (G-15) snaps into pre-drilled holes; measure spacing to confirm compatibility with aftermarket options. For lighting clusters, verify bulb types match DOT specifications–replace any with moisture intrusion.
Critical torque specs: bumper bolts (70 ft-lbs), grille bolts (18 ft-lbs), and tailgate hinges (45 ft-lbs). Always cross-reference measurements with the service manual’s updated version, as fastener revisions occur with model year updates.
Understanding Your Pickup’s Front Assembly Structure
Begin by locating the vehicle identification number (VIN) decal on the driver’s side door jamb–this confirms the exact model year and trim level, which dictate compatible component variations. Early 2009–2014 models use a bolt-on upper radiator support, while 2015+ versions integrate this into a one-piece stamped assembly requiring spot weld removal for replacement.
Acquire a factory service manual for torque specifications; critical fasteners like the hood latch striker bolts demand 22 ft-lb, while the grille mounting brackets typically require 18 ft-lb. Over-tightening risks thread stripping in aluminum subframes common to 2017 and newer variants.
Separate plastic clips from steel rivets early–use a trim removal tool for clips and a 3/8″ drill bit for rivets on the bumper cover. Mark electrical connections with masking tape; the fog light harness on Lariat trims includes a sensor module requiring careful unplugging to avoid fault codes.
Inspect the condenser mounting tabs for corrosion before removal–2011–2016 models exhibit susceptibility near the lower right corner. Apply dielectric grease to replacement connectors to prevent future moisture intrusion, a leading cause of premature failure in auxiliary cooling systems.
Measure gap tolerances when reinstalling components; the left fender-to-hood gap should align within 3mm, verified with a feeler gauge. Misalignment beyond 5mm often traces back to bent hinge mounts, necessitating adjustment or full hinge replacement on Super Duty-derived variants.
Leverage heat-shrink tubing over spliced wires–solder connections alone fail under vibration in lifted applications. Replace factory clips with stainless steel rivets if off-road modifications are present; standard clips fatigue under increased clearance demands.
Photograph assembly sequences before disassembly–2021+ Platinum trims incorporate ambient lighting strips routed through the upper grille support, complicating reassembly without reference. Use anti-seize compound on threaded fasteners exposed to road salt in northern climates.
Test-fit new components before final installation; late-model Raptor-inspired bumpers require shaving 2mm from the inner fender support to prevent interference with the tow hook cover. Verify all sensor functions post-installation–certain collision avoidance systems require recalibration via dealer-level diagnostics if the grille is replaced.

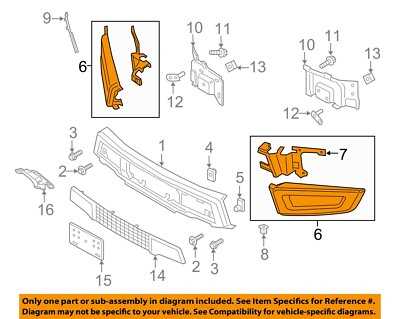

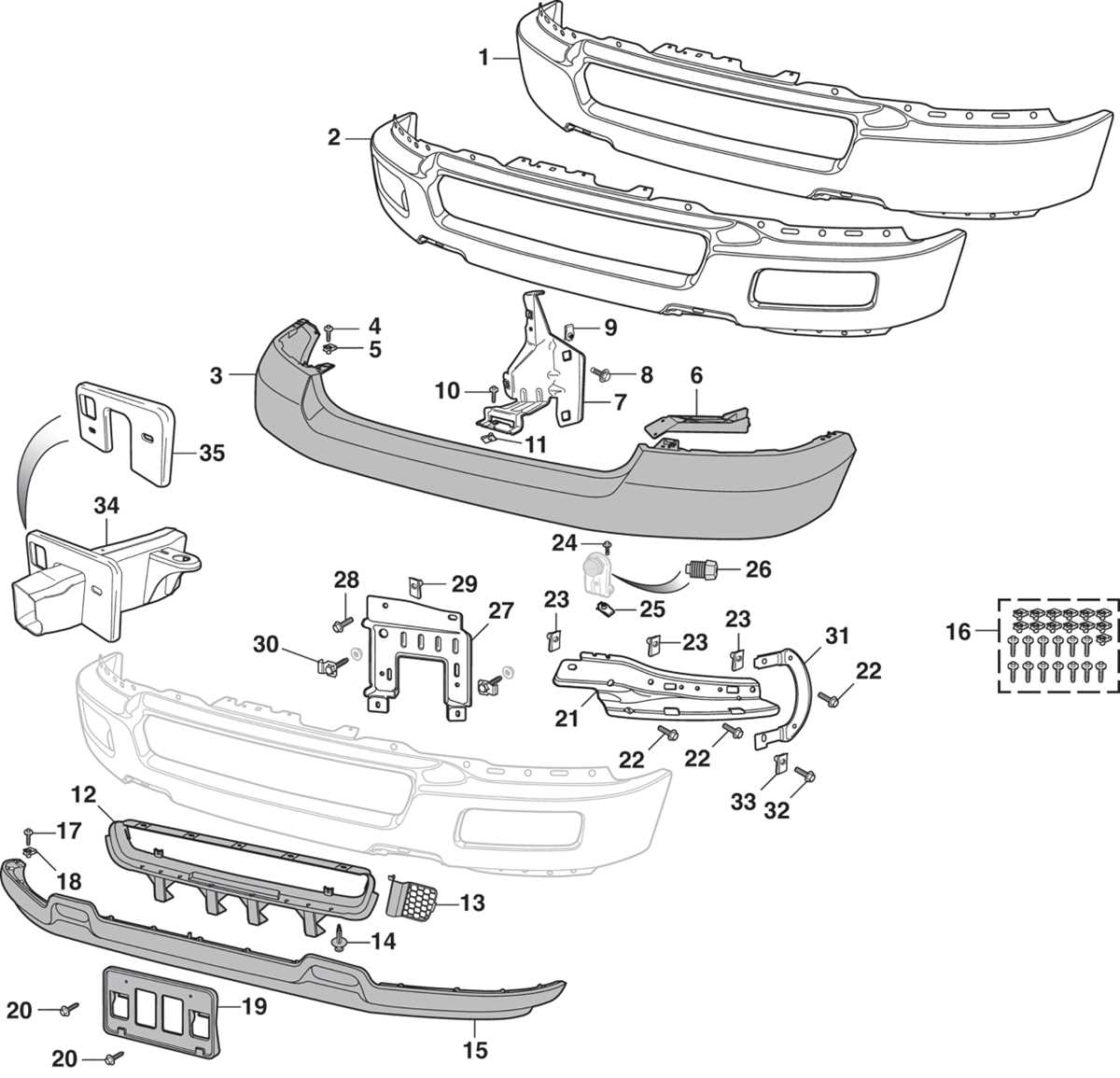

How to Pinpoint and Recognize Pickup Truck Front Bumper Elements
Begin by examining the grille attachment bolts–typically two 13mm fasteners securing the upper portion of the bumper cover to the vehicle’s frame rails. Locate these just behind the tow hook slots, often concealed by plastic push clips. Remove these clips first to access the bolts without damaging the air dam or fog light bezels.
Identifying Auxiliary Support Structures
Trace the lower reinforcement bar by following the welded brackets that connect to the frame horns. These brackets usually feature oval-shaped weld nuts for crash absorber mounts. Use a flashlight to inspect the inner surface; corrosion often appears near the seam where the bar meets the splash shield. Note the two vertical braces on either side–they align with the hood latch mechanism and require a T50 Torx driver for removal if swapping components.
Check the winch plate (if equipped) by locating its four-point mounting pattern–two horizontal rows of threaded holes centered on the bumper’s midsection. This plate predrills for aftermarket winches and may have a removable cover if unused. For models with parking sensors, probe the lower fascia carefully; sensor wiring harnesses terminate in a small black junction box near the left frame rail.
Spot the air curtain extenders by their L-shaped design tucked behind the turn signal pockets. These plastic pieces redirect airflow around the wheel wells and pop off with a flathead screwdriver by prying gently at the snap tabs. Always disconnect the negative battery terminal before handling any electronic subcomponents like LED marker lamps or adaptive cruise sensors.
How to Swap Out a Truck’s Front Fascia Grille with Visual Guidance
First, secure the vehicle on a level surface and engage the parking brake. Disconnect the negative battery terminal to prevent electrical shorts or accidental airbag deployment. Remove any debris or protective covers from the work area to maintain visibility.
Locate the mounting fasteners for the existing grille–typically six to eight plastic push clips or Torx screws along the upper edge and sides. Use a trim removal tool to gently pry these loose, starting from one corner and working inward to avoid cracking the tabs. Store screws and clips in a labeled container to prevent misplacement.
Detach the wiring harness connected to fog lights, sensors, or cameras if present. Squeeze the release tabs on the connector and pull straight out to avoid damaging pins. For models with adaptive cruise control, mark the sensor’s position with painter’s tape to ensure correct reinstallation alignment.
Lift the old grille away from the fascia by tilting it upward at a 45-degree angle. Check for hidden bolts behind the grille’s frame–some variants have two 10mm bolts near the center. Set the removed unit aside on a soft surface to avoid scratches.
Align the new grille with the fascia’s mounting points, ensuring all hooks and tabs engage properly. Reconnect the wiring harness first, pressing until it clicks into place. Secure the grille with clips or screws in reverse order of removal, applying even torque to prevent warping.
Reattach the battery terminal and perform a test: activate headlights, fog lamps, and sensors to confirm functionality. Inspect for gaps or misalignment–adjust if necessary by loosening and retightening fasteners.
Final steps include reinstalling any removed engine bay shields and cleaning the new grille with a microfiber cloth to remove fingerprints or residual adhesive. Drive the vehicle at low speed to verify no rattles or vibrations occur, then check again after 50 miles for loose components.
Hood Latch and Support Rod Problems in Pickup Variants
Inspect the latch mechanism every 6,000 miles for corrosion buildup–common in regions with road salt use. Apply dielectric grease to pivot points to prevent freezing during temperature swings. Replace worn striker plates immediately; a misaligned striker causes unnecessary stress on the latch assembly, leading to premature failure. Early 2015-2017 models exhibit excessive latch wear due to inferior zinc plating–upgrade to OEM-spec stainless steel components if operating in humid or coastal areas.
Check support rods weekly for hydraulic fluid leaks, indicated by a greasy residue along the shaft. A leaking rod loses tension rapidly and poses a safety hazard; replace both rods even if only one shows signs of failure. Avoid silicone spray lubricants–opt for dry graphite powder instead to prevent attraction of dust and debris. Rods should extend smoothly to 45 degrees when engaged; any hesitation suggests internal seal degradation. Aftermarket rods often lack the same damping characteristics as factory units, resulting in abrupt hood drops.
Adjust the latch cable tension if the hood release requires excessive force or feels slack. Loosen the adjustment nut near the cabin-side release handle, pull the cable taut, then tighten–ensure a 3-5mm free play at the handle. Broken cables typically snap near the firewall grommet; route a new cable through the existing pathway rather than improvising with zip ties, which chafe over time. Late-model trucks (2018+) include a secondary microswitch that prevents starter engagement if the hood is ajar–test this safety feature during latch maintenance.
Failure Symptoms by Model Year
| Model Range | Common Latch Issue | Rod Failure Signs | Root Cause |
|---|---|---|---|
| 2011-2014 | Intermittent release failure | Slow extension, no hold | Corroded latch springs, worn rod seals |
| 2015-2017 | Striker plate warping | Uneven hood gap, rod drift | Thin zinc plating, poor seal design |
| 2018-2020 | Cable routing interference | Sudden rod collapse | Misaligned bracket, stiff grease |
| 2021-Current | Premature striker wear | Hydraulic fluid misting | Aluminum alloy fatigue, weak bond |
Lubricate the latch mechanism with molybdenum disulfide paste during oil changes–rotate the hood between fully open and closed positions to distribute the lubricant evenly. Avoid lithium-based greases, which attract grit and accelerate wear. Test hood alignment by releasing pressure at the center point; if it rises more than 5mm, adjust the latch bolts incrementally until the gap is uniform. Factory-spec bolts use a thread-locking compound–apply medium-strength Loctite 242 to prevent loosening from vibration.
Replace the entire latch assembly if rust penetrates the casing–visible surface corrosion often masks internal degradation. Aftermarket kits marketed as “heavy-duty” frequently omit the critical striker alignment shims; retain original shims during installation to maintain proper latch engagement. For trucks equipped with aftermarket hood scoops, add an auxiliary support prop on the passenger side due to increased weight leverage. Scoops exceeding 8 pounds require reinforcement plates welded to the inner fender–ensure proper grounding to avoid latent electrical shorts.
Store a backup latch cable and support rod in the toolbox for roadside emergencies–failure rates rise sharply after 120,000 miles. Carry a 3/8-inch drive ratchet with a 10mm socket to address inoperable latches; remove the grille if necessary to access the latch bolts directly. Avoid prying with screwdrivers, as even minor scratches to the latch surface can lead to future corrosion entry points. Clean the latch housing with a brake cleaner-soaked rag monthly to remove road grime and winter road treatment residues.
Maintenance Schedule
| Interval | Task | Recommended Material |
|---|---|---|
| 5,000 miles | Rod tension test | Nylon friction tape (optional) |
| 10,000 miles | Full latch disassembly | CRC Marine Grease |
| 20,000 miles | Striker plate inspection | WD-40 Specialist Penetrant |
| Annual | Cable tension adjustment | Dielectric grease |
