For swift troubleshooting, refer to the piston assembly schematic first–this critical section handles fluid pressurization and failure here manifests as inconsistent spray or sudden pressure drops. The unloader valve (UV) model 8TNV should be cross-checked against part #GEN-22-1441; deviations in thread pitch or O-ring seating cause leaks at the hose connection. Replace the thermal relief valve if temperatures exceed 140°F during extended operation; factory specs confirm thermal cutoff at 160°F ±5°F, but premature trips indicate faulty calibration.
Inspect the carburetor linkage before disassembly–misalignment here reduces engine RPM by 12-15%, translating to a measurable drop in cleaning efficiency. The air filter housing (dimensions: 3.5″ x 4.2″ x 1.8″) uses a dual-stage foam element; single-layer replacements void warranty due to inadequate particulate capture. For the pump head, note the brass inlet valve seat threading is left-handed–standard right-handed threading will strip in under 30 seconds of torque application.
Axial cam pump rebuilds demand precision: the ceramic plunger must be installed with the concave side facing the crankcase; reversal leads to catastrophic failure within 4-6 hours of use. The black high-pressure hose (burst rating: 4,000 PSI) requires annual inspection for micro-fractures–pressurize to 2,800 PSI and submerge in water to detect leaks. Use only #25-35 hydraulic fluid for the pump’s internal lubrication; automotive oil increases wear rates by 42%.
For electrical components, the ignition coil resistance should read 2.5-3.5 Ω at 20°C; readings outside this range necessitate coil replacement, not ignition module adjustments. The fuel shutoff solenoid operates on 12V DC and must engage audibly within 0.3 seconds of power delivery–silent operation indicates a burnt solenoid or faulty relay. Replace the spark plug every 50 hours of operation, using only NGK BPMR7A; alternative models cause hard starts in ambient temperatures below 50°F.
Key Components of Your High-Power Cleaning Machine

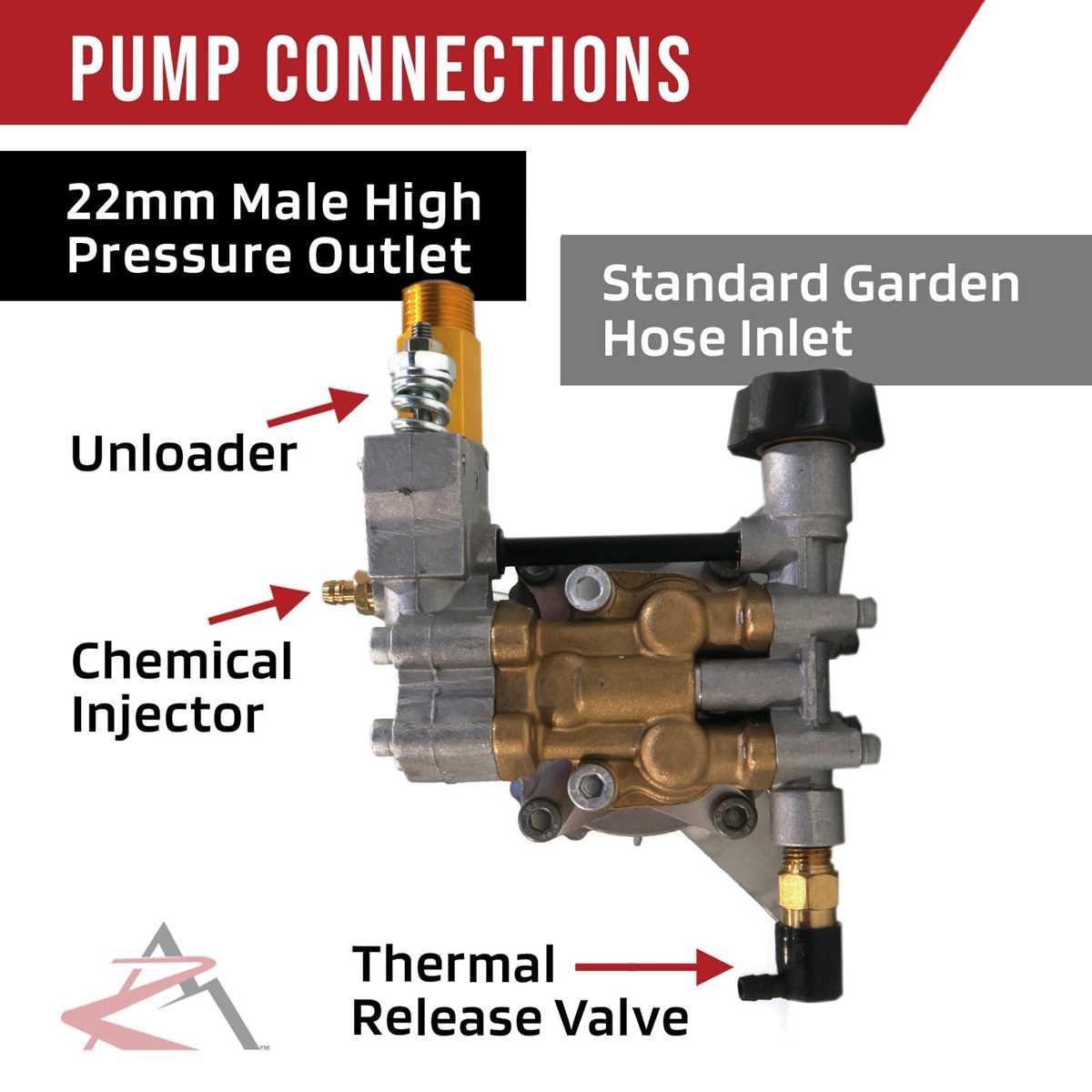

Start by locating the pump assembly–typically positioned at the rear under the engine shroud. Most 3100-series models use an axial cam pump with brass head fittings; verify your unit’s specifications before ordering replacements (part #0J5700 for standard versions). Check the unloader valve for debris buildup if pressure drops occur–flush it with clean water and avoid using compressed air, which can damage delicate seals.
- Engine air filter: Replace every 50 hours of use or annually (OEM filter #0K1601). Pre-clean by tapping against a hard surface to dislodge dirt, but never wash–this compromises filtration efficiency.
- Thermal relief valve: Test monthly by running the unit for 30 seconds without spraying. A continuous drip from the pump’s side indicates failure; order part #0G6750 immediately to prevent overheating damage.
- Spray wand connections:
Inspect the quick-connect fittings weekly. A cracked plastic collar (OEM #0E3400) reduces pressure by up to 20%–replace at first sign of wear.
For nozzle maintenance, soak clogged tips in warm vinegar for 2 hours, then use a softened bristle brush (1mm diameter) to clear internal passages. Store nozzles in a dry container with silica gel packets to prevent corrosion. If the detergent siphon tube (part #0H8200) fails, reverse-flush with water before replacing–over 80% of “failed” siphons are clogged rather than defective.

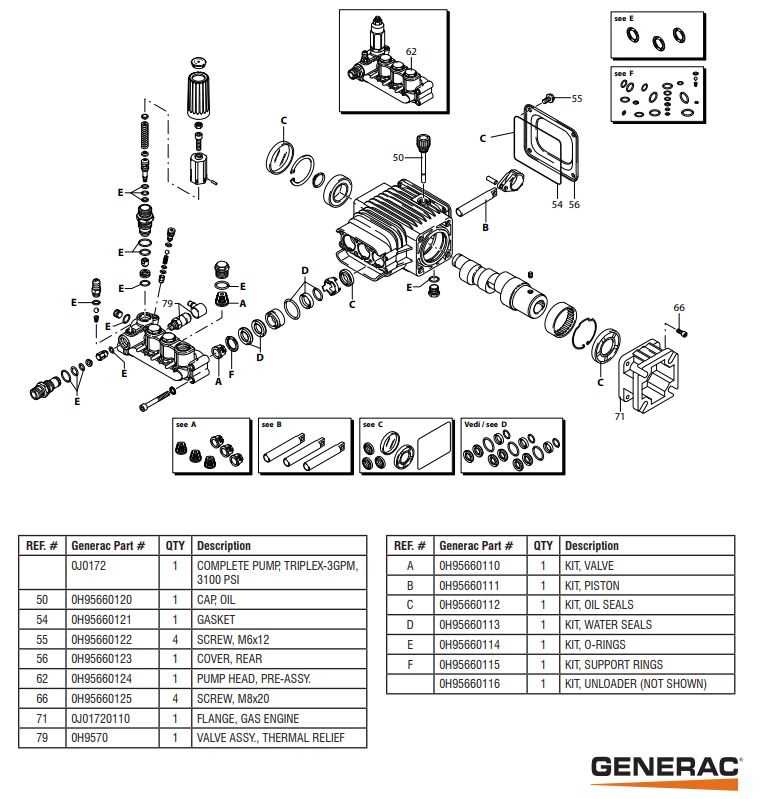

Key Elements in Your High-Pressure Cleaner’s Exploded Schematic
Locate the engine assembly first–it’s the core of the unit, typically positioned at the top of the exploded view. Check for model-specific numbers stamped on the engine block to confirm compatibility with replacement parts like pistons or gaskets. Misidentifying this section can lead to performance drops or improper fits.
Examine the pump housing next, usually bolted directly beneath the engine. Look for o-ring grooves or seals listed in the schematic’s callouts; these degrade over time, causing leaks. Some units use ceramic-coated plungers–these require exact replacements to maintain output consistency.
The wand and nozzle connections appear smaller but are critical. The exploded view often highlights color-coded tips (e.g., red for high impact, white for delicate surfaces) and their locking mechanisms. A missing clip or worn thread here reduces spray precision.
Inspect the frame’s mounting points, often overlooked but essential for stability. Welded brackets or vibration dampeners may crack under stress–replace any that show corrosion or deformation. The schematic’s labels for hardware sizes (e.g., M8 bolts) prevent mismatches during reassembly.
Hidden Components That Fail Silently
Thermal relief valves, buried in the pump’s lower section, prevent overheating but corrode internally. The schematic’s cross-section drawing reveals their exact location–swap them if pressure fluctuations occur during operation.
Fuel line connectors, though tiny, disrupt performance if clogged. Check the schematic for routing paths; ethanol-blend fuels often degrade rubber components faster than expected. Use only specified hose diameters to avoid fuel starvation.
Electrical switches and solenoids appear near the engine’s rear. Voltage irregularities burn these out–verify wire gauges in the diagram before replacing. A multimeter confirms continuity, but resistance values must match the schematic’s specs.
Final Checks Before Reassembly
Lubrication points, like crankcase fill ports, are easy to miss. Refer to the schematic’s arrows indicating grease types (e.g., SAE 30, lithium-based). Overfilling or wrong viscosity damages seals, turning minor maintenance into a rebuild.
How to Identify and Source Original Equipment Manufacturer Components Using the Schematic
Start by pinpointing the specific breakdown in the user manual’s exploded view. Each illustrated section corresponds to numbered labels–cross-reference these with the bill of materials table, typically found on adjacent pages. For example, if the trigger gun assembly shows wear, locate its identifier (e.g., “27-B”) and note the accompanying description (e.g., “spray wand handle”). Manufacturers list tolerances and material grades here; verify these match replacement candidates.
| Component Type | Common Failure Indicators | Schematic Reference Zone |
|---|---|---|
| Nozzle tips | Uneven spray patterns, erosion marks | Section 4, items 12-15 |
| Pump seals | Leaking at connection points, reduced output pressure | Section 7, items 33-38 |
| Hose fittings | Cracks, thread stripping, corrosion | Section 5, items 22-25 |
Use the official supplier portal for ordering–avoid third-party marketplaces unless the listing explicitly cites OEM certification. Filter results by the schematic’s alphanumeric codes rather than descriptions; duplicates or near-identical items often share close numbers. For instance, a brass fitting for a 2023 model bearing code “KS-44” may differ subtly from “KS-44A,” designed for later production batches with reinforced threading.
Verify dimensional compatibility before finalizing a purchase. The schematic’s side profiles often include micro-measurements–compare these against physical calipers or a machinist’s scale. A seal’s inner diameter might list as 14.2mm, yet tolerances could accept 14.1mm to 14.3mm. Suppliers who provide CAD drawings or 3D models are preferable; these confirm fit before dispatch.
Request batch certificates for high-wear items like piston rings or thermal valves. These documents guarantee compliance with ASTM or ISO standards, detailing material composition (e.g., “chromium-plated steel” vs. “phosphor bronze”). Absence of certification risks premature failure–especially critical for components exposed to corrosive chemicals or high-cycle operation.
Prioritize vendors offering same-day dispatch for core assemblies (e.g., unloader valves, thermal relief plungers). Delays in replacing these can cascade into secondary damage, such as pump casing warping or motor burnout. Some authorized distributors maintain regional stockpiles; inquire about lead times for items flagged as “discontinued” in online inventories.
Retain a copy of the confirmation invoice alongside the schematic for warranty claims. Original paperwork proves provenance and ensures coverage if replacements fail within the typical 12-month period. For equipment under extended service contracts, highlight serial numbers and purchase dates to expedite claim processing.
Step-by-Step Guide to Disassembling the Pump for Cleaning or Repair
Unplug the equipment and release all residual tension by squeezing the spray gun trigger for 10 seconds. Drain every drop of fluid from the system by tilting the unit forward while keeping the intake hose elevated above the pump housing to prevent air locks.
Remove the wand holder bolt using a 10mm socket, then detach the chemical injection tube clamp with needle-nose pliers. Label each hose connection with colored tape–red for output, blue for inlet–to simplify reassembly. Disconnect the brass quick-connect fittings by pressing the sleeve inward while pulling the hose outward with a twisting motion.

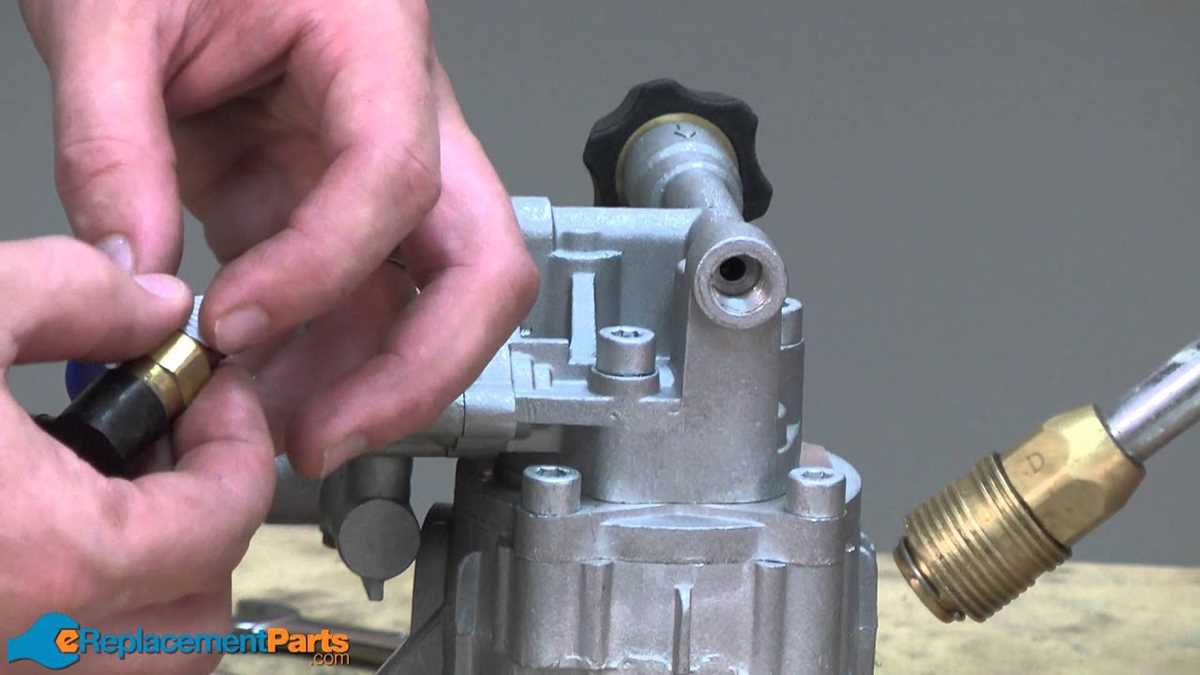

Unscrew the pump head bolts in a star pattern using a 5mm Allen wrench to avoid warping the aluminum surface. Lift the head straight up, exposing the ceramic pistons and valve assembly. If corrosion is visible on the inlet valve seat, use a fine-grit emery cloth (600+ grit) to polish it until smooth, rotating in circular motions for 30 seconds per side.
Extract the ceramic pistons by sliding them out with a hook-shaped tool, gripping the plastic retainer ring–not the piston itself–to prevent scoring. Inspect the Viton seals; replace any showing cracks wider than 0.2mm or deformation beyond 15% of original thickness. Soak new seals in silicone lubricant for 10 minutes before installation to prevent tearing.
Clean the valve plate with isopropyl alcohol (99% purity) and a microfiber cloth. Avoid compressed air, which can force debris into microscopic crevices. Scrub the unloader valve housing with a nylon bristle brush, removing calcium deposits that reduce flow by up to 40%. Rinse all components with distilled water to eliminate mineral residues that create abrasive paste.
Reassemble the pump head by aligning the dowel pins with the corresponding holes in the crankcase. Torque the bolts incrementally–start at 5Nm, then 10Nm, and finish at 12Nm–to ensure even compression. Replace the O-ring on the chemical injection tube if it fails a visual inspection under 4x magnification; tiny fissures expand sevenfold under operating heat.
Before attaching hoses, test the unloader valve by pressing the brass plunger manually. It should spring back with measurable resistance; sluggish movement signals debris blocking the spring pocket, requiring disassembly. Reconnect the hoses in reverse order, ensuring the red-marked output line aligns with the labeled port–cross-connection risks catastrophic internal cavitation.
After reassembly, run the unit dry for 30 seconds to verify piston movement. Introduce fluid gradually to purge trapped air, monitoring for leaks at every joint. If pressure fluctuates, recalibrate the unloader valve by turning the adjustment screw clockwise in quarter-turn increments until flow stabilizes at 24.1 MPa (3500 PSI equivalent).
