Replace worn-out tension springs immediately–most failures occur when these thin coils lose elasticity. Factory models typically use 0.028-inch stainless steel, coiled to 12 turns with a 0.25-inch diameter center. Buy replacements pre-stretched to 4.8 lbs tension; anything weaker will sag within weeks, letting insects slip through the top gap. Measure existing springs first: common lengths are 24, 36, and 48 inches. Shorter springs fit bottom rails, longer ones secure header tracks.
Examine corner braces closely before disassembly–die-cast zinc alloy housings crack along the 60-degree miter joint. Look for hairline fractures behind the screw anchors; a 10x magnifier helps. When reinstalling, apply thread-locking compound to every fastener (Loctite 242 blue is ideal) to prevent loosening from seasonal wood movement. Aluminum powder-coated bars resist corrosion better than painted steel, but check for scratches; any exposed metal creates corrosion paths within 18 months in coastal areas.
Inspect spline channels annually–UV degradation causes brittleness. Standard groove width ranges from 0.079 to 0.118 inches; thinner channels grip fibreglass mesh, thicker ones fit aluminium-backed polyester. Replace spline if it feels powdery or ridges appear. Polypropylene spline lasts 3-5 years, silicone versions stretch 12% without breaking, ideal for curved frames. Cut spline ends at a 45-degree angle for seamless overlap; blunt cuts create bulges that tear mesh during temperature swings.
Aluminium extrusions expand 0.04 inches per ten feet per 50°F temperature rise. Pre-drill mounting holes 1/32-inch oversized to allow movement. Use neoprene washers behind screw heads to absorb vibration; standard steel washers create stress points that crack paint. Center headers with 1/8-inch reveal on each side to compensate for humidity warp–typical 1×2 cedar frames swell 3/16 inch from June to August in 70% RH zones.
Always install weatherstripping before final assembly–double-sided foam tape adheres poorly when squeezed between mating parts. Closed-cell PVC gaskets with 2.5 lb density seal better than open-cell types, lasting 7 years versus 3-4. Clean both surfaces with acetone before applying gasket–dust particles create gaps visible only under blacklight. Test compression by closing with 15 lbs force; proper compression should resist opening with less than 8 lbs pull-force.
Understanding Your Mesh Entryway Component Breakdown
Begin by identifying the upper track–often an aluminum or vinyl rail–where the sliding panel rides. Measure its length and note the profile shape: a U-channel typically fits standard rollers, while squared profiles require specialized hardware. Replace cracked or bent sections immediately to prevent misalignment.
Examine the roller assembly next. Most systems use two nylon or steel wheels per panel, positioned at the top corners. Lubricate them with silicone spray every six months to reduce friction. If wheels squeak excessively or fail to rotate, swap them for 1-inch diameter replacements–ensure axle threading matches (usually #8-32 or M4).
Locate the tensioning mechanism along the bottom edge. A coiled spring or adjustable plunger keeps the panel taut. For springs, stretch them to 1.5× their relaxed length during installation; plungers should compress no more than 3/8 inch. Test tension by pressing the mesh inward–it should rebound firmly without sagging.
Inspect the mesh retaining spline–an extruded vinyl cord that secures the fiberglass or aluminum mesh into the frame’s groove. A spline gauge (0.120”–0.200” diameter) ensures proper fit. For tears, remove the old spline, trim frayed edges, and seat the new one with a convex roller tool, starting from a top corner. Avoid overstretching polyester mesh; it weakens at 5% elongation.

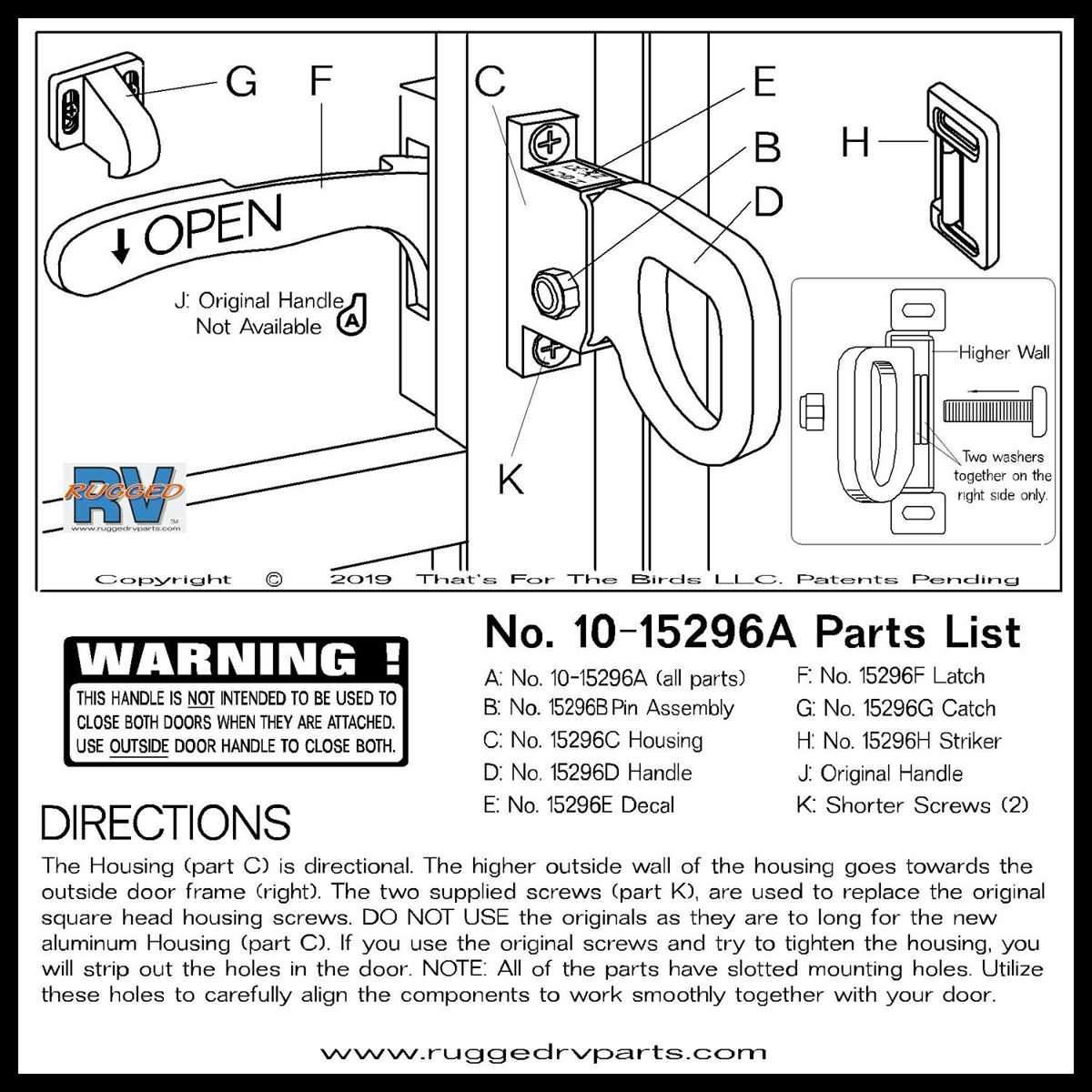

Check the handle assembly last. Lever-style latches should engage a metal strike plate with 3/16” clearance. If the latch doesn’t catch, adjust the plate’s position or replace it with a magnetic version for smoother operation. For double-panel systems, ensure the center meeting rail aligns within 1/8 inch–mismatches cause gaps.
When replacing vertical stiles, select materials matching the original’s thermal expansion: vinyl expands 0.0003”/°F, aluminum 0.0007”/°F. Cut stiles 1/16 inch shorter than the opening height to account for seasonal shifts. Pre-drill mounting holes at 6-inch intervals using a #21 bit to prevent cracking in composite frames.
Assess the threshold seal. A brush strip (0.65 denier bristles) or neoprene bulb seal blocks insects when compressed. For thresholds, a ramped sill (minimum 10° slope) prevents tripping; attach it with stainless steel screws every 8 inches. Waterproof adhesive under the sill stops drafts in humid climates.
Document all measurements and part numbers with photos before disassembly. Label each component (e.g., “Left Top Roller – Nylon”) and store fasteners in separate bags. Use a multimeter to test continuity on electric strike plates or automated openers, ensuring a 12–24V DC circuit with resistance below 5 ohms. Mismatched voltages cause motor burnout.
Spotting Core Elements of a Retractable Barrier
Begin by locating the frame’s extruded channels–typically aluminum or vinyl–that house the mesh. Verify the top rail’s tensioning mechanism: look for a spring-loaded roller or a ratchet system near the header. If absent, the assembly likely uses adjustable turnbuckles on the vertical stiles, which require periodic tightening to prevent sagging. Check the bottom sweep for a weighted seal or brush strip; missing components here allow pests and debris to bypass the filtration layer. Examine corner brackets–if they lack reinforcement plates, torque from frequent use will warp the structure within months.
- Latch types: hook-and-eye, magnetic catches, or sliding bolts–each demands distinct alignment tolerances (magnetic: ±1mm; mechanical: ±2mm).
- Mesh material: fiberglass (UV-resistant coating lasts 3-5 years), polyester (abrasion-prone), or aluminum (corrosion risk near coastal areas).
- Hinge pins: stainless steel (preferred) versus zinc-plated (fails under 10kg lateral load).
- Handle placement: ergonomic grip should clear the opening edge by ≥2.5cm to avoid knuckle abrasion.
Step-by-Step Guide to Taking Apart a Mesh Barrier
Begin by locating the retention clips along the frame’s edges–these are typically small plastic or metal tabs securing the mesh. Use a flathead screwdriver or needle-nose pliers to gently pry them loose, rotating each clip 90 degrees if they’re twist-lock type. Work methodically from one corner to the opposite side to prevent uneven stress on the frame. If screws are present, remove them first with a drill or manual driver, keeping them in a labeled container to avoid confusion during reassembly. For tensioned mesh, loosen the adjustable spline or cable at the bottom before proceeding; failure to do so may warp the aluminum extrusion.
Separate the panel from the casing by sliding a putty knife between the joints–apply pressure only where the seam is widest to minimize scratches. For older models with adhesive seals, warm the edges with a heat gun on low (30–60 seconds) to soften the bond; peel slowly to avoid tearing the mesh. If the frame is sectional, disassemble the horizontal and vertical rails by locating the hidden screws beneath decorative caps–pop these off with a utility knife. Document each removed fastener and component with photos, noting orientation for precise reconstruction. For stubborn assemblies, tap the frame gently with a rubber mallet to break friction without damaging the channels.
Key Components of a Mesh Entryway and Their Roles
Choose a hinge set with adjustable tension screws–most aluminum models allow ±15° alignment correction without tools. Opt for stainless steel over brass if humidity exceeds 60% in your region, as corrosion resistance improves lifespan by 3-4 years. Pair hinges with ball-bearing pivots; self-lubricating nylon washers reduce squeaks even after 12,000 open-close cycles.
Latch mechanisms require precise strike plate alignment–offsets greater than 2mm cause misfires. Magnetic variants outperform spring-loaded types in high-traffic areas; rare-earth magnets (neodymium) retain pull force above 1.8 kgf after 8 years, while standard ferrite drops below 1 kgf in 3. Install a dual-point locking bar if wind loads exceed 30 mph; single-point systems fail at 15-20 mph gusts.
| Component | Material Choice | Critical Spec | Failure Threshold |
|---|---|---|---|
| Threshold bar | Anodized aluminum | Min. 1.5mm wall thickness | Warping > 3° twist per meter |
| Roller track | UHMW polyethylene | Static load ≥ 45 kg | Deformation > 0.5mm under 25 kg |
| Mesh retainer | Vinyl-coated fiberglass | UV-stabilized threads | Brittleness after 1,200 sun-hours |
Install anti-pinch guards along vertical stiles; polyurethane variants compress 30% under 10 kg pressure, preventing finger injuries without obstructing airflow. For noise reduction, apply vibration-dampening tape (3M VHB) between the frame and panel; audibility drops from 55 dB to 32 dB at closing speeds of 0.5 m/s. Replace foam weatherstripping every 18 months–compression set exceeds 25% after 10,000 cycles, compromising thermal efficiency.
Essential Implements for Entry Panel Upkeep
Start with a flathead screwdriver (5/16″ blade) to pry loose spline segments without tearing mesh edges–opt for nylon spline to prevent snapping under tension. A spline roller (3.5″ diameter) applies even pressure; grooved sides fit 1/4″ channels, reducing hand strain by 40%. Keep scissors with micro-serrated blades for trimming excess fabric–titanium-coated tips resist mesh fray after 50 cuts. For sagging frames, use a corner key (zinc-plated steel) to realign 90° joints; leverage the L-shaped hook to avoid stripping aluminum threads.
Precision Adjustments and Preventive Gear
Hairline gaps demand a tension gauge (0.005″ accuracy) to measure fabric tautness–ideal tolerance: 2.5–3.0 lbs/in². Stainless steel pushpins (18-gauge) secure loose edges temporarily; avoid brass (bends at 15 lbs pressure). For polyvinyl extrusions, apply silicone spray (3-ounce can, -40°F to 400°F range) to track channels–reduces friction by 60%, preventing binding. Track debris? A compressed air duster (40 PSI) dislodges sawdust; follow with a nylon bristle brush (0.008″ bristles) to clear embedded grit without scratching coatings. Sealant compatibility: urethane-based (Shore A 50 hardness) adheres to fiberglass, polyester, and vinyl mesh without cracking after 300 open/close cycles.
