For precise disassembly, locate the movement plate screws–typically two to four, depending on the model–using a 1.5mm or 2mm hex driver. Mark their positions with acid-free tape to avoid misalignment during reassembly. The front plate should detach smoothly; if resistance occurs, check for hidden clips near the gear train housing. Document the orientation of each gear before removal to prevent torque disruption when reinstalling.
Replace worn bushings only with OEM-specified brass variants–aftermarket nylon or steel alternatives accelerate wear on pivot points. Lubricate jewels with a single drop of Moebius 8000 (for temperature resistance) applied via a 0.3mm syringe needle to avoid contamination. The mainspring barrel requires Moebius HP-1300 grease; over-application causes drag and inconsistent power delivery.
The electrical schematic varies by series: early models (pre-1985) use a simple on/off switch circuit, while later versions integrate a solid-state quartz module with a 32.768kHz oscillator. Test continuity across the coil terminals with a multimeter in resistance mode; readings below 5kΩ indicate coil degradation. For pendulum-driven systems, verify the suspension spring’s alignment–misalignment by as little as 0.5mm reduces amplitude by 20%.
Dial removal requires releasing the bezel clips with a non-marring spudger; pry from the 6 o’clock position to avoid scratching nickel-plated surfaces. If the crystal is cracked, match the original curvature–most measure 5.5 to 7 inches in diameter–using acrylic #000 sandpaper to smooth edges before reattaching with silicone adhesive SCS1200. For weights, balance discrepancies of 1g can throw off timekeeping; use a precision scale to confirm uniformity.
Identifying Components in Timepiece Schematics: A Field Reference
Begin by locating the movement assembly–typically at the center of any horological blueprint. Modern mechanical units integrate three core subsystems: the mainspring barrel (diameter 28–32 mm), gear train (12–16 teeth per pinion), and escapement wheel (8–10 jewels). Use a multimeter set to continuity mode to verify electrical integrity in quartz variants, where voltage between contact points should read 1.5V ±0.1V. Cross-reference component codes with manufacturer’s service documentation: “HM-1234” denotes a pendulum suspension spring, while “HM-5678” marks a weight cable pulley.
| Component | Standard Measurement | Diagnostic Signal |
|---|---|---|
| Chime rod | 18–22 cm length | Dull resonance if cracked |
| Minute wheel | 42–46 teeth | Excessive play >0.3 mm |
| Dial bezel gasket | 1.2 mm thickness | Gaps under loupe inspection |
Disassemble cases with precision tools: a 0.8 mm hex key removes hour wheel retainers, while a spanner wrench (adjustable to 6–8 mm) detaches pendulum bobs. Lubricate pivot points with polyalphaolefin oil–5 microliters per jewel bearing–using a micro-drop applicator. Calibrate timing by adjusting the escapement fork; a single-degree shift alters rate by ±15 seconds per day. For chiming mechanisms, align strike hammers to coil pins within 0.5 mm tolerance, measured via feeler gauges.
Spotting Critical Elements in a Precision Timepiece Movement
Begin by locating the mainspring barrel near the base of the mechanism–this cylindrical housing stores potential energy. Confirm its position by tracing the gear train; the barrel’s toothed edge meshes directly with the center wheel pinion, the first visible gear. Rotate the winding arbor clockwise while observing the barrel’s response; it should resist slightly before engaging smoothly. If resistance is absent, inspect the ratchet wheel and click assembly for wear or misalignment.
Gear Train and Escapement Verification
- Examine the center wheel: Should complete one full rotation per hour, driving the minute hand.
- Check the third wheel: Intermediate gear transferring torque to the escapement.
- Assess the escapement wheel teeth: Must exhibit sharp, even edges; dulled or chipped teeth indicate excessive friction.
- Test the pallet fork: Gently nudge it–movement should be crisp, not sluggish or erratic.
- Verify the hairspring: Coil should be concentric, with uniform spacing; irregularities cause timekeeping errors.
Tilt the movement at a 45-degree angle to listen for consistent ticking. Irregular intervals suggest escapement issues–adjust the pallet fork clearance using a screwdriver no wider than 1.5mm to avoid damaging pivot jewels. Replace the mainspring if force applied to the winding arbor fails to hold tension; use a spring gauge to measure torque (standard range: 1.2–1.8 N·cm). For electronic variants, probe the solenoid with a multimeter–readings should stabilize between 4.5–6V DC during operation.
Step-by-Step Guide to Dismantling Timekeeping Mechanisms
Begin by locating the rear panel screws–most models use small, recessed fasteners typically sized between #0 and #2 Phillips. Keep them organized by size and position in a magnetic tray to prevent loss. If the enclosure resists removal, check for hidden clips along the edges; gently pry these with a plastic spudger to avoid scratching the finish.
Once the back cover is off, identify the pendulum suspension spring–it’s often secured with a single screw or friction-fit collar. Detach it carefully to avoid damaging the delicate coil. For weight-driven movements, lower the counterweights fully before proceeding; this reduces tension on the gearing and prevents sudden unwinding.
Examine the movement plates next. Most include brass or steel retainer clips holding the gear train in place. Slide these upward or outward, depending on design, while supporting the plates to avoid dropping fragile pinions. Note the position of each wheel and pinion before disassembly–label them with painter’s tape if reassembly is expected.

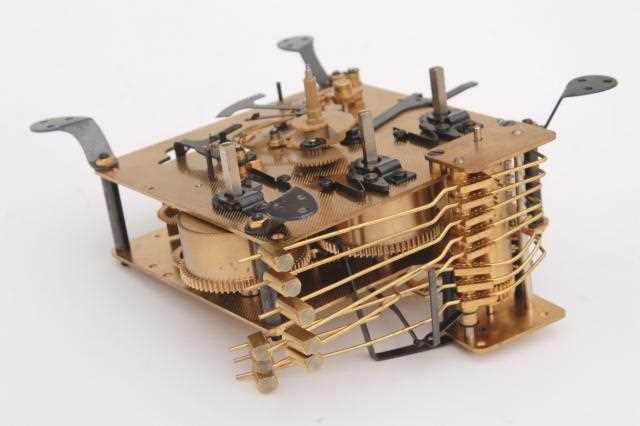

For chime-equipped units, disconnect the strike mechanism first by removing the anchor wire from the hammers. Some models require loosening a setscrew on the star wheel; others use a simple cotter pin. Check for lubricant residue–clean gear teeth with naphtha if buildup is present, but avoid touching pallets or escape wheels with solvents.
Accessing the timekeeping assembly often involves removing the dial. Most antique designs use threaded stanchions; modern ones may have snap-fit posts. Support the dial face downward on a soft cloth to protect hands or decorative elements. If the motion works are attached, disconnect the minute wheel first to prevent misalignment during reassembly.
Inspect the escapement components before full removal. Ensure the verge (or lever) moves freely; if it sticks, check for bent pivots or excess oil. When lifting the movement, do so horizontally to prevent balance staff damage. Store all components in labeled, lint-free containers–even small dirt particles can disrupt precision tolerances.
Reassembly follows the reverse order, but test each subassembly incrementally. Wind the mainspring partially before securing the plates to verify gear meshing. After pendulum reinstallation, adjust suspension spring tension gradually while observing amplitude–ideal swing is 8–12° for most mechanical movements. Final timing adjustments should wait until full restoration is complete.
Essential Movement Components and Their Roles
Replace worn gear wheels (especially the center, minute, and hour pinions) if the timekeeping falters or the second hand stutters–these 0.3mm to 0.5mm brass gears transmit torque from the mainspring barrel and are precision-cut to 90° pressure angles for minimal friction. For battery-powered units, the stepper motor coil (typically 400-600Ω) often fails after 8-10 years; test continuity with a multimeter–if resistance exceeds spec, swap it immediately to prevent irreversible damage to the integrated circuit. The pendulum suspension spring (usually 0.05mm stainless steel) snaps under lateral stress; inspect for micro-cracks near the mounting point and replace the entire assembly if deformation is visible–even minor bending disrupts the harmonic oscillation frequency (2-3 swings per second). Always check the cannon pinion for stripped teeth when the minute hand slips; this friction-fit brass sleeve meshes with the center wheel and must engage tightly–looseness here causes erratic time jumps often mistaken for motor failure.
Lesser-Known but Critical Pieces
Swap the beat plate (a thin steel disc beneath the pendulum) if the rhythm deviates by over 20 seconds daily–this component regulates the escapement’s impulse angle and its surface must remain perfectly flat; any bowing warps the amplitude, leading to inconsistent ticks. The mainspring arbor (4mm diameter in most cases) wears grooves into the barrel’s inner wall–replace both barrel and spring as a set if the run-time drops below 30 hours, as uneven tension creates unpredictable power delivery. For chiming mechanisms, inspect the rack gathering pallet (a hooked brass lever) for wear–if the chimes skip notes, file the pallet’s tip to a 60° angle to restore proper engagement with the star wheel. Always lubricate the click spring (a coiled steel strip) with Singer clock oil–dried grease here causes sporadic winding resistance, straining the motor in quartz models.
Locating and Reading the Serial Number for Accurate Schematics
Check the back panel first–most timekeeping devices imprint identification codes on the rear housing, either embossed or stamped near the power connection. Look for a combination of letters and numbers, typically 6–12 characters, without spaces or symbols. If the surface appears blank, tilt the casing under direct light to reveal faint markings. Some older models may have the code etched on a metal plate screwed into the interior; remove the cover carefully using a non-marring tool.
Alternative Locations for Hidden Markings
Examine the movement enclosure–open the front or side panel to access internal components. The serial number often appears on the gear assembly or motor mount, labeled in tiny text. Use a magnifying lens if necessary, especially for miniature engravings. For pendulum-driven units, inspect the suspension spring bracket or bob attachment point, where codes may be printed on adhesive labels or directly on metal parts. Avoid touching delicate mechanisms while searching.
Refer to the original documentation if the number remains elusive. Packaging, warranty cards, or instruction manuals frequently include the serial number on the first pages or labels. Digital archives maintained by manufacturers sometimes cross-reference physical markings with product records; entering the code on the official support site can retrieve exact schematics. If neither physical nor documented identification exists, measure key components–case dimensions, motor type, and gear teeth count–to narrow compatible diagrams.
Once located, cross-verify the number against online databases or service portals. Discrepancies in single characters can lead to mismatched diagrams, so transcribe it precisely. Take a photograph for reference, ensuring clarity under even lighting. For units with worn or obscured codes, gently clean the area with isopropyl alcohol and a lint-free cloth to restore visibility without damaging surfaces.
Replacement parts or upgrades require matching the serial number to exploded-view illustrations. Manufacturers periodically update designs, even within the same model line, so relying on approximations risks component incompatibility. If diagrams conflict, prioritize versions labeled with the exact code over generic line drawings–this ensures tolerances, wiring paths, and mounting points align correctly during repairs.
