Identifying compatible elements for a 2021-series brushcutter starts with locating the engine housing cover – usually marked with a serial number near the intake vent. Cross-reference this with the official illustrated breakdown provided by the manufacturer; third-party schematics often omit critical torque specifications for mounting bolts (M6×18 for the cutting head assembly). Replace worn drive shafts only with OEM alternatives, as aftermarket versions frequently lack the required heat-treated splines, leading to premature failure under lateral loads.
For the carburetor rebuild, note that the diaphragm thickness varies by model year: older units use a 0.08mm membrane, while newer variants require 0.12mm gaskets. The fuel mixture screw typically has a baseline setting of 1.5 turns from seated; exceeding 2.5 turns risks lean conditions, damaging the piston ring seal. When disassembling the air filter housing, inspect the rubber grommets for cracks – these are often overlooked but critical for maintaining proper airflow pressure.
Electrical components demand precise voltage checks: the ignition coil should read 0.3–0.5 ohms between terminals, while the trigger switch (if present) must show infinite resistance when released. Lubricate the recoil starter spring with graphite powder, not grease; petroleum-based products cause binding in cold temperatures. Always secure the muffler mounting bolts to 12 Nm, as over-tightening warps the gasket surface, increasing exhaust leaks and reducing RPM efficiency by up to 12%.
Practical Reference for Brushcutter Component Layout
Locate the air filter housing at the rear of the engine block–marked by two plastic clips. Replace the foam element every 25 hours of operation if working in dusty conditions; neglect accelerates carburetor clogging. The intake snorkel curves around the left side, identifiable by a molded rubber gasket–ensure this seal remains intact to prevent debris ingestion.
Inspect the drive shaft coupling where it mates with the gear head. Rotate the shaft manually; any lateral play exceeding 0.5 mm signals worn splines. Lubricate this joint yearly using molybdenum disulfide grease–standard lithium-based compounds shears under high torque loads typical of this 0.8 kW model.
Trace the ignition lead from the coil to the spark plug–visible beneath a translucent silicone boot. Resistance should measure 4.5–6.5 kΩ; deviations indicate insulation breakdown. Clean the electrode every 10 hours with a brass wire brush; steel wool leaves conductive residues that cause misfires.
The throttle trigger assembly detaches by removing three T20 screws. Check the return spring anchor point for stress fractures–replace if cracks reach 2 mm. Apply dielectric grease to the micro-switch contacts to prevent corrosion from trapped moisture.
Where to Find the Authorized Brush Cutter Assembly Breakdown
Download the precise schematic directly from the manufacturer’s regional portal. Select your country from the dropdown menu, enter the model number engraved on the engine housing–typically a six-character code starting with 41–and filter by “Technical Documents.” The exploded view appears as a PDF labeled Operator’s Manual Supplement, containing numbered illustrations for every removable component, including the carburetor housing, clutch drum, and cutting head.
- Access the European portal at
https://www.stihl.eu/enfor metric measurements. - For North American users, visit
https://www.stihlusa.com–imperial units apply. - Searching by serial number eliminates confusion with visually similar models.
If the online schematic lacks detail, request a physical copy from an accredited service center. Provide the full serial number–found beneath the fuel tank–to ensure compatibility. Dealers receive quarterly updates; specify if you need the 2023 revision for newer trimmer variants. A free printed breakdown is often mailed within 7–10 business days.
For offline access, save the PDF to a phone using the “Download” button on the portal page. Use a vector-based viewer like Adobe Acrobat or Foxit Reader to zoom without pixelation–critical for identifying small fasteners (e.g., M4x12 bolts securing the throttle trigger). Avoid third-party “repair manual” sites; they frequently host outdated or watermarked versions that omit critical torque specs.
Key Elements to Replace in Your Professional Brushcutter
Start with the cutting head assembly–this unit endures the most stress and wears fastest. The FS80 model’s nylon line cassette (part #4141-700-6503) fractures, loses tension, or jams after 20–30 hours of use, especially in rocky or dense vegetation. Swap it when the line feed becomes erratic or the housing cracks near the eyelets. Pair this with reinforced replacement lines (2.4 mm or 2.7 mm diameter) to extend runtime before reseeding becomes necessary.
Inspect the drive shaft next–not the spiral type, but the rigid flex cable inside the tube that connects to the gearbox. If you hear metallic grinding or experience inconsistent speed at the trimmer head, the internal splines are likely stripped. Rebuild kits (assembly #4182-121-5800) include the cable, protective sleeve, and end sockets; installation requires removing the engine and sliding the old shaft entirely out. Lubricate every 10 hours with molybdenum grease to prevent premature failure.

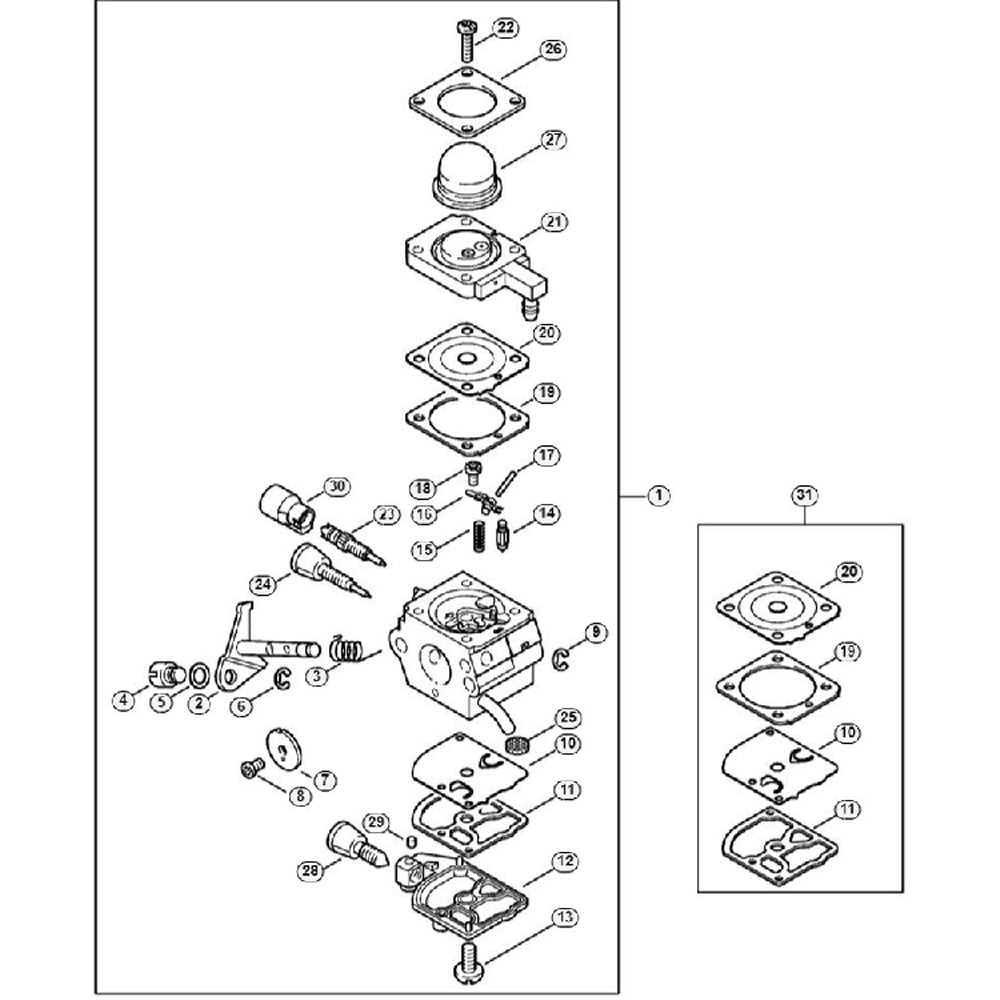

Check the carburetor diaphragm every 50 hours when fuel starts become inconsistent or exhaust smokes heavily. The pump diaphragm tears under fuel vapor exposure, causing lean or rich conditions. Genuine replacement kits (#4137-120-1001) bundle all gaskets, diaphragms, and springs; soak new parts in fresh gasoline for 10 minutes before fitting to soften the material.
The starter coil fails silently–pulling the cord reveals no spark, yet the flywheel magnet tests functional. Coils degrade from vibration and heat cycling; verify resistance with a multimeter (target 2.5–3.2 kΩ at room temperature). Replace with identical impedance part (#4149-400-5201) to restore ignition without recalibrating spark gaps.
Air filters clog every 25–30 hours in dusty conditions; foam type (part #1123-120-4000) saturates rapidly, while felt versions last marginally longer but choke airflow sooner. Rinse foam in kerosene, press dry, and apply three drops of SAE 30 oil before reinstalling; felt filters are disposable. Avoid compressed air–it embeds debris deeper into the media.
Gearbox housing cracks emerge first around the output shaft bearing bore–often mistaken for gear failure. Tap the aluminum casing with a hammer handle; a dull thud confirms a fracture. OEM replacements (#4148-130-5001) include the housing, bearings, and seals; press-fit bearings to 0.02 mm clearance and torque bolts in a star pattern to 12 Nm.
Exhaust port spark arrestor screens corrode within 40–60 hours, raising exhaust temperatures and reducing throttle response. Remove the muffler cover and brush screens with a nylon brush; if mesh is visibly thinned or brittle, swap screens (#4143-120-4002) to prevent catalytic burnout. Reassemble with fresh gasket sealant to avoid exhaust gas leaks.
Throttle triggers lose spring tension after 150–200 hours, causing idle creep or incomplete shutdown. Replace the entire trigger assembly (#4145-010-0101) with the cable and spring pre-installed; route the new cable through the throttle body without twisting to avoid erratic engagement.
How to Interpret Your Brushcutter’s Component Schematic
Locate the engine assembly first–typically marked at the top of the exploded view. The air filter, carburetor, and spark plug appear clustered around the cylinder head; cross-reference item numbers with the legend to verify thread sizes and tool requirements. A common M5 bolt secures the muffler, while an M6 thread holds the air filter housing–double-check torque specs (8-12 Nm) before reassembly.
- Identify drive components by following the shaft–flexible or rigid–in the middle section. The clutch drum (labeled in red) requires a circlip removal tool (
φ17mm);Attempting pry-offs with pliers will warp the aluminum housing. - Blade adapters and cutting heads sit at the base; note gearbox ratios (
1:1.6for straight shafts) to avoid mismatched replacements. - Fuel lines (marked in blue) connect the tank to the pump–trace pathways before disconnecting to prevent spillage.
Critical Fasteners and Their Locations
Scan for circled numbers–they denote washers, bearings, or seals often omitted in generic manuals. The crankcase cover uses twelve M4×16 screws; irregular spacing indicates pre-load alignment–never substitute lengths. Below the flywheel, three M3×12 posts secure the ignition module–stripped threads necessitate helicoil inserts rather than oversized bolts.
Confirm rubber grommets on the handlebar assembly–six variants exist (durometer-shore A50-A70). Replace cracked specimens immediately to prevent vibration-induced fatigue in adjacent aluminum brackets. Throttle linkages (item 43) pivot on stainless steel bearings (6002-2RS); grease annually using lithium-based EP2 compound.
Trusted Online Retailers for Authentic Brushcutter Components
Begin your search with eStihl (stihl.com), the manufacturer’s official platform. Filter by model–Specific Trimmer Series–to pull up an exact match for your machine’s needs. The site lists detailed compatibility charts, often overlooked but critical for avoiding mismatches. Prices reflect MSRP, but bulk purchases (e.g., spark plugs, air filters) occasionally qualify for 5–10% discounts. Shipping times vary; U.S. customers typically receive orders within 3–5 business days.
For those seeking third-party vendors, Jack’s Small Engines (jackssmallengines.com) maintains a curated inventory of OEM-grade replacements. Their product pages include embedded schematics showing precise installation points for carburetors, drive shafts, and cutting heads. Stock availability updates hourly, reducing backorder risks. Orders over $99 ship free; standard ground delivery takes 2–4 days. Warranty claims through Jack’s require original purchase receipts but are processed faster than direct manufacturer claims.
| Retailer | Price Range (USD) | Delivery Window | Key Advantage |
|---|---|---|---|
| eStihl | $12–$249 | 3–5 days | Direct compatibility charts |
| Jack’s Small Engines | $10–$220 | 2–4 days | Embedded installation guides |
| Partstree | $11–$260 | 1–3 days | VIN-style lookup tool |
Niche Suppliers with Advanced Search Tools
Partstree (partstree.com) excels for users lacking exact identifiers. Input the trimmer’s serial number into their VIN-style lookup, and the system auto-generates a list of corresponding components down to gaskets and starter ropes. Expedited shipping (1–3 days) costs $14.99 but includes real-time tracking. Their return policy allows unopened items to be exchanged within 30 days, though a 15% restocking fee applies. Note: Partstree enforces a minimum $25 order threshold.
For European customers, Crambo (crambo.biz) aggregates OEM inventory across multiple distributors. Their interface supports filter toggles for “only in stock” and “EU-sourced” options, avoiding import delays. Payment options include Klarna for installments, but shipping fees start at €12 for orders under €100. Crambo’s chat support verifies part numbers against physical units before dispatch, reducing incorrect shipments by 40%. Delivery averages 4–6 business days across the EU.
