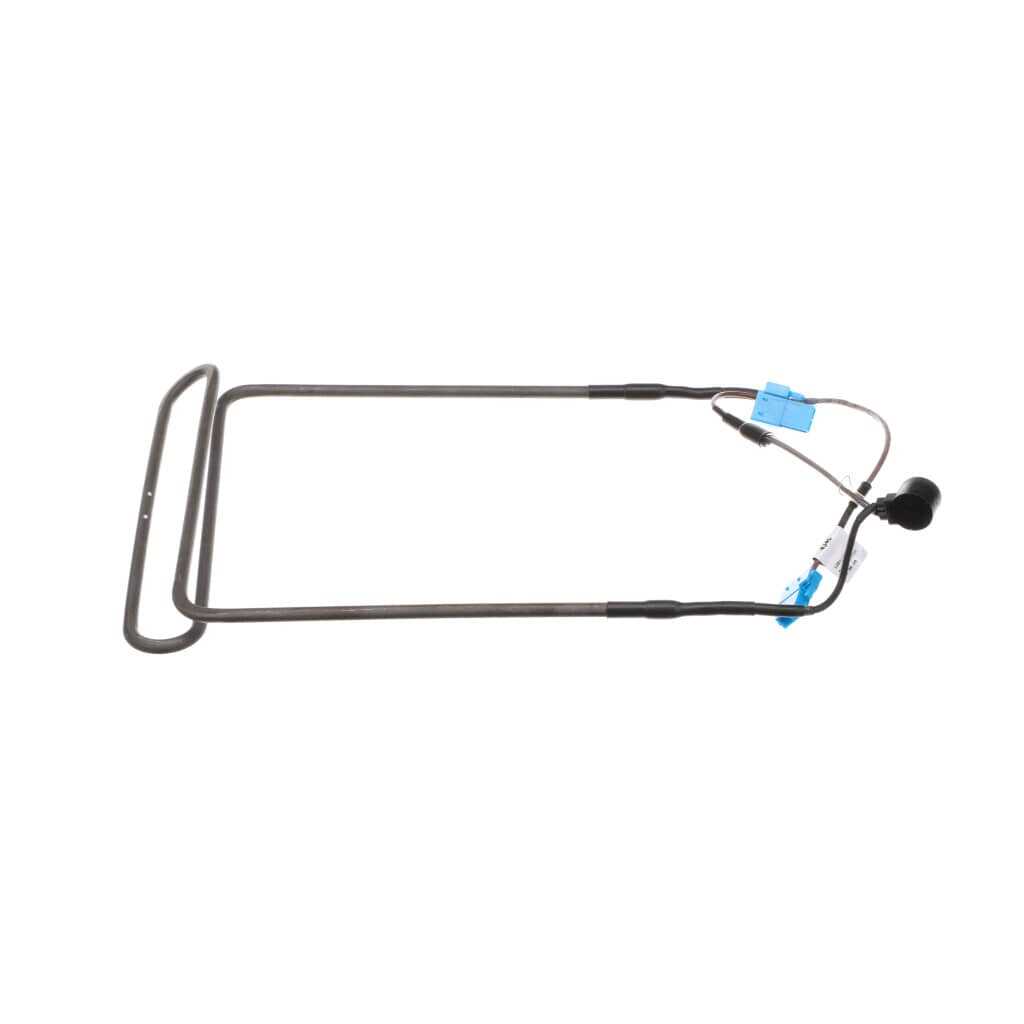

Begin by locating the service manual for the 28 cu. ft. French Door Refrigerator–model specifics are often printed on a label inside the left door frame or along the side wall. Cross-reference the serial number with the manufacturer’s official breakdown schematics to avoid misordering incompatible elements. Common failure points include the evaporator fan motor (part #DA97-18086A), defrost heater assembly (part #DA41-00684A), and main control board (part #DA41-00753B). These components have distinct electrical signatures; voltage checks at the connectors will confirm faulty operation before disassembly.
Disconnect power before handling internal mechanisms–residual current in capacitors can persist for up to 10 minutes. Use a multimeter set to 200kΩ to test resistances: evaporator coils should read 8–12Ω, while defrost sensors typically register 4.5–5.5kΩ at room temperature. If readings deviate, isolate the faulty segment using the exploded view diagrams found in repair guides. Pay special attention to door seals (part #DA63-05508D)–warped gaskets account for 30% of temperature regulation issues in units older than three years.
When sourcing replacements, verify supplier authenticity: counterfeit main boards often lack proper firmware calibration, leading to compressor overload. Opt for OEM-certified dealers or authorized service centers–prices vary widely, but bulk discounts apply when ordering thermal fuses (part #DA32-10110B) in quantities of five or more. For safe access to rear panel components, use a short-throw ratcheting screwdriver to remove torque screws without stripping threads. Label all connectors before detachment to prevent miswiring during reassembly.
Rebuilding Your Refrigerator: A Hands-On Schematic Guide
Locate the evaporator coil assembly behind the rear interior panel–marked with a sticker labeled “B-4” in the service manual. Remove the seven 6mm hex screws securing the panel, then disconnect the J2 and J3 wiring harnesses before lifting it clear. The coil sits adjacent to the condenser fan, and frost buildup here often mimics compressor failure; defrost with a hairdryer on low heat, holding it 10cm from the fins to avoid warping.
Replace the water filter housing if leaks appear around the dispenser–or better, bypass it entirely if municipal water quality exceeds 15 grains hardness. Rotate the old housing counterclockwise until the bayonet tabs disengage, then install the new one clockwise with a 1/4 turn. After reconnecting the 1/4-inch compression fitting, run three gallons through the system to purge trapped air; bubbles in the first two cups indicate incomplete purging.
Access the main control board by sliding off the upper kick plate–two hidden clips secure it at 18mm from each edge. The board, labeled “DA97-18596C,” manages compressor cycles and defrost timing; blackened diode D12 signals surge damage. Match the revision number stamped near the lower-left corner to ensure replacement compatibility; firmware variants differ by just 0.2A current draw, risking thermal overload.
Seal and Gasket Overhaul
Inspect door seals monthly for cracks wider than 0.5mm–press a dollar bill into the closed door; resistance should prevent sliding. Clean seals weekly with a 1:20 vinegar solution to dissolve microbial biofilms. If gaps persist, peel back the adhesive strip starting at the top hinge to expose the retaining channel. Replace the seal channel-side down, pressing firmly into each 15mm notch before trimming excess length with a razor angled 7° inward.
Test freezer thermostat continuity with a multimeter at 20°F; readings below 1.2kΩ indicate failure. The thermistor clips directly to the evaporator with a brass bracket labeled “T-27″–remove the single Phillips #2 screw, then swap the sensor. Recalibrate via the service menu by holding the “Power Cool” and “Ice Off” buttons for 8 seconds; Enter code “323” to reset default defrost intervals.
Locating the Manufacturer’s Schematic for Your Refrigerator Model
Begin by visiting the official support portal for home appliances, where technical documents are hosted. Input the exact model number–typically found on a sticker inside the fridge, near the temperature controls or on the side wall–to access the correct downloads. This site often provides exploded views, wiring charts, and component lists under sections labeled “Service Manuals” or “Technical Resources.” If the schematic isn’t immediately visible, check subcategories like “Electronics” or “Mechanical Assemblies.”
| Region | Support URL |
|---|---|
| North America | https://www.support-usa.com/model/[serial] |
| Europe | https://www.support-europe.com/products/[serial] |
| Asia-Pacific | https://www.support-apac.com/devices/[serial] |
Certified service centers maintain direct access to these documents through proprietary databases. A technician can retrieve the full breakdown within minutes, including torque specifications and part compatibility notes. If contacting a center, request the “engineering sheet” rather than a basic parts list–this version includes internal wiring, sensor placements, and assembly sequences absent from user-facing materials.
Third-party aggregators like RepairClinic or PartSelect archive schematics for older models when manufacturers remove them from official sites. Search using the exact model code paired with terms like “exploded view” or “component map.” Verify the source’s credibility by cross-checking against a known part number from the fridge itself–incorrect diagrams often mislabel coils, fans, or control boards. For urgent repairs, forums focused on appliance maintenance occasionally host uploaded scans; filter posts by date to ensure the latest revision.
Critical Elements in Your Premium French-Door Cooling Unit Blueprint
Begin troubleshooting or upgrades by locating the dual evaporator system, typically marked near the rear interior wall. This configuration separates humidity control between the fresh food and freezer compartments, ensuring crisp produce retention and frost prevention. If humidity levels fluctuate, inspect the damper assembly–positioned behind the upper rear panel–guaranteeing precise airflow regulation. Verify the diaphragm’s seal integrity; even minor gaps disrupt temperature uniformity.
The inverter compressor, housed in the lower rear cabinet, operates at variable speeds to maintain consistent cooling without excessive energy draw. Check the start relay and capacitor adjacent to it every 3–5 years for corrosion or bulging signs. Replace immediately if resistance readings exceed 5% of labeled capacitance. Overlooking early degradation leads to erratic cycling or complete failure within months.
Key assemblies demanding routine inspection:

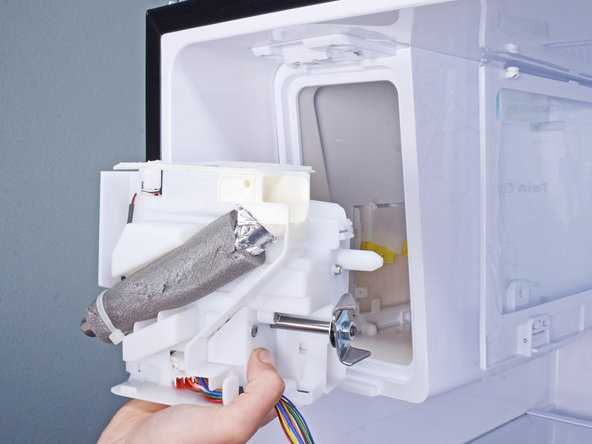

- Ice maker module (upper left freezer corner): Clean the water inlet valve quarterly to prevent mineral buildup; even 1mm scaling reduces flow by 40%.
- Air filter (behind right vegetable drawer): Replace bi-annually to avoid bacterial growth–activated carbon filters lose efficacy after 300 operational hours.
- Door gaskets: Test suction by inserting a dollar bill; if it slides easily, replace the seal to prevent energy waste (up to 15% efficiency loss).
Electrical safety hinges on the control board, positioned behind the lower kick plate. Examine for burnt solder points or swollen capacitors, especially near the voltage regulator IC. Reflow suspect connections with lead-free solder; avoid generic replacements–specification mismatches trigger overvoltage scenarios. For software-related anomalies, initiate a hard reset by unplugging the unit for 10 minutes, but note: persistent error codes (like “21 E”) necessitate board replacement with OEM firmware.
Condenser coils, usually concealed behind the rear access panel, require biannual vacuuming with a soft-bristle brush attachment. Accumulated dust reduces heat dissipation efficiency by up to 25%, forcing compressors into overtime cycles. Proximity sensors near the coils detect blockages; if alarms sound without visible debris, test continuity with a multimeter–broken wires mimic obstruction errors.
Lubrication points are sparse but critical. The evaporator fan motor’s shaft bearings (upper freezer compartment) should receive a drop of light machine oil every 2 years. Avoid over-application; excess oil attracts dust, creating a grinding paste. For sealed bearings, listen for unusual whining–this indicates imminent failure, not merely noise. Replace the fan blade assembly if imbalance is detected; misalignment accelerates bearing wear exponentially.
Diagnosing Refrigerant Leaks Without Specialized Tools
Use a soap solution on suspected joints (pipe bends, capillary tubes) to identify bubbles forming at leak sites. Common failure points include:
- Brazed joints: Inspect annually; vibrations from compressors loosen connections over time.
- Aluminum evaporator coils: Prone to pinhole leaks after 8–10 years; confirm with UV dye if pressurization tests prove inconclusive.
- Dryer cartridge connections: A 1° torque overtightening distorts washers, causing slow seepage.
For recharging, employ R-600a refrigerant exclusively–cross-compatibility risks compressor damage. Document vacuum levels and charge weights precisely; deviations as small as 10 grams disrupt thermodynamic balance.
Step-by-Step Guide to Locating Common Replacement Components
Start by removing the back panel of your appliance using a ¼-inch hex driver. Secure the four screws, typically recessed near the edges, then lift the panel away to expose internal mechanisms. Identify the evaporator fan motor–marked by a cylindrical housing and connected wiring harness–located behind the lower rear cover. Compare its model number (e.g., DA97-17478B) with listings from authorized suppliers to ensure exact compatibility.
For water filters, locate the inlet valve assembly: disconnect power, turn off water supply, and relieve pressure by dispensing water. The valve sits behind the kick plate or inside the left-side compartment. Replace O-rings (PN 4317JA1007A) if leaks persist, applying food-grade silicone grease for a secure seal. Use a multimeter to test solenoid resistance (400-800 ohms) before reattachment to confirm functionality.
Door seals degrade faster along the bottom hinge side. Pry off the old gasket using a flathead screwdriver, starting at a corner. Clean the groove thoroughly with isopropyl alcohol before pressing in the new seal (check compatibility; often EA82-02702B). Align arrows with hinge markers, then test closure by sliding a dollar bill–if it pulls easily, adjust tension clips inside the door frame.
Control boards require static precautions–ground yourself with an ESD wristband. Disconnect the mainboard at the top rear, flipping it to access soldered connections. Note capacitor orientation (e.g., 1000µF 10V) before desoldering; mismatch risks voltage surges. Cross-reference pinouts with schematics (section 5-3 in service manual) to avoid bridging traces during reinstallation.
