Begin by identifying the core elements that define a functional wet area installation. A standard setup includes a mixing valve, often concealed behind the wall, controlling water temperature and flow. Pair this with a showerhead–consider a rainfall or handheld model for versatility. For durability, select brass or stainless steel fittings, which resist corrosion and withstand high pressure.
Install a drain assembly optimized for slope and water displacement. A linear drain (1.5–2 inches wide) reduces clogging risks compared to traditional center drains. Surrounding materials matter: use porcelain tile with
Add a valve diverter if integrating a bathtub into the design, allowing seamless switching between functions. Secure all connections with Teflon tape on threaded joints to prevent leaks. For recessed storage, use stainless steel niches with watertight seals or prefabricated ABS units. Ventilation is critical–exhaust fans should exceed 110 CFM for spaces over 60 sq. ft. to mitigate mold.
Avoid common pitfalls: skip rubber gaskets in favor of silicone sealant for longevity, and ensure all mounting brackets are anchored to studs or blocking. For water efficiency, limit flow to 2.0 GPM without sacrificing performance. Test the assembly with a 50 psi water pressure gauge before finalizing tiling to catch potential issues early.
Key Components of Bathing Unit Schematics
Install a thermostatic valve with a flow rate of at least 8 liters per minute to maintain water temperature within ±1°C, preventing scalding or chilling during use. Position it 1.2–1.5 meters above the floor for optimal pressure balance and accessibility. Ensure the valve includes a failsafe mechanism–ideally a ceramic disc cartridge–that shuts off immediately if cold water supply fails.
- Showerhead options:
- Fixed rainfall models (200–250 mm diameter) require a minimum ceiling height of 2.4 meters to avoid spray obstruction.
- Adjustable handheld units need a 1.5-meter hose for full reach; use a weight-balanced bracket to prevent kinking.
- Low-flow designs (≤6 L/min) mandate a pressure-balanced valve to counteract fluctuations in multi-unit dwellings.
- Drain configuration:
- Slot drains (≤10 mm wide) demand a slope of 2–3% toward the outlet to prevent water pooling.
- Point drains require a 150 mm center trap with a minimum depth of 50 mm to comply with most plumbing codes.
- Linear drains (600–1200 mm lengths) need a pre-sloped shower base panel for even water distribution.

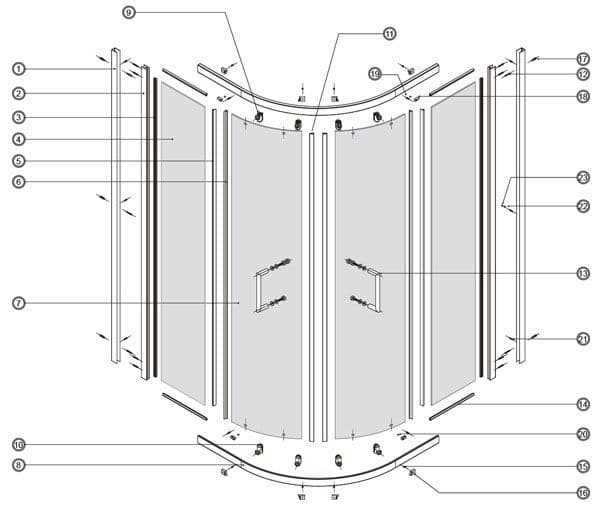

Use 12 mm reinforced tempered glass for enclosure panels, secured with U-channel aluminum tracks at both top and bottom to support static loads up to 50 kg/m². Seal joints with 100% silicone (neutral-cure, mold-resistant grade) applied at a 45° angle to fill gaps fully–avoid gaps wider than 3 mm to prevent leaks. For tile surfaces, specify a waterproof membrane system (e.g., Schluter® KERDI or RedGard) with a minimum overlap of 50 mm at seams and corners; test membrane integrity with a 48-hour flood test before final tiling.
Key Elements of a Typical Bathing Installation

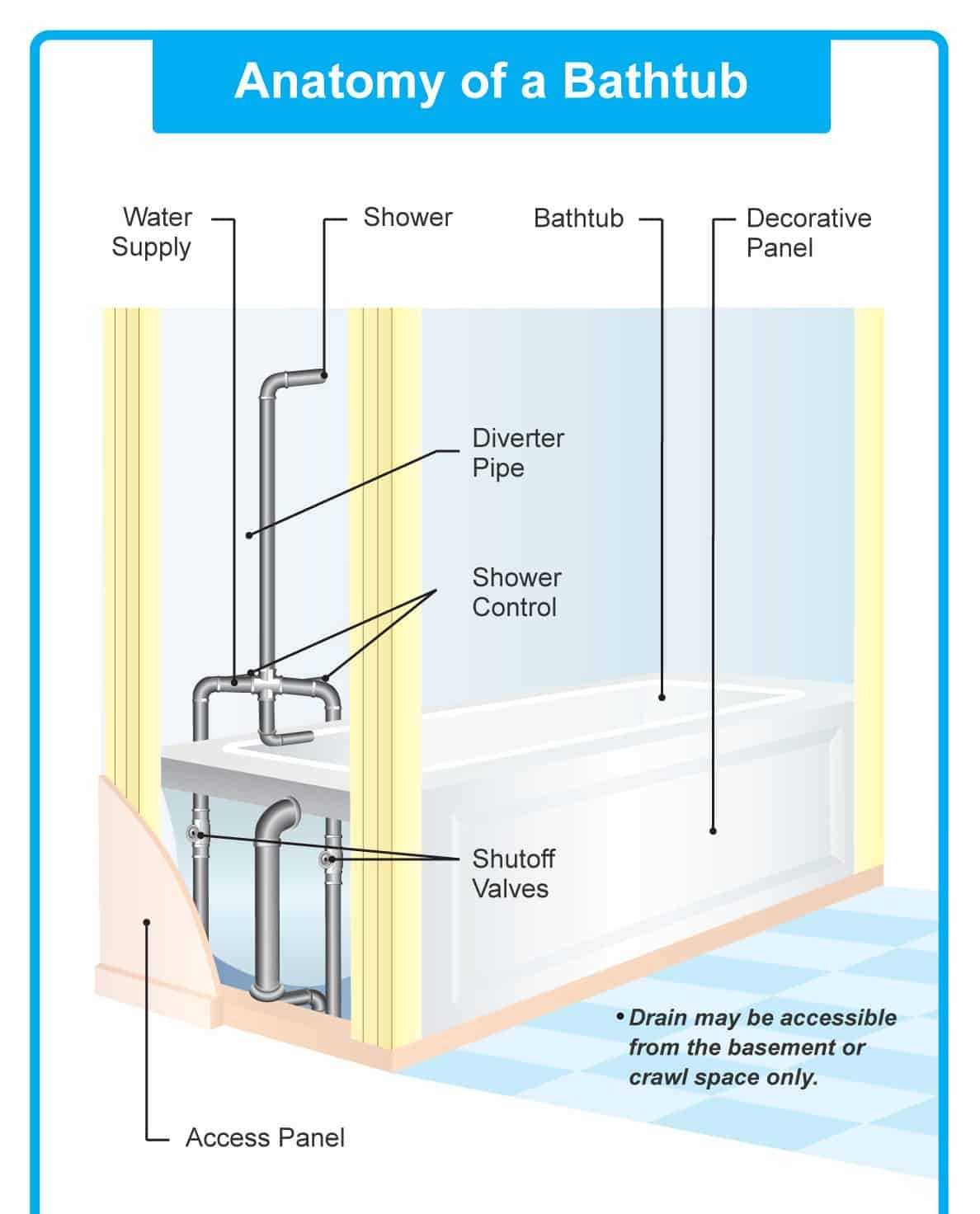

Begin by locating the water supply valves–usually positioned behind an access panel or beneath the unit. Cold and hot feeds should be clearly labeled; if not, trace the pipes back to their source. Mark them with color-coded tape to simplify future maintenance. A standard setup includes shutoff valves with either compression or quarter-turn designs; ensure they operate smoothly before proceeding.

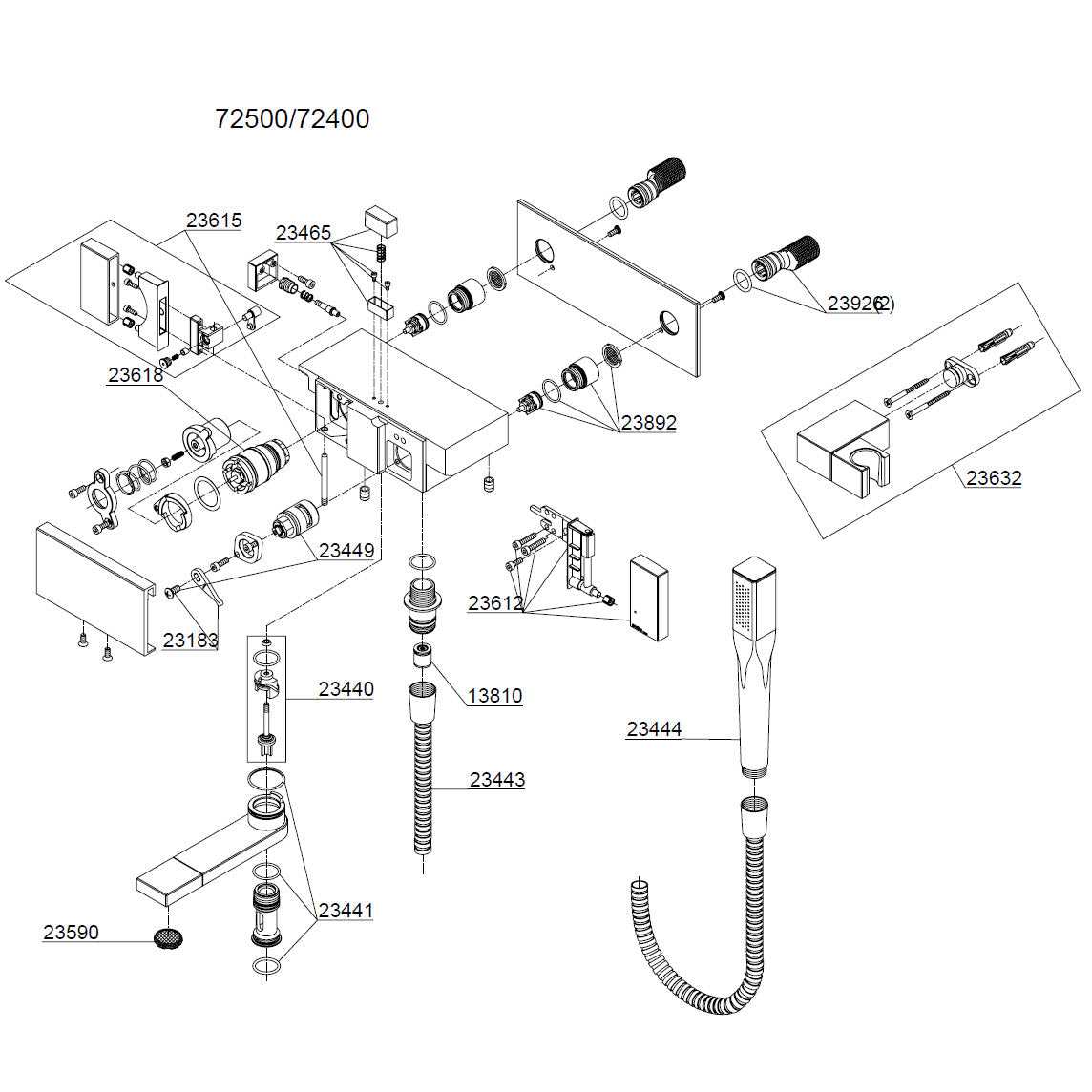

Inspect the mixing valve next. This device, often concealed behind a trim plate, balances water temperature by combining hot and cold flows before directing them to the outlet. Cartridge-based models dominate modern units, while older systems may use piston or diaphragm mechanisms. Check for mineral buildup, as sediment accumulation leads to inconsistent temperatures and premature wear. Replace the cartridge if water fails to maintain a steady 38–43°C (100–110°F) output.
The overhead fixture–whether a fixed head, handheld sprayer, or detachable wand–requires periodic flow testing. Detach the nozzle and examine the internal filter screen for debris; a clogged screen reduces pressure and can trigger backflow into supply lines. Most models feature a ball-joint connection for adjustable angles; ensure the joint rotates freely without leaks. Lubricate silicone seals with plumber’s grease annually to prevent drying and cracking.

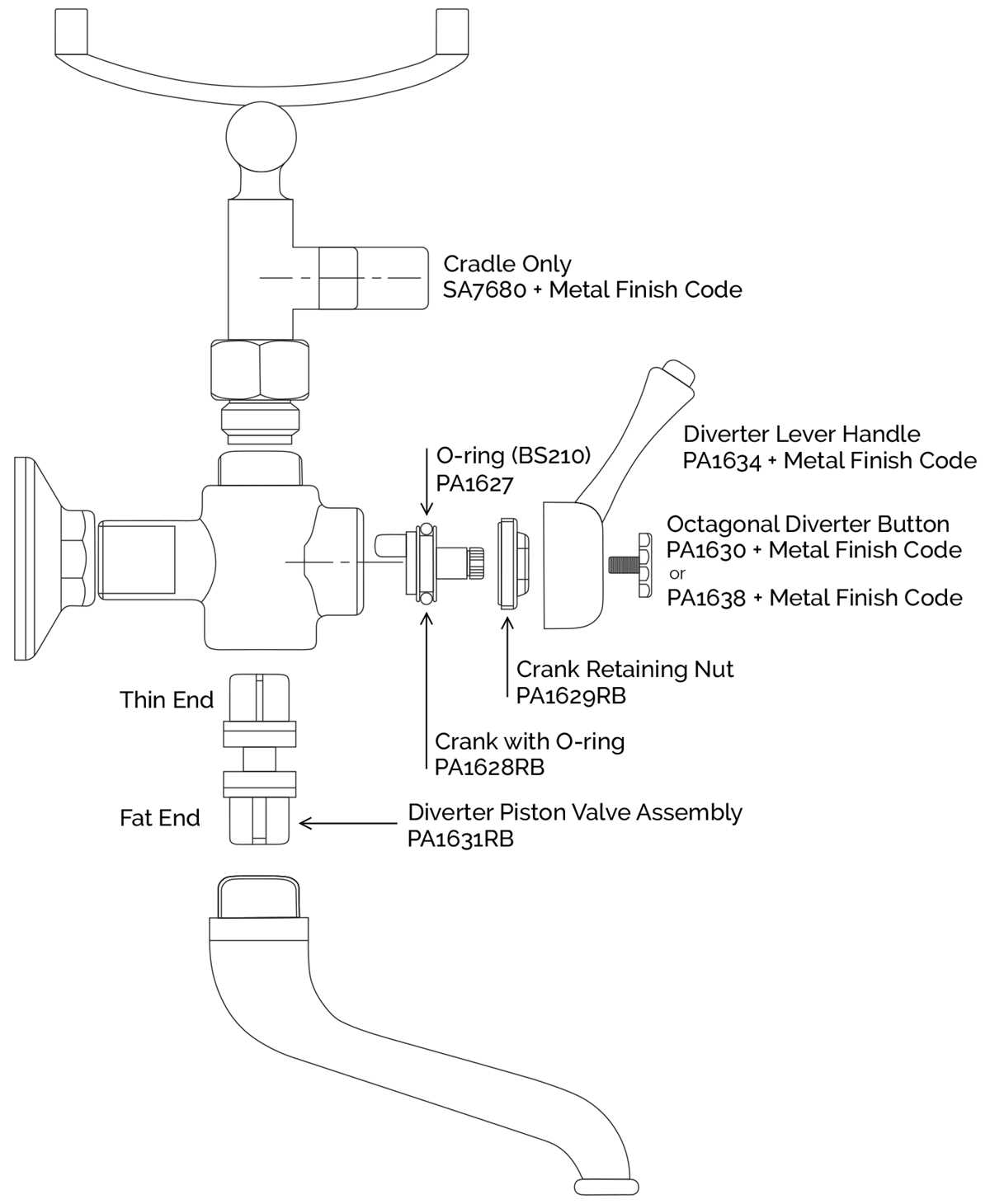

Diverter valves, typically a small lever or dial on the trim plate, redirect water between outlets. Test their functionality by cycling through each position–overhead, handheld, and tub spout–and listen for clicking sounds indicating proper engagement. Faulty diverters cause cross-flow, where water spurts from unintended sources; replace the valve core if leakage persists after cleaning.
Plumbing Connections and Drainage
Examine the tailpiece connecting the base unit to the waste pipe. A P-trap–a U-shaped section of pipe–prevents sewer gases from entering the enclosure. Measure the trap’s depth; if less than 5 cm (2 inches), replace it to comply with plumbing codes. The drain flange, secured with plumber’s putty or a rubber gasket, must sit flush with the basin to prevent leaks. Tighten the locking nut by hand, then give it an additional quarter-turn with channel locks to compress the seal.
Overflow channels, found in most enclosures with basins, require unobstructed pathways. Pour a liter of water into the overflow to confirm it drains within 10 seconds; slow drainage signals a blockage in the secondary drain line. Use a flexible brush or enzyme-based cleaner to clear hair and soap scum, but avoid corrosive chemicals that degrade PVC or ABS materials. For recurring clogs, detach the overflow cover and inspect the weep holes–ensure they measure at least 6 mm (¼ inch) in diameter.
Sealants and grout lines demand attention during routine checks. Silicone caulk should form a continuous bead along wall joints, with no gaps wider than 1 mm (0.04 inches). Mold-resistant formulations last 18–24 months; reapply if discoloration or peeling occurs. Grout between tiles should remain rigid and stain-free; cracked or soft grout compromises waterproofing. Scrape out damaged sections to a depth of 3 mm (⅛ inch) before reapplying an epoxy-based repair compound.
Ventilation pathways impact moisture control. A standard 10 cm (4-inch) exhaust duct should terminate outdoors, not into an attic or crawl space. Verify the fan’s CFM rating matches the enclosure’s cubic volume–multiply length × width × height, then divide by 7.5 for baseline requirements. Replace fans that fail to clear steam within 10 minutes of operation. For glass-paneled units, hinge-mounted wipers or squeegees reduce cleaning frequency and prevent mineral deposits on surfaces.
Identifying and Marking the Water Control Mechanism and Core Unit
Shut off the main water supply before attempting any inspection. Locate the wall plate behind the faucet handle–remove the screws or lever cover to expose the internal structure. The valve assembly is typically a cylindrical or rectangular brass fixture secured within the wall cavity, often concealed behind a decorative trim plate. Use a flashlight to trace the water lines leading into the unit; the inlet pipes (hot and cold) connect directly to the sides or rear of this component. If the setup includes a diverter for tub spouts, the valve will have an additional outlet port positioned downward.
Cartridges differ by manufacturer: Moen uses a pull-and-turn sleeve, Delta employs a rotating ball with springs, while Kohler integrates ceramic discs. Examine the valve body for branding marks–these indicate the exact replacement model needed. If no markings are visible, measure the stem length and count the spline teeth to cross-reference with supplier databases. For concealed cartridges, insert a screwdriver into the valve stem and turn gently to gauge resistance, confirming whether it’s a pressure-balance or thermostatic variant.
Label the valve and cartridge immediately after identification. Use a permanent marker to write the manufacturer, model number, and orientation (left for hot, right for cold) on the wall stud adjacent to the assembly. Photograph the disassembled state from multiple angles, ensuring clear shots of the cartridge’s engagement slots and any unique notches. Store images with timestamped filenames for future reference when ordering replacements.
Reassembling without proper labeling risks cross-connections. Double-check pipe alignment–hot lines must route to the left inlet, cold to the right–before securing the valve with mounting screws. Test water flow at low pressure after reinstallation to verify temperature accuracy and absence of leaks at joints.
How to Select and Secure Your Shower Spray Nozzle for Optimal Performance
Choose a shower spray nozzle with at least 2.5 GPM (9.5 L/min) flow rate for strong water coverage, but ensure your home’s water pressure supports it–standard residential pressure ranges from 40-60 PSI (2.8-4.1 bar). Models with adjustable spray patterns (rain, massage, mist) should have a rubberized nozzle face; this prevents limescale buildup and simplifies cleaning–wipe with vinegar every 2 weeks to maintain efficiency.
For attachment, threaded mounting is the most reliable. Verify the pipe threading type (NPT for U.S. systems, BSPT for European) before purchasing. Apply Teflon tape clockwise to the male threads (3-4 wraps) to prevent leaks. Hand-tighten first, then use adjustable pliers–no more than an additional ½ turn–to avoid cracking the fixture. For slide-bar mounts, check the rail’s weight rating; most support 5-7 lbs (2.3-3.2 kg) but premium models handle up to 12 lbs (5.4 kg).
- Exposed pipe installations? Use a shower arm with a ½” NPT inlet and a minimum 6” (15 cm) length to avoid wall splash.
- Replace washers every 6 months if you notice drips–look for silicone washers, not rubber, as they last 3x longer.
- For hard water areas, select a nozzle with self-cleaning jets; brands like Moen and Delta embed rubberized nozzles that reduce clogging by 80%.
