Begin by locating the multiport valve assembly–this controls flow direction and houses critical components prone to wear. The pressure gauge, positioned at the top, should read between 10-20 PSI during normal operation. Readings outside this range signal clogged elements or improper backwashing. Replace gauges exhibiting erratic behavior immediately to prevent damage to seals downstream.

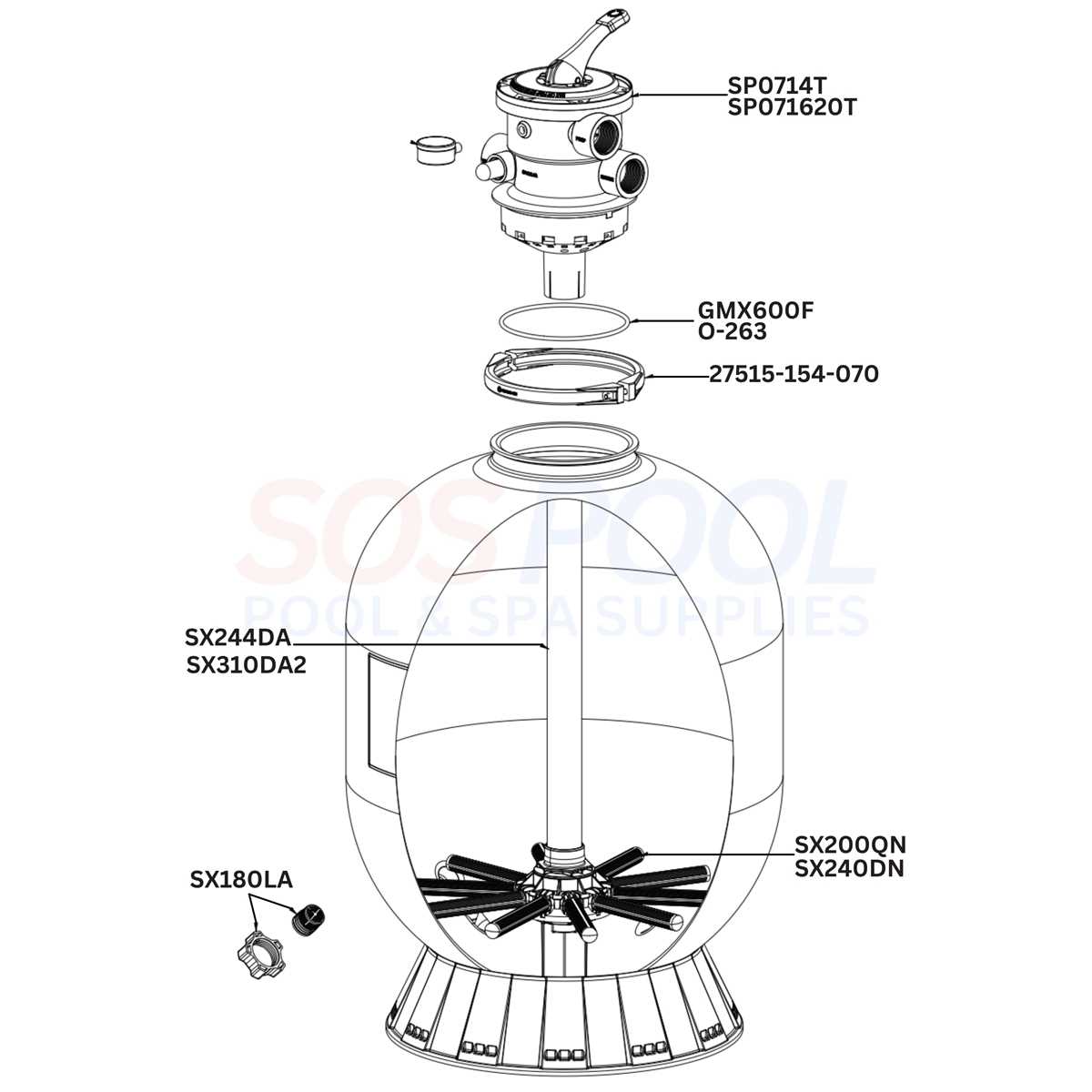

The laterals, thin cylindrical extensions at the base, distribute water evenly through the sand bed. Inspect for cracks or brittle material–fractured laterals allow debris bypass, reducing effectiveness. Use a flashlight to check the underdrain hub for sediment buildup, a common failure point requiring disassembly and rinsing every 200 operating hours.
Examine the standpipe, the vertical conduit connecting the valve to the tank’s interior. Misalignment here causes turbulence, leading to uneven filtration. Verify the O-rings securing the pipe collar–dry-rotted seals introduce leaks. Lubricate with silicone-based grease during reassembly, never petroleum products, which degrade rubber compounds.
Inside the vessel, the media support plate separates filtration material from collected contaminants. Corrosion on this metal screen demands replacement–pitted surfaces create pathways for fine particles to escape into the return lines. For sand-based units, use 20-grade silica, not builder’s sand, to maintain proper flow rates. Replace the entire load if particle size distribution exceeds ±0.5mm from original specs.
When servicing the pump basket area, note the impeller clearance. A gap larger than 0.3mm necessitates impeller adjustment plates or full replacement. Ignoring this gap reduces suction efficiency by up to 40%. On the motor housing, check the thermal cutoff switch–cycles exceeding 30 seconds per minute indicate overheating, often solved by cleaning air vents or replacing worn bearings.
Understanding Your Equipment’s Inner Workings: A Visual Breakdown
Begin by locating the multiport valve on the side of your system–this is the control hub for backwashing, rinsing, and standard operation. The valve’s internal gasket, positioned beneath the handle, often wears out after 2–3 years of use; replace it if leaks appear during transitions between settings. Beneath the assembly, the sand bed (or cartridge/DE grid) sits secured by a lateral assembly–ensure the laterals’ slots are unclogged by soaking them in a 1:1 muriatic acid solution for 30 minutes if flow rates drop significantly.
| Component | Material | Lifespan | Signs of Failure |
|---|---|---|---|
| Pressure gauge | Brass/plastic housing | 5–7 years | Stuck needle, inaccurate readings |
| O-ring (valve seal) | EPDM rubber | 2–4 years | Water bypassing, visible cracks |
| Standpipe | Schedule 40 PVC | 10+ years | Fractures near base, reduced flow |
Troubleshooting Common Issues with Precision
If the tank’s pressure rises 8–10 PSI above baseline, inspect the drain port first–blockages here mimic a clogged media bed. For sand systems, replace the media every 5 years or after 100–150 cleaning cycles, whichever comes first; using finer-grade silica (0.45–0.55 mm) improves filtration but requires more frequent backwashing. Cartridge elements last 1–2 seasons; soak them in trisodium phosphate (1 cup per 5 gallons of water) overnight to dissolve embedded oils before hosing down. Never force reassembly–misaligned laterals or a poorly seated clamp band can crack the tank’s base, leading to costly leaks.
Key Elements of a Residential Water Purification Assembly
Begin by locating the multiport valve at the top of the canister–this critical node dictates flow direction and maintenance cycles. Verify the handle’s position aligns with the labeled settings: “Filter,” “Backwash,” “Rinse,” “Waste,” “Recirculate,” and “Closed.” Misalignment during operation risks internal damage. The O-ring beneath the valve ensures a watertight seal; inspect it for cracks or deformation before each seasonal startup.
The pressure gauge, typically mounted on the valve or canister side, should read between 10–20 psi under normal conditions. Deviations above 25 psi indicate media obstruction; values below 8 psi suggest a malfunctioning pump or intake blockage. Record baseline readings after installation–fluctuations beyond ±5 psi merit investigation. Sudden drops exceeding 7 psi often signal bypass valve failure.
- Septum Assembly: The internal core houses layered polyester mesh, often reinforced with thermoplastic. Examine pleats for tears; even minor perforations reduce efficiency by 40%. Rinse under low-pressure water to dislodge debris–high-pressure streams damage the fabric.
- Tank Housing: Fiberglass or polymer shells withstand 50 psi but degrade under UV exposure. Apply silicone-based lubricant to threads annually to prevent corrosion. Check for hairline cracks near the base; these propagate into catastrophic leaks.
- Drain Plug: Positioned at the canister’s lowest point, this component requires quarterly removal to purge accumulated sediment. Use a brass brush to clear mineral deposits–steel tools strip threads.
Air relief valve, usually integrated into the multiport valve or atop the tank, vents trapped gases. Failure to open this during startup causes pressure surges that crack the septum or housing. Open it manually after refilling the system; bubbles indicate residual air. Replace the valve if sealing becomes inconsistent–rebuild kits cost under $15 and restore function within 10 minutes.
- Disassemble the top lid by rotating counterclockwise. Lift cautiously–internal springs may eject media. Place components in sequence for reassembly.
- Inspect the standpipe for cracks. This vertical conduit distributes flow evenly; fractures redirect water away from the septum.
- Measure mesh pleat depth. Standard units show 1–1.5 inches per pleat; thinning to 0.75 inches mandates replacement.
- Lubricate all O-rings with food-grade silicone. Petroleum-based products degrade polymer seals within 8 weeks.
Internal distributors, often called “spreaders,” channel water across the media bed. Plastic spreaders warp at temperatures above 120°F–replace if discolored or brittle. Aluminum variants resist heat but corrode when exposed to saline solutions. Ensure radial slots remain unobstructed; even partial blockages reduce flow by 25%.
Locking collars secure the lid to the canister. Hand-tighten only–over-torquing strips threads, while under-tightening creates gaps that leak. Verify the gap between lid and tank lip measures under 0.5mm. Install a secondary clamp if vibrations loosen connections; use stainless steel bands rated for 100 psi minimum.
How to Interpret an Equipment Component Breakdown Illustration

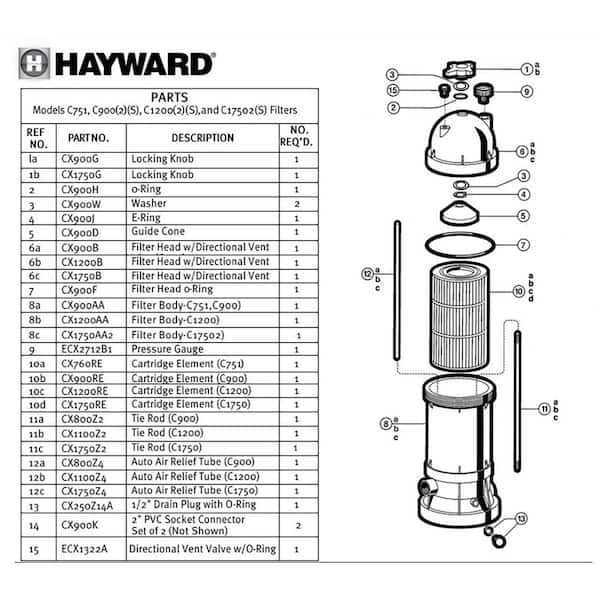

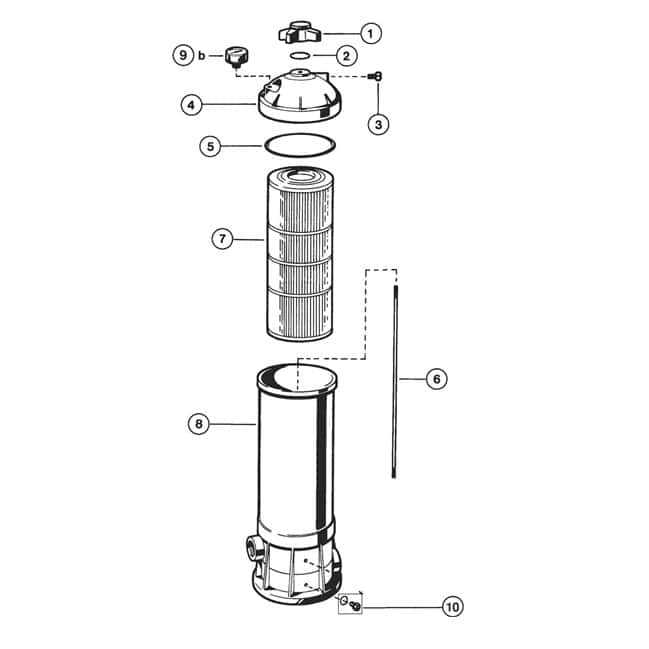

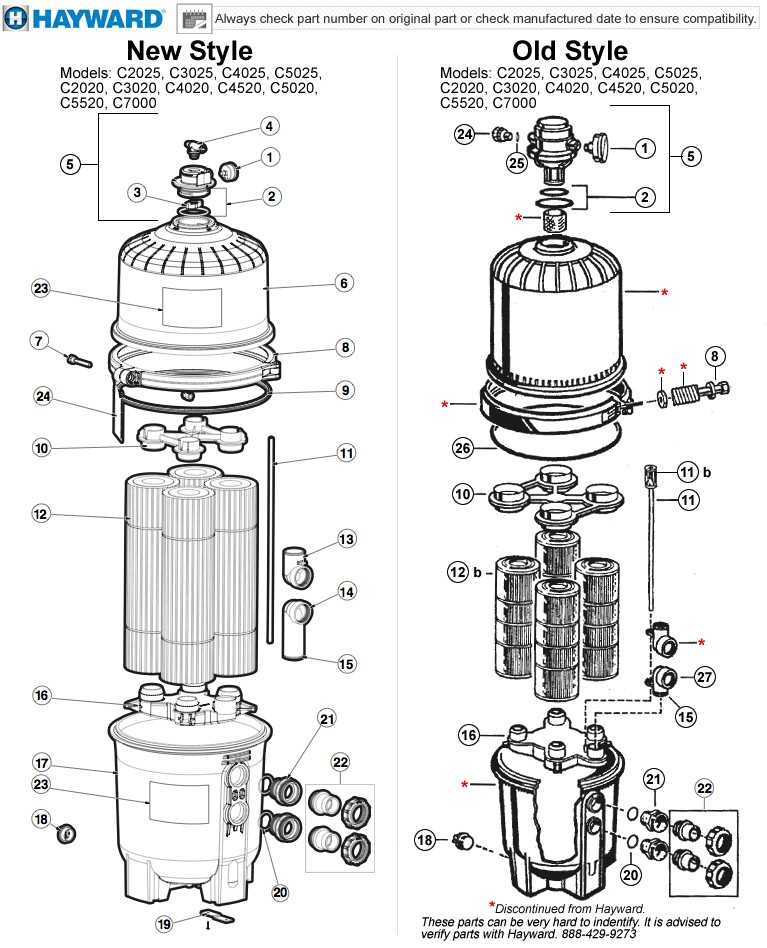

Locate the identification number adjacent to each piece in the exploded schematic–these correspond directly to the manufacturer’s replacement catalog or service manual. Verify the numerical sequence matches the labeled positions on the assembly drawing; discrepancies often indicate revisions between product versions. Cross-reference materials by checking symbols near components: rubber seals will display a dashed outline, metallic elements appear solid, and plastic fittings are typically shaded. Use a magnifying tool if necessary, as minute variations in shape or threading detail determine compatibility.
Begin assembling replacement elements from the innermost segment outward, ensuring proper orientation by aligning notches, grooves, or embossed arrows shown on the rendering. Apply lubricant only to specified areas–excess can attract debris and compromise sealing surfaces. Secure fasteners in stages, alternating between opposite sides to prevent uneven stress, and torque to the specifications listed in the accompanying technical documentation. Confirm operation by conducting a brief pressure test: abnormal readings signal missed components, improper seating, or damaged seals.
Key Components for Aquatic Purification Systems and Their Roles
Replace the multiport valve assembly every 3-5 years if you notice persistent leaks or difficulty switching positions. This mechanism directs water flow through different cycles–backwash, rinse, waste, and filtration–and is prone to wear from frequent use. Opt for OEM replacements to ensure precise alignment with the tank’s inlet and outlet ports, preventing pressure drops.
The standpipe assembly, including the diffuser and laterals, requires inspection biannually. Cracks in the laterals–thin, slotted tubes distributing water across the media–can allow debris bypass, reducing efficiency. Polypropylene laterals are durable but may warp under extreme pH fluctuations; consider upgrading to reinforced models if your setup experiences chemical imbalances frequently.
Pressure gauges should be swapped out if readings become erratic or fail to reflect actual system stress. A faulty gauge masks issues like clogged elements or excessive backpressure, leading to premature wear on seals and housings. Install a liquid-filled model for dampened needle movement, reducing false alarms from vibration.
Media and Housing Components
Sand beds degrade over time, with sharp edges smoothing out and losing filtration capability. Replace the media every 5-7 years, or sooner if turbidity persists post-backwash. For high-traffic installations, opt for crystalline variants with superior dirt-holding capacity. Avoid mixing grain sizes, as this creates uneven flow channels and reduces contact time.
Internal seals–such as O-rings on the lid clamp and tank flange–are critical leak prevention points. Silicone seals degrade faster under UV exposure and chlorine; inspect them annually and coat with food-grade lubricant during reassembly. For thread-seal areas, use PTFE tape instead of pipe dope to prevent clogging in narrow passages.
Drain plugs and sight glasses are often overlooked but serve as diagnostic tools. A cracked sight glass compromises pressure integrity, while a damaged drain plug can cause slow leaks during shutdown. Replace these components if you detect moisture around the base or see particles suspended in the glass after cleaning cycles.
Ancillary Elements Affecting Performance
Air relief valves ensure safe startup by purging trapped air; a defective valve causes erratic gauge behavior or spitting at returns. Replace it if the valve doesn’t reseat smoothly or emits a hissing sound when closed. Pair this with a check valve on the waste line to prevent backflow during pump shutdowns.
Clamp bands and tank gaskets demand attention if corrosion or misalignment occurs. Corrosion-resistant stainless steel clamps last longer but may seize after prolonged exposure to saltwater; treat threads with anti-seize compound. For gaskets, neoprene outperforms rubber in chlorinated environments but requires tighter torque specs to avoid distortion.
