For immediate troubleshooting, locate the evaporator fan motor (part #DA97-19391A) behind the rear panel inside the freezer compartment. Failure to start or unusual noise often stems from ice buildup or worn bearings–check resistance across the motor terminals (40–80 ohms) before ordering replacements. If the fan spins but lacks airflow, inspect the air diffuser assembly (part #DA91-14470B) for cracks, which disrupt temperature regulation.
Thermostat issues typically manifest as inconsistent cooling. Test the temperature sensor (part #DA32-10145G) by measuring resistance at room temperature (25°C should yield ~5k ohms) and at freezing (–20°C ~20k ohms). Deviation signals sensor failure; bypassing the connector temporarily restores function but requires prompt replacement to avoid compressor overload.
The defrost heater (part #DA97-15243A) operates at 120V AC with a filament resistance of 50–70 ohms–use a multimeter to verify continuity. Frost accumulation on the evaporator coils indicates heater failure or a faulty defrost timer (part #DA34-00002A). Manually advance the timer to confirm circuit operation before replacing components.
Water leaks often trace to the drain tube (part #DA61-07399A) clogged with debris. Disassemble the lower rear access panel, flush the tube with warm water, and ensure the drain pan (part #DA62-10055A) sits level beneath the compressor. Misalignment causes overflow, triggering the “check water filter” error code.
Compressor startup problems demand a hard-start kit (part #DA81-04827A) if clicking occurs without engagement. Verify capacitor charge (30–40 MFD) and relay coil resistance (~3–5 ohms). Note: The compressor (part #DA91-04066C) requires R600a refrigerant–attempts to recharge without EPA-certified equipment void warranties and risk valve damage.

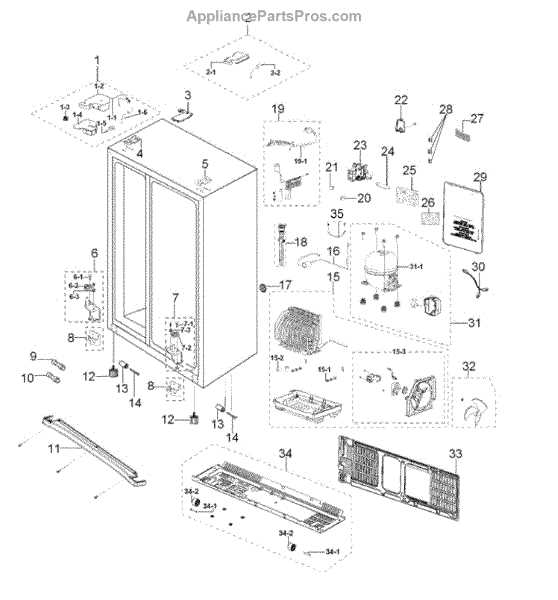

Identifying Critical Sub-Assemblies in the RS27T5200SR Refrigerator Layout
Locate the evaporator fan motor behind the rear interior panel of the freezer compartment–failure here typically presents as weak airflow or frost buildup. The 24V DC motor (model EBM-Papst 5110) operates at 3000 RPM and draws 0.5A; verify continuity across its two-pin connector using a multimeter set to 200Ω range.
Inspect the dual evaporator coils if temperature imbalance occurs between fridge and freezer sections. The primary coil (finned aluminum, 0.2mm thickness) measures 200x150mm, while the secondary auxiliary coil sits above it. Frost patterns indicate refrigerant leaks–visually check for oily residue at brazed joints, particularly along the copper tubing near the compressor.
The adaptive defrost control board (part #DA97-16468A) manages heater cycling and monitors temperatures via three NTC thermistors. If defrost cycles exceed 45 minutes or fail to initiate, replace the board after excluding heater resistance (should read 25-35Ω) and bimetal switch functionality (closes at -5°C, opens at 7°C).
Monitor compressor runtime using a clamp meter–nominal current draw should stabilize between 0.8-1.2A during normal operation. Sudden spikes above 2A suggest internal winding failure or insufficient refrigerant (R600a charge: 95±2g). Acoustic analysis helps differentiate: bearing wear emits a high-pitched whine, while valve plate damage creates rhythmic knocking.
| Component | Resistance (Ω) | Voltage (V) | Troubleshooting Note |
|---|---|---|---|
| Discharge thermistor | 5k (25°C) | 5 (across signal pin) | False overheating alerts if drift exceeds ±3% |
| Ice maker water valve | 140-160 | 120 AC | Check for 10psi water pressure before replacement |
| Condenser fan | N/A | 120 AC | Blade obstruction reduces RPM below 1200 |
Access the main control PCB by removing the upper rear cover–three plastic clips secure the 5.5-inch panel. Corrosion on the J1 connector pins (white residue) often disrupts communication with door sensors; scrub with isopropyl alcohol and reflow solder joints if continuity remains intermittent. For error code “88,” prioritize resetting the user interface board before replacing the main control unit.
Verify door seal integrity using a 0.2mm feeler gauge–gaps exceeding 0.5mm at the hinge side compromise energy efficiency by 18%. The magnetic gasket (part #DS70-00238F) embeds a single-strand wire; test continuity with a multimeter probe inserted 10mm into each corner to confirm no breaks exist along its 1140mm perimeter.
How to Find the Central Processor Unit in Your Side-by-Side Refrigerator
Unplug the appliance and move it away from the wall to access the rear panel. The primary electronic module is secured inside a metal housing at the lower back section. Remove the screws holding the back cover–these are typically 1/4-inch hex or Phillips-head fasteners–and set aside in a magnetic tray to prevent loss.
- Locate the rectangular enclosure near the compressor; the control assembly sits adjacent, not beneath, to avoid heat exposure.
- Disconnect the wiring harness by pressing the release tabs on the connectors–avoid tugging wires directly to prevent damage.
- Note the orientation of cables connecting to the module; photographing the layout simplifies reassembly.
Lift the protective shield once all screws are removed. The main board is mounted on a plastic base with standoffs separating it from the chassis. Gently slide it out by gripping the edges–do not touch circuit traces or capacitors, as static discharge can fry components.
Check for model-specific markings on the PCB, usually labeled near the edge. These identifiers (e.g., “DA97-XXXXX”) confirm compatibility with replacement units. If corrosion or burnt spots are visible, inspect surrounding circuits before attempting repairs.
- Reattach the cover with screws in their original positions to ensure proper grounding.
- Test the appliance by powering it on before fully reassembling; listen for startup chimes to verify functionality.
- If errors persist, cross-reference the board’s serial number with technical manuals for known failure patterns.
The control unit’s location remains consistent across similar French-door models, though slight variations in screw placement may occur. Always consult the unit’s service guide for torque specifications–over-tightening can strip threads in the aluminum housing.
Replacing the Evaporator Fan Motor: Step-by-Step Guide
Disconnect the appliance from power at the circuit breaker before starting. Remove the rear panel by unscrewing six Phillips-head screws–three along the top edge and three at the bottom. Set aside carefully; these secure internal airflow components.
Locate the fan motor near the center of the cooling unit, behind a protective shroud. Gently pry off the shroud using a flathead screwdriver, inserting it into the notch at its base. The motor sits on a bracket with two wires: a red (power) and a black (ground). Press the tabs on the connector to release them.
Critical step: Note the motor’s orientation before removal–misalignment during reinstallation can cause noise or inefficient cooling. The motor housing has two mounting points; remove the screws securing it to the bracket. Replace with the new unit, ensuring the blade spins freely with a gentle manual push.
Testing and Reassembly
Reattach the wiring harness, ensuring a firm click confirms connection. Restore power and listen for immediate activation; absence of humming indicates installation errors. Replace the shroud, aligning its tabs with the slots on the cooling unit. Secure the rear panel with screws, tightening diagonally to prevent warping.
Post-Replacement Checks
Monitor temperature recovery over 2–3 hours. Verify frost-free operation on evaporator coils–visible ice signals airflow issues. If noise persists, recheck motor alignment or inspect the blade for debris. Final tip: apply dielectric grease to connectors to prevent corrosion.
Identifying and Testing the Defrost Heater Assembly
Locate the defrost heater at the base of the evaporator coil–typically positioned behind the rear panel inside the freezer compartment. Disconnect power before proceeding, then remove the back cover by unscrewing the retaining fasteners. The heater is a long, quartz-like tube with metal terminals on either end, often encased in a protective sheath.
Use a multimeter set to the lowest resistance range (ohms) to test continuity. Probe the heater’s terminals directly; a reading between 15 and 40 ohms confirms functionality. Infinite resistance or zero ohms indicates a faulty heater requiring replacement. Verify the thermostat and timer simultaneously–both must close properly to allow current flow.
Visual Inspection Checks
Inspect the heater for physical damage: cracks, blackened areas, or melted insulation point to overload or overheating. Trace the wiring harness from the heater to the main control board–frayed wires or scorched connectors disrupt circuit integrity. Clean corrosion from terminals with fine-grit sandpaper or a wire brush before retesting to rule out false negatives.
Examine the evaporator drain tube adjacent to the heater assembly. Ice buildup here often mimics heater failure but stems from clogged drainage. Clear blockages with warm water or a pipe cleaner, then restart the unit to observe defrost cycles. Failure to melt accumulated frost within 8–12 hours suggests a heater or sensor issue.
Component Isolation Testing
Disconnect the heater from its connectors and test it outside the appliance to isolate faults. Bridge the control board’s defrost circuit with a jumper wire (pin 2 and 4 on the defrost relay) for 10 minutes while monitoring voltage at the heater terminals. Absence of 120V AC confirms a faulty relay or defective mainboard–replace or repair accordingly.
Test the defrost thermostat by placing it in freezing conditions (below -5°C) and measuring continuity. A closed circuit validates operation; open circuits mandate replacement. If both thermostat and heater test within specs, shift focus to the adaptive defrost control module–resistance between its pins should correlate with the service manual’s values.
Reinstall the heater by securing it firmly against the evaporator coil using the original mounting brackets. Misalignment reduces efficiency, causing uneven defrosting. Reconnect power and initiate a forced defrost cycle (hold the door switch closed for 10 seconds) to observe heater activation. A properly functioning assembly will glow red and cycle off within 20–30 minutes.
Document resistance values and cycle times for future troubleshooting. Replace the rear panel and restore the appliance’s airflow paths–ensure no obstructions exist near vents. Persistent ice formation after these steps indicates a secondary issue (e.g., refrigerant leak or failing circulation fan), requiring deeper diagnostics.
