Begin with the official manual for model 110.29622801–this document includes sectional breakdowns with numbered callouts. If missing, retrieve a digital copy from the manufacturer’s support portal using the serial number found behind the agitator assembly. Compare this to the physical unit: discrepancies in version-year markings (e.g., “Rev B” on the rear panel) indicate incompatible parts.
Drum suspension rods rank among the most frequent failures–measure rod diameter (9.5mm) and thread pitch (M8×1.25) before ordering. Avoid third-party listings without OEM packaging codes (look for “WP27003944” stamped on genuine components). Bearings require specialized tools: a 6-inch snap ring pliers (IRWIN 231) and a bearing puller (OTC 6285) extract worn races without damaging the tub housing.
Electrical harnesses demand meticulous inspection: frayed wire insulation near the motor coupling signals imminent shorts. Replace the entire harness (part #8546696) rather than splicing–resistance tests at the control board connectors should read below 0.5 ohms per lead. For Belt-driven variants, verify pulley alignment using a laser tool (DEWALT DW088K); misalignment accelerates belt wear, evidenced by fine black dust beneath the chassis.
Locating Component Breakdowns for Your Appliance Model
Start by identifying the control panel assembly, typically positioned at the machine’s upper rear. The user interface, including the cycle selector and display, connects via a 12-pin wiring harness–check for bent pins or corrosion if the panel malfunctions. Replacement models vary: older units use a membrane-style switch, while newer versions integrate a touch-sensitive PCB. Verify compatibility by cross-referencing part numbers stamped on the reverse side.
The tub assembly consists of the outer drum and inner basket, separated by a splined bearing shaft. To access these, remove the cabinet front panel by unscrewing two Phillips-head screws beneath the door and sliding the panel upward. If the basket wobbles, inspect the suspension rods–four polymer-coated springs supporting the tub–ensure none are cracked or detached. Lubricate the bearing hub annually with waterproof grease to prevent premature wear.
Beneath the agitator, the drive system includes a clutch and motor coupling. The clutch engages during spin cycles, transferring torque from the motor to the transmission. If the machine vibrates excessively, disassemble the clutch by removing the central bolt (left-hand thread) and inspect the friction pads for glazing or degradation. Replace the entire clutch assembly if pads are thinner than 3mm. The motor coupling, typically rubber or plastic, absorbs shock–cracks or missing teeth indicate failure.

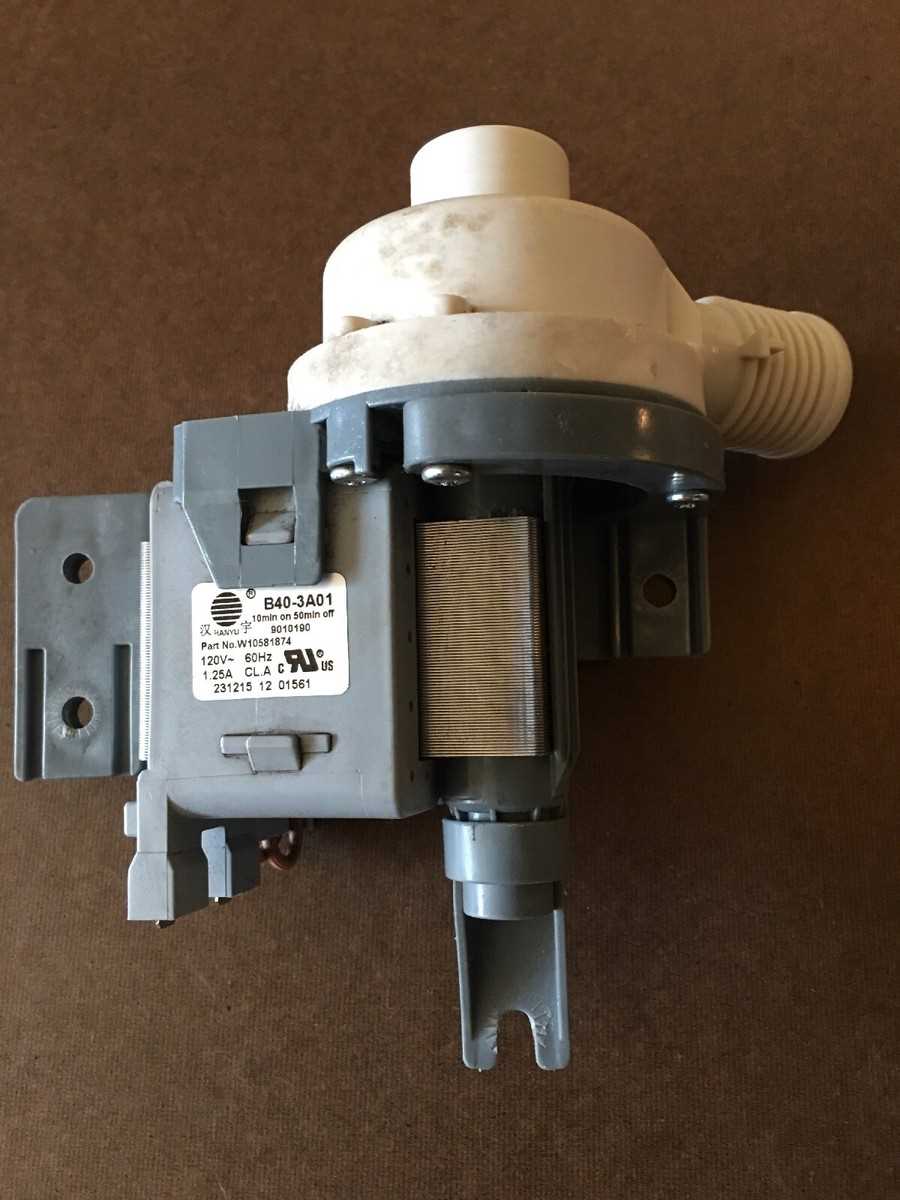

Drainage relies on the pump and filter housing, accessed through the front lower panel. A coin or small garment lodged in the impeller causes slow draining–rotate the pump manually to dislodge obstructions. The filter, a mesh cylinder, requires monthly cleaning to prevent mold buildup. If the pump hums but doesn’t evacuate water, test the motor’s continuity with a multimeter; resistance below 5 ohms suggests winding failure.
Transmission and Gearcase Disassembly
Remove the transmission by unbolting six Torx T20 screws securing it to the tub. Inside, the gearcase contains a planetary gear set that reduces motor speed to 175 RPM for wash cycles. Overheating or excessive noise signals worn gears–replace the entire transmission if tooth stripping is visible. Lubricate bearings with synthetic gear oil during reassembly to extend lifespan. The gearcase seal, a critical failure point, should be replaced if leaks appear beneath the unit.
Door mechanisms include the latch and strike plate, both prone to corrosion from moisture. The latch, an electromechanical switch, verifies the door is closed before operation–test it with a 9V battery if cycles abort prematurely. Clean contacts with isopropyl alcohol if oxidation is present. The strike plate, a metal tab on the door frame, should align precisely with the latch; misalignment causes intermittent locking.
Sensors monitor water levels and temperature. The pressure switch, connected to the tub via a thin tube, triggers fill cycles–blow compressed air through the tube if the machine overfills. The thermistor, located near the heating element on some models, ensures water reaches 120°F; test resistance (≈10kΩ at room temp) if temperature errors display. Calibration requires factory software on select boards.
For wiring repairs, document each connection before disassembly. Key harnesses include the lid switch (safety interlock), motor lead (14-gauge wire), and inlet valve assembly (dual solenoid on hot/cold models). Use crimp connectors, not solder, for waterproof joints. If the machine fails to start, bypass the lid switch temporarily to isolate faults, but replace damaged switches immediately–safety protocols prohibit permanent bypassing.
How to Find the Transmission Belt in Your Front-Load Laundry Appliance
Unplug the machine and position it on its back by tilting it against a sturdy surface–ensure the control panel side rests upward to prevent damage. The belt connects the motor pulley at the base to the drum’s outer rim; it’s a black, ribbed loop roughly 3/8 inch wide. If the drum spins freely by hand but the motor hums without rotation, the belt is either slipped off the pulleys or snapped.
Remove the rear access panel using a 1/4-inch socket or nut driver–typically secured by four screws. Once exposed, the belt will be visible looping around the large drum pulley (top) and the smaller motor pulley (bottom). If it’s intact but loose, locate the tensioner beside the motor–adjust it by rotating the spring-loaded arm clockwise until the belt resists slight finger pressure. Replace the belt if frayed or cracked; match the part number stamped on the inner side–common variants include WPW10385287 (119 cm) or WPW10127913 (117 cm).
Quick Reference: Belt Location Steps
| Step | Action | Tool Required | Critical Checkpoint |
|---|---|---|---|
| 1 | Tilt unit backward | None | Protect control panel from contact |
| 2 | Remove rear panel | Store screws in labeled container | |
| 3 | Inspect belt loop | Flashlight | Check for cracks at rib junctions |
| 4 | Adjust/replace belt | New belt (if needed) | Verify pulley alignment before tightening |
Troubleshooting Belt Tension Issues
If the drum still spins erratically after adjustment, measure the belt’s deflection at the longest stretch between pulleys–it should depress no more than 1/2 inch under moderate thumb pressure. Excess slack indicates a worn-out component; inspect the motor mounts for cracks or the tensioner spring for fatigue–both require replacement if compromised.
Replacing the Lid Switch Assembly: Step-by-Step Guide
Unplug the appliance before starting. Disconnect power to avoid electrical hazards. Locate the switch near the door frame–it’s a small plastic or metal component with wires attached. Use a multimeter to test continuity; if the switch fails, proceed with removal.
Remove the top panel by unscrewing screws along the back edge. Slide the panel toward the rear to release clips holding it in place. Some models require lifting the control console first–check for hidden screws beneath a plastic cover or behind the detergent dispenser.
Disconnect the old switch by pressing tabs on the wire harness connector. Avoid yanking wires; grip the plastic housing firmly. Note the switch’s orientation–take a photo if needed. Remove the switch’s mounting screw or release the locking tabs holding it in place.
Install the new component by aligning it in the designated slot. Secure it with the screw or snap the tabs into position. Reattach the wire harness, ensuring a firm click. Reassemble the top panel in reverse order, verifying all clips engage before tightening screws.
Final Checks
Before restoring power, inspect connections for damage or loose wires. Test the door mechanism manually–press the switch to hear an audible click. Reconnect power and run a short cycle to confirm proper operation. If the appliance doesn’t start, recheck the switch’s wiring and mounting position.
Locating Motor Coupling Failures on Schematic Drawings
Check the exploded view near the drive assembly–specifically between the motor shaft and transmission input. The coupling typically appears as two plastic halves with rubber inserts, labeled as part #285753A or similar. Look for cracks, missing pieces, or excessive wear on the rubber dampener, as these indicate failure even before performance symptoms appear.
Use the schematic’s numbered callouts to confirm component placement. The coupling sits directly inline with the motor output shaft and transmission spline, often shown in a side profile. Misalignment here during reassembly will accelerate wear, so verify proper seating before tightening bolts–torque specs usually range 8-12 ft-lbs.
Visual Clues of Coupling Degradation
- Rubber dust or fragments beneath the machine
- Uneven spacing between coupling halves
- Circular cracks on plastic components
- Burnt odor from overheated motor
- Grinding noises during spin cycles
Cross-reference the schematic with physical inspection. If the motor spins freely but the drum doesn’t rotate, the coupling is likely sheared. If the motor hums without starting, the rubber inserts may be disintegrated, preventing torque transfer. Always replace both halves simultaneously–matching part numbers ensure balanced load distribution.
Tools and Verification Steps
- Unplug power and disconnect hoses
- Remove rear access panel (typically 4-6 screws)
- Locate coupling beneath the pulley assembly
- Inspect visually and manually rotate shafts
- Compare findings with schematic illustrations
Installation errors account for 30% of premature coupling failures. After replacement, run an empty rinse cycle to confirm smooth operation. If vibrations persist, recheck bolt tightness against the schematic’s specified sequence–usually alternating opposing bolts in a star pattern to prevent warping.
