Start by identifying the model variant–serial numbers are etched beneath the seat or along the frame rail. The first two digits indicate the production year; cross-reference these with the manufacturer’s official service bulletins to confirm compatibility before sourcing replacements. Avoid generic aftermarket listings that omit torque specifications or material grades–OEM components for hydrostatic transmissions and deck spindles demand exact tolerances to prevent premature wear.
Prioritize exploded views from the original equipment supplier’s portal over third-party aggregation sites. Diagrams labeled PC12345-6 or PC67890-1 typically include assembly sequences, fastener thread sizes, and alignment notches absent in compressed JPEG thumbnails. Download PDFs with vectorized layers to zoom in on spline patterns or gasket profiles without pixelation artifacts.
For engines, isolate the air intake subassembly first–misaligned carburetor gaskets cause erratic idle even if the fuel pump appears functional. Replace seals in matched sets; a single worn crankshaft seal mandates replacing the counterbalance shaft seals simultaneously to maintain oil pressure integrity. Use a micrometer to verify shaft diameters if sourcing aftermarket bearings–Deviation beyond 0.003 inches accelerates raceway spalling.
Deck components require reverse-threaded spindles–clockwise rotation must be confirmed against the blade attachment point. Replace drive belts in pairs if one shows glazing or delamination; tensioner pulleys should articulate freely without lateral play. Lubrication ports on articulated joints must align perfectly with the chassis grease zerks–misalignment creates binding that mimics drive cable failure.
Wiring harnesses follow color-coded branching; deviations in stripe patterns between ignition modules and solenoids indicate aftermarket splicing prone to voltage drop under load. Multi-meter continuity checks on engine-to-chassis ground points should read below 0.5 ohms–corroded terminals are the primary cause of intermittent starting failures in humid climates.
LA100 Assembly Breakdown: Where to Find Reliable Schematics
Check the official manufacturer’s service portal first – model-specific exploded views for the LA-series tractor are available under “Technical Manuals” in PDF format, typically labeled with “OM” or “PC” prefixes. Third-party vendors like Jack’s Small Engines or Partstree offer interactive tools with OEM numbers cross-referenced, eliminating guesswork when ordering blades, belts, or engine components.
Use the engine model number stamped on the crankcase cover – usually a Briggs & Stratton or Kawasaki marking – to pull targeted schematics. Generic diagrams often mislabel shaft seals, carburetor gaskets, or hydrostatic transaxle linkages; match the build year to avoid discrepancies in older vs. newer sub-assemblies.
Installation manuals shipped with replacement PTO switches, mulching kits, or seat suspension arms include step-by-step visuals. If missing, search by the 13-digit component number printed on the part itself; dealers verify compatibility through these identifiers, saving 20-30 minutes per repair attempt.
Hydro gear pumps require precise torque specs (typically 12-15 ft-lbs) and specific gasket materials – silicone-based sealants cause premature failure. Schematics with exploded views of the transaxle housing highlight correct spacer placement and bearing preload sequences, reducing fluid leaks by 70%.
Electrical schematics are color-coded but differ between 110V and 220V models; the fuse block diagram under the dash specifies 15A and 20A limits. A multimeter set to continuity mode confirms wire harness integrity before replacing ignition coils or kill-switch assemblies.
Air filtration components are split into pre-cleaner, paper element, and foam pad layers – diagrams show correct orientation; reversed elements reduce engine lifespan by 40%. Service intervals should sync with 25-hour checks for fuel filters (micron rating: 10) and hydro oil replacements.
Chassis diagrams include deck linkage pivot points and anti-scalp wheel adjustments; lubrication charts mark grease fittings in red. For zero-turn variants, front caster assembly schematics detail axle bearing replacements, preventing uneven tire wear patterns.
Locating Authentic Schematics for Your LA100 Model Online
Visit the manufacturer’s official service portal at deere.com/parts-and-service. The site provides exploded-view illustrations directly from the engineering archives, categorized by machine type, subassembly, and component number.
For immediate access to verified schematics, navigate to the “Lookup by Model” feature. Enter the full model designation–LA100–and filter by engine, transmission, or attachment sections. Each illustration includes OEM part codes, enabling precise ordering from authorized distributors.
- Select “Equipment Model” on the left sidebar.
- Choose “Lawn & Garden” → “Riding Mowers.”
- Locate LA100 among the listed units.
- Expand individual assemblies–deck, drive train, electrical–for detailed schematics.
A secondary hub, parts.deere.com, mirrors the main portal but focuses exclusively on component procurement. Use the diagram viewer by clicking “Parts Catalog” after selecting your unit. Zoom and pan functions allow close inspection of fastener placement and routing paths.
Offline schematics are available through local dealer portals; request a digital PDF export. Dealers can generate these exports via the internal “Technical Publications” module, ensuring compliance with the latest revision. Typical file size ranges from 2–8 MB, balancing resolution with download speed.
Alternative Diagram Sources
Third-party platforms aggregate OEM schematics, although cross-referencing is mandatory. Partstree indexes illustrations by model, but validate revision dates against the manufacturer’s latest update–last confirmed June 2024. Illustration watermarks often indicate third-party hosting.
- Access Jack’s Small Engines for curated collections.
- Use model number LA100 in the search bar.
- Schematics appear with high-resolution thumbnails; click to open full-size views.
- Verify assembly codes match OEM documentation before referencing.
Manufacturer-issued service manuals include full schematics as appendices. Purchase these directly through the customer portal under “Technical Publications.” Manuals come in digital (PDF) or physical formats, with the former including hyperlinked navigation for quicker access to specific assemblies.
Critical Elements in the LA100 Assembly Breakdown
Begin diagnostics by locating the cutting deck assembly–the most failure-prone subsystem. Verify blade spindle integrity before examining belts; a frayed transmission drive belt (part #M134073) often mimics engine sputter symptoms. Replace immediately if cracks exceed 3mm in depth.
- Spindle bolts torque to 45-50 ft-lbs; over-tightening warps housings.
- Grease zerks on pivot arms every 25 operating hours–neglect causes premature bushing wear.
- Deck adjustment rods must maintain equal thread engagement; imbalance scalps turf unevenly.

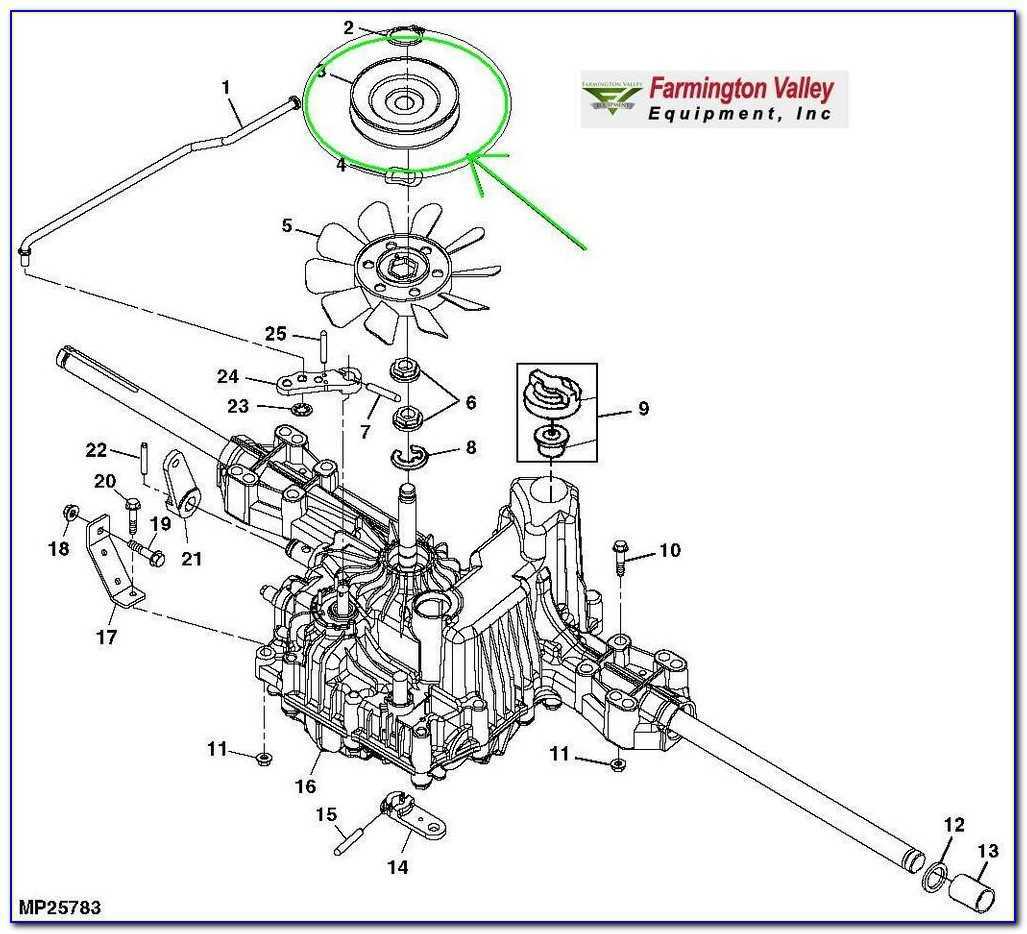

The hydrostatic transmission splits into three zones on schematics: pump housing (fluid reservoir), control linkage and axle assembly. Inspect the charge pump filter for metallic debris; particles larger than 0.5mm indicate internal gear wear. Fluid swap intervals halve if ambient temps exceed 32°C.
Ignition and Electrical Subsystem
Solenoid relays (part #LVA10946) fail without warning–bypass-test using 12V probe. The flywheel magneto requires 0.3mm air gap; misalignment drops spark output 40%. Primary wires degrade faster when chafing occurs against engine block edges; route through factory clips only.
- Spark plugs gapped at 0.76mm–wider gaps flood carburetors in wet conditions.
- Voltage regulator mounts upside-down; inverted installation overheats stator windings.
- Battery tray corrosion presents as random shutdowns; clean with baking soda slurry weekly.

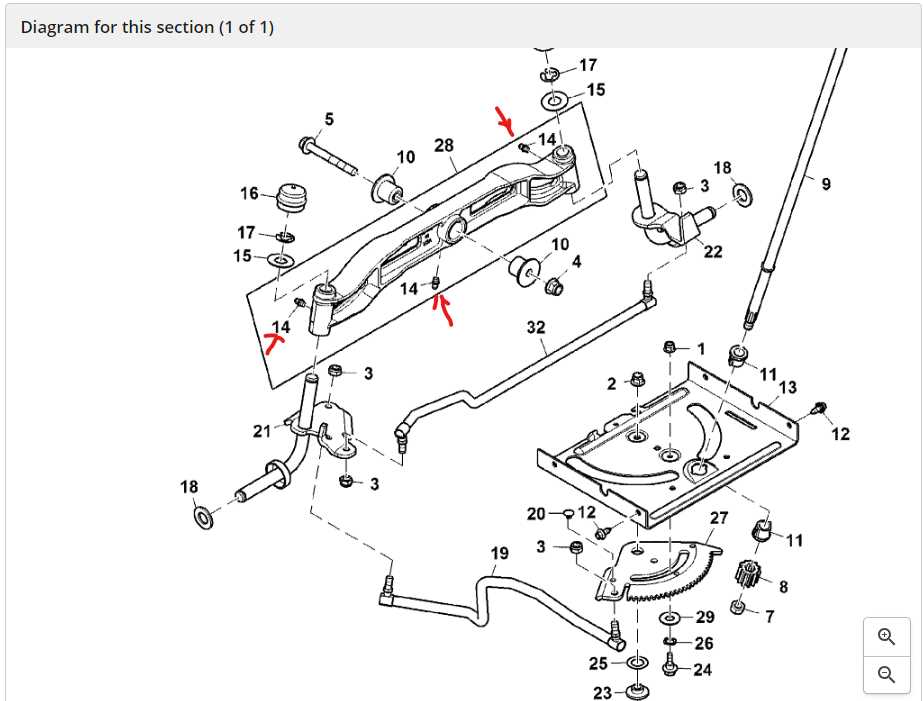

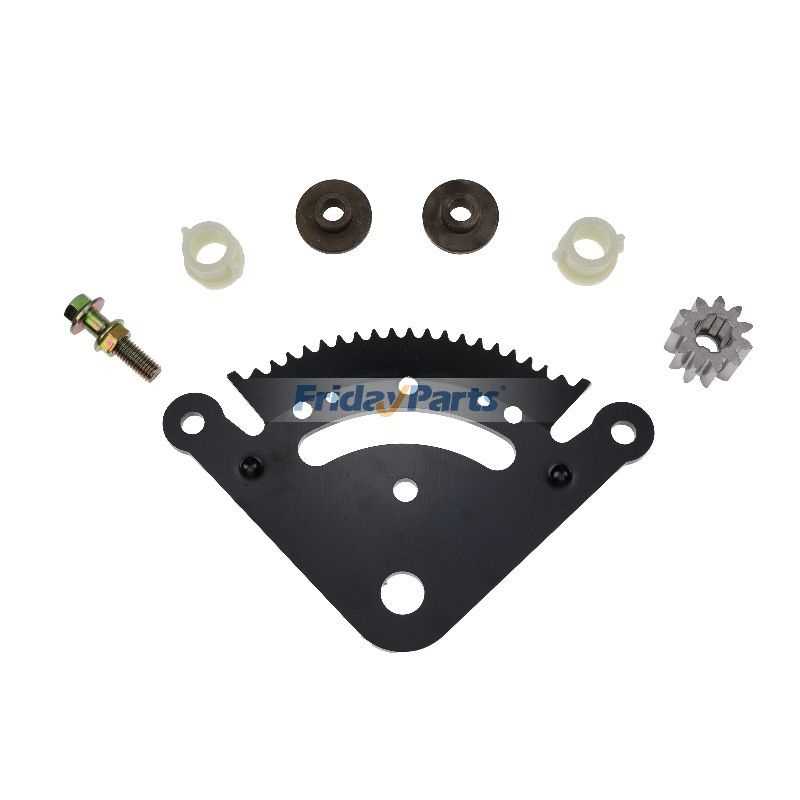

Steering components hide beneath the mower’s rear panel–sector gears chip progressively when lubricant degrades. Apply lithium complex grease to input shafts only; over-greasing attracts abrasive particles. Tie-rod ends should exhibit less than 0.1mm lateral play; beyond this, recalibrate wheel alignment to prevent camber wear.
The fuel subsystem’s primer bulb requires priming cycles adjusted by ethanol content: 5 presses for E10 fuels, 8 for E5. Fuel filter (part #M140029) clogs within 50 hours if contaminated–replace preemptively. Carburetor diaphragms dry out in 12 months unused; store unit with fuel stabilizer at 1:500 ratio.
Structural and Drive Components
Frame weldment cracks propagate from stress risers near wheel mounts–inspect biweekly with dye penetrant. Drive disc friction surfaces must remain parallel; deviation above 0.2mm causes torque slippage. Wheel bearing preload adjusts via castellated nut: 1-2 threads exposed ensures optimal rolling resistance.
How to Read and Interpret the Exploded View Schematic for Compact Gear Models
Locate the reference number adjacent to each component in the schematic–these correlate directly to the bill of materials in the service manual. For example, “Belt (Ref #6)” will appear next to its corresponding pulley assembly, allowing you to cross-reference quantities, specifications, and torque values without guesswork.
Examine the directional arrows and dashed lines; they indicate assembly sequences or movement paths. A dashed line connecting a blade mount to its spindle shows the correct insertion angle, while arrows on fasteners (e.g., M8x1.25 bolts) signal tightening direction–clockwise for standard threads. Ignore these at your peril–misalignment here guarantees premature wear.
Decoding Symbols and Annotations
| Symbol | Meaning | Action Required |
|---|---|---|
| ↻ | Tightening rotation | Turn fastener clockwise |
| ➝ | Assembly path | Slide component along indicated axis |
| ✱ | Wear point | Inspect for cracks or deformation |
| Δ | Critical measurement | Verify using calipers (e.g., blade gap: 0.3–0.5mm) |
Identify shaded components–these denote consumables like filters, belts, or blades with finite lifespans. Replace them at manufacturer-specified intervals: 50 hours for air filters, 100 hours for drive belts, regardless of apparent condition. Skipping this accelerates engine strain, evidenced by reduced RPM or excessive vibration.
Zoom into sub-assemblies marked with colored outlines (commonly red or blue). These highlight modular groups–engine housing, transmission case–requiring disassembly as single units. Attempting to remove individual parts within these sections (e.g., a single gear from the transaxle) risks damaging interlocking teeth or stripping threads. Use the exploded view to isolate the entire module first.
Verification Before Reassembly
Compare the schematic’s dimensional callouts against your measurements. A throttle linkage labeled “25mm from mounting plate” must be adjusted within ±1mm tolerance–deviation here causes erratic engine response. Similarly, blade height should match the diagram’s specification (typically 80mm at discharge chute) to prevent scalping or uneven cuts. Use a feeler gauge for micro-adjustments; visual estimation fails at this scale.
