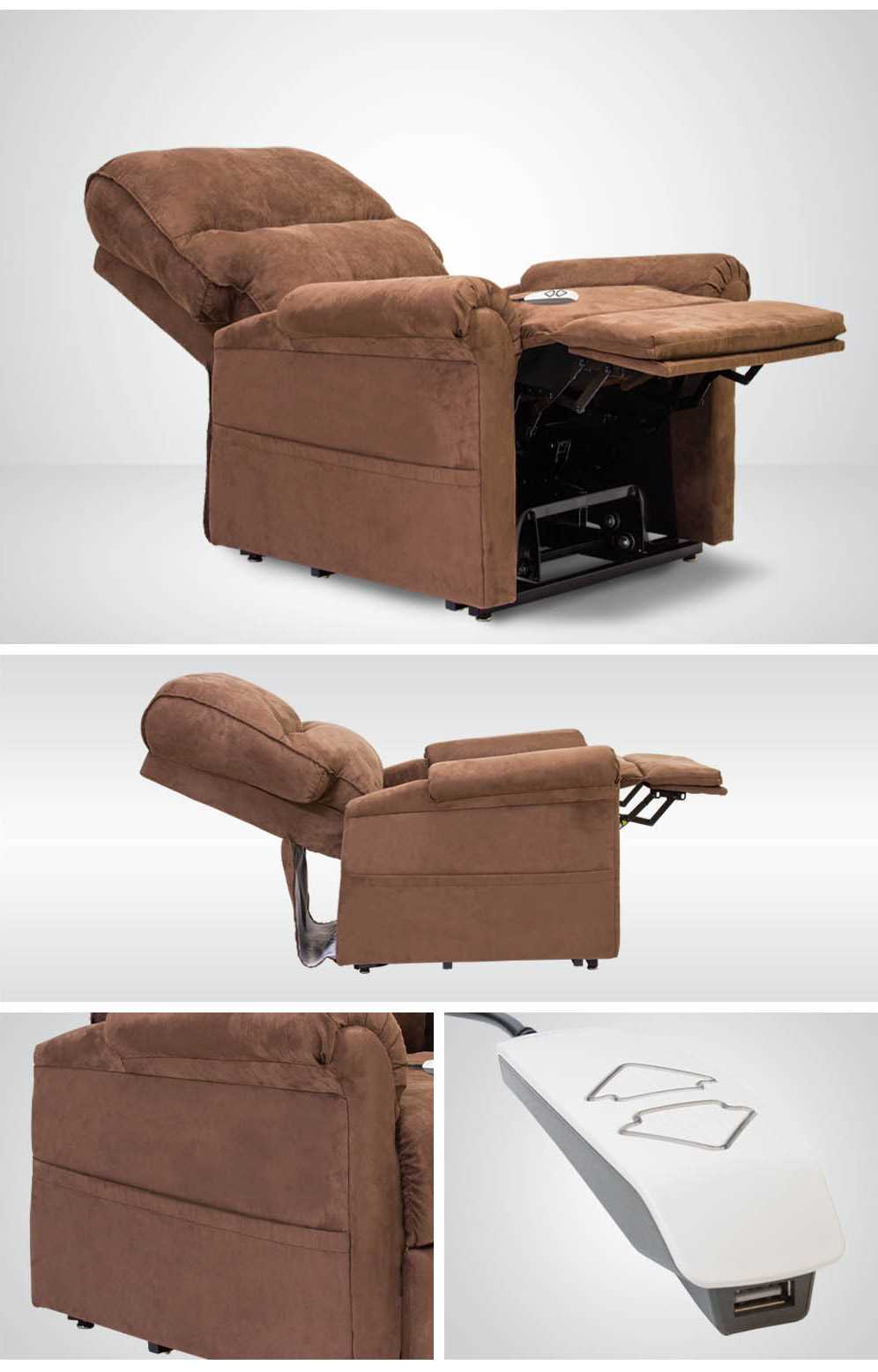

Start by locating the motor housing under the seat base–this is the core component controlling movement. The mechanism typically includes a dual-motor system: one for the backrest recline and another for elevating the base. Check the wiring harness connections at the back of the unit; corrosion or loose terminals frequently cause operational failures. For models with power lift functionality, the actuator rod attaches to a scissor-style linkage beneath the seat cushion–ensure the pivot points move freely without excessive play.
Refer to the exploded view for the rocker switch assembly if responsiveness is inconsistent. The switch panel contains micro-switches that activate the motors; debris accumulation or worn contacts often require replacement of the entire unit rather than individual repairs. The footrest extension uses a linear drive rod connected to a four-bar linkage–examine the nylon bushings at each joint, as they deteriorate faster than metal components. Lubricate these points with silicone-based grease to prevent binding.
For models with battery backup, verify the 24V system charges properly; a failing transformer often mimics motor malfunctions. The lift arm assembly includes a gas strut to assist with manual adjustment–inspect for fluid leaks indicating the need for replacement. When disassembling the base, note the position of each lever and spring; incorrect reassembly can cause misalignment or safety hazards. Keep a multimeter handy to test continuity across all electrical paths before assuming mechanical failure.
Understanding Recliner Mechanism Schematics
Always begin by locating the motor housing beneath the seat base–this unit controls all positional adjustments. The actuator assembly, typically secured by four bolts, connects to the lifting arm via a steel rod; loosening these bolts grants access for inspection. Check the gearbox for wear: if the teeth appear rounded or discolored, replacements must follow OEM specifications–third-party components often cause misalignment.
Examine the scissor linkage system next. Each joint should move smoothly without grinding noises; apply lithium-based grease sparingly to pivot points. If resistance persists, disassemble the linkage and inspect the nylon bushings–cracks or deformation require immediate replacement. Keep track of hardware placement: bolt lengths vary, and incorrect reassembly leads to uneven lifting.
- Control module: Verify wiring harness connections to the printed circuit board. Corrosion on terminals indicates water ingress–clean with contact cleaner and seal with dielectric grease.
- Remote handset: Test all buttons with a multimeter. Voltage should read 5V DC when pressed; inconsistent readings signal PCB failure or battery degradation.
- Gas lift struts: Measure stroke length against manufacturer specs. A discrepancy exceeding 5mm suggests nitrogen leakage–replace the entire strut, not just seals.
For electrical troubleshooting, reference the wiring color codes in the service manual (e.g., red = power, black = ground, yellow = actuator). Intermittent operation often stems from frayed wires near the base hinge–solder and heat-shrink these areas immediately. Never bypass safety switches: these cut power during obstruction detection and failure compromises user safety.
When reassembling, torque all fasteners to 12-15 N·m. Over-tightening splits plastic mounting brackets, while under-tightening causes rattling and premature wear. Lubricate the internal worm gear with molybdenum disulfide paste–standard oils attract debris and gum up mechanisms. Store all removed covers and panels in sequence to avoid confusion during reinstallation.
- Inspect the hand controller bracket for cracks–this component bears significant stress and is a common failure point.
- Check the footrest linkage for bent hinges; even minor warping prevents smooth extension.
- Test the emergency battery backup by unplugging the unit during operation–it should complete the cycle and return to seated position.
Key Components of Reclining Seating Units and Where to Find Them
Locate the actuator motor beneath the seat base–typically secured near the rear crossbar with mounting brackets. This component drives the lifting mechanism and can be identified by its cylindrical housing with a wired connection. If the unit fails to recline or lift, check for loose pins in the lift arm assembly (positioned at the sides under the seat) or signs of stripped gears within the motor itself. Test voltage at the power supply with a multimeter before disassembly to rule out electrical faults.
Inspect the scissor linkage–the paired metal arms crisscrossed under the seat–responsible for smooth elevation. Lubricate pivot points with silicone spray if movement is jerky, ensuring none of the joints are bent or misaligned. The control box, usually clipped to the underside near the battery pack, houses the circuitry for user inputs; corrosion or frayed wires here often cause erratic operation. Replace the battery if voltage drops below 24V under load, as weak power triggers intermittent lifting failures.
Step-by-Step Guide to Interpreting Motorized Recliner Electrical Schematics
Locate the main power input on the schematic first. Most models label this as AC IN or BATTERY, typically positioned at the top or left edge. Verify the voltage rating–common values include 12V DC or 24V DC–and trace the line to the fuse or circuit breaker. If the fuse symbol appears (a rectangle with a squiggly line), note its ampere rating; this protects the system from overloads.
Identify the control module next. Look for a rectangular block labeled CONTROLLER, PCB, or MOTOR DRIVER. This component connects to both the power source and the actuators. Follow the thin lines extending from it to find limit switches (depicted as pairs of contacts) or potentiometers (zigzag lines). These regulate movement ranges and prevent mechanical strain.
Trace the wiring to the linear actuators. Each motor is usually marked M1 or M2, with two thick lines indicating positive and negative terminals. Check for color codes–red (positive), black (negative), or blue/yellow (signal)–though these vary by manufacturer. Cross-reference the colors with your physical setup; mismatches cause malfunctions.
Examine the hand control connections. A small box labeled REMOTE or HANDSET links via a coiled cable to the main board. Pin configurations matter: PIN 1 often carries power, while PIN 2 and PIN 3 send up/down signals. Ensure no lines intersect unintentionally; shorts here disable user input.
Check safety features last. Thermal cutoffs appear as THERMAL FUSE symbols (a triangle with a wavy line). Capacitors (parallel lines) stabilize current; note their microfarad ratings. Ground symbols–typically downward-pointing triangles–must connect to a metal chassis point. Missing grounds risk erratic operation.
Use a multimeter to confirm continuity after interpretation. Probe each segment while activating the unit; voltage drops exceeding 0.5V suggest resistance issues. Label components on the schematic with observed readings–this simplifies future diagnostics.
Repairing a Malfunctioning Drive Unit in Recliner Mechanisms
Unplug the device immediately to prevent electrical hazards. Locate the battery pack or power adapter connection under the seat base–most models use a single plug secured with a retaining clip. Press the clip tabs gently to release without pulling wires.
Remove the rear upholstery panel by unscrewing four corner bolts (typically 10mm). Slide a putty knife under the fabric edge to separate Velcro attachments if present. Avoid cutting: factory stitching is reinforced, and repairs will be visible.
Detach the actuator arm by removing the clevis pin. Use pliers to straighten the retaining clip first–bent clips increase failure risk during reassembly. Note the exact pin orientation: reverse insertion may prevent full range of motion.
| Component | Tool Required | Torque Spec (Nm) |
|---|---|---|
| Drive motor mounting bolts | 5mm hex key | 12–14 |
| Actuator linkage screws | #2 Phillips | 8–10 |
| Base plate fasteners | 10mm socket | 20–22 |
Disconnect the two-wire harness at the motor connection. Pull straight out without twisting–pins are fragile and may bend if misaligned. Label both ends immediately to avoid transposition during reinstallation. A multimeter should show 24V DC across the terminals when engaged.
Lift the old mechanism out by tilting forward. Support the metal frame: units average 14–18 lbs. Inspect the mounting rails for corrosion–the original coating often chips after 5+ years of use. Sand lightly and apply dielectric grease before installing the new unit.
Position the replacement drive with the gearbox facing rearward. Align the actuator shaft with the existing link bracket. Insert the clevis pin first to confirm alignment before securing bolts. Tighten mounting hardware in a cross pattern to prevent frame warping.
Reconnect power and test articulation through all positions. Listen for unusual noises: grinding indicates improper gear mesh, while a high-pitched whine suggests insufficient lubrication. Reapply upholstery fasteners only after verifying full 130° recline and 85° lifting range.
Resolving Remote Control Malfunctions with Schematic Guidance

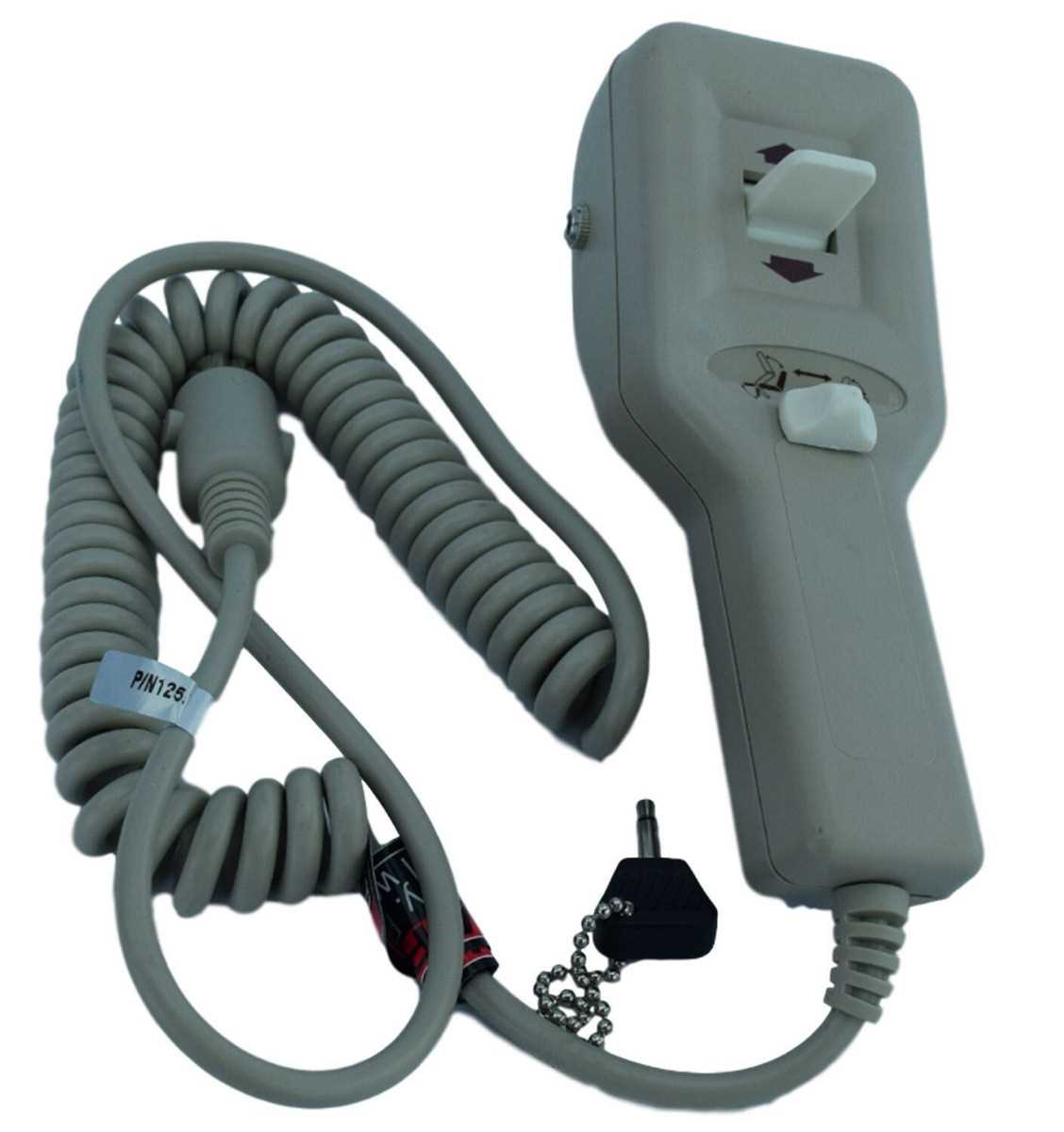

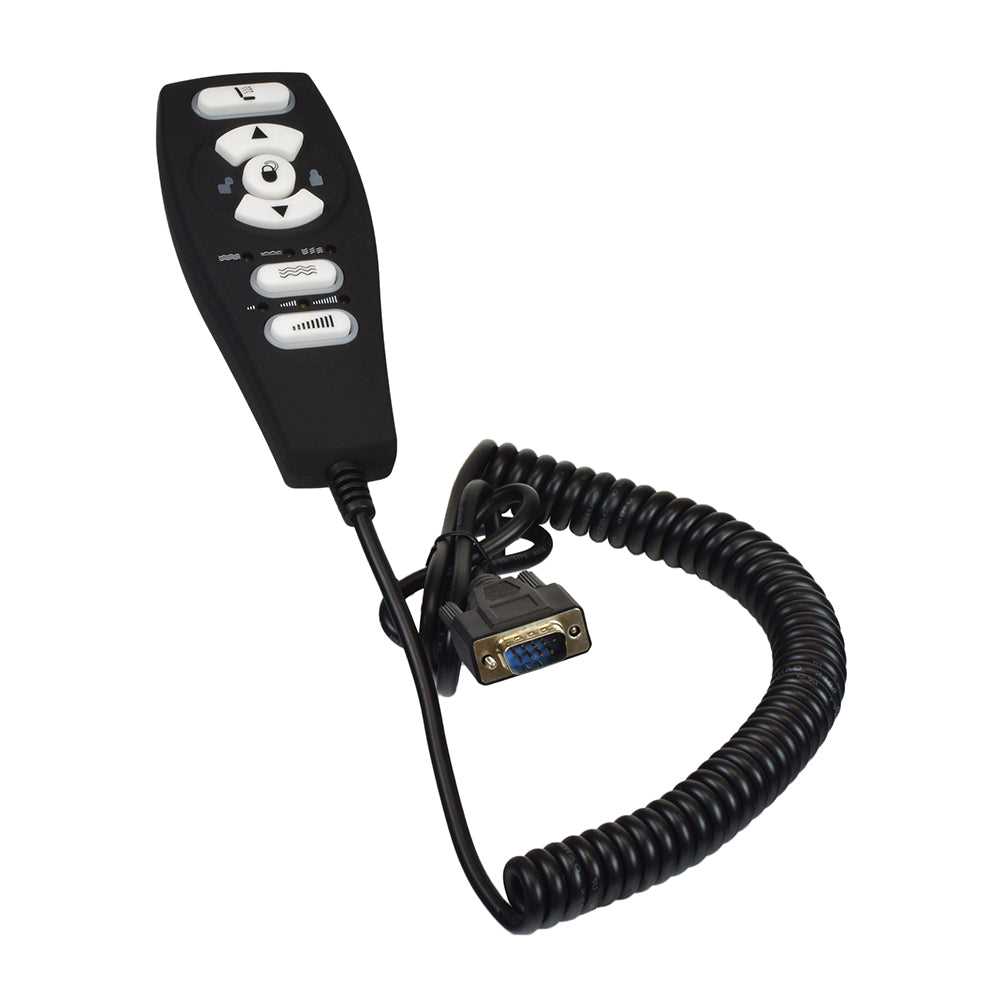

Locate the wiring harness connector on the back of the handheld unit–it’s typically a 6- or 8-pin plug secured by a locking tab. Pull the tab gently outward to release the connector, then check each pin for corrosion, bent contacts, or debris. Clean with a cotton swab dipped in 91% isopropyl alcohol, ensuring no residue remains before reconnecting. The schematic will show pin assignments, allowing you to trace voltage continuity with a multimeter: pins A and C should read 24V DC when the unit is powered on, while others vary depending on seat position commands.
If the control responds intermittently, examine the membrane switch layer beneath the buttons. Peel back the adhesive overlay carefully, avoiding creases, and inspect for cracked carbon contacts or moisture damage. A temporary fix involves placing a small piece of aluminum foil over the damaged area, but permanent resolution requires replacing the entire keypad assembly–cross-reference the schematic’s part number to order the correct revision, as compatibility differs between model variants.
Erratic movement during operation often stems from faulty potentiometers. The schematic highlights two key resistors (R1 and R2) linked to the motor drive circuit. Use the diagram to identify their locations on the main PCB, then test resistance values: R1 should fluctuate smoothly between 0Ω and 5kΩ as the actuator extends, while R2 handles retraction. Replace components showing abrupt jumps or infinite resistance–even a 10% deviation from nominal values warrants replacement to prevent motor burnout.
Verify the transformer’s output voltage against the schematic’s specifications–most systems require 24V AC at the input stage. Probes placed on the transformer’s secondary terminals should read within ±5% of the labeled value. If readings are significantly lower, inspect the power cord for fraying or its fuse for continuity. The schematics will indicate fuse ratings, typically 3A for standard models, but consult the exact document to avoid undersized replacements.
Inspecting Solenoid and Relay Integrity
The diagram’s relay symbol (K1) corresponds to a dual-coil latching device controlling actuator direction. Listen for a distinct click during operation–absence suggests coil failure. Desolder and replace the relay if resistance across its coil terminals measures outside 80–120Ω, or if the schematic’s contact configuration doesn’t match physical observations (e.g., NO/NC assignments swapped). Note that some revisions use solid-state relays; test these for a minimum holding current of 15mA to prevent erratic switching.
After repairs, recalibrate the system by holding the “down” button while power cycling to reset the position sensor. The schematic’s microcontroller section (U3) outlines this procedure via test points–shorting TP4 to ground for 5 seconds initiates calibration. Failure to recalibrate may cause the mechanism to halt at incorrect angles, risking overload trips in the limit switch circuit. Always cross-check torque values against the service manual’s table before reassembly: exceeding 35 Nm on extension arms may void warranty protections.
