Begin with the engine assembly–reference model XY-789 schematic for exact placements. Identify the crankshaft housing first, as its alignment dictates the position of adjacent components. Missteps here cascade into calibration errors, costing hours in rework.
Locate the hydraulic valve block near the rear axle. Check the serial marking on the underside to confirm compatibility with aftermarket upgrades. Incorrect valves void warranties and reduce pressure retention by up to 30%.
Examine the cutting deck mechanisms last. Focus on the spindle assemblies–loosen bearings before lubrication to prevent uneven wear. Use SAE 85W-140 gear oil exclusively; substitutes cause sluggish rotation. Verify belt tension with a precision gauge, not manual inspection; deviations beyond ±5% trigger premature failure.
Store schematics in waterproof sleeves with annotated notes on tolerances. Cross-reference physical parts against the digital overlay diagram included in manual revisions post-2021. Older versions lack updates for reinforced blade mounts, which crack under lateral stress if unaccounted for.
Precision Schematics for Zero-Turn Mower Components
Begin by locating the deck spindle assembly on the exploded view–item #42 in most manuals released after 2018. Verify the spindle model matches the serial number stamped on the deck frame; mismatches lead to improper belt tensioning and premature wear. Use a digital caliper to measure the bore diameter (standard: 1.125″ ±0.002″) before ordering replacements.
Check the hydrostatic transmission filter every 100 hours of operation. Replace if sediment exceeds 2mm depth in the housing or if the fluid appears darker than SAE 30 motor oil. Filter kits (OEM #103700) include a crush washer–omit this only if reusing the original bolt, which requires thread-locking adhesive (Loctite 243) during reinstallation.
- Pump drive belt: Inspect for fraying every 25 hours if operating in sandy or abrasive conditions. Tension should allow ½” deflection at midpoint with 10 lbs of force. Replace if cracks appear on the inner ribs–micro-fractures propagate rapidly under load.
- Deck lift cables: Lubricate with dry graphite powder at pivot points; avoid grease, which attracts debris. Adjust tension so the deck lowers to ⅛” blade clearance from the ground–verify with a feeler gauge, not visual estimation.
For fuel system maintenance, disconnect the battery negative terminal before servicing the carburetor. Backflush the bowl with ethanol-compatible cleaner (Briggs & Stratton #710458), using compressed air at 20 psi to clear jets. Never reuse gaskets–O-rings swell unpredictably after exposure to modern fuel blends.
When replacing cutting blades, torque to 90 ft-lbs using a crisscross pattern on three-bolt models. Balance blades with a magnetic balancer; even 5 grams of imbalance causes vibrations exceeding 0.15g at 3800 rpm, leading to bearing failure within 50 hours. Store spare blades vertically in a climate-controlled environment to prevent warping.
- Drain the hydraulic reservoir completely before replacing fluids. Use only manufacturer-approved synthetic blend (e.g., ExxonMobil Univis N 32) to prevent seal degradation–aftermarket oils often lack the temperature-stable additives required for piston-pump systems.
- Install the new filter with the arrow pointing toward the pump housing. Hand-tighten until seated, then rotate an additional ¾ turn. Over-tightening distorts the filter housing, causing bypass valve failure.
- Refill to the “Full” mark on the dipstick, then cycle the control levers 15 times to purge air. Top off after 5 minutes of idling (engine at 1000 rpm).
For electrical diagnostics, use a multimeter set to 20VDC (not auto-range) to test the PTO switch. Readings below 11.8V at the solenoid terminal indicate corroded wiring or a failing alternator–clean connections with a stainless-steel brush and dielectric grease (Permatex 81150). Replace switches if resistance exceeds 0.3 ohms between terminals.
Store all fasteners by size in labeled plastic bins with desiccant packs. Zinc-plated bolts corrode within 12 months in humid climates–opt for stainless steel (grade 316) for deck components. Always replace lock washers with nylon-insert nuts (ASTM A194) on critical assemblies (e.g., wheel hubs), as traditional split washers lose tension under vibration.
Locating Genuine Schematics for Zero-Turn Equipment Online
Begin with the manufacturer’s primary portal at Exmark’s official site. Their support section maintains an extensive repository of exploded views for all trimmer models produced since 2010. Filter by serial number–typically engraved on the frame near the engine–to pull up precise documentation. Files download instantly as PDFs, ensuring crisp renderings of every component down to washers and spacers.
Third-Party Retailers with Certified Drawings
Jack’s Small Engines (link) hosts verified schematics for push and riding units. Each illustration links directly to inventory, so you can cross-reference SKUs against your own billed items. PartsTree (link) offers a similar OEM-accurate catalog; enter the model suffix found on the ID plate to generate a step-by-step breakdown of assemblies and sub-assemblies.
eReplacementParts (link) supplements drawings with isometric views that rotate 360 degrees, ideal for locating hard-to-identify linkages or pulleys. Their search function accepts partial serials–useful when the tag is weathered. For discontinued lines, visit MowerSpares, which archives scanned manuals from pre-2005 production runs.
Local dealers often hold printed diagrams behind counters; call ahead and request the service manager email a scanned copy–specify left and right deck assemblies if troubleshooting deck lift issues. Some John Deere service centers will release Hustler schematics under mutual brand agreements, though proof of ownership may be required.
Decoding Equipment Schematics for Rapid Fixes

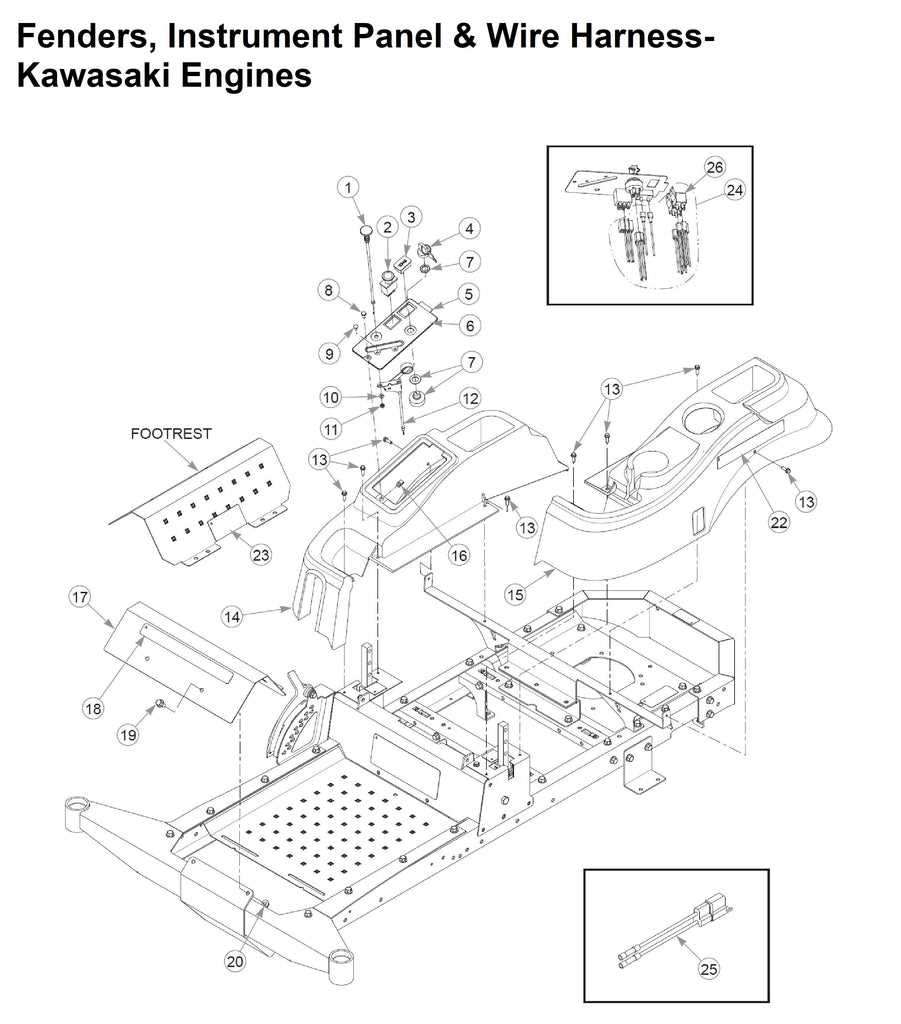

Locate the exploded view section of the manual immediately. Each component is numbered and positioned relative to its assembly point–compare these numbers against the labels on the physical piece. For example, blade mounts marked “12” in the schematic will correspond to a bolt or bracket with the same identifier on the machine. Mismatched numbers indicate either a missing piece or an incorrect assembly sequence.
Trace hydraulic or electrical lines using the schematic’s dashed or colored pathways. A solid red line on the drawing often signals a primary circuit, while green or blue may denote secondary systems. Cross-reference these paths with the equipment’s actual hoses or wires–discrepancies like a cut in the line or a loose connector will stand out. Replace damaged segments with the exact OEM specifications noted in the margin (e.g., “hose #47-2.5mm ID”).
Prioritize sections labeled “wear items” or highlighted in bold borders; these denote frequent failure points. Verify tolerances listed–such as “max .030” for spindle play–using calipers or feeler gauges before ordering replacements. Over-torqued bolts or out-of-spec bearings won’t appear on the drawing, but the manual’s footnotes will specify torque values (e.g., “30 ft-lbs”) and lubrication requirements.
If the exploded view shows multiple variants of a single component (e.g., three blade types), match the serial number plate on the machine to the correct revision in the manual. Installing the wrong version–even by a single notch–can shear gears or void warranties. Keep a digital copy of the schematic on-site to zoom into micro-details like gasket placement, where misalignment by a millimeter can cause leaks.
Key Components Highlighted in Zero-Turn Equipment Schematics
Check the cutting deck assembly first–most manufacturer blueprints label critical wear items like spindle housings, blade bolts, and anti-sail baffles with alphanumeric codes matching the bill of materials. Replace spindle bearings every 300 operating hours if play exceeds 0.010 inches; ignore this and risk catastrophic blade detachment during heavy swaths.
Drive wheel motors appear in two configurations: integrated hydrostatic units for commercial-grade models and separate hydraulic pumps paired with wheel-mounted gerotors for mid-tier builds. Decode the hydraulic flow paths printed adjacent to the pump housing–clogged charge relief valves throttle acceleration and mimic transmission failure, costing unnecessary rebuilds if misdiagnosed.
Air filtration systems often include pre-cleaners, primary canisters, and safety elements in a vertical stack. Factory schematics assign torque specs (typically 15-18 ft-lbs) for clamp bands; overtightening crushes pleated media and collapses filtering capacity within 50 hours in dusty conditions, dropping engine compression below 125 psi.
The operator presence system circuit integrates seat switches, PTO interlock relays, and brake sensor micro-switches wired in series. Trace every 14-gauge wire from the fuse block to the dash using the wiring color legend printed above the fuse panel–corroded female spade connectors at the seat switch create intermittent shutdowns, wasting diagnostics on phantom ECM faults.
Mulching kits retrofit via bolt-on deflectors that redirect clipping discharge 180 degrees back into the cutter tip path. Verify the included gasket thickness (0.062 in) matches the OEM recess depth in the deck casting; a mismatch introduces uneven blade loading at 3,500 RPM, escalating to chatter marks on turf within twenty cutting cycles.
Fuel delivery sections illustrate inline filters, regulator diaphragms, and vapor return lines. Install a new inline filter every 100 hours and inspect the regulator spring tension against the psi scale (3-5 psi) noted beside the carburetor base–droop below 2.8 psi leans the mixture, triggering premature piston scoring in ethanol-blend fuel environments.
