Start by identifying the model number on the motor housing–typically stamped on a metal plate or printed on a label near the power cord inlet. For units manufactured between 1995 and 2010, search designated online repositories that archive original schematics, such as manufacturer-approved third-party vendor sites or specialized repair databases. Avoid generic search terms; instead, use exact code sequences like 139.53662 or 41A4295-SRT, which lead directly to detailed exploded views.
Critical components–including the torsion spring assembly, rail sections, and limit switch carriage–are often sourced separately. Verify part compatibility by cross-referencing the gear reduction ratio (commonly 20:1 or 24:1) and drive sprocket tooth count. Online marketplaces may list aftermarket replacements; confirm they meet OEM torque specifications (300–400 in-lbs for 1/2 HP equivalents) before purchasing.
For older units with worn nylon gears, replace the entire gear set rather than individual cogs–disassembly risks damaging alignment grooves. Keep a multimeter set to 20kΩ to test capacitor functionality; a reading below 10 µF signals failure. Lubricate pivot points with lithium-based grease only; WD-40 or silicone sprays accelerate wear on plastic bushings.
If the remote synchronization fails, reprogram using the learn button sequence: hold the remote 2–3 inches from the motor eye, press and release the learn button within 30 seconds, then press the remote button twice. Security+ models require an additional rolling-code reset–consult the original owner’s manual under “Rolling Code Configuration.”
For belt-driven systems, inspect the V-groove pulley for uneven wear–replace if grooves exceed 1.5mm depth. Chain-driven variants need track tension adjusted to a 1/4-inch deflection when manually depressed at midpoint. Excessive slack causes misaligned opener engagement, while overtightening increases motor strain.
Visual Breakdown of a 0.5 Horsepower Motorized Track System
Start by locating the gear assembly near the motor housing–it’s prone to wear and often requires lubrication every 6–12 months with lithium-based grease. If the drive sprocket shows visible teeth damage, replace it immediately to avoid chain slippage or complete failure. The manufacturer’s manual typically labels this as “part #41A5021” for 2015–2020 models.
Examine the rail’s trolley arm for cracks; even hairline fractures compromise safety under load. The carriage bolts securing it to the ceiling mount should be torqued to 25 ft-lbs–loose hardware causes misalignment, leading to uneven travel or binding. For older units, check the nylon rollers; if flattened or chipped, swap them for steel-reinforced replacements to restore smooth operation.
Critical Components Under the Hood
Inspect the logic board for corrosion around solder joints, especially in humid climates. A multimeter set to continuity mode can verify the thermal fuse’s integrity–blown fuses (rated 250V/10A) are a common culprit for unresponsive systems. The capacitor, typically a 15μF/370VAC oval unit, may bulge or leak; substitute with an exact voltage match to prevent motor burnout.
For belt-driven variants, tension adjustment is key: loosen the carriage track bolts, slide the motor backward until the belt deflects ¼ inch under finger pressure, then retighten. If the belt frays near the pulley, the idler assembly (“part #41D3039”) likely needs realignment–misalignment accelerates wear by up to 40%. Keep a spare belt on hand (spec: 180-tooth, neoprene-coated) to minimize downtime.
Replace the limit switch screws if stripped–the original Phillips-head fasteners are notorious for rounding out. The down-limit preset should stop the mechanism 2 inches from the floor; recalibrate via the control panel’s “learn” button if travel exceeds this threshold. For wall-mounted keypads, swap the battery annually–alkaline cells degrade faster than lithium in freezing temperatures.
Track the powerhead’s motor brushes for erosion; after 3,000 cycles, graphite residue signals impending failure. A burnt odor during operation confirms stator damage–disassemble the housing to inspect the winding insulation for discoloration. If rewinding isn’t feasible, a direct OEM replacement (model cross-reference: “LiftMaster 1345”) ensures compatibility with existing remote protocols.
Identifying Critical Elements in the 1/2 HP Mechanism Wiring Layout
Locate the powerhead’s motor assembly first–it typically sits at the rear of the rail system with a labeled terminal block. Terminals 1 through 5 correspond to specific functions:
| Terminal | Wire Color | Function |
|---|---|---|
| 1 | White | Neutral (AC input) |
| 2 | Black | Live (AC input) |
| 3 | Red | Down limit switch |
| 4 | Brown | Up limit switch |
| 5 | Yellow | Safety sensor circuit |
Trace the red and yellow wires to the rail-mounted limit switches and infrared sensors, respectively. The red wire should connect to a microswitch at the rail’s lower end, while the yellow pair spans the doorway’s sides, forming a low-voltage detection loop. Verify continuity across each path with a multimeter–0 ohms indicates a closed circuit, while infinite resistance signals a fault in the wiring or sensor alignment. Disconnect the power before testing to avoid damaging the control board.
Examine the logic board for capacitor ratings (e.g., 2200µF at 25V) and relay components; swollen caps or burnt traces often cause intermittent failures. Label all connectors before disassembly to ensure correct reassembly–mismatched plugs can fry integrated circuits. Replace damaged wiring with 18AWG stranded copper for the motor leads and 22AWG for sensor circuits to maintain voltage consistency.
How to Pinpoint Components for Your Motorized Lift System Using a Visual Breakdown
Locate the product identification plate on the main housing unit–the stamped serial number and model code are critical. Cross-reference these details with manufacturer-issued schematics, typically available on official repair portals or authorized service manuals. A mismatch here leads to incompatible replacements.

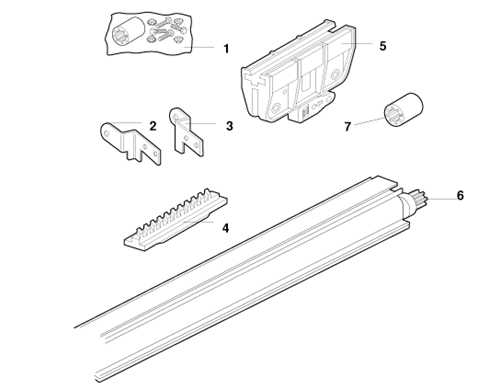

Examine the exploded view illustration for numbered callouts–each corresponds to a specific item in the bill of materials. Focus on the section depicting the drive assembly, as this area most frequently requires servicing for torque transfer elements like gears, belts, or sprockets.
Identify wear patterns on physical components before ordering–discoloration, striations, or deformations signal whether a bracket, bearing, or tensioner needs swapping. Match these observations with the illustration’s shading or annotations, which often highlight high-stress zones.
Trace electrical connectors in the diagram back to their source–relays, capacitors, and limit switches are prone to failure. Verify wire gauge and terminal types against the schematic’s legend to avoid incorrect fittings that cause intermittent malfunctions.
For structural supports like rails or mounting brackets, measure dimensions directly from the assembly and compare them to the scale drawing. Even millimeter discrepancies prevent proper alignment, resulting in noisy operation or premature wear.
Check the legend for part numbers; some items list multiple variants for different voltage ratings or environmental conditions (e.g., outdoor-rated vs. standard). Selecting the wrong variant risks component burnout or safety hazards.
Consult the revision history at the footer of the schematic–older units may require discontinued items, necessitating custom fabrication or third-party suppliers. Document each confirmed replacement with notes on installation torque specifications to streamline future repairs.
Identifying and Fixing Mechanical Faults Using an Exploded Schematic
Start by inspecting the torsion spring assembly if the motor runs but the mechanism fails to lift the panel. Measure spring tension with a digital torque wrench–properly tensioned springs for a ½ HP unit should register between 18-22 ft-lbs. Replace springs showing fractures or deformation exceeding 0.05 inches in diameter; mismatch by even 1 ft-lb can cause premature wear on drive gears. Ensure safety cables are intact before disassembly–ruptured springs release lethal force.
Check sprocket alignment when intermittent grinding occurs during operation. Remove the chain cover and examine the drive sprocket for flattened teeth or excessive play–wobble beyond 0.03 inches indicates bearing failure. Align sprockets with a precision straightedge: the chain’s centerline should deviate no more than 0.015 inches from the motor’s output shaft. Lubricate with lithium-based grease; substitute alternatives accelerate wear on nylon bushings.
Resolving Limit Switch Calibration Errors
Recalibrate travel limits when the panel reverses abruptly or fails to close fully. Locate the limit adjustment screws–clockwise rotation shortens travel distance, counterclockwise extends it. Turn each screw in ¼-turn increments and test between adjustments; over-rotation risks motor stall or gear stripping. Verify switch contacts for pitting or corrosion–clean with 600-grit sandpaper if resistance exceeds 2 ohms.
Examine the trolley carriage for binding if the system produces excessive noise under load. Remove the rail sections and inspect for warping–gaps exceeding 0.02 inches require replacement. Lubricate rails with PTFE dry film spray; silicone-based products attract dust and accelerate track misalignment. Reassemble with torque specs: 8-10 ft-lbs for carriage bolts, 12-15 ft-lbs for rail mounts.
