The *Model M* series humidifier relies on precise internal components that must be serviced in a specific sequence. Begin by isolating the front access panel–the single-point entry for all critical adjustments. Removing the cover reveals the water distribution tray, solenoid valve, and fan assembly, arranged in a mirrored layout for dual-output units. Use a 1/4-inch hex driver to detach the tray securing screws; these fasteners often corrode and may require penetrating oil if seized.
Trace the wiring harness from the control board to the humidistat–this connection regulates power delivery during operation. A continuity test across terminals confirms functionality; resistance exceeding 5 ohms indicates a failed switch or frayed wire. The solenoid valve deteriorates from mineral deposits–soak it in white vinegar for 30 minutes before reassembly to restore flow rates. Replace the O-ring if compression appears uneven, as leaks compromise humidity consistency.
Refer to the exploded view schematic typically found on page 12 of the official service manual. Pay attention to part numbers etched on each component–mismatches disrupt calibration. The fan motor mounts with three screws; ensure blades spin freely without lubrication buildup. Misalignment here reduces airflow by up to 22%, triggering erratic readings. Keep a multimeter set to 20VDC range to verify voltage drops during testing.
Document each step with timestamped photos to avoid reassembly errors. The drain tube must slope downward at a minimum 2-degree angle to prevent water pooling. If corrosion appears on the heat exchanger, replace it immediately–this component cannot be cleaned effectively and failure leads to moisture overflow inside the ductwork. Store removed screws in a magnetic tray to prevent loss, as thread damage from cross-threading requires full unit replacement.
HVAC Humidifier Unit Breakdown: Step-by-Step Service Instructions
Locate the water panel assembly at the center of the housing–disconnect the feed tube before sliding the panel out. Inspect for mineral buildup: soak in equal parts white vinegar and warm water for 90 minutes, then rinse under low-pressure water. Replace if visibly warped or cracked, as airflow resistance increases exponentially beyond 0.3 inches of sediment accumulation.
Check the solenoid valve beneath the inlet port; test with a multimeter at 24VAC–readings below 18VAC indicate a failing transformer. The valve’s rubber diaphragm degrades after 1,200 cycles; pry off the retaining clip with needle-nose pliers and replace the diaphragm if leaks persist after 30 seconds of activation. Lubricate the plunger with silicone spray to prevent sticking during low-humidity cycles.
Remove the distribution tray by releasing the two snap latches at the sides–examine the tray’s splash grooves for blockages. Use a 1/8-inch drill bit to clear calcium deposits clogging the micro-ports; factory flow rate drops 40% when only two ports remain unobstructed. Reinstall the tray with the arrow marker aligned to the airflow direction to ensure even evaporation.
The fan motor mounts to the rear plate with three Torx-10 screws–rotate the impeller by hand to check for bearing drag. Current draw above 0.75A signals worn bearings; apply 3 drops of synthetic bearing oil through the lubrication port after removing the rubber plug. Replace the motor if startup torque exceeds 1.2 Nm, as overheating occurs within 15 minutes of continuous operation.
Test the humidity sensor by covering it with a damp cloth–the display should read 95% within 12 seconds. Clean the sensor’s gold-plated contacts with 1500-grit sandpaper if response slows; corrosion builds at 0.002 inches per year in environments above 60% relative humidity. Recalibrate the control module by holding the up/down arrows for 5 seconds until the screen flashes “CAL,” then release to reset baseline readings.
Inspect the drain pipe for biofilm buildup; disconnect at the barbed fitting and flush with 120°F water at 3 GPM pressure. Replace the pipe if flexibility drops below 20% elongation–kinks reduce drainage efficiency, causing standing water to overflow the reservoir within 4 hours of startup. Secure the pipe with a stainless-steel clamp rated for 150 PSI to prevent compression under duct pressure.
Verify the high-limit circuit by simulating overheating–wrap the temperature probe in aluminum foil heated to 140°F. The safety relay should trip within 8 seconds; if delayed, replace the bimetallic switch. The reset button requires 12 pounds of force to engage–test with a spring scale to ensure proper seating after each service cycle.
Identifying Critical Elements in Your Whole-Home Moisture Control Unit
Begin by removing the access panel–typically secured with two screws at the base–to expose the internal layout. The water distribution tray sits directly atop the evaporative media, identifiable by its perforated design; this component requires monthly rinsing to prevent sediment buildup from tap supply. On the left side, locate the solenoid valve assembly (metallic cylinder with two hose connectors) and verify its electrical connection to the control module via a thin red wire; corrosion here causes intermittent failures often misdiagnosed as sensor issues.
| Component | Location | Failure Signs |
|---|---|---|
| Evaporative pad | Center of housing | White crusting, uneven water flow |
| Motor assembly | Right rear, behind fan blade | High-pitched squeal, slow startup |
| Float switch | Lower left reservoir | Continuous running, no auto shutoff |
| Drain hose | Bottom left fitting | Leaks at connection point |

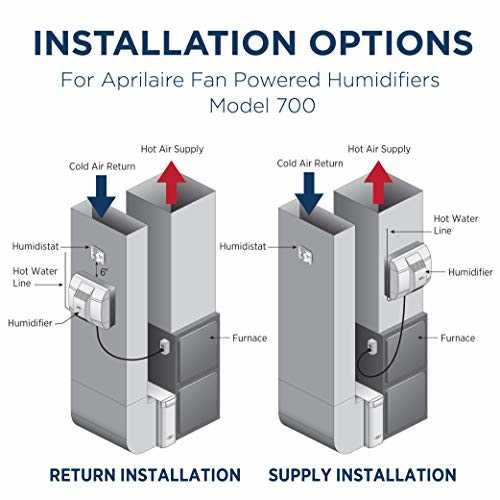

Trace the inlet tubing from the saddle valve upstream–ensure no kinks exist within 12 inches of the valve as they restrict flow below the required 0.5 GPM for proper operation. The humidistat sensor mounts on the supply duct via a 1/4″ hole; its position 18-24 inches downstream from the main unit prevents false readings from turbulence.
How to Interpret the Humidifier Assembly Schematic: A Detailed Guide
Locate the central housing unit first–marked as Component A in the manual–positioned at the base. Verify the alignment tabs on both sides before proceeding; misalignment here causes leaks during operation.
- Remove the water distribution tray (Part B-3) by sliding it forward. Check for mineral buildup along the tray’s micro-channels–flush with a 1:1 vinegar-water solution if deposits exceed 0.5mm.
- Inspect the solenoid valve (Component C): test voltage at the terminals (24VAC expected). Replace if resistance exceeds 200 ohms.
- Examine the evaporator pad frame (Section D): cracks wider than 2mm necessitate replacement. Ensure the pad sits flush against the frame–gaps reduce efficiency by up to 18%.
Reassemble the drain line (Tubing E) after confirming a downward slope of at least 1/4 inch per foot. Secure with the original compression fitting; overtightening strips threads.
Identify the control module (Board F) on the right side. Match the dip switch settings to your furnace fan speed:
- Low: switches 1 and 3 ON
- Medium: 2 and 4 ON
- High: 1, 2, and 5 ON
Incorrect configurations trigger error code E3.
Replace the air filter (Screen G) if debris blocks more than 30% of the surface area. Cut the replacement to 14.25″ x 9.75″ for precise fitment–deviations cause bypass airflow.
Reinstall the cover (Panel H) using the four Phillips screws. Torque each to 8 in-lbs; overtightening warps the threading. Test run for 10 minutes–listen for gurgling near the drain line, indicating trapped air bubbles. Purge by loosening the drain fitting until water flows steadily.
Key Components to Replace in Your Humidifier Unit

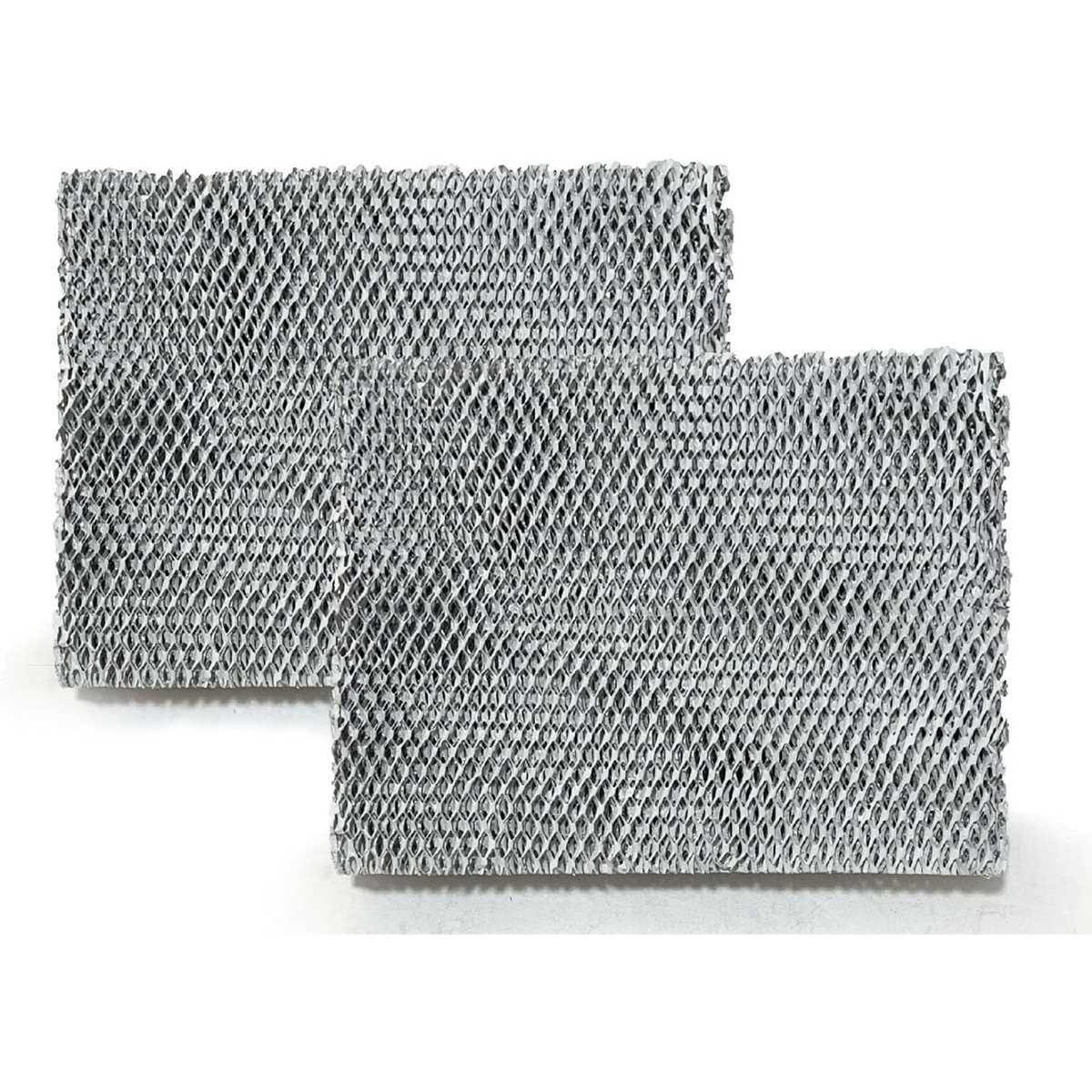

Start with the water panel–this evaporative media degrades every 3–6 months, depending on usage. Check for mineral buildup or warping; replacement kits (Model 45) include both the pad and plastic frame. Order genuine filters to avoid reduced efficiency from off-brand alternatives.

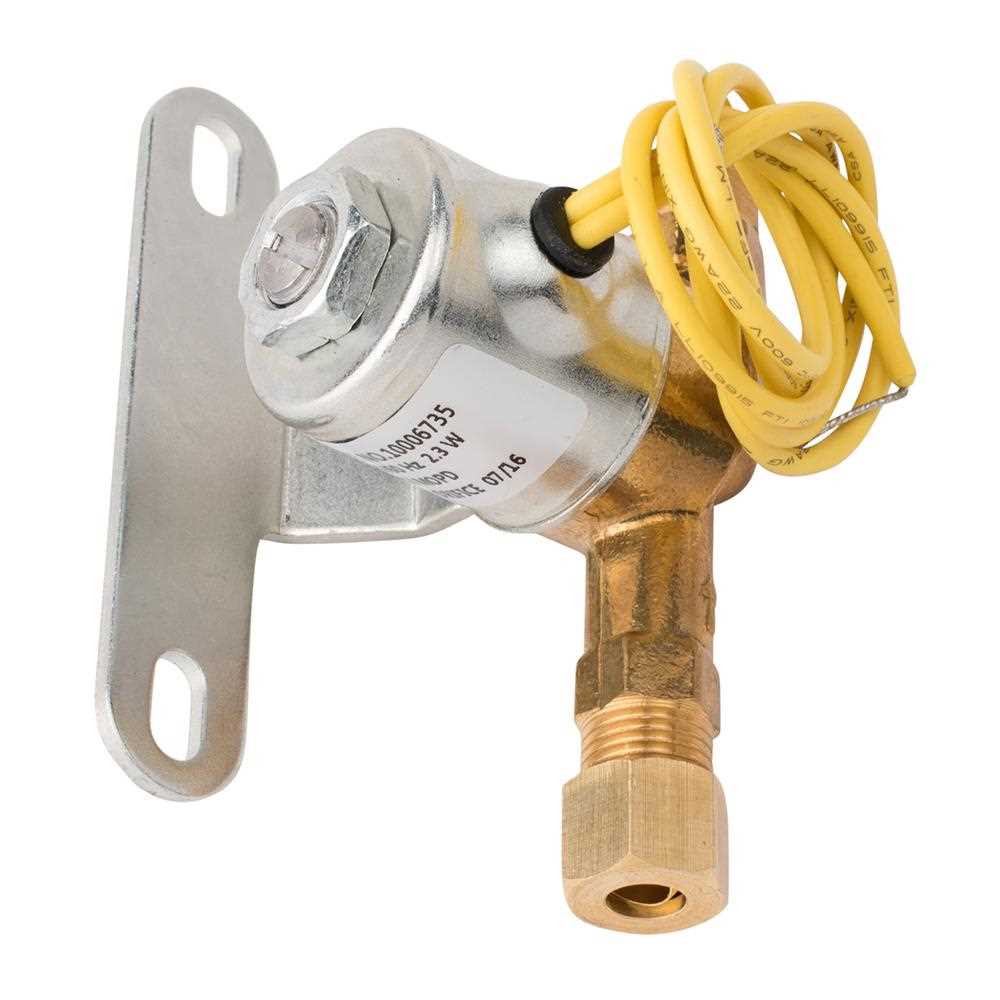

Inspect the solenoid valve if water flow stops abruptly. A faulty coil or clogged inlet screen often causes inconsistent moisture output. Test voltage at the terminals (24V AC expected); if present but no operation, replace the entire valve assembly (Part #960).
The fan motor (Part #3400) may hum but fail to spin–this indicates worn bearings. Lubrication rarely fixes long-term issues; swap it for a direct-drive replacement. Verify RPM matches factory specs (1000–1200) to prevent overheating.
Examine the humidistat if humidity levels fluctuate unpredictably. Dead zones or erratic readings signal a dirty sensor or corroded contacts. Clean with isopropyl alcohol; if calibration fails, install a new control module (Part #35). Ensure ambient temperature stays above 40°F for accurate readings.
Fused disconnect switches (Part #60) trip frequently in hard water areas. Replace the thermal fuse if resistance checks infinite–use a multimeter on the continuity setting. Never bypass this safety feature; melting plastic housings indicate overheating.
Drain hoses (Part #180) crack over time, causing leaks behind walls. Replace yearly if exposed to freezing temperatures. Secure connections with hose clamps to prevent siphoning during power outages.
Electrode probes (Part #40) accumulate scale faster in well water. Scrub with vinegar monthly; replace if pitting is visible. Verify proper spacing (1/8″) during reinstallation–misfires reduce steam output by 30%.
Mounting brackets (Part #220) loosen from vibration. Check torque specs (8–10 ft-lbs) and tighten annually. Rust-resistant coatings extend lifespan in crawl spaces; consider stainless steel upgrades for coastal installations.
