Locate the impeller assembly beneath the volute casing–typically secured by a hexagonal nut and lock washer. Verify alignment with the shaft keyway before reassembly to prevent imbalance during startup. Misalignment by as little as 0.005 inches can reduce efficiency by 12-15%, particularly in high-flow applications.
Inspect the mechanical seal housing for wear patterns. Replace ceramic or carbon faces if grooves exceed 0.002 inches, as they compromise sealing under pressures above 80 PSI. O-ring degradation often manifests as micro-tears; use silicone-based lubricants sparingly–excess residue attracts abrasive particles, accelerating seal failure.
The diffuser vanes direct fluid flow into the discharge chamber. Confirm vane angles match the original specifications (±2 degrees); deviations disrupt laminar flow, increasing turbulence and noise levels. For variable-speed models, check the actuator linkage for free movement–binding here causes irregular pressure spikes.
Examine the bearing cartridge for radial play. A maximum tolerance of 0.001 inches is permissible; beyond this, shaft wobble risks impeller contact with the volute. Grease-fitting threads should be tapped clean–cross-threading leads to insufficient lubricant delivery, shortening bearing life by up to 40%.
Valve assemblies require periodic torque checks. Over-tightening the stem (beyond 8 ft-lbs) distorts the packing gland, leading to leakage. Spring tensioners in relief valves must be calibrated annually–pressure settings drift by 5% within 12 months, causing premature cycling.
Electrical components demand voltage verification. Motor windings should register within 3% of nameplate ratings; deviations indicate overheating or insulation breakdown. Terminal connections must be torqued to manufacturer specs–loose contacts introduce resistance, raising operational temperatures by 8-10°F.
Visual Breakdown of Jet Drive Components
Start repairs by locating the impeller assembly–typically found behind the intake grille. Mark each piece’s position with painter’s tape before disassembly to simplify reassembly. The impeller hub and vanes require inspection for erosion; replace if grooves exceed 0.3mm.
Inspect the wear ring clearance. Factory specs mandate 0.15–0.25mm gap for optimal flow. Use a feeler gauge to verify. A loose fit reduces thrust by 12–18%. The ring’s OEM material is phenolic; aftermarket brass versions increase durability but may alter tolerances slightly.
- Diffuser housing: Check for cracks near bolt holes–hairline fractures propagate under pressure.
- Nozzle: Measure internal diameter; anything above 102mm indicates wear–replace if uneven.
- Volute casing: Look for pitting; sandblasting removes surface corrosion but shortens lifespan.
Lubricate bearings with marine-grade grease every 50 hours. The front bearing handles 60% of radial load; failure often manifests as a high-pitched whine. Seal replacements must match the original carbon-ceramic spec to prevent leaks.
For electrical components: Test the starter relay with a multimeter–resistance below 0.5Ω indicates failure. Wiring harness connectors should be crimped, not soldered; vibration loosens solder joints over time.
Gasket surfaces demand precision. Even minor warping causes leaks. Clean mating surfaces with a plastic scraper–metal tools mar aluminum. Use anaerobic sealant sparingly; excess disrupts fluid dynamics.
When testing post-repair, monitor pressure at key points:
- Inlet: 10–15 psi (lower indicates clogged strainer).
- Outlet: 65–80 psi (below 50 signals impeller damage).
- Bypass: 2–5 psi (higher means valve obstruction).
Store removed items in labeled bags. Photograph each step; reference numbers on OEM schematics differ from aftermarket manuals. Cross-check torque specs: intake bolts require 12–15 Nm, exhaust bolts 8–10 Nm.
Key Elements in Hydraulic Equipment Schematics
Begin by locating the impeller assembly–critical for fluid propulsion. Most technical drawings label it near the volute casing, where fluid velocity converts to pressure. Verify blade count: standard models use 5-7 curved vanes for optimal efficiency. Replace worn impellers if clearance exceeds 0.3mm; reduced performance and cavitation risks increase beyond this threshold.
Sealing Systems in Detailed Layouts
Mechanical seals appear in exploded views as two main components: the stationary seat (housed in the gland plate) and the rotating face (attached to the shaft). Specifications typically require silicon carbide or carbon graphite materials. Always cross-reference the diagram with OEM tolerance charts–misalignment as small as 0.05mm causes premature failure. Lubrication ports must align precisely with seal flush plans.
Shaft bearings demand exact torque values during reassembly. Radial load bearings (usually deep-groove ball type) sit adjacent to the coupling end, while thrust bearings appear near the impeller. Consult the wiring guide for bearing preload measurements; incorrect preload generates excessive heat and shortens service life. Replace bearings if axial play surpasses 0.1mm after cleaning and inspection.
Check valve springs in discharge sections require periodic tension adjustment. Most schematics mark spring rate values (typically 12-18 N/mm) next to component numbers. Weak springs cause backflow, compromising system pressure. Use feeler gauges to set proper compression–over-tightening damages valve seats. Always replace springs in matched sets to maintain balanced performance.
How to Locate the Impeller and Diffuser in Assembly Drawings
Scan for the central rotating component–typically labeled as the impeller–positioned near the fluid inlet. Look for curved vanes or blades arranged radially; these will be enclosed by a stationary casing section. In exploded views, the impeller often appears as a distinct disc-shaped part with precise balancing notches. Cross-reference with adjacent markings: terms like “rotor,” “runner,” or “wheel” may indicate the same element. Verify scale by comparing blade spacing to dimensional callouts–standard impellers range from 3″ to 12″ in diameter.
Identifying the Diffuser
Trace the path of fluid flow downstream from the impeller. The diffuser–sometimes called the “volute” or “guide vane assembly”–will appear as a fixed, scroll-shaped housing or a series of curved channels immediately surrounding the impeller. In sectional drawings, it’s rendered with ribs or flow dividers to convert velocity into pressure. Match the diffuser’s inlet diameter to the impeller’s outlet–clearance should be under 0.010” for optimal performance. CAD models often highlight it in contrasting colors to distinguish it from other components.
Check for alignment pins or dowel holes between impeller and diffuser; these ensure angular positioning during reassembly. If absent, rely on bolt patterns–diffusers usually attach with 4-8 evenly spaced fasteners. Tolerances are critical: measure gap dimensions against OEM specs to prevent cavitation. For axial-flow units, the diffuser transitions into straightening vanes, visible as parallel fins in longitudinal sections. Always confirm with a parts catalog–some assemblies integrate the diffuser into the volute casing as a single casting.

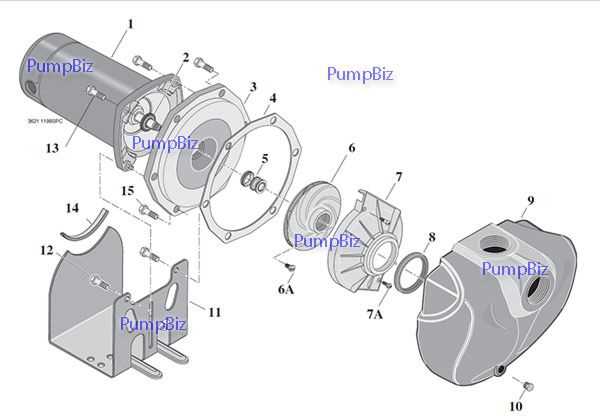

Replacing Seals and Bearings Using Exploded View Schematics
Locate the sealing ring assembly (Item 12) in the schematic before disassembly. Mark its orientation with a scribe or non-permanent marker–most rings have a beveled edge that must face outward toward the impeller housing. Failure to align this correctly will cause premature wear and fluid bypass. Use calipers to measure the inner diameter of the new ring; tolerance should not exceed 0.005 inches deviation from the original.
Step-by-Step Bearing Swap
Remove the bearing cartridge (Item 8) by loosening the retaining bolts in a cross pattern to prevent housing distortion. Inspect the bearing seat with a bore gauge–any scoring deeper than 0.002 inches requires machining or a sleeve insert. Apply a thin coat of high-temperature grease (NLGI Grade 2) to the new bearings before installation; excess grease increases startup torque by up to 15%. Keep the bearing shield facing the impeller side to block contaminants.
Verify shaft runout at the bearing journals with a dial indicator before assembly. Maximum allowed runout is 0.001 inches per inch of shaft diameter. Install the new seals using a hydraulic press with a uniform force of 2,000–2,500 psi to prevent cocking. Avoid hammering–impact loads can fracture the carbon face or deform the elastomer lip. For dual-seal configurations, prime the secondary seal with flush water before startup to prevent dry-running damage.
Torque and Lubrication Specifications
Tighten bearing housing bolts to 25–30 ft-lbs in three equal increments, rotating the shaft by hand after each pass to confirm free movement. Over-torqueing causes bearing preload, reducing service life by as much as 40%. Pack the grease reservoir to 1/3 capacity; overfilling creates churning friction, increasing operating temperature by 10–15°F. For submerged units, use grease with a water resistance rating of at least 800 hours (ASTM D4950 GC-LB).
After reassembly, run the equipment at 1,200 RPM for 30 minutes while monitoring vibration with a handheld analyzer. Spike readings above 0.6 in/s RMS indicate misalignment or seal binding. Drain and replace the initial flush fluid within 24 hours–failure to do so leaves abrasive particles that accelerate seal wear. Keep replacement intervals under 3,000 operating hours for water-lubricated bearings; synthetic lubricants extend this to 5,000 hours but require compatibility checks with elastomer materials.
