Locate the pressure relief valve on the top housing–this is the first critical piece for disassembly. Turn it counterclockwise until air hisses out, then close it before removing the clamp band. Failure to release pressure risks damage to the housing or sudden component ejection. The clamp itself consists of a stainless-steel band, two half-rings, and a threaded bolt assembly; clean all threads with a wire brush annually to prevent corrosion.
The upper chamber contains the standpipe, laterals, and support plate. Lift the assembly straight up to avoid bending the laterals–these fragile 1-inch segments snap easily if misaligned. Inspect the O-ring groove on the standpipe base; a deteriorated seal (typically #201) causes channeling and reduces filtration efficiency. Replace it if flattened, brittle, or missing entirely. The support plate sits directly beneath, secured by three tabs; check for cracks near stress points where fractures develop over time.
Inside the lower tank section, the filter basket rests atop the drain plug. Remove it to access the internal manifolds–these collect debris and require flushing every 300 operational hours. The manifolds connect via threaded ports; seal them with Teflon tape during reassembly to prevent leaks. For models with automatic backwash valves, note the position of the spider gasket (part #425) before dismounting; improper alignment disrupts flow distribution.
Refer to schematics by identifying the serial number stamped on the tank’s base–a mismatch leads to incompatible replacements. Common failure points include the clamp bolt (shears under torque) and the air bleed disc (cracks from over-tightening). Use a torque wrench set to 25-30 ft-lbs for reassembly. For exploded views, cross-reference manufacturer bulletins #MN-2023R2; earlier diagrams omit updated latch designs.
Exploring the Structural Components of the FNS 60 Pool System
Begin by locating the filter housing assembly–critical for maintaining water clarity. The main tank body of this model includes a multiport valve positioned at the top, typically featuring six distinct settings: filter, backwash, rinse, waste, recirculate, and closed. Ensure the valve’s handle moves smoothly between positions, as uneven rotation often signals worn gaskets or misalignment. Replace the spider gasket (part #350032) if water leaks from the valve’s waste line during operation.
The filter element consists of vertical cartridges stacked within the chamber. Each cartridge (model #150006) has a pleated polyester surface rated for 50 square feet of filtration area. Clean these every four to six weeks by soaking in a solution of muriatic acid (one part acid to 20 parts water) for 12 hours, then rinsing under high-pressure water. Avoid using wire brushes–micro-tears reduce efficiency. For replacements, verify the cartridge’s outer diameter matches the original; deviations of even 2mm cause improper sealing.
Check the tank’s internal standpipe and diffuser plate annually. The standpipe (part #340008) channels unfiltered water upward, while the diffuser plate distributes flow evenly across cartridge surfaces. Cracks or chips in these components create dead zones, encouraging debris accumulation. Use a flashlight to inspect weld seams along the tank’s interior–hairline fractures often form near stress points where the base meets the cylindrical body. Sealant application is ineffective; replace damaged sections immediately.
Lubricate the O-rings on the tank lid (part #340014) with silicone-based grease before each reassembly. The lid’s pressure relief valve should hiss briefly when opening–absence of this sound indicates a blocked vent or failed spring mechanism (part #340016). Test the valve by pressing it manually; resistance suggests sediment buildup–flush the system at maximum flow for three minutes to clear obstructions. Store spare parts in climate-controlled conditions; humidity degrades rubber seals faster than ultraviolet exposure.
Locating Critical Elements in Your Pool Filtration System Model 60
Begin by examining the multiport valve–positioned atop the filter tank. This selector controls water flow paths: *filter*, *backwash*, *rinse*, *waste*, *recirculate*, and *closed*. Verify the handle’s alignment with labeled settings; misalignment creates bypass leaks or inefficient cleaning. The valve’s gasket must remain intact; deformations allow unfiltered water to re-enter the pool. Replace gaskets annually or when calcium deposits form visibly.
Pressure Gauge and Air Relief Mechanism
Check the pressure gauge mounted on the valve lid–readings above 8-10 psi over normal baseline signal clogged filter media requiring backwashing. The air relief assembly, typically a small brass or plastic knob, releases trapped air during startup; failure to open it before operation risks structural damage from pressurized air pockets. The gauge’s calibration drifts over time; test accuracy by submerging it in water–bubbles indicate leaks necessitating replacement.
Inspect the filter tank’s standpipe and laterals–these underdrain components distribute water evenly through the sand bed. Cracks in laterals (thin, slotted tubes) cause sand to enter return lines and erode pump impellers. Remove the tank’s top dome to access them; corroded plastic laterals often fragment. Replace with stainless steel alternatives if recurrent issues persist. The tank’s internal coating must resist chemical erosion–flaking signals the need for resin reapplication to prevent rust. Mark maintenance dates directly on the tank using a permanent marker to track degradation cycles.
How to Pinpoint Components in Your Filter System Schematic

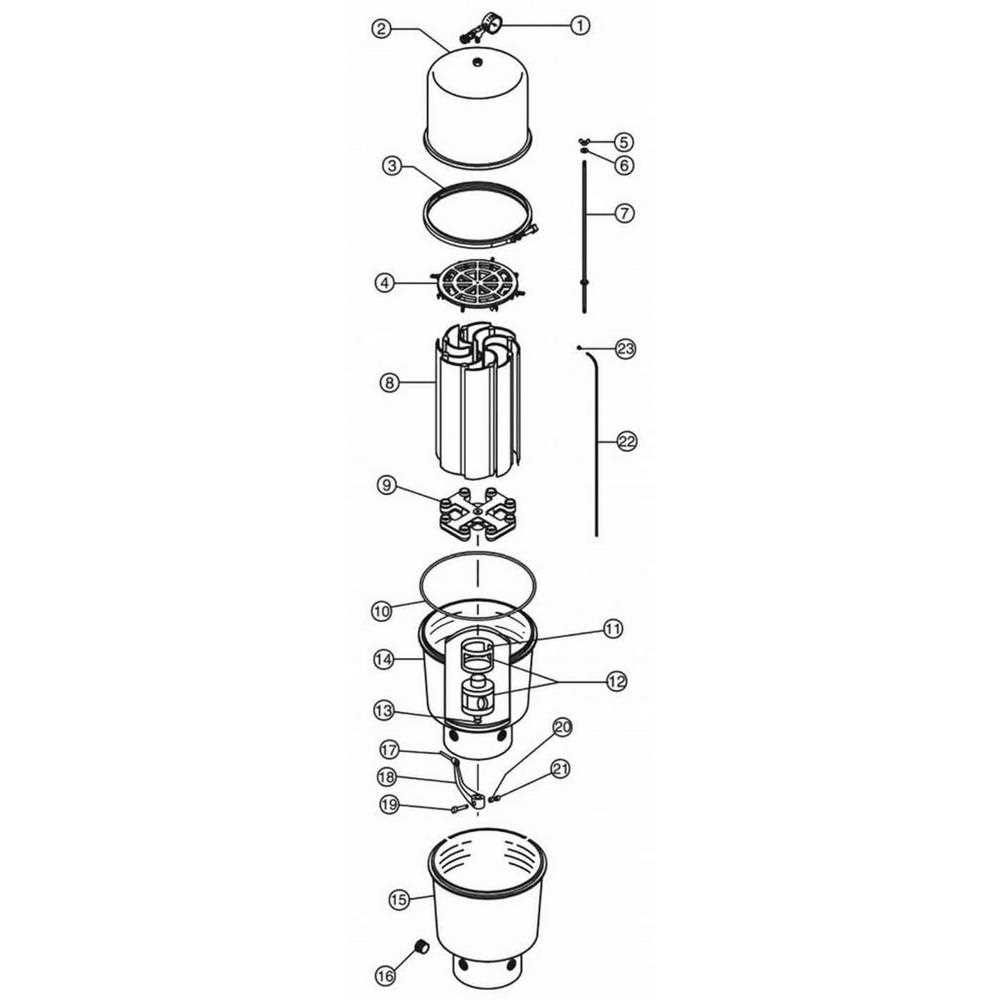

Begin by obtaining the official exploded view of your filtration unit–manufacturers typically provide this as a PDF or printed manual. Identify the exact model number engraved on the tank’s housing; it’s often a combination of letters and digits near the pressure gauge. Cross-reference this code with the upper-right corner of the schematic to confirm compatibility, as variations exist even within similar series.
Locate the legend on the schematic–usually a small box in one corner–listing numbered items alongside brief descriptions. For instance, Item #12 might label the multiport valve’s O-ring, while #24 could denote the standpipe assembly. If the legend isn’t present, scan for callouts: tiny arrows or circles pointing to components with corresponding numbers. Prioritize parts showing visible wear during inspection, such as cracked gaskets or corroded clamps.
Use a highlighter to mark the schematic as you trace each component’s placement. Start with large, exterior elements like the lid or drain plug, then move inward to internal assemblies. The schematic often groups related items–e.g., all clamp-related hardware (#3, #7, #15) appears clustered near the tank’s rim. Note the orientation: some pieces, like spring-loaded mechanisms, have directional arrows indicating installation posture.
For ambiguous entries, measure the physical component and compare dimensions against the schematic’s scale bar. A 1.5-inch diameter pipe, for example, won’t match a 2-inch port on paper. If the schematic lacks scale, photograph the actual piece next to a ruler, then overlay the image on a digital copy of the diagram for verification. Pay extra attention to threads, seals, and notches–these details distinguish near-identical replacements.
Check for superseded reference codes in the lower margin or footnotes. Manufacturers occasionally update components without revising the entire schematic, adding “R1” or “-A” to the original number. For example, a gasket listed as #8 might have an improved version labeled #8A for enhanced durability. Order the updated variant unless the older design specifically matches your unit’s production date range.
When in doubt, isolate the subsystem: divide the schematic into quadrants. Top-left typically covers inlet/outlet assemblies, bottom-right focuses on internal grids or cartridges. If searching for a missing screw, limit the search to clusters near fasteners. For electronic controls, look along edges where wiring harnesses connect–these are often color-coded in both the diagram and the physical unit.
Final validation involves physically pointing to each component while cross-checking with the schematic. Use a screwdriver to gently tap suspected parts–hollow or loose elements may reveal hidden damage not evident in the diagram. Keep a note of any discrepancies between the schematic and your unit, as these often point to custom modifications or aftermarket additions requiring alternate sourcing.
Key Replaceable Components and Corresponding Schematic Locations
Start replacement cycles with the filtration assembly’s O-rings–schematics label these as Gasket #42 and Seal #58. Inspect them every 6 months; silicone variants degrade faster under chlorine concentrations above 3 ppm. Cross-reference positions in the exploded view under section 3C for correct sizing: metric measurements (22mm ID for inlet seals) are non-interchangeable with imperial replacements.
Filter grids demand biannual deep cleans–refer to diagram quadrant 2B for disassembly steps. Polyester mesh (item Screen #17) frays at stress points where the grid frame presses against the support bracket. Replace immediately if surface bubbles or uneven tension appear; compromised grids reduce flow by up to 40%. Reassembly torque: 12 Nm for clamp bolts (marked Fastener #33).
- Backwash valve internals (Rotator #9 in plate schematics): Check gasket seating at least quarterly. Misalignment (often from improper winterizing) causes bypass leaks detectable by audible hissing near port A.
- Diverter hub (Core #11): Operates 2,500 cycles before wear; listen for grinding at shift points. Lubricate with non-petroleum grease (P/N LUB-5) sparingly–excess migrates to filter media.
- Pressure gauge (Sensor #24): Replace if fluctuation exceeds ±2 PSI from baseline. Calibration instructions are in manual appendix D, noting environmental drift (temperature swings >15°F invalidate readings).
Housing bolts (Anchor #7) corrode in coastal areas–upgrade to 316 stainless equivalents using torque pattern from layout 4A. Tighten in diagonal sequence: flange leaks manifest within 72 hours if protocol skipped. Use thread sealant only on first assembly; subsequent maintenance requires dry-fit checks.
The lid clamp mechanism (Locking Arm #15) weakens after 3 years due to UV exposure. Replace entire assembly if hinge pins measure FNS-R2.
- Waste line assemblies (Outlet #39): Use Teflon tape on NPT threads–leaks here waste 50+ gallons hourly. Schematic shows dual-port orientation; mistake routes backwash into clean water.
- Air relief stem (Vent #2): Requires annual rebuild. Remove debris from ball seat (visible in section 5F) with wire brush–even microscopic particles prevent proper sealing. Rebuild kit includes spring (critical for 18″ head pressure shutoff).
- Base grommets (Foot #61): Check quarterly for compression. Concrete installation demands rubber variants; plastic variants crack under thermal stress (>120°F). Schematic marks load ratings (maximum 800 lbs distributed).
Lubrication ports (Point #52 per service guide) receive grease every 50 operational hours. Over-application forces residue into the valve body, necessitating complete disassembly (diagram 7E). Use manufacturer-approved PTFE grease–alternatives cause valve sticking at temperatures below 55°F.
