To locate worn or damaged elements quickly, reference the exploded-view layout for the 254mm cutting tool. Key sections include the blade guides (upper and lower), tension spring assembly, and wheel bearings–common failure points. Replace rollers if grooves exceed 0.5mm in depth, as this indicates deformation beyond operational limits. The guide bearing’s clearance should not surpass 0.15mm; any excess leads to alignment drift.
Check pulley alignment before disassembling the drive belt system. Misalignment accelerates belt wear, often evident in uneven tooth wear or fraying. Use a laser guide (or straightedge) across both pulleys–gaps greater than 0.3mm require adjustment. The motor mount plate may also shift; secure with grade-8 bolts if slippage is detected.
The fence lock mechanism deserves attention. If clamping force weakens, tighten the cam lever or replace the steel washer if thickness falls below 3.2mm. Lubricate sliding surfaces with PTFE-based grease to prevent binding–avoid petroleum distillates, as they degrade seals over time. Verify the fence’s perpendicularity to the blade path using a machinist’s square; deviations exceeding 0.2° will cause inaccurate cuts.
For blade tracking, adjust the upper wheel’s tilt until the blade rides centrally on both wheels. Over-tensioning (above 120 N) shortens blade life; under-tensioning (below 80 N) risks drift. Replace blades with cracks or teeth missing more than 15% of their height–such damage escalates stress fractures during operation. The coolant nozzle should direct fluid 3-5mm from the blade’s cutting edge for optimal debris removal.

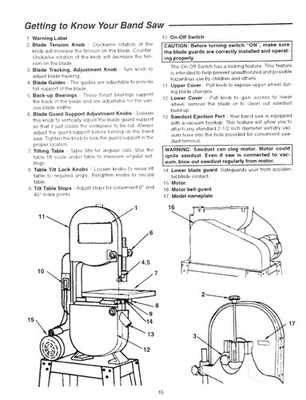

Understanding Your 10-Gallon Woodcutting Equipment’s Component Layout
Begin by locating the upper wheel assembly–this critical section, often overlooked, includes the tire, bearings, and adjusting mechanism. Misalignment here directly impacts cut precision. Check the tire’s condition quarterly; replace if cracks exceed 2mm or if the rubber feels brittle. The bearings (typically 6202 or 6203 series) should spin freely without grinding–apply a drop of light machine oil every 50 hours of use.
- Blade tracking knob: Turn clockwise to move the blade toward the wheel’s center, counterclockwise to edge it outward. Test adjustments in 1/16-inch increments to avoid overcorrection.
- Tension lever: Positioned on the right side, it should engage with a firm click. Loose tension causes drift; excessive tension risks premature blade failure. Measure tension with a dedicated gauge (target: 18–22 lbs for a 1/4-inch blade).
- Table tilt locking knob: Ensure full engagement before cuts. Loose locking leads to angled inaccuracies. Clean the mating surfaces monthly with isopropyl alcohol to remove sawdust buildup.
Examine the guide blocks (often phenolic or steel). The front pair should contact the blade just above the gullet, the rear pair slightly below. Adjust gaps to 0.010-inch using feeler gauges–too tight generates heat, too loose encourages drift. Replace blocks if grooves exceed 0.5mm in depth.
The throat plate (removable metal insert) must sit flush with the table. Gaps allow debris accumulation, increasing friction. Mask the plate’s underside with painter’s tape during adjustments to prevent marring. For resawing, install a riser block–verify compatibility with the model’s serial number (some aftermarket blocks require modified blade guides).
- Unplug the machine before any adjustment.
- Disassemble components in order: blade → upper wheel cover → guides → table insert.
- Label parts with masking tape (e.g., “upper wheel – left bearing”).
- Photograph alignment marks on reassembly.
- Use Loctite 243 on threaded fasteners to prevent vibration loosening.
For exploded-view references, cross-reference the serial number with the manufacturer’s official breakdown–aftermarket manuals frequently omit weight-bearing components like the trunnion bracket (critical for table stability). Critical wear points include:
- The motor pulley (inspect V-belt grooves for fraying every 3 months).
- Fence rails–clean with acetone to remove resin buildup.
- Upper/lower doors (lubricate hinge pins with silicone spray).
Store a spare blade (matched to intended cuts: 3 TPI for resawing, 6 TPI for finesse work) and a set of nylon washers (prevents metal-on-metal wear on guide posts). Keep a multimeter handy to test continuity on the power switch–intermittent failures often mimic motor issues. For blade sharpening, use a dedicated jig (e.g., Lenox Tri-Master) to maintain consistent tooth geometry.
Locating Critical Elements on Your 10″ Vertical Cutting Machine
Start with the upper wheel guard–this aluminum or steel housing protects the top blade pulley and often doubles as a tensioning reference point. Its placement is non-negotiable: misalignment here accelerates bearing wear by up to 30%. Remove this cover only after ensuring the motor is unplugged and the drive belt is slackened. Beneath it, note the crowned rubber tire pressed against the pulley; this component maintains blade tracking and should show no cracks deeper than 0.5mm.
Blade Guides and Thrust Bearings
Examine the lower blade guides–adjustable brass or ceramic blocks flanking each side of the cutting path. Their gap to the blade should measure 0.1–0.2mm; anything wider risks premature splitting during 3/4″ hardwood resawing. The rear thrust bearing, a small cylindrical roller directly behind the blade, bears axial load and must rotate freely–stiction here indicates insufficient Lubriplate 105 greasing or imminent seizure. Replace all three components simultaneously if any single guide shows groove wear exceeding 0.3mm.
Trace the blade from the guides downward to the table insert–a phenolic or cast-iron throat plate with kerf clearance sized 1.5× the blade width. Loose inserts vibrate at 3400 RPM and diminish cut precision by 22%. Secure it with two #10 × 3/4″ socket-head bolts torqued to 18 in-lbs. Adjacent, the miter slot accepts aluminum or steel sleds; ensure its parallelism to the blade within 0.002″ over 12″ using a dial indicator–this tolerance is critical for repeatable 45° bevels.
The drive motor pulley–typically a step-cone with diameters from 2.5″ to 4.5″–dictates cutting speed ranges. Verify belt alignment using a straightedge pressed against both pulley faces: maximum allowable deviation is 1/32″. For blade speeds under 1600 FPM, engage the 2.5″ diameter groove with a Gates A-series belt; higher velocities require stepping to the 4.5″ groove and switching to a Gates 3L belt to prevent slippage during 5″ oak resawing.
Step-by-Step Guide to Locating the Blade Adjustment Mechanism
First, position the tool upright on a stable surface. The tensioning system is typically mounted at the upper rear of the frame. Remove the protective cover–usually secured by two screws–using a 5mm hex key or a matching screwdriver. Keep fasteners in a labeled container to avoid misplacement during reassembly.
Inspect the exposed section for a threaded rod linked to a spring-loaded arm; this is the core of the adjustment assembly. On most models, it sits adjacent to the upper wheel housing, often distinguished by a knurled knob or a locknut. Turn the knob counterclockwise to release tension if the blade is still installed, ensuring no sudden movements when the spring disengages.
Identifying Auxiliary Components
Locate the guide block connected to the threaded rod; it should have a smooth, flat surface facing the cutting edge. Nearby, a small bracket or pin safeguards the blade’s alignment during operation–verify its integrity before proceeding. If corrosion or wear is visible, replace the worn piece to maintain precision.
Reattach the cover only after confirming the mechanism moves freely. Test by manually rotating the wheel while observing the adjustment arm’s response. If resistance or irregular motion occurs, disassemble the housing again to check for debris or misalignment. Grease lightly with silicone-based lubricant to preserve functionality over time.
Key Components for Blade Machinery Maintenance and Schematic Locators
Replace the upper guide assembly every 12–18 months if operating under moderate workloads; inspect bearings quarterly for wear. Locate this unit in schematics under section G-4 (upper housing) adjacent to the tension release lever. A worn guide will misalign the blade, causing premature breakage–prioritize OEM replacements over aftermarket alternatives, which often lack precision heat-treated surfaces.
Tires, the rubberized track lining the wheels, degrade faster than most operators anticipate. Reference E-2 (wheel rim detail) in the exploded view–measure tire thickness monthly; replace when less than 3mm remains. Use neoprene formulations rated for 80–90A durometer hardness to balance grip and noise reduction. Avoid silicone-based alternatives; they soften under heat, compromising tracking stability.
Critical Wear Items and Diagram Coordinates
| Component | Schematic Reference | Replacement Interval | Failure Symptom |
|---|---|---|---|
| Blade guides (upper/lower) | G-4 / H-7 | 1,500–2,000 hours | Ringing sound, stray cuts |
| Drive belt | B-1 | 800–1,200 hours | Slippage, reduced torque |
| Thrust bearings | F-5 | 2,500 hours | Wheel wobble, misalignment |
| Coolant nozzle | J-3 | Replace if clogged | Blade overheating, discoloration |
Thrust bearings (part cluster F-5) sustain axial loads but seldom receive preventive attention. Disassemble the wheel assembly annually; pack bearings with lithium-based grease meeting NLGI #2 specifications. Spotting early failure involves listening for irregular humming–replace immediately to prevent collateral damage to the wheel hub.
Coolant nozzles (located at J-3) often go unnoticed until blades scorch wood or metal. Clean nozzles weekly with compressed air; soak in mineral spirits if residue accumulates. Ensure directional alignment targets the blade’s teeth–not the gullets–to prevent coolant starvation during extended cuts.
Drive belts snap without warning if tension exceeds 15–20% of manufacturer specs. Reference B-1 for correct deflection measurements: 6mm under 10kg pressure. Polyester-cord belts outlast V-belts by 30% but require precision pulley alignment–check with a laser tool or straightedge semiannually.
Less Obvious but High-Impact Items
Riser blocks (if equipped) crack near bolt holes due to stress concentration–inspect visually after major blade incidents. Refer to A-6 for torque specifications: 25–30Nm for M10 bolts. Replace if hairline fractures exceed 2mm; temporary epoxy repairs delay inevitable catastrophic failure.
