Replace or repair a leaking valve mechanism by first identifying the aerator–the small mesh screen at the spout’s tip–where mineral buildup often restricts flow. Remove it with pliers by turning counterclockwise; soak in vinegar for 30 minutes to dissolve deposits. Failure to clean this part reduces water pressure by up to 40%, as studies from plumbing efficiency tests confirm.
The handle stem, typically concealed under a decorative cap, controls water release. Use a hex wrench to unscrew the set screw–usually 3/32″ or 1/8″–and pull the stem straight out. Inspect the O-ring at its base; cracks or flattening cause drips. Replace with a matching size (common sizes: 1/4″ to 3/8″), applying silicone grease to extend lifespan to 5+ years.
Examine the cartridge inside the valve body–ceramic discs regulate temperature and flow. Turn off the water supply under the sink before removing the retaining clip; pull the cartridge with pliers if corroded. Replace single-handle units with quarter-turn models for durability; dual-handle types often use rubber seats that wear faster. Test new cartridges by turning water back on and checking for leaks at the base.
Don’t overlook the supply lines. Corrugated metal hoses corrode internally; braided stainless steel lasts longer under 80–120 psi pressure. Shut off the main shutoff valve before disconnecting; wrap threads with Teflon tape (4–5 wraps clockwise) to prevent seepage. Replace lines every 5–7 years, or sooner if discoloration appears near fittings.
For spout assemblies longer than 8″, reinforce mounting with a support bracket to prevent vibrating pipes. Secure spouts with a setscrew or locking nut; apply thread sealant only to male threads. Pull-out sprayers with nylon braided hoses resist kinking, but inspect connections annually–loose nuts account for 15% of reported leaks.

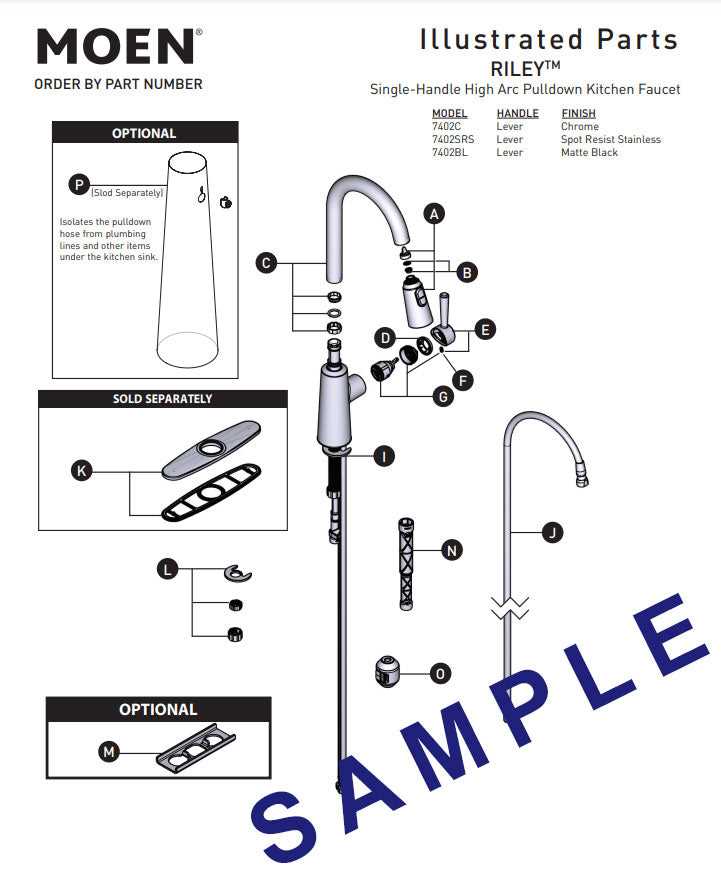

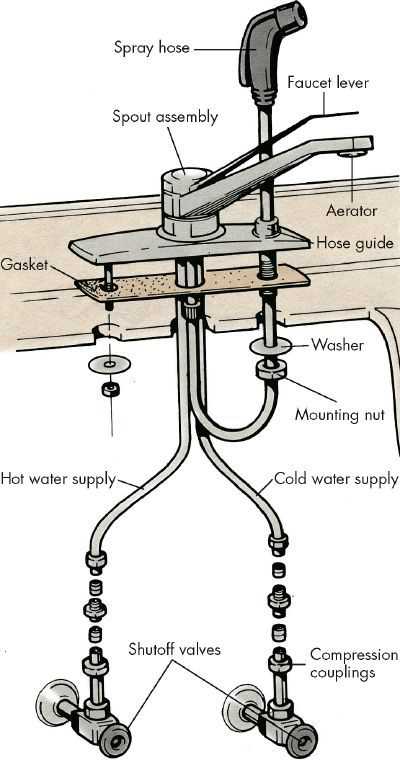

Key Components of a Sink Valve Illustration
Identify the spindle first–it regulates water flow by moving vertically inside the valve body. Measure its diameter before purchasing replacements; standard sizes range from 12mm to 18mm, but deviations like 15.5mm or 17.3mm require exact matches to prevent leaks. Apply thread seal tape clockwise to the spindle’s base threads when reinstalling to ensure a tight seal; three wraps suffice for most residential applications.
| Component | Material | Common Failure Signs | Maintenance Interval |
|---|---|---|---|
| Aerator | Brass mesh or plastic | Reduced flow, uneven spray | Every 3–6 months |
| O-ring | Silicone or rubber | Visible cracks, drips | Annually or on failure |
| Cartridge | Ceramic or plastic | Hard-to-turn handle, inconsistent temperature | 5–7 years |
Check the escutcheon plate’s alignment; a gap larger than 0.5mm between the plate and wall indicates pipe misalignment or loose mounting. For single-lever models, replace the disc cartridge if the handle sticks–symptoms include resistance below the 5o’clock position. Use a basin wrench for supply line connections; torque to 25–30 Nm to avoid crushing brass fittings.

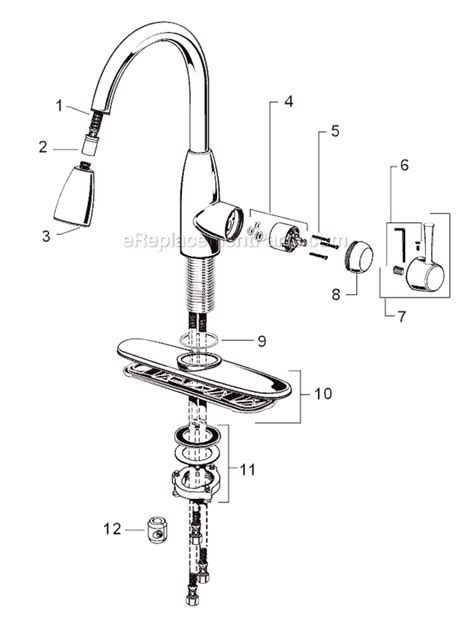

How to Recognize Critical Elements Inside a Valve Assembly
Locate the aerator first–it sits at the spout’s outlet and blends air with water to reduce splashing. Check for a threaded connection or a snap-on cap; these secure it in place. Signs of calcium buildup here indicate hard water, mandating descale with vinegar or citric acid. Replace damaged mesh screens immediately to prevent leaks and uneven flow.
Inspect the cartridge next, positioned beneath the handle. Turn off water supply lines, remove the handle, and pull the cartridge straight out. Cartridges control temperature and volume; if water drips despite shutoff, the seals likely need replacement. Match replacement models precisely–O-rings and stem bearings differ across brands like Moen, Delta, and Kohler. Lubricate new seals with silicone grease to extend lifespan.
- Shank nut beneath the spout locks it to the sink deck–loosen with a basin wrench.
- Escutcheon plate covers mounting holes–check for gaps allowing moisture under countertops.
- Supply lines connect to shutoff valves–replace corroded braided stainless steel hoses.
- Washers or ceramic discs inside the valve body regulate flow–wear necessitates replacements.
Examine the spout’s swivel mechanism if applicable. Rotation should be smooth; stiff movement suggests sediment accumulation or worn bearings. Disassemble the joint, clean debris, and apply plumber’s grease. For pull-down sprayers, check the weight–heavy models retract better but may strain hoses with extended use.
Verify the mounting hardware last. Loose screws beneath the sink cause misalignment; tighten evenly to avoid cracks in porcelain or metal bases. Use thread sealant on brass fittings to prevent seepage. Plastic retainers or metal clips securing sprayers can degrade–replace brittle or broken pieces to maintain stability.
How to Identify and Label the Control Valve in Your Sink
Shut off the water supply under the sink by turning the shutoff valves clockwise until tight. Remove the decorative cap on the tap lever–it typically snaps off or unscrews counterclockwise–exposing a screw securing the grip post. Use a Phillips or flat-head screwdriver matching the screw type; common sizes are #2 or 3/16″. Loosen the screw just enough to lift the lever straight up, revealing the stem assembly beneath. Note the stem’s material: brass for quarter-turn cartridges, plastic or ceramic for multi-turn types. Look for splines or notches on the stem; these match corresponding grooves inside the grip to ensure proper alignment when reassembling.
Key Markings to Document Before Disassembly
Photograph the stem’s orientation, especially any embossed letters (e.g., “H” for hot, “C” for cold) or flow direction arrows molded into the housing. Measure the stem’s diameter with calipers–standard sizes are 1/4″, 3/8″, or 1/2″. Count the splines if present: single-handle mixers often use 12-20, while dual-handles may have fewer. Locate the rubber O-rings or washer at the stem’s base; note their thickness (typically 1-2mm) and whether they sit in a groove or press flat against the valve seat. If the stem has a ceramic disk, avoid touching its surface to prevent scratches.
The Spout and Aerator: How Design Affects Water Flow and Efficiency
Install a high-efficiency aerator (minimum 1.0 GPM for bathroom units, 1.5–2.2 GPM for kitchen models) to reduce water consumption by 30–50% without sacrificing pressure. Check thread compatibility–standard aerators use a male M22×1 or female M24×1 connection, while premium brands (e.g., Delta, Moen) often include proprietary adapters. Avoid generic replacements with mismatched flow rates; verify the label for GPM/psi ratings before purchase. Clean aerators every 4–6 weeks by soaking in vinegar to dissolve mineral deposits–ignore this, and sediment buildup will distort spray patterns within 3–4 months.
Key Aerator Variations and Their Performance
- Laminar-flow aerators: Produce a clear, splash-free stream ideal for filling containers; best for high-mineral water regions. Use a 60–80 mesh screen to prevent clogging.
- Spray-type aerators: Mix air and water at a 1:3 ratio, creating a soft, bubbly output; optimal for handwashing but prone to scaling in hard water (>120 ppm calcium). Replace screens with silicone-coated models to extend lifespan by 40%.
- Swivel-neck spouts: Pair with a ball-joint mechanism (not plastic bushings) to prevent leaks–test range of motion (minimum 180°) before installation. Apply PTFE tape to swivel threads only; overtightening cracks brass housings.
For commercial or high-use sinks, opt for a solid brass spout core instead of zinc alloy–it resists corrosion 8x longer but costs ~15% more upfront. Measure spout reach (horizontal distance from base to outlet) before selecting a model: 6–7 inches fits standard sinks, while 9+ inches accommodates industrial basins. If replacing a pull-down hose, ensure the weighted counterbalance matches the hose length (e.g., 20-inch hose requires a 2.5 oz weight) to prevent sagging or retractable failures. Never use abrasive cleaners on aerators–micro-scratches trap grime, reducing flow efficiency by 12% after 12 months.
Step-by-Step Guide to Disassembling the Valve Cartridge
Shut off the water supply valves beneath the sink immediately to prevent leaks. Use a basin wrench to loosen the supply lines if they’re tightly secured–turn counterclockwise until resistance eases. Place a towel beneath the connections to catch residual water.
Remove the handle by locating the small set screw, typically hidden under a decorative cap. Pry off the cap with a flathead screwdriver, then unscrew the set screw using an Allen key. Pull the handle upward to expose the cartridge housing. If stuck, tap gently with a rubber mallet to break the seal.
Accessing the Cartridge
Unscrew the retaining nut with adjustable pliers, gripping firmly but avoiding excessive force to prevent threading damage. Rotate counterclockwise until the nut lifts free. Lift the cartridge straight out–if corroded, twist slightly while pulling to release mineral deposits.
Inspect the cartridge seat for debris or wear. Use a flashlight to check the O-rings; replace if cracked or flattened. Clean the housing with white vinegar to dissolve buildup, soaking for 10–15 minutes if deposits are stubborn. Rinse thoroughly before reassembly.
Lubricate new O-rings with silicone grease before installation. Align the cartridge with the housing grooves, pressing firmly until seated. Reattach the retaining nut, tightening by hand first, then securing snugly with pliers–over-tightening risks thread stripping.
Reinstall the handle, securing the set screw before snapping the decorative cap back into place. Turn the water supply valves on gradually, checking for leaks. Test hot and cold water flows separately to confirm proper function.
