Begin by locating the agitator assembly–typically secured with a single bolt at the base. Remove it first to access the drive block beneath, a common failure point in older models. Consult a technical schematic specific to the 90-line (manufactured between 1995–2005) to verify the correct spline pattern, as mismatched parts will cause stripping.
Check the lid switch early in diagnostics. Use a multimeter to test for continuity–0 ohms indicates a functional switch, while an open circuit confirms failure. Replace it immediately if faulty; bypassing it creates a safety hazard and violates UL compliance. The switch harness connects via a two-pin plug; note the polarity before disconnecting.

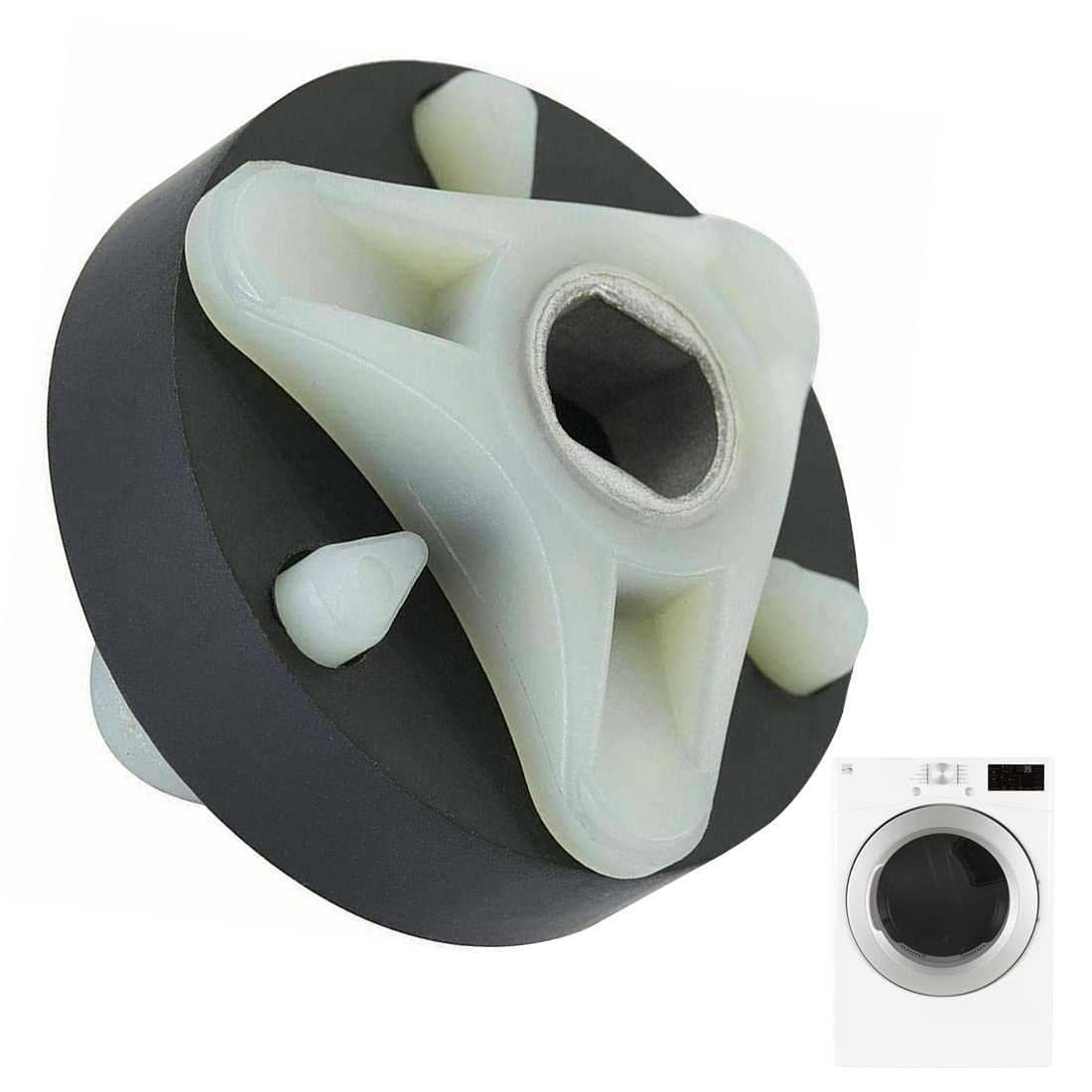

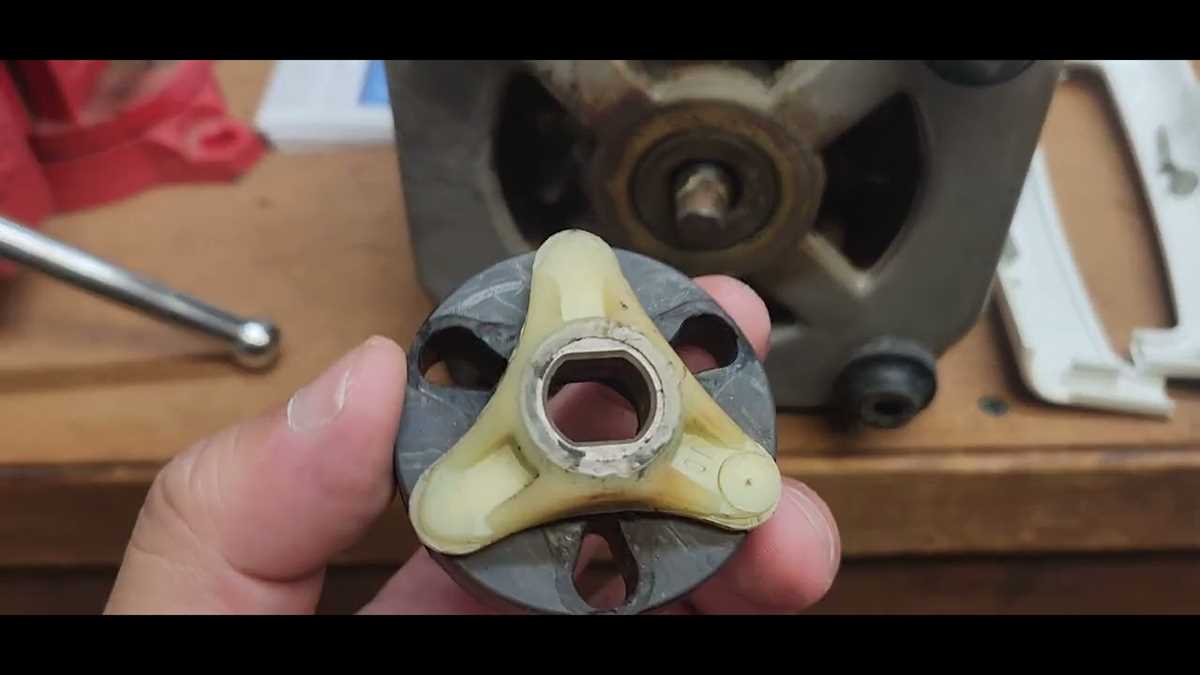

The motor coupling–a plastic and rubber component–links the transmission to the motor. Inspect for cracks or wear; if damaged, both halves require replacement. Use a spanner wrench (1/2-inch) to loosen the clutch assembly before removing the coupling. Apply high-temperature grease to the gearcase input shaft during reassembly to prevent premature wear.
For the water inlet valve, focus on the solenoid coils. A weak stream during fill cycles suggests coil failure; resistance readings should fall between 800–1200 ohms. Clean the mesh filters upstream of the valve–mineral buildup here restricts flow even when components are operational. Replace the valve if resistance deviates, but first verify power delivery at the terminal block.
Study the transmission mounting bracket for cracks, especially near the shock absorber attachment points. Reinforce with stainless steel repair plates if fractures are present–standard welds may not hold due to cyclic stress. The suspension springs (part #285702) often stretch over time; compare free length against new units (5.5 inches) to determine replacement needs.
Electrical controls cluster near the top rear panel. The timer motor (part #389140) drives the cycle progression; test via direct 120V application–failure to advance indicates internal gear wear. Label all wire harnesses before disassembly; photograph the routing to avoid misconnections during reassembly. Use heat-shrink terminals for repairs, not twist-and-tape splices.
How to Locate Components in Your Appliance Schematic
Begin by identifying the motor coupling–a frequent wear item located behind the rear panel. If the machine vibrates excessively or fails to agitate, replace this component immediately. The schematic labels it as item #WP285753, typically adjacent to the drive motor (marked WP285800). Avoid guessing placement; misalignment will damage the transmission.
For drain issues, check the lid switch assembly (item #WP3949243). This safety mechanism halts operation if the top is open. Test continuity with a multimeter; if readings exceed 0.5 ohms or show infinite resistance, the switch requires replacement. The diagram places it near the left interior wall, secured by two 10mm screws.
Clutch assemblies (component WP285147) often fail in high-load cycles. Symptoms include grinding noises during spin mode. The schematic shows it positioned beneath the outer tub, accessible after removing the agitator (WP8539742) and spanner nut (WP335059). Lubricate new units with manufacturer-approved grease before installation–this prevents premature failure.
Water inlet valves (item #WP3363394) control flow into the drum. If filling is slow or inconsistent, inspect the valve screens for sediment. The diagram locates these valves at the rear top of the unit, connected to hot/cold supply hoses. Replace screens or the entire valve if debris is visible–partial clogs degrade performance over time.
Tub seals (component WP336022) prevent leaks between stationary and rotating components. Replace them if water pools beneath the machine. The schematic details removal via the front panel after disconnecting the suspension springs (WP285860). Use a seal installation tool–improper seating causes immediate leaks.
Critical Troubleshooting Tips
Agitator dogs (item #WP806651) wear out every 2–3 years in heavy-use models. These small plastic cams transfer motion to the wash basket. The diagram shows them nested inside the agitator post. Rotate the agitator by hand–if it spins freely in both directions, replace the dogs. Delaying this repair damages the transmission gearcase.
Locating the Authorized Appliance Model 90 Component Reference
The most reliable source for the original breakdown of this household machine’s internal elements is Sears PartsDirect (searspartsdirect.com). Enter the full model number–typically found on a sticker behind the front panel or along the door frame–to access a detailed schematic with numbered callouts and precise part identifiers.
Another verified repository is AppliancePartsPros (appliancepartspros.com), which offers exploded-view charts alongside real-time inventory. Filter results by the unit’s serial prefix (often starting with “110.”) to retrieve the exact drawing, including OEM catalog numbers and compatibility cross-references for alternates.
| Platform | Direct Link Example | Verification Method |
|---|---|---|
| Sears PartsDirect | /model-number-lookup.html?type=washer | Sticker behind front trim |
| AppliancePartsPros | /partslookup.html?q=MODEL | Serial tag under lid |
| RepairClinic | /product-details/MODEL-NUMBER | White label inside cabinet |
The manufacturer’s official support page occasionally hosts downloadable PDFs of the technical manual. Search for “owner’s literature” under the specific product line; these documents frequently embed labeled illustrations of assemblies, including agitator drives, pump housings, and suspension rods.
Local authorized service centers maintain archives of hardcopy schematics. Contact the nearest Sears Home Services outlet or an independent repair shop certified for the brand–many will email or fax the exact page on request. Be prepared to provide the serial tag’s second segment, which indicates production batch.
Industry forums such as ApplianceBlog (applianceblog.com) often upload scans of rare drawings. Use the forum’s advanced search, restricting queries to threads tagged “schematic” or “exploded view”; contributions from senior members often pinpoint nuances like revision-level differences.
When digital scans are unavailable, disassemble the top console by removing the two rear screws and tilting the panel forward. The inner surface usually bears a factory-printed reference decal illustrating core assemblies–photograph this immediately upon access to preserve the visual key.
How to Locate and Recognize Key Components in Your Appliance
Start by unplugging the machine and moving it away from the wall to access the rear panel. Remove the screws securing the back cover–typically four to six ¼-inch hex or Phillips-head fasteners–and set them aside in a magnetic tray. Once the panel is off, the drive motor will be visible near the base, mounted with a pulley and belt connecting to the outer tub. Check for wear on the belt; if it shows cracks or stretches beyond ½ inch, replace it immediately to prevent slippage during cycles.
Locate the water pump directly beneath the tub, distinguished by its plastic housing and two hose clamps. Disconnect the drain hose before inspecting for debris; a clogged impeller often causes drainage failures. The lid switch, a small rectangular module near the door frame, can be tested for continuity with a multimeter–readings outside 0–100 ohms indicate a faulty switch requiring replacement.
Inspecting Internal Tub and Agitator Mechanisms
The agitator is held in place by a single 7/16-inch bolt at the center; use a socket wrench to remove it. Lift the agitator straight up to expose the drive block and splines–misaligned splines cause weak agitation. The inner basket spins on a plastic hub assembly; if it wobbles excessively, the tub bearing or hub seal may need servicing. For high-efficiency models, the recirculation pump sits adjacent to the main motor, identifiable by its smaller size and electrical connections.
Examine the suspension rods–four vertical struts connecting the tub to the cabinet’s corners. Each rod uses a spring and dampening pad; collapsed springs or corroded rods lead to violent shaking. The control board, if present, is mounted behind the console panel, secured by two screws and connected via wiring harnesses. Label each connection before detaching to avoid reconnection errors. For accurate reassembly, reference the appliance’s technical manual rather than reverse-engineering from memory.
How to Find and Swap the Agitator and Drive Block in Your 90-Line Laundry Appliance
First, unplug the machine and remove the fabric softener dispenser cap. Pry off the agitator’s upper section–usually snapped in place–using a flathead screwdriver inserted between the two plastic halves. Once exposed, locate the bolt securing the agitator to the drive block beneath; a 7/16″ socket or adjustable wrench will loosen it. Lift the agitator straight up to avoid damaging the inner splines that engage the drive block. If corrosion or wear makes removal difficult, apply penetrating oil around the bolt and tap the agitator lightly with a rubber mallet.
- Inspect the drive block: After removing the agitator, check the drive block’s splines for cracks or rounded edges–common failure points. If replacing, note the block’s orientation before disassembly since misalignment will prevent proper engagement.
- Tools you’ll need: 7/16″ socket wrench, flathead screwdriver, rubber mallet, penetrating oil (e.g., WD-40), replacement agitator or drive block (verify compatibility with model number, typically found on the rear panel).
- Post-replacement steps: Hand-tighten the bolt first to align the splines, then secure it with 30–40 ft-lbs of torque. Reattach the agitator cap, ensuring it clicks into place to prevent water leaks into the gearcase.
Test the new components by running a short cycle without laundry. Listen for unusual noises–grinding or clicking indicates incorrect drive block installation. If the agitator spins intermittently or stalls, recheck the spline engagement; debris or misalignment often causes this. For models with a direct-drive motor, ensure the plastic coupling beneath the tub is intact before reassembly, as cracks here mimic agitator failures.
