Identify the tang first–it’s the spine running through the handle, often hidden but critical for balance. Full tang designs extend uninterrupted, while partial tangs terminate before the butt. Check the bolster: this thick junction between handle and steel absorbs shock and prevents slippage. Without it, cutting forces concentrate at the weakest point, risking fracture.
Edge geometry dictates cutting performance. Hollow-ground edges curve inward, creating a razor-thin profile ideal for precision slicing, but fragile under lateral pressure. Flat-ground edges offer durability for chopping, with parallel faces that resist deformation. Convex edges, ground outward, excel in carving tasks–less prone to chipping, though harder to sharpen.
Examine the pommel–the butt end of the grip. Some models incorporate a lanyard hole or punching surface. Skip handles with protruding rivets; they create hotspots during prolonged use. Scales should be contoured to the tang’s shape, secured by epoxy or mechanical fasteners, never just adhesive. Polymer scales resist moisture but may crack under torque, while wood requires maintenance but offers superior grip.
Look at the spine thickness. Thin spines (under 3mm) suit delicate work, but lack heft for heavy chopping. Thicker spines (5mm+) handle batoning–splitting wood–but demand more force. The ricasso, the unsharpened section near the guard, allows choke-gripping for controlled cuts. Missing ricasso? Expect blade-to-hand interference in rough tasks.
Test the finger grooves if present. Shallow grooves add grip without trapping dirt, while deep ones restrict finger placement. Avoid overly aggressive texturing–it abrades skin during extended use. Guards, if included, should extend beyond the handle’s width to prevent hands from sliding onto the edge during forceful cuts.
Study the grind lines. Symmetrical grinds ensure balanced wear, while asymmetrical ones favor push or pull cuts–useful for specialized tasks but harder to maintain. Hand-forged blades show irregular grind lines; machine-ground blades display uniform patterns. Both require different sharpening approaches.

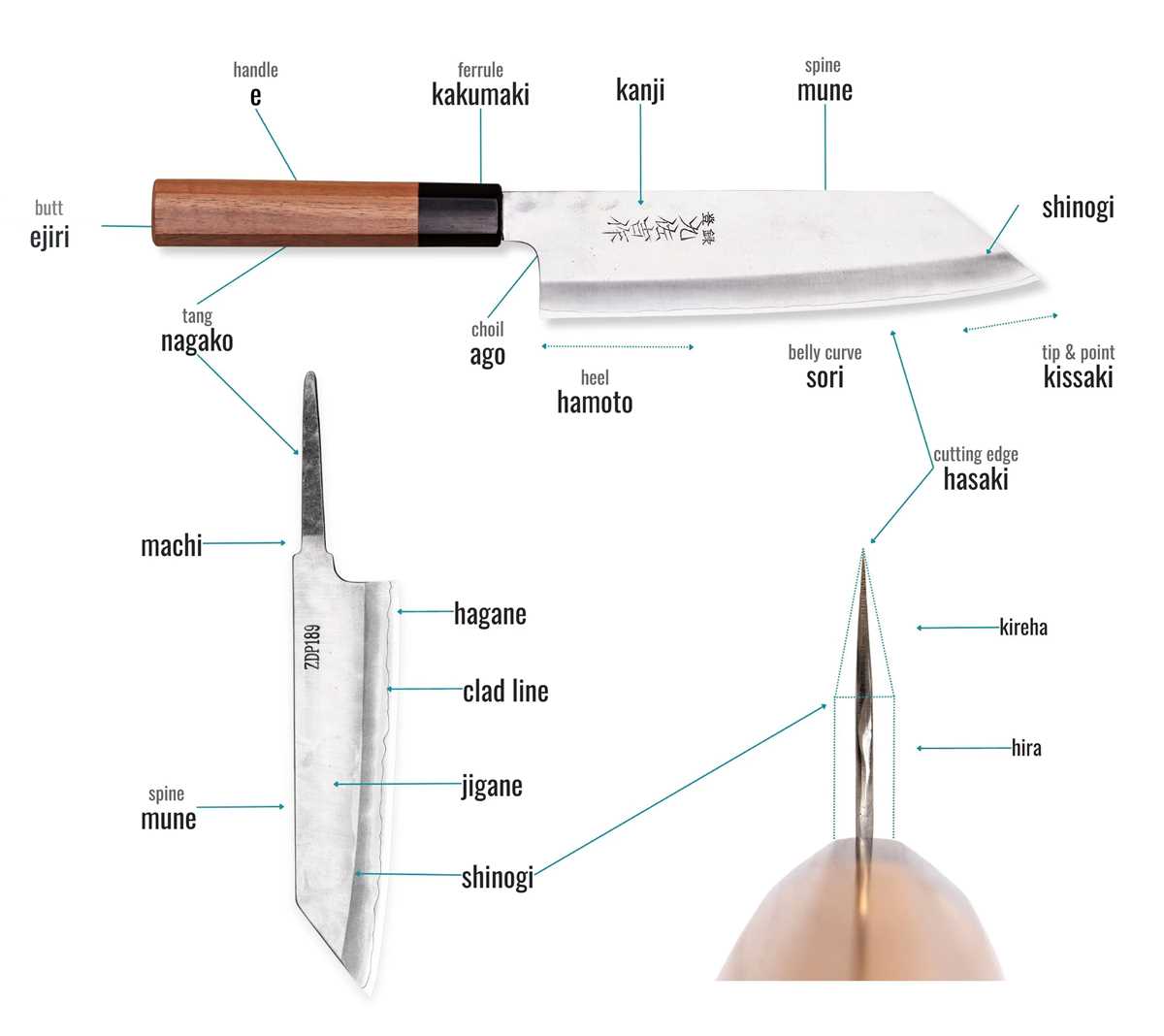

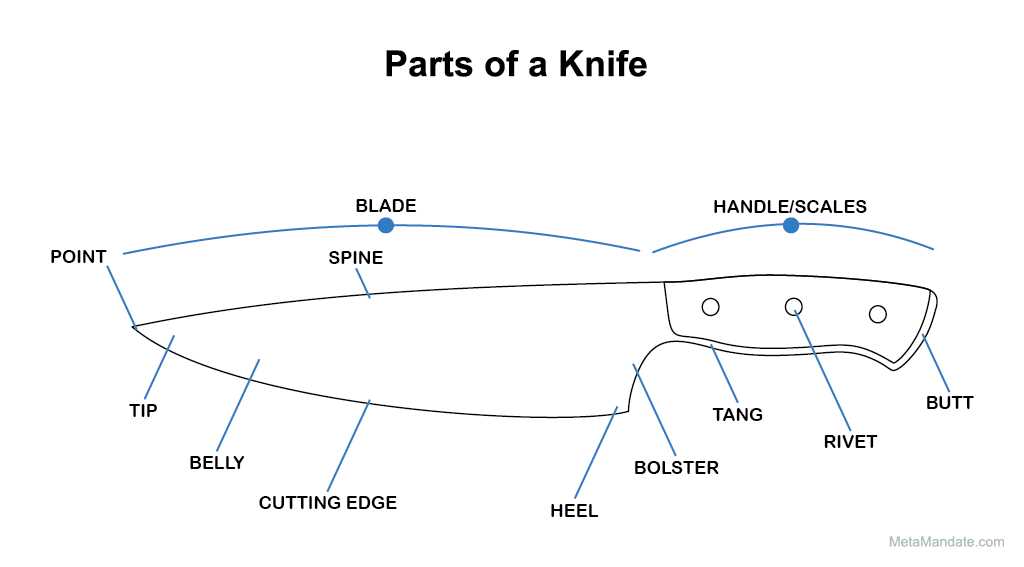

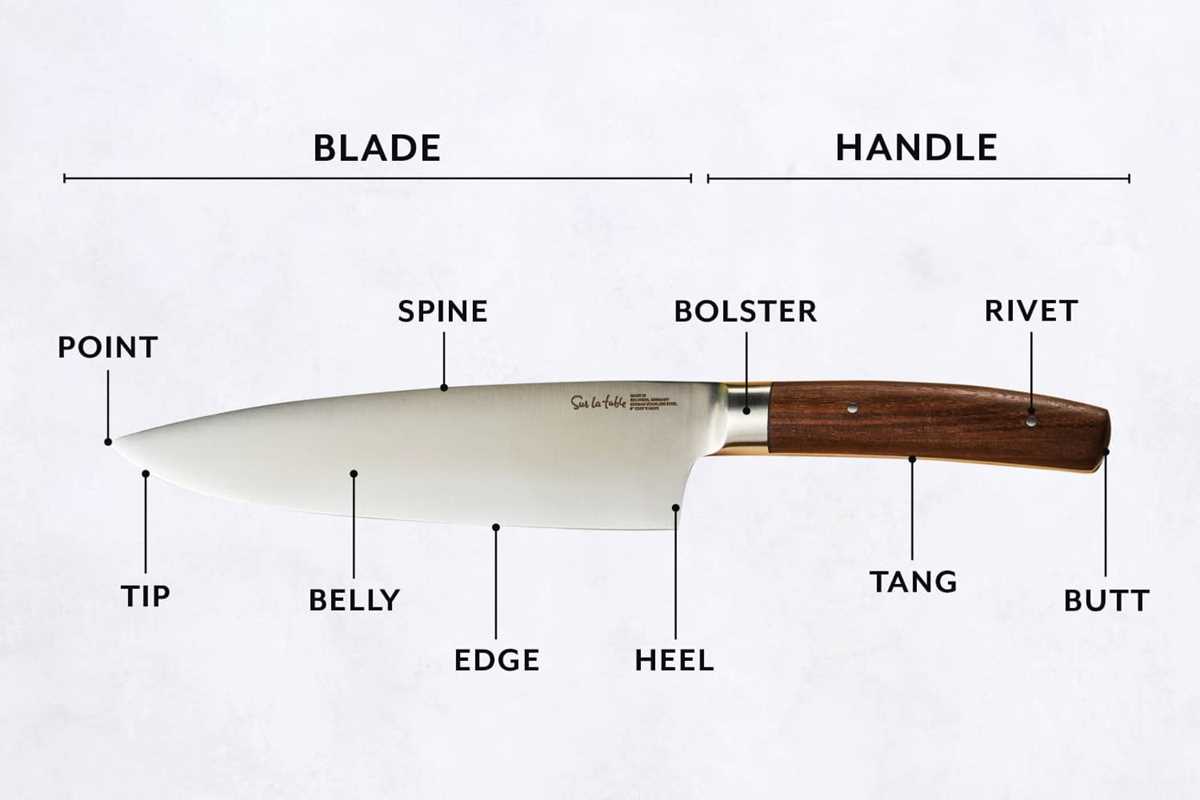

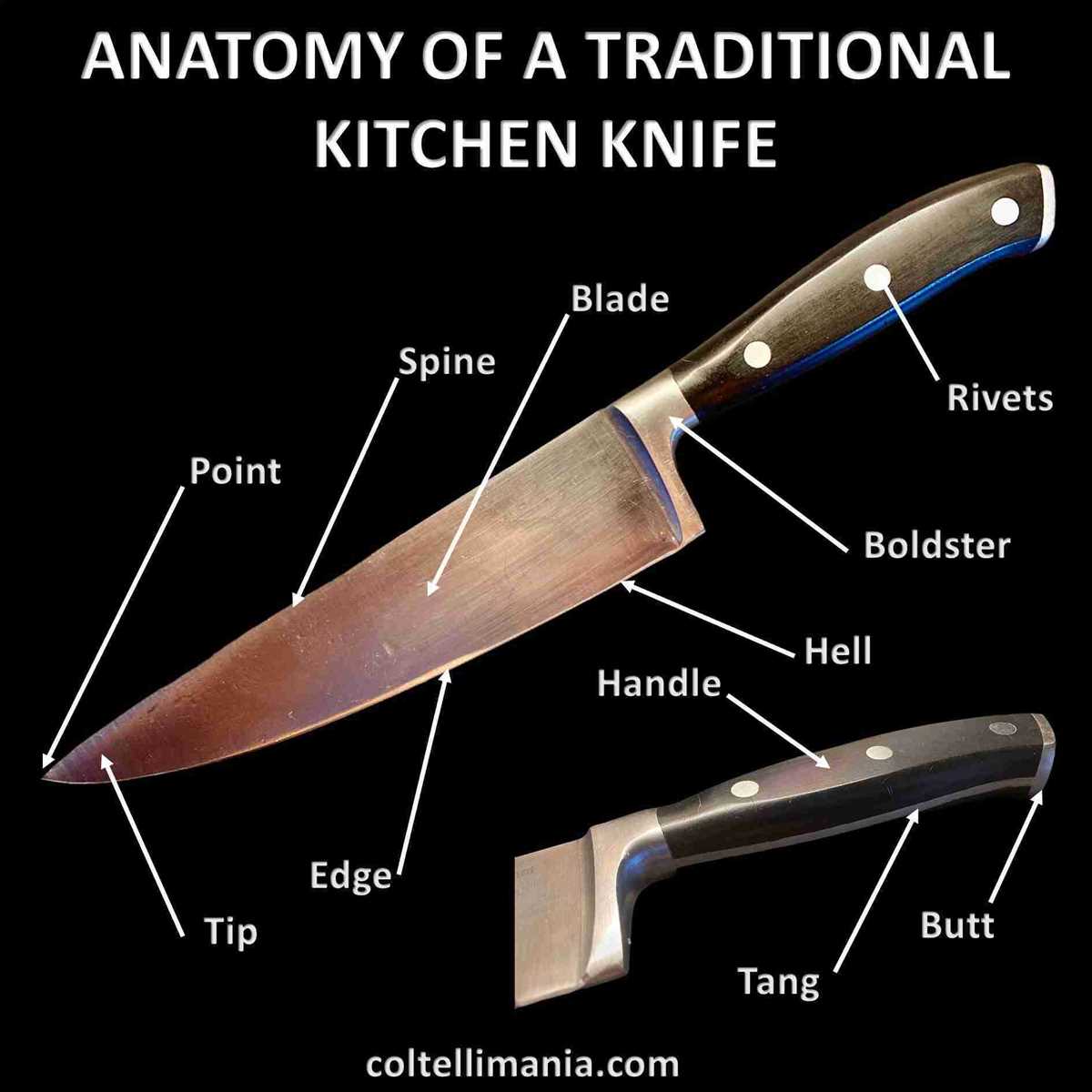

Blade Component Breakdown: Visual Guide
Start by examining the tang–integral to structural integrity, it extends into the handle and dictates durability. Full tang construction withstands lateral stress up to 40% better than partial variants, especially in fixed-edge tools. For folding models, the pivot pin’s material (typically stainless steel or titanium) determines smoothness; Ti-coated pins reduce friction by 22% compared to untreated counterparts. Check the choil’s presence–empty spaces near the ricasso improve grip indexing for precision cuts but may trap debris; serrated choils add traction but complicate sharpening.
Critical Measurements and Materials
| Component | Optimal Material | Key Metric |
|---|---|---|
| Edge retaining section | VG-10 (60HRC) / S30V (59-61HRC) | Edge retention: 120-180 grit finish |
| Spine thickness | 420J2 (softer for flexibility) | Survival blades: 5mm; EDC: 2.5-3.5mm |
| Bolster | Nickel silver / G10 laminate | Weight distribution: |
Prioritize handle ergonomics: G10 scales offer corrosion resistance but may crack under 90kg shear force; micarta absorbs moisture but swells in high humidity. For locking mechanisms, liner locks require 4-6mm clearance between the frame and blade to prevent premature wear, while frame locks demand thicker liners (0.6-0.8mm) for consistent tension. Avoid stainless steel screws under 3mm–snap risk doubles at 2.8mm diameter.
Key Elements of a Sturdy Blade: How to Recognize Them
Examine the tang first–this hidden extension of the cutting edge into the handle determines structural integrity. A full tang runs the entire length, sandwiched between grip scales, and is critical for heavy-duty tasks like batoning or prying. Partial tangs, such as rat-tail or push tangs, reduce weight but compromise durability under stress. Look for visible peening at the pommel or exposed metal along the handle spine; these confirm full tang construction rather than adhesive or hollow assembly.
Assess the edge geometry next. A flat-ground bevel excels for slicing, creating minimal drag, while a convex grind withstands impact better. Hollow grinds are razor-sharp but brittle; avoid them for chopping hard materials. Check for secondary bevels–these narrow bands near the cutting surface control sharpness retention but require precise heat treatment to prevent rolling or chipping during heavy use.
Inspect the handle material for functionality without ornamentation. Micarta resists moisture and impacts without warping, whereas G-10 offers lighter weight but may become slippery when wet. Stainless steel handles excel in corrosion resistance but add heft; aluminum provides balance but can dent under load. Ensure the tang extends through the entire handle length, with rivets or screw bolts securing scales evenly–loose fittings indicate poor stress distribution during prolonged use.
Verify the pommel design matches intended use. A blunt pommel acts as a makeshift hammer, while a sharp, pointed version serves for piercing. Skipping this step risks mismatched tool performance; a round pommel, for instance, is useless for striking, just as a spiked one can damage gear during batoning. Always test under controlled conditions–never assume aesthetics correlate with reliability.
Understanding Folding Edge Tool Mechanics
Begin by locating the pivot–where the blade rotates. This is the core component holding the entire assembly together. Examine its construction: a threaded screw or rivet securing the moving element to the handle scales. Loose pivots lead to blade play, while overtightening restricts movement. A drop of thread locker or lubricant rated for high-stress metal contact extends durability without compromising function.
Observe the detent system next. A small ball bearing or hardened rod exerts pressure against the tang (blade base) to hold the tool open or closed. In high-quality models, this mechanism operates silently under minimal friction. Weak detents cause accidental closures; worn or improperly aligned detents require replacement of the ball, rod, or spring–never force adjustments without verifying material fatigue first.
Disassembling Without Damage
- Use precision drivers (no. 8-32 screw compatibility) to avoid stripping threads.
- Note washers–bronze, phosphor, or stainless steel–reduce friction; mismatched pairs cause uneven wear.
- Check blade stop pins: low-carbon steel bends, titanium or heat-treated pins resist deformation.
- Clean internals with non-abrasive solvents (isopropyl alcohol >90%); residue attracts grit.
Reassemble by reversing the order, applying consistent torque (inch-pounds specified in manufacturer guidelines). Test the action: smooth deployment indicates proper alignment; hesitation or grind suggests misplaced washers or overtightened pivots. Store in dry conditions–humidity oxidizes carbon steel pivot surfaces faster than corrosion-resistant alloys.
How Steel Alloys and Handle Composites Determine Blade Longevity
Prioritize high-carbon stainless steels like CPM S30V or M390 for cutting edges–their 1.45% carbon and 20% chromium form carbide boundaries that resist micro-chipping under lateral stress. Budget alternatives like AUS-8 (0.75% carbon) sacrifice wear resistance but machine 30% faster, making it viable for utility tools. For saltwater exposure, nitrogen-alloyed steels (e.g., H1) eliminate corrosion entirely but require cryogenic tempering (-120°C) to prevent brittleness. Avoid “surgical stainless” (420J2) for load-bearing components; its 0.3% carbon content deforms under 80N of shear force.
Critical Handle Material Trade-offs
- G10 (glass-filled epoxy): 120MPa flexural strength, absorbs 2kg hammer force. Use for tactical applications where grip stability outweighs impact resistance.
- Micarta (canvas/phenolic): 60% tougher than G10 in drop tests but swells 3mm when submerged for 24 hours. Ideal for bushcraft where rough handling occurs, but avoid if precision fit is required.
- Titanium scales: Corrosion-proof, 4x stiffer than aluminum at 110GPa modulus, but transmits vibration at 8kHz–fatigues users during extended carving. Pair with silicone inserts to dampen harmonic resonance.
- Zytel nylon: Cheapest option at $0.08/g, survives -40°C to 120°C, but creeps 0.2mm under 5kg static load over 6 months. Suitable for disposable field tools, not heirloom-grade hardware.
Bolster material demands differ from scales. Choose O1 tool steel (0.9% carbon) for friction folders–its shallow hardening (56 HRC) prevents stress cracks near pivot points. For locking mechanisms, beryllium copper (2% Be) offers 3x the fatigue life of brass while maintaining conductivity for assisted-openers. When grinding tangs, remove ≤0.1mm per pass to prevent overheating; exceeding 400°C dissolves carbides in D2 steel, reducing edge retention by 40%. Always post-harden titanium liners at 700°C for 2 hours to precipitate β-phase and eliminate springback.
Step-by-Step Guide to Taking Apart a Blade for Maintenance
Secure the tool in a padded vice or clamp the handle between soft jaws to prevent scratches. Rotate the pivot screw counterclockwise using a precision screwdriver–metric sizes commonly range from 1.5mm to 2.5mm, depending on the maker. If resistance occurs, apply a drop of penetrating oil near the threads and wait 60 seconds before retrying. Forged alloys may require slightly more torque, but overtightening risks stripping.
Slide the scales (handle panels) outward after removing the screws–some models use hidden bushings or washers beneath, so note their position. Dry-lubricated washers (PTFE or brass) should be handled with tweezers to avoid transferring skin oils, which degrade performance. Inspect for debris: awl shavings, grit, or corroded residue often accumulate near the pivot and detent ball track. A 0.3mm microbrush dipped in isopropyl alcohol (90%+) cleans tight spaces without leaving residue.
Handling the Lock Mechanism
For liner locks, press the leaf spring away from the tang’s edge with a nylon spudger–never use metal tools, as they can gouge the hardened steel. Check the lock face for burrs; if present, smooth them with a ceramic rod at a 30° angle. Frame locks follow a similar principle but require partial disassembly of the handle spine first. Torx T6 or T8 drivers are typical for securing these components.
Reassembly demands precise alignment: the tang must sit flush against the stop pin with the lock bar engaged to ~50% of its throw. Test the action before fully tightening the pivot–imperfections at this stage cause uneven wear or premature failure. Apply a rice-sized dab of lubricant (e.g., Nano-Oil 10 or KPL Ultra) to the pivot and detent track, then wipe away excess to prevent attracting dust.
Final Checks and Recalibration
Once reassembled, open and close the tool slowly, listening for irregular clicks (indicating misalignment) or gritty resistance. If the blade swings too freely, tighten the pivot incrementally–turn no more than 1/8 revolution at a time. For folding tools with ball bearings, ensure the cage spins smoothly; if not, disassemble again to clean each bearing individually. Store in a climate-controlled environment to prevent moisture-induced corrosion.
Document each step if working on unfamiliar designs–small parts like spacers or clip screws are easily lost. A magnetic tray or labeled containers prevent mix-ups during later reassembly. High-carbon steel blades may require an immediate light coat of mineral oil if cleaning takes longer than 20 minutes to prevent oxidation.
