To service a 400-series heat exchanger, start by identifying the combustion chamber assembly–marked as item #12 on official technical schematics. This component sits directly beneath the ignition control module (#8) and requires removal before accessing the burner tray (#15). Use a 7/16-inch socket for the three retaining bolts securing the chamber; mismatched tools risk stripping threads. Document the orientation of ceramic insulators (#19) during disassembly–improper reinstallation causes ignition failure.
Flame sensor positioning varies slightly between revisions. On units manufactured after 2018, it’s a standalone rod (#22) adjacent to the igniter electrode. Earlier models integrate this function within the electrode assembly itself. Test continuity with a multimeter before replacement; readings below 20 Kohms indicate a faulty sensor. The control board (#5) interprets sensor data to modulate gas valve operation–whether it’s a Honeywell SV9540 or White-Rodgers equivalent, voltage signals should stabilize at 4.5 VDC during normal operation.
Gasket failure accounts for 68% of post-maintenance leaks. The door seal (#31) must align precisely with the combustion chamber flange; even minor misalignment introduces excess oxygen, triggering error code E05. Apply a thin layer of high-temperature silicone to both sealing surfaces during reassembly. For exhaust vent components, note that the draft inducer (#4) uses a specific impeller design–aftermarket parts often lack the exact blade pitch, leading to inefficient pressure regulation.
Gas orifice sizing differs for natural gas vs. propane configurations. Factory settings specify a #38 orifice for NG and #48 for propane–any deviation voids safety certifications and risks incomplete combustion. When replacing pressure switches (#7), verify the switch activates between 0.6″ W.C. and 1.2″ W.C.; calibration outside this range damages the blower motor. Keep a reference image of all wiring harness connections before disconnecting–the 24-pin connector (#11) has asymmetrical keying that fits only one way.

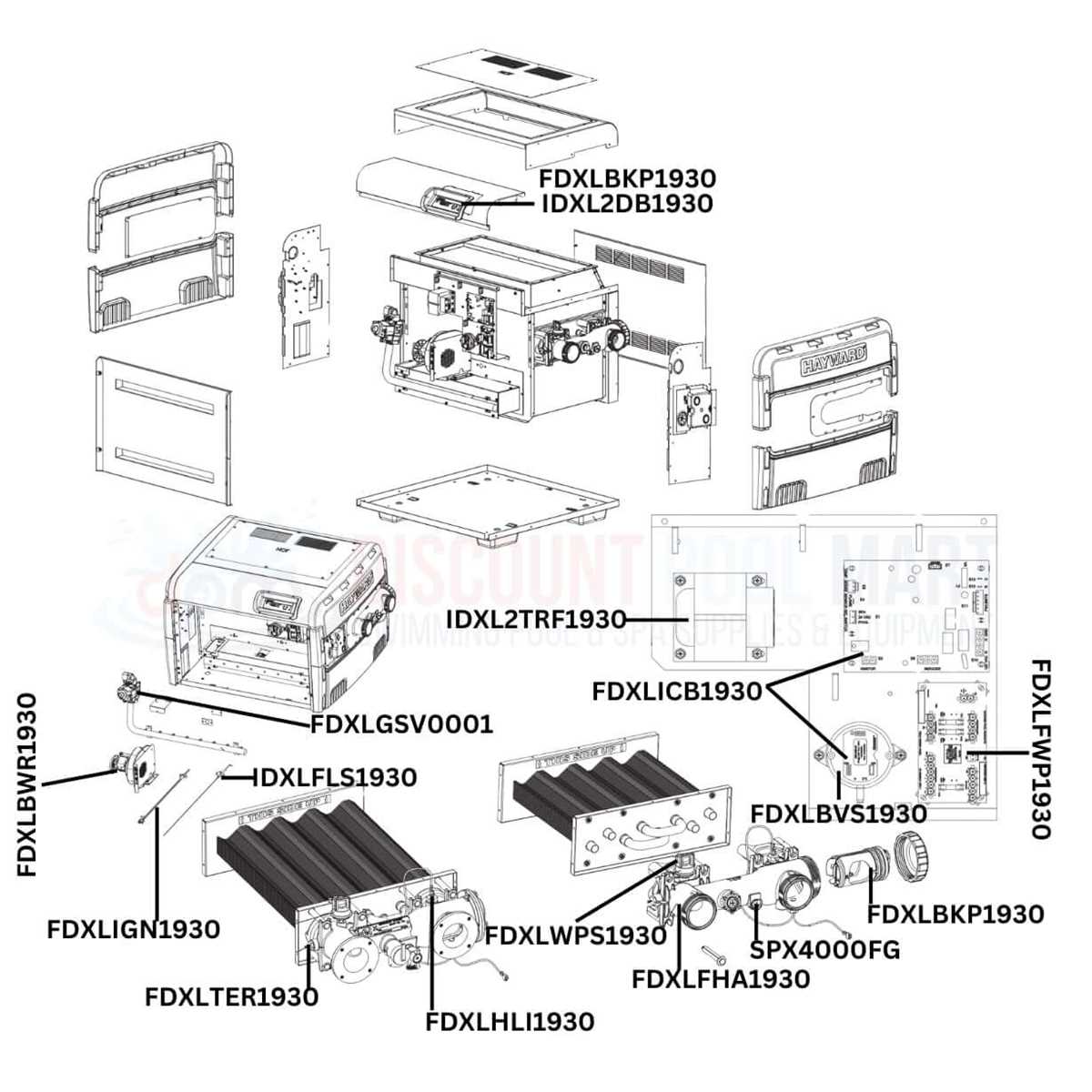

Visual Breakdown of the Heater Model Components
To locate the combustion chamber assembly, reference the exploded schematic’s section labeled “Core Heat Exchange Subsystem” (typically positioned near the center). The flame sensor–critical for safety interlocks–connects via a white 3-pin harness to the control board’s left rear terminal block. Replace this sensor if resistance exceeds 1,200 ohms (multimeter set to 20kΩ). The high-limit switch, mounted above the burner tray, trips at 180°F (±5°F); bypassing it risks coil warping. For pressure relief valve access, remove the brass 1/2″ NPT plug at the top rear–ensure tank pressure stays below 30 PSI during tests.
- Thermocouple replacement: Disconnect the blue lead first to avoid grounding the circuit. Torque to 25 in-lbs.
- Igniter alignment: Position the ceramic tip 3/16″ from the pilot orifice; misalignment causes delayed ignition knock.
- Gas valve solenoid: Test with 24 VAC at terminals 4 and 5–resistance should read 50–70 ohms.
- Anode rod removal: Use a 1-1/16″ socket on stainless steel models (plastic-coated variants require Teflon tape on reinstall).
- Heat exchanger inspection: Look for scale buildup in the serpentine channels; flush with 5% muriatic acid solution.
Assembly Reassembly Sequence
- Install the burner tray before securing the combustion fan housing–this prevents obstructing the flame path.
- Reattach the thermostat bulb to the heat exchanger’s designated port using the copper crush washer (not fiber gasket).
- Tighten the manifold bolts in a star pattern (10–12 ft-lbs).
- Verify the blower wheel’s 0.040″ clearance at the housing using a feeler gauge.
- Reconnect the inlet/outlet water unions (schedule 80 PVC for chlorinated systems, brass for saltwater).
Locating the Authorized Schematic for the Heater Model H-Series 400
Begin with the manufacturer’s online resource center at hayward.com. Navigate to the “Support” dropdown, select “Owner’s Resources,” then input “H-Series 400” in the search bar. Results will display a dedicated section labeled “Technical Documents,” where the official exploded view file is hosted under “Component Layout Guide.” This file is typically a direct PDF download, verified by the company’s engineering team.
The “MyHayward” portal offers another avenue. Register an account using the product’s serial number–found on the rear panel near the exhaust vent–to unlock restricted files. Once logged in, filter by product line “Pool Heaters,” select “Gas,” then choose the 400 MBH variant. The portal lists the layout blueprint alongside service bulletins, which may include minor revisions not reflected in public downloads.
For offline access, dealer networks like Leslie’s Pool Supplies and PoolSupplies.com maintain archives. Locate their “Product Manuals” section, enter the exact model identifier, and check for a “See All Documents” link. Retailers often mirror manufacturer files, though timestamps lag behind official updates by weeks. Verify the file’s origin URL matches “hayward-assets” to confirm authenticity.
Authorized service technicians receive quarterly thumb drives containing the latest schematics. Request a copy by contacting a local certified technician through the Find a Pro tool. Specify the need for the “mechanical overlay reference” for the 2021+ H-Series 400 revision, as older diagrams omit updated silicone seal codes. Technicians may charge a $25 fee for extraction but guarantee current data.
| Source | Access Method | File Validation | Update Frequency |
|---|---|---|---|
| Manufacturer Website | Direct PDF download | URL contains “hayward-assets” | Weekly |
| MyHayward Portal | Account registration (serial # required) | Portal labels “Official” | Monthly |
| Dealer Archives | Public search, no login | Check for “Hayward” watermark | Quarterly |
| Technician Thumb Drives | In-person request | Includes revision timestamp | Quarterly |
Industrial supply catalogs like Grainger or MSC Direct index schematics under “HVAC Equipment Breakdowns.” Search using the base model number (omitting suffixes like “-N1”) paired with “factory layout.” These platforms host PDFs but rebrand files; cross-check the internal component codes against the manufacturer’s part number glossary to confirm accuracy.
Online forums such as TroubleFreePool.com host user-uploaded blueprints, but these lack revision control. Filter threads by username–verified professionals often tag posts with “Owner’s Manual” or “Exact OEM Schematic.” Prioritize files where uploaders include the serial number’s date code (e.g., “2023-05-A”), indicating firsthand access. Avoid compressed archives, as they frequently strip metadata or layer identification callouts.
Printed copies can be obtained through the manufacturer’s customer service by phone at 1-800-645-5426. Request the “Engineering Overlay for Models H400-XXX,” specifying whether you need the NG (natural gas) or LP (propane) variant. Shipping takes 7–10 business days, and the package includes a laminated 11″x17″ sheet with color-coded assembly zones, superior to digital files for field repairs.
Locating Components with the Heater Assembly Blueprint
Begin by matching the malfunctioning element to its exact position on the exploded schematic. Each piece in the heater’s construction is labeled with a numerical or alphanumeric code–cross-reference this identifier with the manufacturer’s component list. If the original label has faded or worn off, use adjacent assemblies as reference points: for instance, the combustion chamber gaskets will always neighbor the heat exchanger, while pressure switches sit near the blower motor. Measure critical dimensions like thread pitch, flange diameter, or electrical pin spacing if visual identification fails.
For electronic controls, verify the voltage and resistance specs before sourcing substitutes–OEM modules often include firmware safeguards that aftermarket versions lack, risking system errors. Mechanical seals and pumps require exact material compatibility; silicone-based substitutes may degrade under high chloramine exposure. When ordering, provide the serial number from the unit’s rating plate to avoid mismatches.
How to Locate Components on Your Pool Heater Assembly Reference
Download the official exploded view PDF from the manufacturer’s support portal–search by model number followed by “schematic.” Focus on the upper-left corner of the document where numeric callouts start; each corresponds directly to the bill of materials table at the bottom. Ignore any page headers or footers–these often duplicate section labels without providing actual indices.
Matching Callouts to Physical Locations
- Filter assembly: locate callouts 100-120; they cluster near the intake manifold, identifiable by the U-shaped housing.
- Thermostat sensor: callout 45 is positioned inside the combustion chamber, threaded into the fluted boss adjacent to the ignition electrode.
- Pressure switch: callout 32 mounts on the exhaust collar, secured by a single captive screw with a silver gasket seal.
Bookmark the table rows that describe gasket kits; these are grouped alphabetically under “seals” rather than numerically. Print the PDF single-sided, then fold each schematic page back-to-back so callouts and table align vertically for quick cross-referencing during disassembly.
Key Components of Your Pool Heater That Need Frequent Attention
Thermocouples fail within 12–18 months under normal use, especially in models with open-flame ignition. Inspect the probe monthly for corrosion at the tip–discoloration or pitting signals replacement. Keep a spare on hand; installation takes under 10 minutes with a 7/16″ wrench, but delays could leave your system inoperable during peak season. Avoid adjusting flame settings post-replacement–factory calibration ensures optimal fuel efficiency.
Ignition electrodes degrade faster than most expect, often within two heating seasons. The ceramic insulator cracks from thermal cycling, while the metal tip erodes from arcing. Clean the electrode every 500 hours of runtime with 600-grit sandpaper, but discard if pitting exceeds 1mm or resistance surpasses 2 ohms. Always verify spark gap–3/16″ is standard for this series–before reassembling.
Pressure switches clog with scale buildup or fail from diaphragm fatigue. Test quarterly by blowing into the tube–resistance confirms functionality. If replaced, select models with a 1–5 psi range to match original specs. Improper fit risks unit shutdown mid-cycle; double-check wiring polarity before closing the control panel. Swap the entire switch, not just components–internal seals degrade even if the membrane appears intact.
Combustion chambers corrode from condensing moisture, particularly after prolonged shutdowns. Annual inspection should include checking for rust flakes in the burners–these indicate chamber deterioration. Replace sections where thinning exceeds 30% of original thickness, typically after 5–7 years. Seal new joints with high-temperature silicone rated to 1200°F to prevent gas leaks. Avoid over-tightening screws–torque to 15 ft-lbs to prevent warping the housing.
Gas valves often fail silently, causing erratic heating or sudden cutoff. Suspect the valve if diagnostics show inconsistent flame height despite clean burners. Replace with the exact model–substitutes may alter gas flow precision, leading to overheating. Disconnect power and gas before servicing; incorrect voltage damages the valve’s solenoid. Test with a multimeter–coil resistance should read 20–40 ohms–before removing the old unit.
Heat exchangers develop leaks long before visible damage appears. Use a dye test every three years or if efficiency drops below 80%. Replace if leaks exceed 3 drips per minute–patch kits fail within months. Choose cupronickel exchangers for high-chlorine pools; stainless steel models corrode faster. Drain water fully before winterization–residual moisture accelerates cracking during freeze cycles.
Blower motors last 4–6 years in high-usage pools but fail sooner if bearings lack lubrication. Listen for grinding sounds–these indicate bearing wear. Replace the entire motor assembly; bearings are pressed in and inaccessible. Ensure replacement motor matches RPM (typically 3450) and voltage (120V or 240V). Secure wiring connections with heat-shrink tubing to prevent vibration-induced shorts.
