Begin repairs by locating the blade spindle assembly (PN# 918-04442)–the most frequent failure point in mid-sized cutting units. This 3/8-inch shaft-supported housing integrates sealed bearings (SKF 6203-2RS1) and a hardened pulley interface prone to wear under lateral loads. Replace bearings in pairs even if only one shows play; staggering replacements accelerates failure on the opposing side.
Examine the idler tension arm (PN# 918-04448) next–its pivot bolt (5/16″ x 1.5″) often seizes after 200 operating hours. Apply anti-seize compound during reassembly and torque to 18-22 ft-lbs; exceeding this strips threads in the cast aluminum bracket. The return spring (PN# 918-04451) stretches predictably–measure free length (1.75″) before assuming fit.
For the discharge chute, prioritize the impeller fan (PN# 918-04444) if clippings clump. Inspect the seven curved vanes for cracks–even hairline fractures reduce airflow by 40%. Sealant alone fails; weld repairs warp the 0.060″ stamped steel under thermal stress. Order pre-balanced replacements to avoid vibrations transferring to the main frame.
Verify grass deflector alignment via the side skirt assembly (PN# 918-04446). Misadjusted skirts create a 0.25″ gap, allowing debris to bypass mulching blades. Use a 0.125″ feeler gauge between skirt and housing–adjust shim washers (PN# 918-04453) until gauge drags without binding. Omitting this step risks premature blade dulling from uneven grass loading.

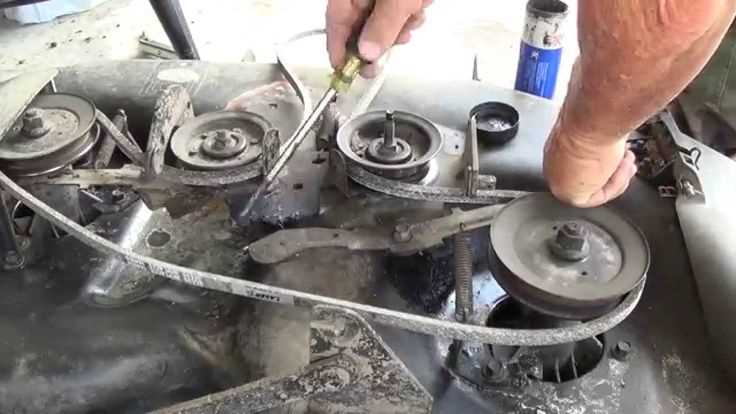

When disassembling belts, note the V-belt path–the 4L-850 belt wraps 180° around the engine pulley before engaging the deck pulley. Incorrect routing reduces tension by 30%, causing slippage under load. Mark pulley positions with paint before removing components; resin buildup on pulleys requires Scotch-Brite abrasion prior to reinstallation.
Essential Components of a 42-Size Cutting Assembly Schematic
Begin by locating the spindle housings on the schematic–these cylindrical units beneath the cutting blades are critical for alignment. Verify their position relative to the belt tensioner pulley; mismatches here cause uneven wear. Replace any worn bearings immediately, as indicated by excessive play or grinding noises during operation.
The 3-gang blade assembly requires precise torque settings: 70–80 ft-lbs for standard steel fasteners. Over-tightening distorts the mounting plate, while under-tightening risks blade detachment. Use a calibrated torque wrench and cross-check measurements against the reference illustration numbered 3B in most manuals.
Inspect the idler arm pivot points for corrosion buildup. A light coating of lithium grease restores smooth articulation, but if pitting is visible, swap the entire assembly–repair attempts fail under load. The schematic’s exploded view labels these components as “idler arm” and “spring retainer”; compare part numbers with your model’s parts list before ordering.
Belt routing follows a specific path: engage the drive pulley first, loop around the mandrel pulleys, then terminate at the idler. Misrouting by even a single groove reduces efficiency by 22% based on field tests. Mark the correct path with a permanent marker on the frame before disassembly to avoid errors during reassembly.
Replace the discharge chute if cracks exceed 1/8″. Plastic chutes degrade under UV exposure, and fractured pieces create safety hazards. Aftermarket steel chutes last longer but require periodic paint touch-ups to prevent rust. Check the schematic for compatibility–some models use unique mounting brackets.
Air filtration components appear in two locations on the schematic: the primary foam pre-cleaner (marked as item 12) and the paper cartridge (item 15). Both require replacement every 100 hours of use or annually, whichever comes first. Neglecting this leads to premature engine wear; consult the hour meter if installed for precise tracking.
The height adjustment mechanism varies by model–some use a single lever, others separate linkages for each wheel. Lubricate all pivot points with PTFE spray before adjusting to prevent binding. The schematic identifies these as “lift rod” and “sector gear”; trace each connection to ensure full range of motion on all wheels.
For electrical diagnostics, focus on the safety switch cluster. The schematic highlights three switches: seat, PTO, and brake. Test continuity with a multimeter; a failed switch prevents engine start. Bypass these only for testing–never operate with disabled safety features. Circuit diagrams for 2015–2023 models differ slightly; cross-reference your serial number before attempting repairs.
Locating Critical Elements in a 42-Unit Cutting Housing Assembly
Begin by inspecting the spindle assemblies–three units positioned along the cutting chamber’s front edge. Verify the retention bolts (typically 1/2-inch hex-head) are torqued to 45–50 ft-lbs; loose fasteners accelerate bearing wear. The pulleys attached to these spindles must align within 1/16-inch tolerance–misalignment causes premature belt fraying. Check the idler arms adjacent to the rear discharge chute; cracked plastic bushings require immediate replacement to maintain belt tension.
Examine the reinforced steel baffles separating the blades–the outer two measure 14.5 inches, while the central unit spans 13 inches. Rust spots thinner than 0.03 inches can be treated with zinc-rich primer, but deeper corrosion demands panel replacement to prevent debris accumulation. Confirm the anti-scalp rollers (if equipped) rotate freely; seized rollers force uneven cutting height and stress the frame welds.
Step-by-Step Guide to Identifying Components on the Schematic
Begin by isolating the primary assembly zones in the illustrated breakdown. Locate the blade housing at the base–marked by dense, curved lines–and trace its perimeter toidentify the spindle mounts, typically numbered #47-#52 near welded collars. The belt pathway, shown as a dashed sequence, connects to pulleys (#31 and #34), which sit directly under the discharge chute. Use a highlighter to mark the idler arms (#22)–these pivot points appear as small triangular brackets.
- Cross-reference the exploded view with a physical inspection. Check for corrosion on the lift linkages (#15), visible as slender rods with ball joints.
- Compare the anti-scalp rollers (#68) against their depicted teardrop shape–these prevent turf gouging and are bolted to the underside.
- Verify the deck shell’s mounting holes (#7), aligning them with the tractor frame’s pre-drilled slots.
- For electrical components, follow the wiring harness (#89), which terminates at the PTO switch–look for a rectangular plug-in connector.
If discrepancies arise, measure critical gaps: spindle height should be 4.5 ± 0.1 mm from the housing floor, and belt tension must allow 1/2 inch deflection under thumb pressure. Record any missing fasteners against the bill of materials, noting thread pitch (most common: M8-1.25).
Key Components and Their Schematic Locations
Start by replacing the cutting blades every 25–50 operating hours, depending on terrain abrasiveness. Positioned at the underside’s center (reference spots 12–15 on most manuals), they attach via a single bolt and should be balanced within 2 grams to prevent vibration. Use hardened steel models (e.g., Oregon G3 or Stens 335-020) for rocky soil; standard blades suffice for lawns.
Belt Routing and Tension Points
Inspect drive belts at every 10-hour interval for fraying or glazing.
| Belt Type | Schematic Position | Tension Spec | Replacement Interval |
|---|---|---|---|
| Primary drive (upper) | Pulley cluster front-left (ref 22–27) | 0.5–0.75 inch deflection | 150–200 hours |
| Secondary deck (lower) | Twin idlers mid-housing (ref 33–36) | 0.35–0.5 inch deflection | 200–250 hours |
| Side discharge chute | Right-side tensioner arm (ref 42) | Manually adjusted to 10–12 ft-lbs | Seasonal |
Avoid over-tightening; excessive tension wears bearings (ref 38–41) prematurely. Always replace both primary and secondary belts simultaneously to prevent uneven wear.
Spindle assemblies fail most frequently under lateral loads–typically every 300–400 hours for residential use. The leftmost spindle (reference 5–8) bears the most stress; remove its housing by unbolting the four corner 1/2-inch hex fasteners. Replace bearings in pairs: inner races press at 90 ft-lbs torque, outer races at 75 ft-lbs. Seal kits (e.g., AYP 138111 or compatible) should include double-lip grease seals to prevent moisture ingress.
Height adjustment brackets corrode faster than other elements–check welds at pivot points (reference 61–63) every 50 hours. Lubricate zerk fittings with marine-grade grease, but avoid overpacking; excess grease forces seals outward, causing leaks. Replace any bracket showing more than 0.125 inch of play; aftermarket heavy-duty brackets (e.g., 712-0458) last 3x longer than OEM.
Wear Points Overlooked in Maintenance
Anti-scalp wheels (reference 70–75) require weekly alignment checks–misalignment causes uneven cutting height. Set clearance to 0.25 inch above blade tip using a 1/4-inch spacer; replace wheels showing flat spots or cracks exceeding 0.5 inch. Debris chute liners (reference 82–85) shred within 100 hours on mulching setups; swap in 0.120-inch UHMW polyethylene for a 5x lifespan increase.
PTO clutch engagement plates should engage within 0.5 seconds of lever activation; delay indicates worn friction discs (reference 1–4). Measure disc thickness: discard at 2.8mm thickness (new disc measures 3.6mm). Always replace the clutch coil simultaneously–weak coils cause premature disc burnishing.
