Start by locating the multiport valve actuator on your filter assembly–this is critical for proper water flow direction. If leaks or inconsistent pressure occur, inspect the O-rings (size: 2.5″ x 3.5″) and gasket (PN 26061-0001) first. These degrade faster than other elements and require replacement every 12–18 months under normal conditions.
The standpipe assembly connects the filter tank to the valve cluster. Check for cracks near the clamp ring (PN 150392)–corrosion here is a common failure point. If pressure drops persist, disassemble the lateral grid set (PN 160334) and clean each segment with 10% muriatic acid solution; sediment buildup reduces efficiency by 40–60%.
For the tank body, note the threaded adapter (NPT 1.5″)–it must match the existing plumbing to prevent leaks. If replacing the clamp lid (PN 150256), apply silicone-free lubricant (e.g., Dow Corning 111) to the sealing surface to ensure a watertight bond. Work in sections: disconnect the backwash line before removing the internal air bleeder valve (PN 150338) to avoid water spillage.
Keep spare filter media (100 sq ft, PN 140334) on hand–degradation accelerates above 85°F/29°C. For troubleshooting, reference the manufacturer’s exploded view (look for “assembly reference guide, rev. 02-2022”)–annotate it with dated observations of wear patterns on high-friction zones like the rotor disc (PN 270105).
Mastering Your Pool Filter Assembly Breakdown: A Hands-On Manual
Locate the filter housing clamp ring first–it’s the large, threaded collar securing the tank lid to the base. Turn counterclockwise using a filter wrench (36-inch handle recommended) until loose enough to lift by hand. This component bears the brunt of internal pressure; inspect rubber O-rings for cracks before reassembly. Replace if compression grooves appear worn–most models tolerate O-ring ID 0.210–0.216 inches. Store spares in silicone grease to prevent drying.
Disassembling the Internal Core: Step-by-Step Precision
Remove the multiport valve by unscrewing the six hex bolts (5/16-inch) holding it to the top flange. Mark each bolt hole position with tape to ensure perfect alignment during reinstallation; improper seating creates bypass leaks. Once detached, lift the filter element bundle: grasp the center core pipe firmly and rock gently to break the seal. Soak the bundle in a muriatic acid solution (10% concentration) for 15 minutes to dissolve stubborn calcium deposits–never use metal brushes on the pleated media, as scratches reduce filtration efficiency.
Examine the standpipe hub inside the tank base–this funnel-shaped intake directs unfiltered water toward the element. Clear any debris obstructing the eight radial slots (each 3 mm wide) using a nylon bristle brush; blockages here restrict flow by up to 42%. Verify the hub’s alignment with the bottom plate’s indexing notch; misalignment causes uneven distribution and premature wear on the element’s bottom seal. Reinstall by pressing firmly until a tactile click confirms engagement.
Reattach the multiport valve only after confirming the diverter gasket sits flush inside the valve body. Apply a thin layer of Teflon-based lubricant to the gasket’s edges to ensure smooth rotation–avoid petroleum jelly, which degrades rubber compounds in 7–10 months. Torque hex bolts in a star pattern, capping at 18–22 ft-lbs; over-tightening distorts the valve housing and creates warping leaks at the flange interface.
Sealing and Pressure Testing: Critical Post-Assembly Checks
Before filling the tank, pour 5 gallons of water into the intake port–this primes the system and prevents air pockets. Reconnect the pump discharge pipe, ensuring the union fitting’s flat washer sits centered between the male and female threads. Apply thread sealant (PTFE tape, 3–4 wraps maximum) on pipe threads, but avoid over-wrapping, which can compromise the union’s metal-to-metal seal. Once sealed, start the pump and monitor the pressure gauge for a steady rise to 10–15 PSI within 90 seconds; stagnant readings indicate trapped air or a clogged pressure relief valve–release air via the bleed screw until a steady stream of water emerges.
After 24 hours of operation, recheck all connections for weeping moisture. If leakage persists at the clamp ring, verify two factors: 1) the lid’s T-shaped gasket is oriented with the flat edge against the tank rim, and 2) the ring’s threads are free of sand or corrosion. Clean threads using a wire brush and reapply silicone-based sealant; torque the ring to 35–40 ft-lbs using the wrench. Document gauge readings weekly–a drop exceeding 2 PSI signals element fouling, requiring another acid soak or replacement cycle.

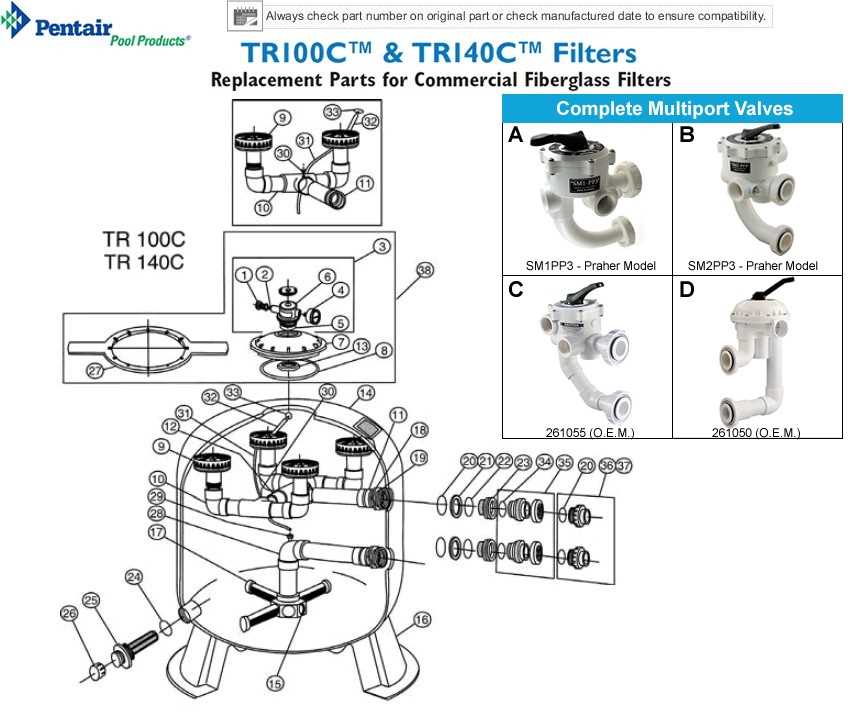

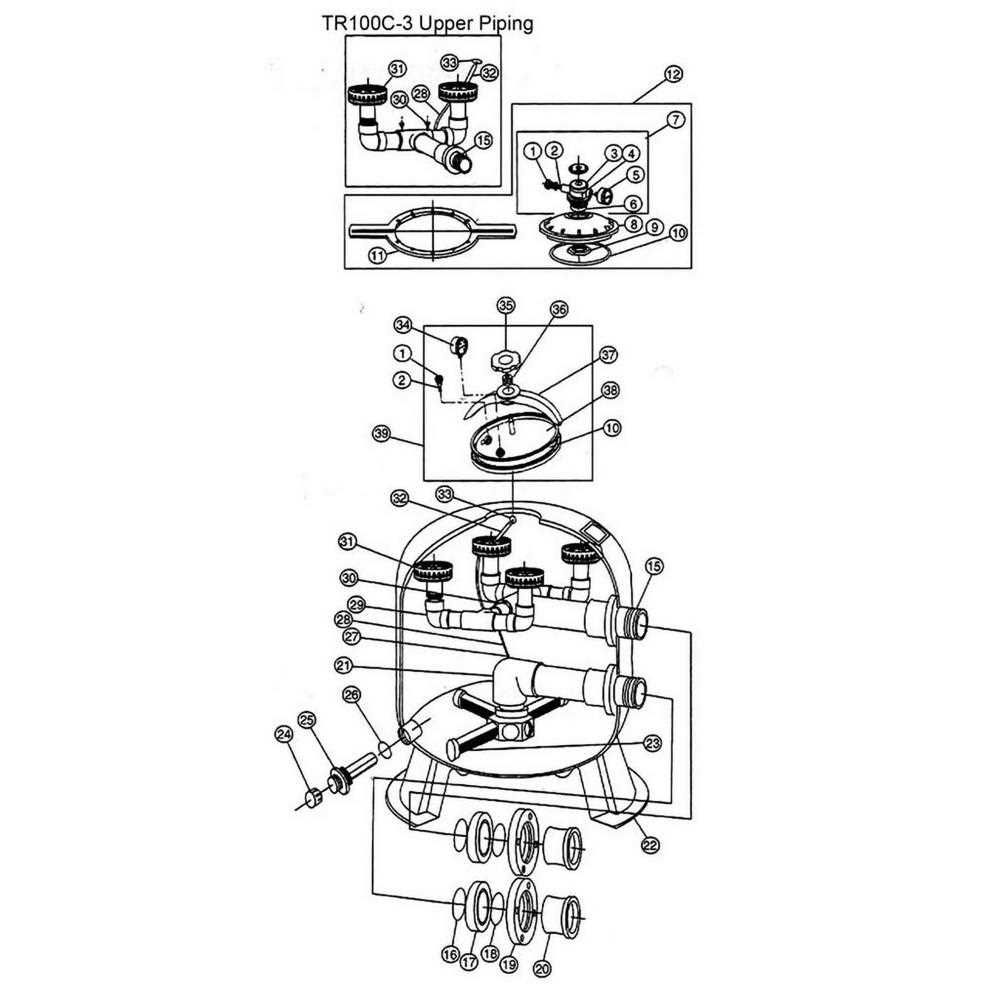

Finding the Exploded Assembly Guide for Your Filter Model
Begin by visiting the official manufacturer’s support portal. Use the search bar with your unit’s serial number–typically found on a sticker inside the lid or along the housing’s side seam. Models released after 2018 are listed under “Product Manuals,” while older variants appear in the “Legacy Resources” dropdown. If the serial number includes “TR” followed by four digits, filter results by that prefix to avoid sifting through unrelated schematics.
Alternative Sources if Manufacturer Site Fails
- Third-party distributors like Pool Supply World and INYOPools archive backup copies when official pages remove outdated content. Search their FAQs for “filter disassembly illustrations” and narrow by model year.
- YouTube repair tutorials frequently embed still-frame overlays of exploded views–pause videos at timestamps 0:47, 1:12, or 2:03 for clear snapshots of internal component layouts.
- Specialized forums such as Trouble Free Pool maintain pinned threads linking to off-site PDF hosts. Look for threads titled “Schematics Megathread” and scroll to replies containing direct download icons.
Download any located reference file immediately. Right-click the image or PDF, select “Save As,” name the file with the model number and date (e.g., TR1234_2023.pdf), then store it in a dedicated folder labeled “Equipment Blueprints.” If printing, use 11×17 paper to preserve small fastener callouts–many standard letter-size reductions omit critical torque values or seal placement arrows.
Critical Elements in the Sand Filtration Unit Assembly Guide
Locate the multiport valve at the filtration system’s apex–its six-position interface (filter, backwash, rinse, waste, recirculate, and closed) dictates operational flow. Verify O-ring integrity along the valve’s lower flange; degradation here causes bypass leaks, compromising pressure consistency.
Inspect the lateral assembly buried beneath the filter medium–clogged slots reduce water flow by 30-45% within 120 operational hours. Use a 1/16-inch probe to clear debris buildup; manufacturers recommend soaking laterals in muriatic acid (diluted 1:10) for 30 minutes if mineral scaling is visible.

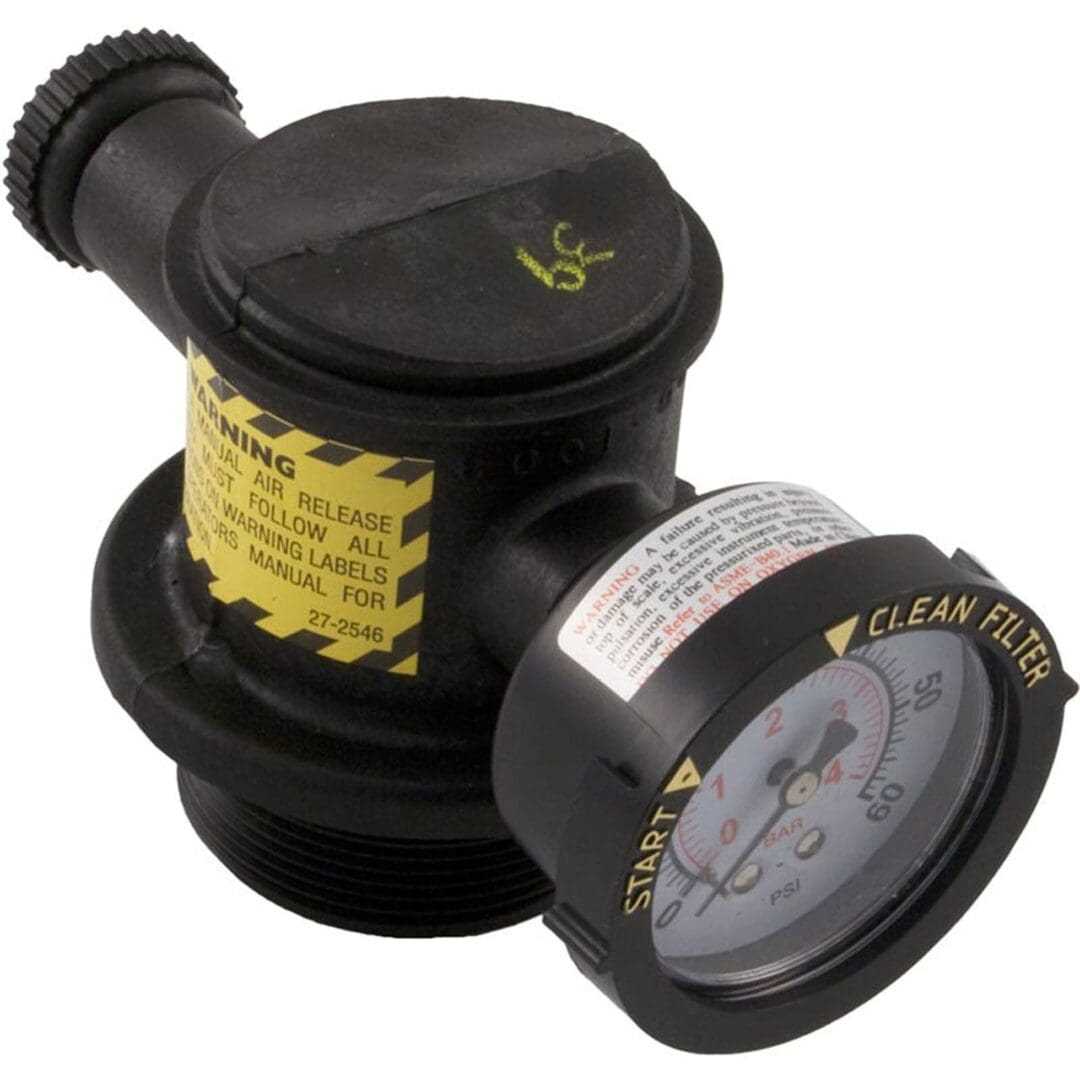

The pressure gauge mounts on the valve’s inlet port and should register 10-20 PSI during normal operation. Readings exceeding 25 PSI indicate media saturation; perform backwash immediately to prevent tank rupture risks, which peak at 50 PSI under sustained load.
Examine the tank’s drain plug–its 1.5-inch threaded port requires annual resealing with PTFE tape to prevent sediment seepage. Replace the plug entirely if cross-threading is detected; stock NPT replacements (NSF-certified) ensure compatibility with chlorinated water systems.
Filter media depth impacts efficiency; 30 inches of #20 silica sand (0.45 mm grade) yields optimal particle retention (20-40 microns). Deviations under 27 inches reduce filtration cycles by 22%, requiring more frequent backwashing. Avoid anthracite–its lower density doubles media loss during backflushing.

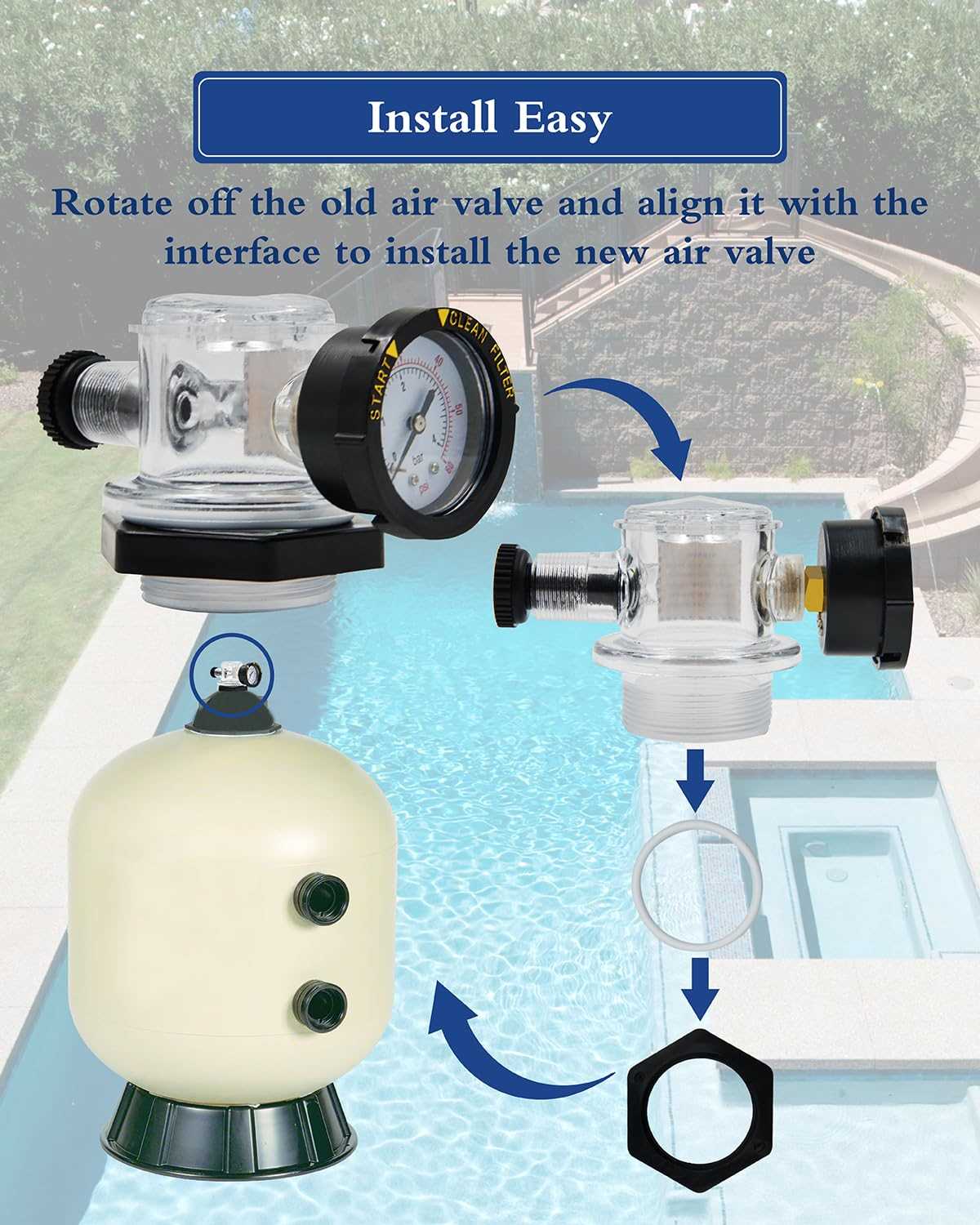

The air relief valve atop the tank must vent freely during startup; failure traps air pockets, creating 5-12 PSI variations that destabilize flow. Test quarterly by opening the valve manually–water should spray briefly, not drip. Replace spring-loaded mechanisms if corrosion exceeds 1 mm depth.
Check the waste line’s 1.5-inch PVC coupling for algae growth; UV-resistant piping extends lifespan by 40% compared to standard Schedule 40. Ensure the backwash hose’s outlet directs wastewater 3 meters from structural foundations–hydrostatic pressure during backflushing averages 18 gallons per minute.
Retain the original documentation; torque specifications for clamp rings (45 ft-lbs) prevent tank deformation, while improper sealing voids manufacturer warranties. Store spare gaskets in vacuum-sealed bags away from UV exposure–EPDM compounds degrade after 36 months under fluorescent lighting.
Step-by-Step Replacement of the Multiport Valve Assembly for Sand Filter Systems
Shut off the pool pump and relieve pressure by turning the system’s handle to the “Backwash” position for 30 seconds. Disconnect the power supply to prevent accidental activation during disassembly. Label all pipes and unions with masking tape to ensure correct reconnection–include directional arrows if flow orientation matters.
Remove the clamp securing the valve body to the filter tank. Use a strap wrench if corrosion is present; apply penetrating oil 15 minutes prior to attempting removal. Detach the union collars and wiggle each pipe side-to-side while pulling–do not twist–to avoid damaging O-rings or threading.
Lift the old valve assembly straight upward, angling slightly if resistance occurs from internal sand accumulation. Inspect the tank flange for debris; wipe clean with a lint-free cloth. Compare the replacement unit’s diameter and port alignment–critical specifications are listed below:
| Model Series | Port Size (inch) | Bolt Circle (inch) | Handle Type |
|---|---|---|---|
| Standard II | 1.5 | 5.75 | Lever-lock |
| Wide-Mouth | 2.0 | 6.50 | Slide-grip |
| Compact | 1.25 | 5.00 | Twist-lock |
Apply silicone lubricant to the new gasket and position it centered on the tank flange, ensuring no folds or gaps. Lower the replacement valve into place, aligning bolt holes precisely. Hand-tighten clamp bolts in a cross-pattern to 12 ft-lbs–over-torquing risks cracking the flange.
Reconnect pipes using fresh Teflon tape on threaded ends, wrapping clockwise to prevent unraveling. Reinstall union collars finger-tight first, then wrench-tighten to 25 ft-lbs. Verify handle position matches the labeled setting–misalignment can cause leaks or restricted flow.
Restore power and test each function sequentially: Filtration (5 minutes), Backwash (30 seconds), Rinse (20 seconds), Waste (if applicable). Monitor for drips at unions; retorque if necessary. Record installation date and expected O-ring replacement interval (every 24 months or 5,000 operational hours).
