When upgrading or repairing a 4×4’s undercarriage, start with the control arms. The upper and lower links–fabricated from heavy-duty steel or forged aluminum–determine wheel articulation and alignment durability. OEM replacements often fail under extreme stress; aftermarket brands like Rough Country or TeraFlex offer reinforced designs with polyurethane bushings. Check for part numbers 52028564 (front upper) and 52028565 (front lower) to ensure compatibility with 2018–2023 models.
Shock absorbers dictate terrain handling more than any other component. Twin-tube units work for light trails, but monotube designs (e.g., Fox 2.0 Performance Series) displace 35% more heat, preventing fade during rock crawling. Coil springs should match the vehicle’s weight; Old Man Emu heavy-duty options add 2.5 inches of lift while maintaining factory ride quality. Verify spring rates (210–240 lbs/inch) for your payload–overloaded coils sag prematurely, misaligning driveshaft angles.

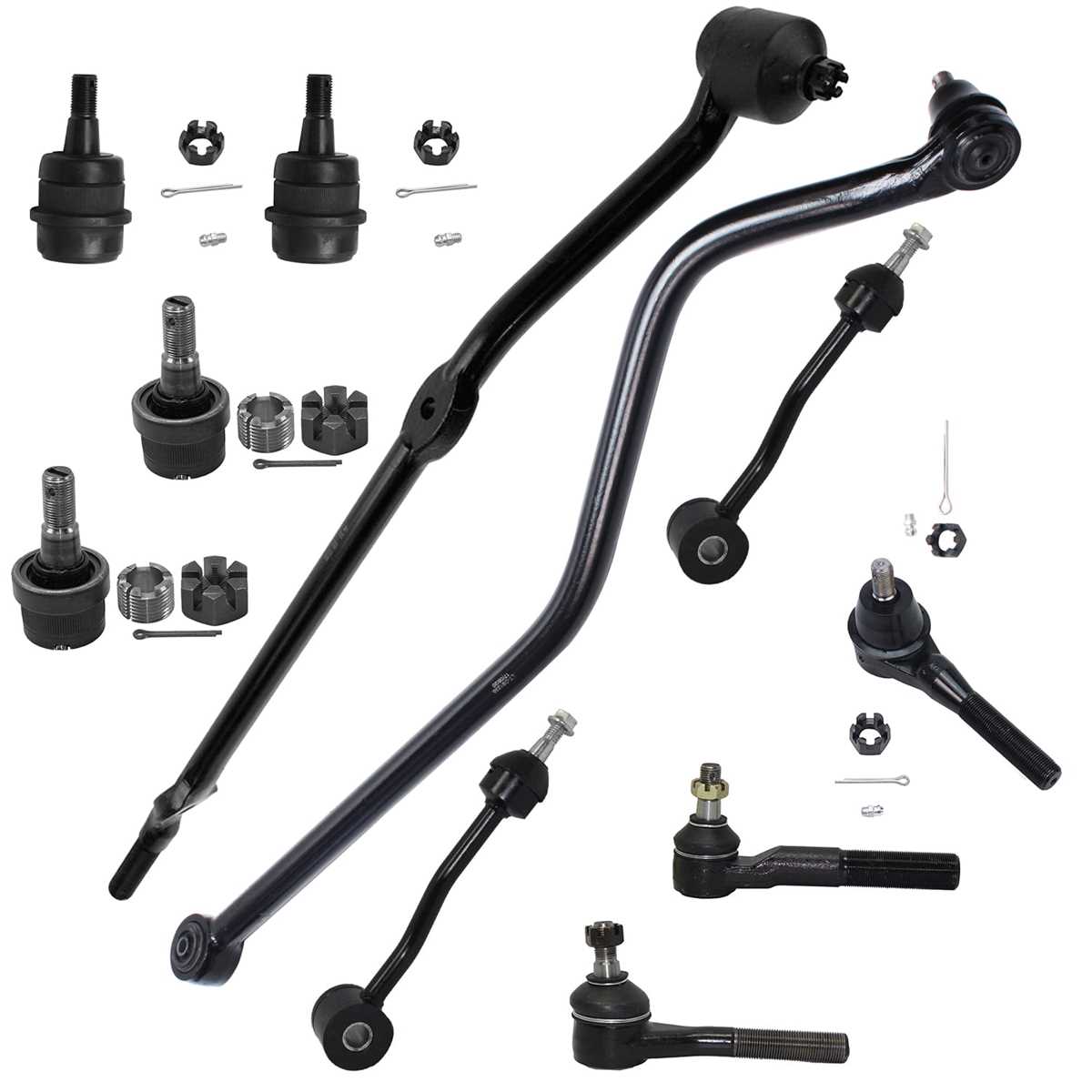

Track bars and sway bar links stabilize lateral movements under load. Factory track bars flex under duress; Currie Enterprises adds a dual-adjuster system with spherical joints for precision alignment. Disconnectable sway bars (e.g., JKS Manufacturing) improve flex on uneven terrain–look for quick-release mechanisms to avoid tedious bolts during on-trail adjustments. For steering linkage, replace worn tie rods with Rubicon Express’s chromoly units; they resist bending under 5,000+ lb off-road loads.
Brake components rarely fail on stock setups, but lifted vehicles demand longer hoses and caliper brackets. AFCO stainless-steel braided lines resist expansion under high pressure, maintaining pedal feel. Rotors should be vented (minimum 12.4-inch diameter); Centric’s cryo-treated rotors reduce warping by 40%. Lubricate all friction points–calipers, U-joints, ball joints–with Red Line CV-2 synthetic grease; it lasts 3x longer than standard lithium-based products in muddy conditions.
Probe the differential housing for cracks before upgrading. ARB RD90 air lockers fit 44-spline axles, but require a 4.88–5.13 gear ratio for optimal torque delivery. Carrier bearings (Timken LM603049) should be pressed with a hydraulic installer–never hammered–to prevent race damage. For ring-and-pinion setup, use marking compound to verify tooth contact patterns; incorrect backlash (0.008–0.012 inches) leads to premature failure.
Off-Road Vehicle Chassis Component Layout Guide

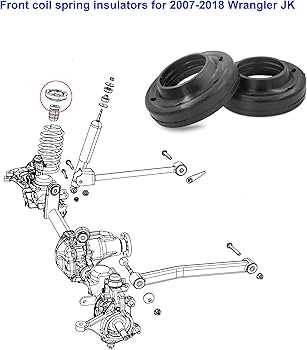

Start by locating the front coil springs–critical for absorbing terrain impacts. These sit between the lower control arms and the chassis mount, secured by bolts torqued to 80-90 ft-lbs. Replace them if sag exceeds 1/2 inch or corrosion is visible.
Inspect track bars next. The front bar attaches to the axle at one end and the frame rail at the other, maintaining lateral stability. Use poly bushings for durability; OEM rubber deteriorates under heavy off-road use. Tighten bolts to 110-120 ft-lbs post-installation.
Shocks play a dual role: damping and limiting suspension travel. Bilstein 5100s or Fox 2.0 IFPs are benchmarks for performance setups. Mounting hardware includes a stud on the upper end and a bolt through the lower eyelet–ensure washers are properly aligned to prevent binding.
Control arms, specifically the lower units, endure the most stress. Tubular steel versions outlast OEM stamped steel by 30-40% under identical loads. When swapping, mark cam bolt positions for caster alignment afterward–this prevents uneven tire wear.
- Front sway bar links: Disconnect first when lifting to avoid snapping. Aftermarket adjustable links allow fine-tuning articulation.
- Adjustable panhard rods: Necessary for wider axles. Measure twice before cutting–aim for +1-2 inches of centerline offset.
- Bump stops: Critical for preventing metal-on-metal contact. Extended polyurethane stops add 1-1.5 inches of travel.
Steering stabilizers reduce feedback shocks but aren’t essential. Single-piston models suffice; dual stabilizers are overkill unless running 40-inch tires or heavier. Torque the bolt to 45-50 ft-lbs–over-tightening causes premature wear.
For solid axles, the differential cover protects internal gears during extreme flex. Reinforced covers prevent flange cracking under stress. Use a diff fluid pump for refills–synthetic 75W-140 gear oil withstands temperature spikes better than conventional fluids.
Critical Fasteners and Specifications
- Upper control arm bolts: Grade 8 with 9/16″ threads, torqued to 75-85 ft-lbs.
- Hub nuts: Minimum 150 ft-lbs for locking, re-check after 50 miles.
- Leaf spring U-bolts: Retorque to 55-65 ft-lbs after initial heat cycles post-install.
Critical Elements of an Off-Road 4×4 Chassis Setup
Begin by replacing worn control arms with adjustable heavy-duty units to correct wheel alignment and improve articulation. Opt for forged aluminum or chromoly steel to balance weight savings with durability–avoid stamped steel arms prone to bending under stress. Pair these with high-misalignment rod ends rated for 20,000+ lbs static load to prevent premature failure during extreme flex scenarios. Install a threaded sleeve for precise caster tuning; aim for 4–7 degrees positive caster to enhance straight-line stability without compromising turning radius.
Upgrade coil springs to progressive-rate designs with a minimum 3,500 lb/in load capacity. Select springs with a linear-to-progressive transition point at 2.5–3.0 inches of compression to prevent bottoming out while maintaining ride comfort. Ensure free length exceeds OE specs by 10–15% to compensate for added weight from armor or winches. Forced induction vehicles need springs with higher durometer (e.g., 80A vs. 70A) to counteract sag from turbocharged engines or heavy bumpers.
| Component | Material Grade | Load Rating | Adjustability |
|---|---|---|---|
| Upper Control Arm | 6061-T6 Aluminum | 5,000 lbs axial | Threaded adjuster + heim joint |
| Track Bar | 4130 Chromoly | 10,000 lbs lateral | Weld-on gusset plates |
| Sway Bar Link | 17-4PH Stainless | 3,600 lbs shear | Quick-disconnect coupling |
Swap OE shock absorbers for remote-reservoir monotubes with 2.5-inch diameter pistons and 0.25-inch shafts. Specify compression and rebound valving tailored to terrain: 30/70 open-valve ratio for rock crawling, 50/50 for high-speed desert runs. Ensure nitrogen pressurization reaches 250–300 psi to prevent cavitation under prolonged articulation. Install external heat sinks or finned reservoirs if running 35-inch tires or heavier to prevent fade during prolonged off-road sessions.
Reinforce the track bar with a weld-on gusset at the frame-side mount and upgrade the bushing to a polyurethane unit with greaseable zerks. Torque all fasteners to 120 ft-lbs with thread locker to prevent loosening under vibratory loads. For lifted applications above 3 inches, install a dropped pitman arm to restore steering geometry and prevent bump steer. Verify that the drag link is parallel to the front axle when articulating to avoid binds that accelerate ball joint wear.
Select wheel bearings with a minimum ABEC-7 rating and conical roller design to handle radial loads exceeding 4,000 lbs. Pack bearings with lithium-complex grease containing 5% molybdenum disulfide for extreme-pressure protection. Press-fit races with an induction heater to 250°F to prevent damage during installation. Replace seals with dual-lip designs featuring garter springs to maintain low drag while preventing contamination ingress during water crossings.
Prioritize a skid plate system with 3/8-inch AR500 steel or 1/2-inch 6061 aluminum for differential and transfer case protection. Position differential skids at a 15-degree angle to deflect obstacles without inducing stress risers. Weld drain plugs into transfer case and differential skids to simplify fluid changes without removing armor. Ensure all mounting points use Grade 8 hardware torqued to 80 ft-lbs to resist shock loads from impacts during rock crawling.
Decoding Your Off-Road Vehicle’s Chassis Blueprint
Locate the color-coded labeling at the bottom left of the schematic–typically red for wear components, blue for hydraulic connections, and yellow for adjustment points. Cross-reference each identifier with the legend’s torque specifications: front coil springs on JK models are marked *JK-CS-FR* with a required 110-120 ft-lbs, while JL variants use *JL-CS-FR* at 80-90 ft-lbs. Note the dotted lines indicating fluid routing; a single break in the path usually signals a check valve, critical for maintaining nitrogen pressure in monotube shocks.
Scan for exploded views in the upper-right quadrant–these reveal preload adjustment collars on sway bar links (part code *SBL-ADJ*) and the washer stack sequence for rear track bars (*TB-WSR-SEQ*). On 2018+ models, pay special attention to the electronic disconnect solenoid wiring harness (labeled *EDS-HARNESS*), which must be disconnected prior to any alignment procedure.
Key Components for Off-Road Vehicle Height Adjustments
Coil springs are the most frequently swapped elements in modified ride systems. Brands like Terrain Tamer and Rubicon Express offer heavy-duty coils designed for 2-3 inch lifts, balancing articulation with load capacity. Avoid generic “universal” springs–they often sag under excess weight or fail to maintain ride quality on uneven surfaces.
Shock absorbers wear faster than other components when installing taller kits. Bilstein 5100 series gas-charged monotubes deliver 3,000+ miles of consistent damping for lifted platforms, while Fox 2.0 IFP shocks handle extreme flexing without fading. Budget options like Rancho RS5000X tend to leak nitrogen within 10,000 miles on rugged trails.
Control arms address altered geometry after height modifications. Adjustable rear arms from Currie Enterprises allow precise pinion angle correction, preventing drivetrain vibrations at speeds above 50 mph. For solid axles, heavy-duty forged links with polyurethane bushings outlast factory rubber components by 3-4 years in off-road conditions.
Steering stabilizers like the Rough Country N3 eliminate death wobble common in lifted kits. Choose units with external reservoirs for fluid cooling–OEM-style dampers overheat after 80+ miles of continuous rock crawling. Replace worn track bar bushings simultaneously; poly bushing kits from JKS improve responsiveness over softer OEM mounts.
Brake line extensions prevent hose tension during full articulation. Stainless steel -3AN lines from TeraFlex resist abrasion under chassis contact, meeting DOT specifications. Avoid flexible nylon lines–they swell under pressure, causing inconsistent pedal feel that masks ABS function.
Extended sway bar links maintain stability without compromising flex. Dynatrac’s heavy-duty link pairs cost 40% more than entry-level versions but withstand 15,000 lbs of force compared to 8,000 lbs for basic models. Upgrade front and rear simultaneously; mismatched links create unpredictable body roll.
Installing bump stops at least 1.5 inches longer than stock prevents coil bind during suspension compression. Daystar poly stops maintain progressive resistance without harsh bottoming unlike rigid urethane alternatives. Measure compressed ride height before purchasing–clearance gaps smaller than 1.25 inches risk transmission skid plate contact on steep descents.
