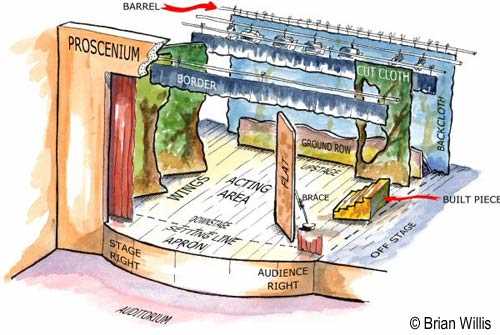

Begin by marking the proscenium arch as the primary division–this frame separates the acting area from the audience and often dictates sightlines. Measure its height and width: standard prosceniums range from 12 to 20 feet in height, while smaller venues may use ratios as narrow as 8 feet. Adjustable masking curtains should align precisely with this boundary to prevent light spill.
Identify the apron–a critical extension beyond the proscenium, typically 4 to 12 feet deep. This space allows for fluid actor entrances and exits without disrupting backstage workflows. Ensure flooring here matches the main deck for consistent acoustics and mobility; mismatched surfaces risk trip hazards and sound distortion.
Divide the main playing area into three distinct zones: upstage (furthest from the audience), centerstage, and downstage (closest). Use tape or laser guides for precise demarcation–each segment should span roughly equal depth, usually 10 to 15 feet per section, depending on venue dimensions. Note that thrust configurations may compress these zones to 8 feet.
Locate the wing space on either side of the acting area, with minimum widths of 6 feet for safe scene transitions. Store flats, props, and rigging hardware here, but maintain clear pathways–clutter in wings leads to delays and safety violations. For musical productions, position monitor speakers at 45-degree angles in the wings to avoid feedback.
Map the fly system grid–critical for raising and lowering scenery. The grid sits 25 to 60 feet above the deck, requiring weight-rated arbor systems (typically 500–1,500 pounds capacity). Label each line set with its purpose: leg drops, border curtains, or set pieces. Counterweight balances should never exceed 80% of the load limit.
Designate the trap area beneath the deck if the venue permits–this 4×4-foot opening allows performers or props to descend below. Reinforce flooring around traps with steel plating to support dynamic loads. For venues without traps, consider a false floor with removable panels if subterranean effects are essential.
Mark crossover paths behind the upstage wall–these concealed routes enable cast and crew movement between wings without audience visibility. Floor treatments here should dampen footstep noise: rubber mats or carpet remnants work better than bare wood or concrete. Widths should exceed 3 feet to accommodate quick costume changes.
The Structural Zones of a Performance Space Layout
Start by marking the proscenium arch–the frame separating the acting area from the audience. Use laser measurements to ensure symmetry, especially in historic venues where settling may have warped the structure. A misaligned arch disrupts sightlines, forcing spectators in side seats to strain for visibility.
Designate the apron with non-slip tape or temporary paint, extending it no less than 1.5 meters beyond the curtain line. This zone accommodates intimate monologues or musical solos without requiring full set changes. Avoid permanent fixtures here; flexibility prevents costly reconfigurations for each production.
- Fly loft: Verify clearance–minimum 12 meters above deck for counterweight systems. Label each line set with glow-in-the-dark tags, reserving the upstage lines for scrims and soft goods.
- Wings: Keep left and right wings asymmetrical–allocate 20% more space stage right for actor entrances. Store props on wheeled carts to rotate quickly between scenes.
- Traps: Inspect pulley mechanisms quarterly; a single jam can delay a live performance by 20+ minutes. Clearly mark trap edges with high-contrast tape to prevent tripping.
Lighting and Audio Zones
Position lighting battens in a staggered formation: first row 3 meters above deck, second row 5 meters, to layer effects. Assign DMX addresses in blocks of 20 to simplify programming. For audio, embed speakers in the false proscenium at ear level–avoid mounting on the back wall, where reflections muddy vocals.
Reserve the cyc (cyclorama) for ambient projections, using rear throw instead of front to prevent shadows. Paint it with muslin-bound gypsum; avoid PVC-based materials, which yellow under intense lighting. For touring productions, substitute with a tension grid suspended from the fly loft.
- Upstage center: Command station for stage managers–locate headsets, cue sheets, and emergency stops within arm’s reach.
- Downstage edges: Allocate 1-meter buffers for followspots; mark pivot points with chalk to align beams precisely.
- Orchestra pit: If retractable, test hydraulic lifts weekly; a failed descent risks musician injuries during live transitions.
Document every zone in a vector-based floor layout, color-coding permanent vs. adjustable elements. Update the file after each tech rehearsal–omissions waste hours during load-in. Store backups on RFID-tagged drives at an offsite location to mitigate data loss.

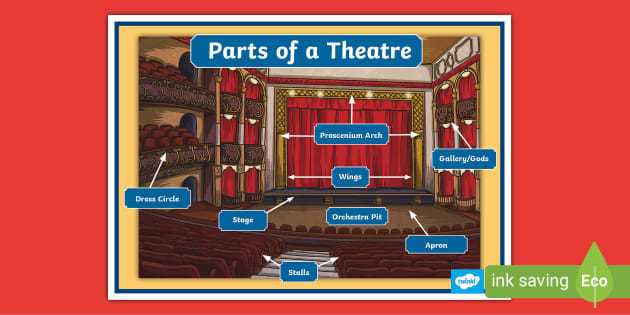

Key Zones of the Performance Space and Their Practical Uses
Position primary set pieces upstage center to create depth–this area naturally draws the audience’s focus without competing with actors. Avoid cluttering it unless the scene demands isolation, as its distance from the house amplifies visual impact but dulls subtle movements. For productions requiring prominent backdrops, ensure lighting angles minimize shadows on cycloramas placed here.
Downstage regions excel for intimate exchanges; the apron, if present, extends dialogue beyond proscenium bounds, though directors must account for sightlines from extreme seats. Use this section sparingly–actors lingering here risk pulling focus from crucial mid-stage action. Blocking here should be precise: even a minor misstep can disrupt pacing.

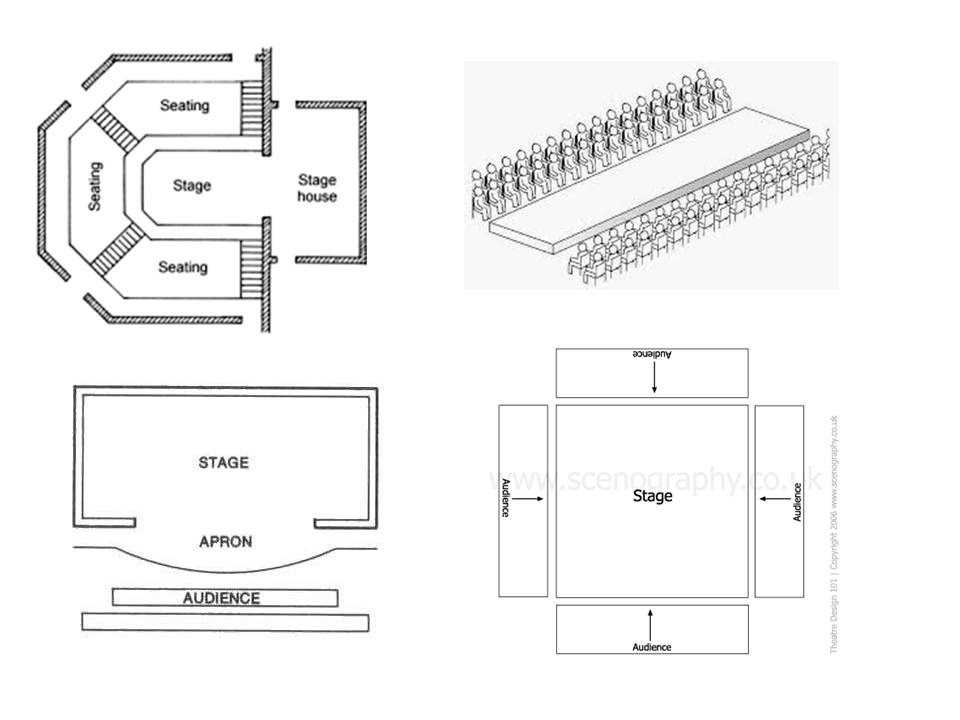

The thrust, when available, bridges performer-audience engagement but complicates choreography. Core action should occupy its nose, while peripheral movements stay shallow to avoid masking. Lighting designers must angle instruments sharply–standard front wash flattens textures. For flexibility, mark a 3-foot perimeter as “no build zone” to permit quick scene shifts.
Side stages (wings) serve storage but require strategic planning. Store props on rails aligned with exit paths to streamline transitions; entrances from here must be rehearsed at quarter-speed to prevent collisions. Left and right wings often host monitoring equipment–position speakers or screens 4 feet from edges to avoid sound bleed into offstage areas.
Avoid treating the vomitorium as merely an entrance. Its sloped design creates natural emphasis; reserve it for climactic moments or crowd scenes. When inactive, have crew members conceal entrances with neutral draping–visible gaps disrupt immersion. For musicals, install temporary risers here only if rake measurements align with adjacent platforms.
Rehearse scene changes with trapdoors in full costume to confirm weight limits. Standard models support 250 lbs, but uneven distribution or dynamic movement (e.g., dancing) requires reinforced framing. Mark trap locations on rehearsal floors using contrasting tape–not chalk, which smears. If unused, ensure locking mechanisms are engaged but remain accessible for emergency access.
Key Backstage Areas and Their Functional Roles
Assign at least three dedicated staff for the crossover during scene transitions–this narrow passage behind the scenery handles quick set changes and must remain debris-free. Measure clearance heights (minimum 7 feet) to accommodate flying scenery units without damage to suspended rigging. Label stored props in the wing space by scene number; use color-coded bins (red for act 1, blue for act 2) to eliminate retrieval delays. Store delicate fabrics in temperature-controlled cabinets set to 65°F (±2°F) with humidity under 50% to prevent mold on costumes between performances.
Position two fire extinguishers (class ABC) within 10 feet of the prop table and dressing rooms–check pressure gauges weekly. Install LED work lights (5000K color temperature) in the scene shop to improve precision cutting for flats and platforms; replace bulbs every 6 months to maintain consistent illumination. Store power tools (saws, drills) on wall-mounted racks with foam inserts to protect blades and bits from moisture; secure cords using cord reels to prevent tripping hazards. Inspect electrical panels monthly for load balance–limit circuit draw to 80% capacity to avoid overheating during tech rehearsals.

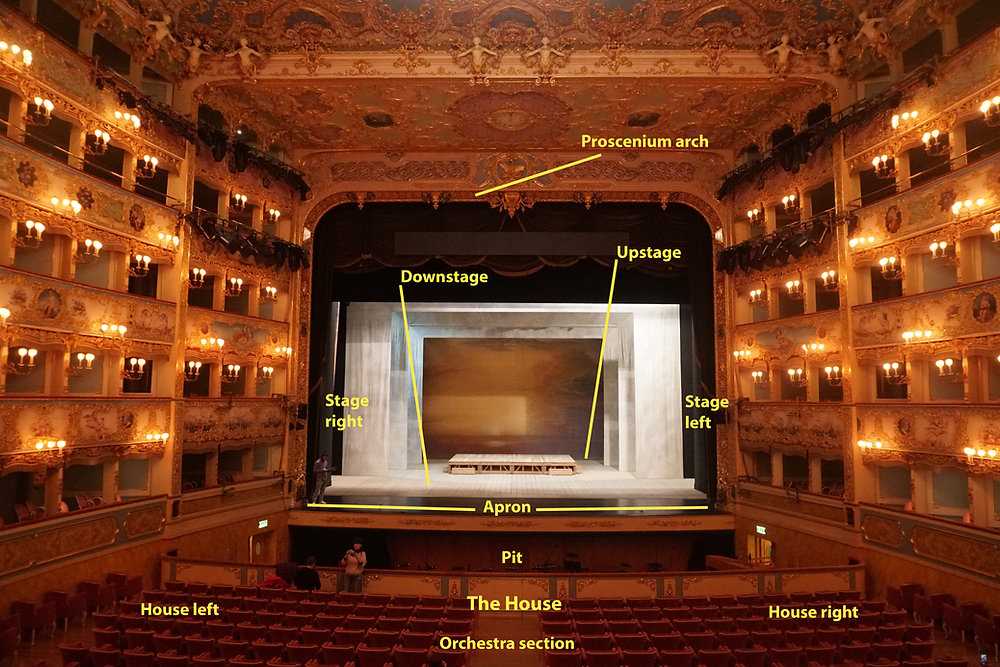

Locating and Naming the Proscenium Arch in Performance Space Layouts
Trace the outermost frame separating the auditorium from the acting area–this is the proscenium arch. On blueprints, it appears as a bold, continuous curve or rectangle at the forward edge, often thicker than other lines to denote structural significance. Measure its width: typical arches span 12–20 metres, though older venues may reach 24 metres. Verify by checking for adjacent lighting rigs or tabs; these rarely extend beyond the arch’s vertical plane.
Key Visual Markers
- Search for side tormentors–vertical masking flats flanking the arch’s opening. Their edges align precisely with the arch’s inside face.
- Locate fire safety lines: emergency curtains (smoke pockets) slide directly behind the arch’s bulkhead.
- Confirm sightlines: balcony overhangs, if present, terminate above the arch’s uppermost point to maintain unobstructed viewing.
- Box seats project forward from the arch’s base, confirming its position as the transition zone.
Label conventions demand precision: use “Proscenium Arch” centered above the opening, arrowed terminators pointing to the exact top and side junctures where plaster meets brick or steel. Avoid ambiguous descriptors like “main frame” or “front border.” For thrust configurations, note whether the arch exists as a full surround (rare) or truncated side walls (common). Cross-reference with safety regulations: UK fire codes mandate a minimum 150 mm clearance behind the arch for fireproofing; North American standards specify 100 mm.
