Focus first on the hull, the foundation of any floating craft. The bow, shaped for minimal resistance, cuts through water efficiently–steeper angles reduce slamming in rough seas. Below the waterline, the keel provides stability; a deeper keel resists capsizing but increases draft. Aft, the sternpost reinforces the hull’s rear, often integrating the rudder hinge for precise maneuvering. Bulkheads, strategically placed, divide the vessel into watertight compartments, critical for damage control. Ignore these during design, and even minor breaches can cascade into catastrophic flooding.
Prioritize the superstructure–decks, bridges, and upper works. The main deck bears the brunt of waves; reinforced plating at high-impact zones prevents fatigue cracks. Above it, the bridge houses navigation systems–ensure clear sightlines from the helm to avoid blind spots. Radar domes and antenna arrays mount here, so calculate wind loads to prevent shearing in storms. Solar reflective coatings reduce heat buildup, improving crew comfort and equipment longevity. Overlook these details, and corrosion accelerates, degrading both safety and performance.
The machinery demands meticulous layout. Place engines centrally–longer shafts increase vibration, requiring dampeners. Exhaust funnels should vent away from intake vents to prevent carbon monoxide poisoning. Fuel tanks, isolated from engine rooms, minimize fire risks; secure them with baffles to curb sloshing in swells. Cooling systems, whether keel-cooled or heat exchangers, must handle 110% of maximum thermal output. Fail to calibrate this balance, and overheating will cripple propulsion when reliability matters most–typically during evasive maneuvers or heavy seas.
Cargo holds and ballast tanks define a vessel’s utility. In freighters, double-bottom tanks add buoyancy while storing fuel or ballast. Tankers use cofferdams to separate oil from pump rooms, preventing leaks from reaching living quarters. Container ships rely on cell guides–vertical rails–securing stacks during roll. Without proper securing, even 30-degree rolls can send tons of cargo crashing, destabilizing the vessel. Below decks, access hatches with watertight seals safeguard against progressive flooding. Treat these as secondary only to the hull’s integrity–once compromised, recovery becomes near-impossible.

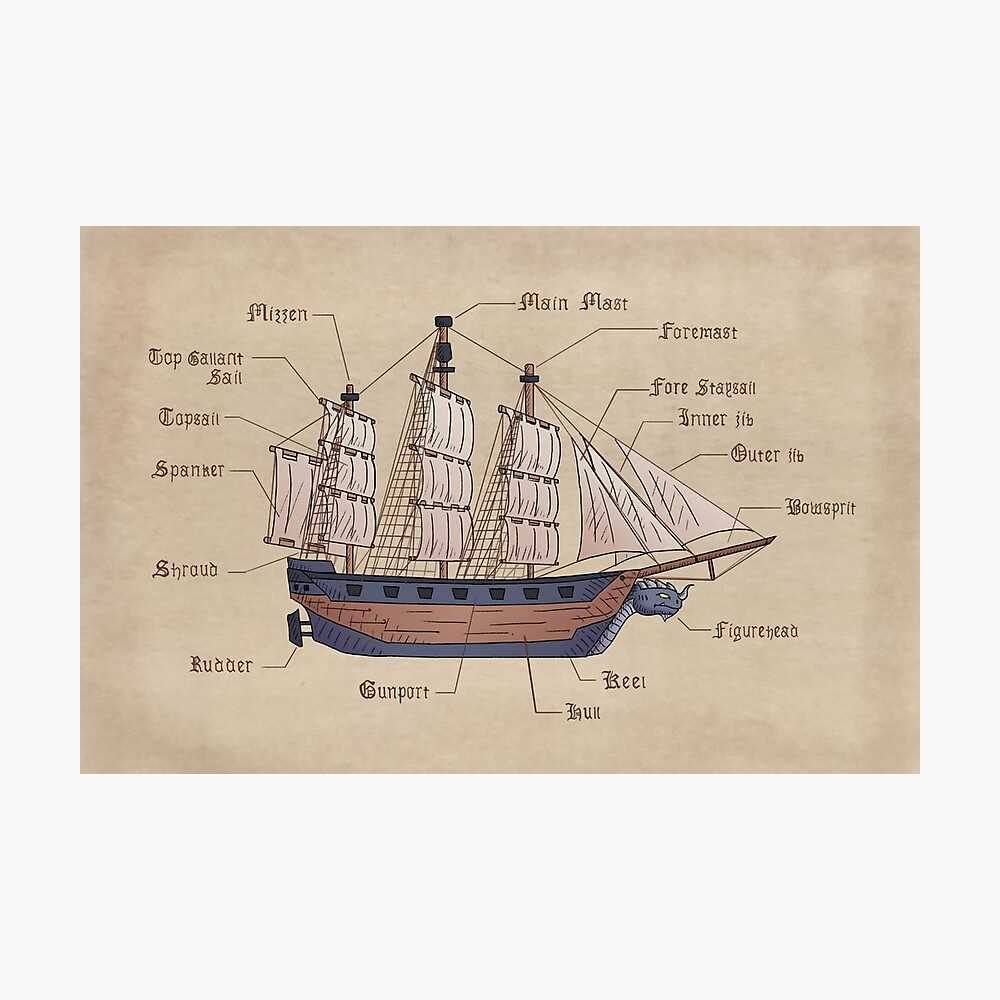

Understanding Vessel Anatomy Through Visual Reference
Start by labeling the bow and stern–these define a maritime craft’s front and rear. The bow slices waves, often reinforced with a bulbous projection below the waterline to reduce drag. Modern designs may integrate hybrid materials like carbon fiber in this zone, cutting weight while maintaining strength. Stern shapes vary: flat transoms improve speed for racing hulls, while round or canoe sterns enhance stability in rough seas.
Mark the hull’s three primary sections:
- Forebody: Extends from the bow to midship, housing anchors, cargo holds in commercial models, or trim tanks in submarines. Wet decks here slope upward to deflect spray, critical in high-speed vessels.
- Midship: The structural core containing the engine room, fuel bunkers, and crew quarters. Naval architects place machinery here to balance weight distribution, with bulkheads reinforcing watertight integrity.
- Afterbody: Houses propulsion systems–propellers, rudders, and skegs. Dual propellers improve maneuverability; skegs protect blades from debris. Ice-class hulls add thickened plating in this area.
Define upperworks clearly. The forecastle rises above the bow, shielding machinery and crew from waves. Midship superstructures–like the bridge–sit amidships for optimal visibility, with radar domes and communication arrays mounted externally. Aft, the poop deck supports winches or cranes, especially in workboats. Passenger liners may feature multiple tiers here for observation lounges.
Critical Below-Deck Components
Below the waterline, label these elements:
- Keel: The backbone running stem to stern, absorbing stresses. Full keels improve tracking but increase draft; fin keels (common in sailboats) enhance agility.
- Bilge: Lowest internal space collecting water. Electric bilge pumps (minimum two, rated for 25+ gallons per minute) should be positioned fore and aft, with alarms for failsafe redundancy.
- Ballast tanks: Adjustable volumes stabilizing vessels. Precision valves control trim; improper loading risks capsizing (e.g., the MV Derbyshire disaster).
- Double bottom: Sandwich structure preventing flooding. Mandatory in tankers to contain spills–spacing between plates should meet IMO MARPOL standards (maximum 3 meters apart).
Highlight propulsion and steering systems. Single-screw configurations dominate for simplicity, while twin screws offer redundancy–critical for icebreakers or tugs. Azimuth thrusters rotate 360° for dynamic positioning, used in offshore rigs. Rudder designs vary: spade rudders excel in agility but require reinforced mounts to handle torque. Electrohydraulic steering systems should include a manual bypass valve for emergency use.
Include safety and utility features:
- Watertight doors: Must close in ≤90 seconds as per SOLAS regulations. Label their locations–forepeak, engine room, and cargo acces.
- Fire boundaries: A60 bulkheads resist flames/fumes for one hour. Mark ventilation dampers and extinguishing zones (e.g., CO₂ flooding systems).
- Escape routes: Two per main compartment, leading to lifeboat stations. Ladders should have non-slip treads and 70cm width minimum.
- Hull appendages: Anti-fouling zinc anodes (≤50g/m² for steel hulls), bilge keels to dampen roll, and sonar domes in naval vessels.
For specialized crafts, adapt labels:
- Container carriers: Cell guides in holds, twistlock sockets on deck.
- Fishing trawlers: Fish wells, net drums, and ice slurry tanks.
- Yachts: Tender garages, passerelles, and carbon-fiber rigging attachments.
- Offshore platforms: Moonpools, heli-decks dimensioned to CAA/JAR-OPS standards (minimum 21m diameter).

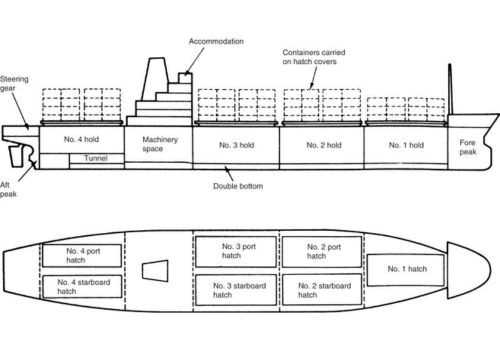

Key Structural Components Visible on a Vessel’s Side Profile
Examine the hull’s forward section first–specifically the stem, the vertical or angled edge where the bow meets the waterline. Modern commercial vessels often integrate a bulbous bow below the waterline to reduce drag by up to 15%, while naval designs favor sharper stems for wave-piercing efficiency. Ensure the stem’s plating matches the hull’s material: high-tensile steel for cargo carriers, corrosion-resistant aluminum for fast ferries.
Trace the forecastle above the main deck, typically extending 10–20% of the vessel’s length from the bow. On container ships, this area houses anchor windlasses and mooring equipment, while warships mount weapons systems here. For optimal strength, reinforce the forecastle deck with transverse beams spaced no wider than 1.5 meters to distribute pontoon loads evenly during heavy seas.
Critical Midship Features
- Midship superstructure: Often错位于机舱上方，占总船长25–40%。商船通常用两层甲板，而客轮使用5～7层以容纳舱室。确保超结构与主甲板的连接使用强力焊接，防止应力集中。
- Freeboard: The vertical distance between the waterline and the upper deck edge–minimum 1.2 meters for general cargo, 3+ meters for passenger vessels. Use Lloyd’s Register formulas to calculate required freeboard:
F = L/35 + (B + D)/2where L=length, B=beam, D=depth. - Hatch coamings: Raised vertical frames surrounding cargo holds, typically 1–1.5 meters tall. On bulk carriers, coamings prevent water ingress during rough weather; reinforce corners with additional stiffeners to handle 5+ tons/m² pressure.
Inspect the quarterdeck at the stern: this flat rear section often supports cranes, lifeboats, or sensor arrays. For offshore supply vessels, maintain a clear area at least 8 meters long to accommodate heavy equipment transfers. The quarterdeck’s plating should match the main deck thickness–minimum 12mm steel for vessels under 150 meters LOA.
- Verify side shell plating thickness gradients: 22mm at the waterline tapering to 14mm at upper strakes for vessels over 200 meters. Use EH36 grade steel for Arctic conditions, AH36 for temperate zones.
- Check bilge keel positioning: 30–45° angle from the hull’s longitudinal axis, extending 1.5–2.5 meters below baseline. Improper alignment increases roll period by 20% and reduces fuel efficiency.
- Assess scupper drain locations: minimum 2 per 30-meter length, positioned 0.3 meters above loaded waterline to prevent backflow during listing.
Analyze the stern frame connecting hull plating to the propeller post. Single-screw vessels require a solid stern frame casting, while twin-screw designs use fabricated frames. Ensure clearance between propeller tips and stern frame exceeds 15% of propeller diameter to prevent cavitation-induced vibrations.
Maintenance Priorities
Prioritize cathodic protection anodes along the waterline zone: zinc for saltwater, aluminum for brackish conditions. Inspect rudder stock bearings annually–replace if clearance exceeds 0.1% of rudder height. For ice-class vessels, reinforce bow sections with thicker plating (30mm+) and additional stringers spaced ≤600mm horizontally.
Key Structural Zones: Bow, Stern, and Hull Functions
Position the bow at the forward-most extremity to slash through waves with minimal resistance. A well-designed entry–angled at 15–20 degrees–reduces drag by 30% compared to blunter profiles, critical for fuel efficiency. Ice-class vessels demand steeper angles (25–30 degrees) to break thick layers without buckling plating. Reinforce the bulbous bow with high-tensile steel (yield strength ≥355 N/mm²) to withstand slamming forces during heavy seas, where impact pressures exceed 2,500 kPa. Avoid excessive flare above the waterline; it amplifies spray, accelerating corrosion on deck fittings.
Stern Configurations by Vessel Type
| Section | Optimal Shape | Primary Function | Material Considerations |
|---|---|---|---|
| Cruise Transom | Square, flat | Maximizes aft deck space; reduces frothy wake | Aluminum alloy (for weight savings) or composite coatings |
| Tug Stern | Round, deep | Enhances thrust via propeller immersion; prevents air drawing at full power | Welded mild steel (Grade A) with cathodic protection |
| High-Speed Catamaran | Semi-displacement | Balances lift and draft for 25+ knots; minimizes wave piercing | Carbon-fiber sandwich panels (core density ≥80 kg/m³) |
Hull integrity hinges on longitudinal framing spaced ≤700 mm in bow sections, tapering to 900 mm amidships. For vessels >200m LOA, employ transverse bulkheads every 25–30 meters to meet SOLAS damage stability criteria (floodable length ≤15% of vessel length). Below the waterline, anodes must cover ≥1.2 m² per tonne of hull steel; zinc anodes corrode at 1.5–2.0 kg/year in temperate zones, doubling in tropical waters. Paint systems demand epoxy primers (250–300 µm DFT) over blasted Sa2.5 surfaces–skip this, and expect 50% accelerated fouling on antifouling topcoats within 18 months.
