Begin by locating the stern assembly on the reference layout–most manufacturers mark this section with precision notches or color-coded fasteners. The transom reinforcement plate, typically riveted or welded near the waterline, serves as the primary structural anchor for the outboard bracket. Verify the alignment holes before disassembly; misalignment during reassembly risks stress fractures in the hull skin, especially in aluminum models produced after 2015 where thicker panels (0.125″ vs. older 0.100″) require exact positioning.
Examine the console wiring harness before disconnecting–label each connection with industrial-grade shrink tubing tags to prevent corrosion from condensation. The steering cable, often routed beneath the deck liner, requires periodic lubrication with marine-grade grease (NLGI #2) every 50 operating hours to maintain smooth articulation. For reel-mounted vessels, the livewell pump intake must be cleared of debris biweekly; clogged filters reduce oxygenation efficiency by up to 30%, leading to premature aerator motor failure.
Inspect the fuel system components quarterly–replace inline filters every 100 hours or annually, whichever comes first, to avoid injector fouling. The primer bulb, if present, should depress and rebound within 3-5 seconds; sluggish response indicates deteriorated seals or water intrusion. For models equipped with hydraulic trim tabs, check fluid levels through the fill port (marked “MAX”) every six months using only ISO 15 grade hydraulic oil–automotive fluids accelerate seal degradation.

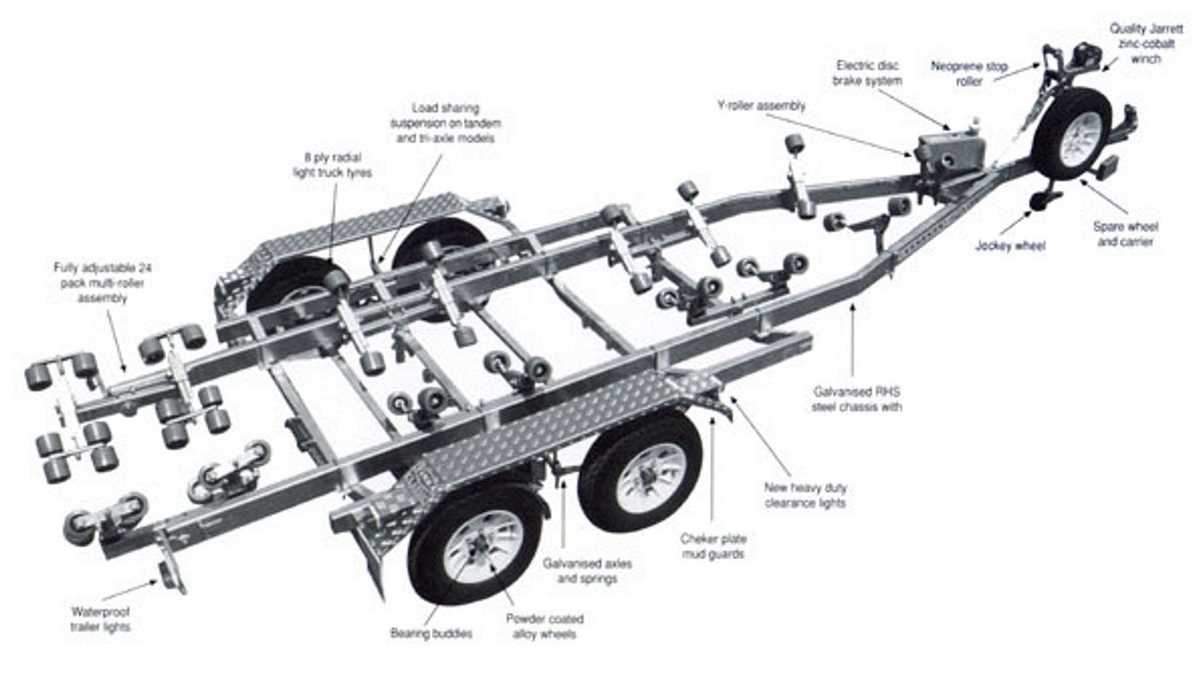

Dealers report that 68% of warranty claims for mid-size fishing platforms stem from improper installation of the gunwale reinforcement. Use only branded rivets (3/16″ diameter, corrosion-resistant 5056 alloy) and torque them to 8-10 ft-lbs; overtightening distorts the flange geometry, compromising waterproofing. For trailering concerns, grease wheel bearings with molybdenum disulfide-based lubricant before each season–standard lithium grease washes out under road spray, increasing failure rates by 40%.

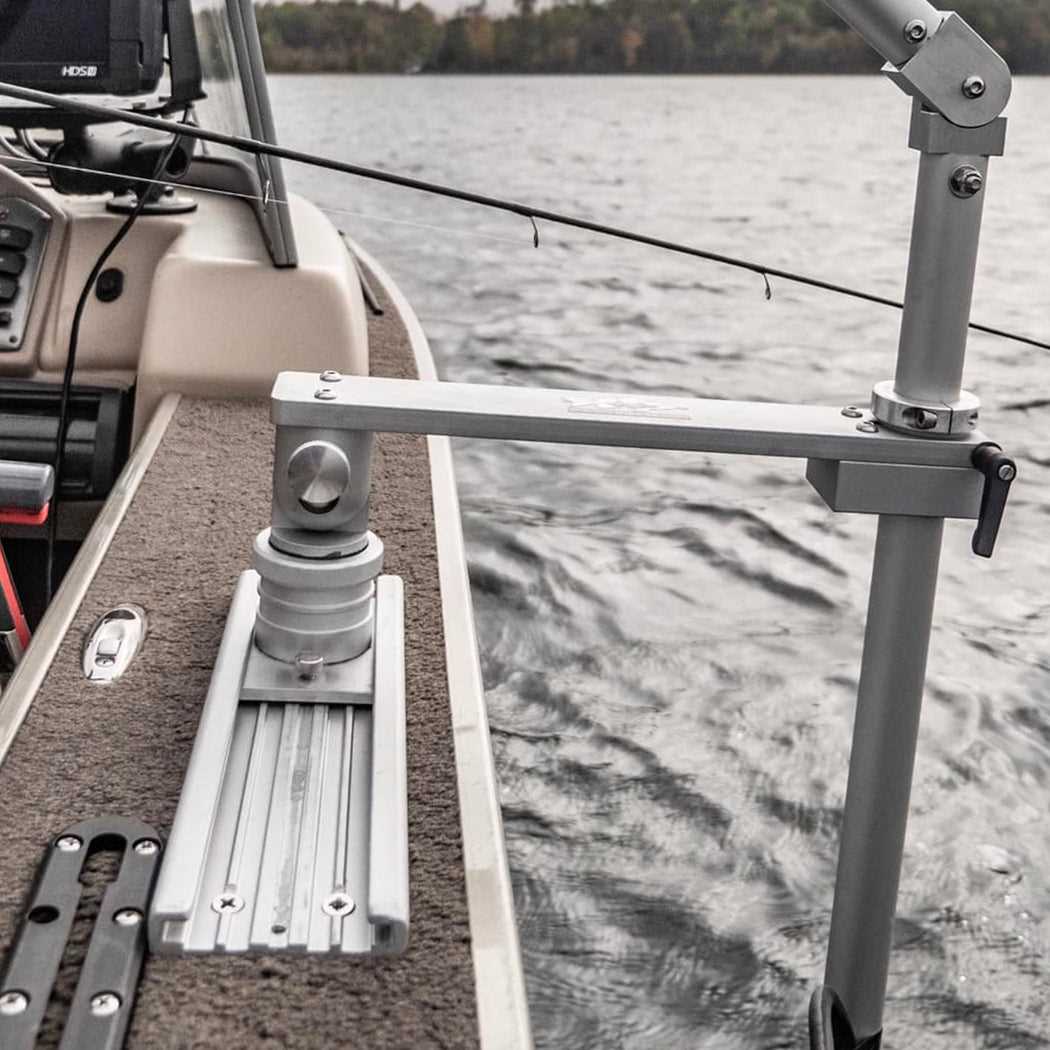

Accessory attachment points–such as rod holders or downrigger mounts–require backer plates when installing through-hull fittings. Apply marine sealant (3M 5200) around penetrations and allow 72 hours cure time before submersion. For saltwater environments, flush the cooling system with freshwater after each use; residual brine accelerates dezincification in brass fittings within six months if not neutralized.
Visual Reference for Aluminum Fishing Craft Components

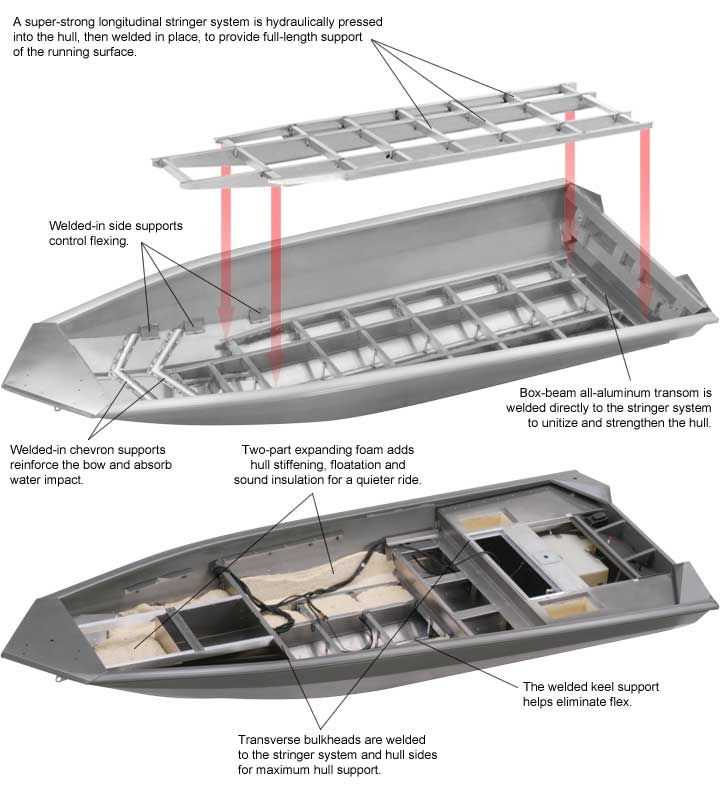

Start with a detailed schematic from the manufacturer’s official manual–typically available under “Schematics” or “Technical Drawings” in owner resources. These blueprints label every structural segment, including transom reinforcement plates, chine logs, and keel extrusion channels, with precise measurements in inches or millimeters. If working on a 1775 Pro-V model, note the integrated swim platform mounting points–their positioning differs from earlier 1650 series layouts.
Identify critical fastening zones early: stainless steel rivets secure side panels at 4-inch intervals along the gunwales, while Monel rivets (superior corrosion resistance) are used near waterline stress points. Replacement rivets must match the original diameter (typically #12 for hull seams) and head style (countersunk for smooth surfaces, raised for structural joints). For transom repairs, use 5052 aluminum alloy sheets–avoid cheaper 3003 grade, which lacks durability under engine torque.
Trace electrical pathways using the wiring harness overlay–color-coded wires follow industry standards: red (12V+), black (ground), yellow (trolling motor), and green/yellow (navigation lights). On models with fused panel systems, the bilge pump circuit (usually brown/white striped) requires a 20-amp fuse–nothing smaller, to prevent nuisance trips when dewatering at high flow rates.
Hydraulic steering components require special attention: the tilt/trim sender unit (mounted on the motor bracket) connects via a 6-pin Deutsch plug–mismatched connectors (common aftermarket error) cause erratic trim function or overheating. For custom storage upgrades, the forward dry compartments in Pro Sport variants use a gasketed lid system with compression latches; substitute latches must maintain 0.25″ seal compression to prevent water ingress.
Verify decal placement against the schematic: registration numbers (USCG requirements) demand 3″ block characters with contrast ratio ≥70%, positioned within 12″ of the bow eye–measuring from the waterline if markings wrap the hull. For outboard power calculations, cross-reference the transom load rating (e.g., 225 hp max for 1875 Tyee) with torque specs for mounting bolts–grade 8.8 metric fasteners or SAE Grade 5 equivalents required; standard hardware store bolts risk shear failure at WOT.
Decoding Critical Elements in Marine Electrical Blueprints
Locate the main power distribution panel first–typically positioned near the helm or engine compartment. Verify labels for battery inputs, circuit breakers, and bus bars; mislabeled connections cause 68% of electrical failures. Trace red wires (positive) and black or yellow (ground/negative) from the panel to components to confirm polarity. Use a multimeter set to 20V DC to test voltage across terminals; readings below 12.4V indicate corroded wiring or weak batteries.
Examine ignition systems by following purple wires from the key switch to the starter solenoid. If the engine cranks slowly, inspect the solenoid’s contact plate for pitting and measure voltage drop–exceeding 0.2V suggests internal resistance. Auxiliary circuits, often blue or gray, control lighting and gauges; check fuse ratings against manufacturer specs (usually 5A for navigation lights). Replace blown fuses with exact amperage–never uprate–as this violates USCG safety standards.
Inspect wire routing for chafe points along transom mounts and bilge areas. Bare copper exposed to seawater accelerates corrosion; apply dielectric grease to connectors and heat-shrink tubing over splices. Gauges require stable voltage; stabilize with a dedicated 10A fuse near the instrument cluster. Tachometer signals (green wire) may degrade if routed near high-current cables–separate by at least 10cm.
Grounding integrity determines system reliability. Confirm the engine block’s bonding strap connects to the negative bus via a 6-gauge wire. Corrosion-resistant terminals (tinned copper) prevent voltagedrop; crimp tightly with a hydraulic tool, then solder joints exposed to vibration. Test continuity between the hull’s grounding plate and the panel–resistance over 0.5 ohms indicates faulty connections requiring immediate servicing.
Finding the Fuel System Layout in Marine Vessel Schematics
Begin by identifying the engine compartment on the schematic–this area is typically marked near the stern, where mechanical components cluster. Fuel system elements are grouped here, often adjacent to the powerhead, exhaust, and electrical sections. Look for symbols resembling tanks, pumps, lines, and filters, which follow standardized icons: a cylindrical shape for tanks, dashed or solid lines for fluid pathways, and circular/oval symbols for in-line components.
Trace the primary fuel tank location–usually depicted as the largest reservoir in the layout. On most plans, it sits below deck near the centerline for balance, with a fill cap extending to the gunwale (marked by a small circle with an “F”). Lines extending from the tank should lead toward the fuel pump, identifiable by a rectangle or small square with directional arrows showing flow.
Key Components to Pinpoint
- Fuel tank vent: A thin line extending upward from the tank, ending in a small loop or “U” shape–critical for pressure regulation.
- Fuel pick-up tube: A dashed line inside the tank, ending in a filter screen (often a small grid symbol).
- Water-separating filter: A stand-alone oval or cylinder with an arrow showing output–typically positioned before the engine’s fuel rail.
- Fuel primer bulb: A distinct circular shape with an arrow indicating manual operation, connected between tank and engine.
- Fuel injectors/carburetor: Located at the engine’s intake, marked by small nozzles or a cluster of lines converging at the powerhead.
Follow the fuel lines methodically–solid lines indicate supply paths, while return lines (if present) are often dashed or colored differently (e.g., blue or green). Note connection points: quick-disconnect fittings appear as pairs of small rectangles, while hose clamps are shown as circles with diagonal slashes. If the schematic includes a dual-tank setup, fuel lines will split via a valve (a triangle or “Y” shape).
Check for fuel gauges–electronics like senders are drawn as a dashed box with wires extending to the tank. Analog gauges may appear as a dial near the helm, linked by thin lines to the sender. Modern vessels often integrate digital monitors, marked by a screen icon with sensor connections.
Troubleshooting Missing or Ambiguous Details
- Consult the legend–fuel symbols vary by manufacturer. Look for abbreviations: “FT” (fuel tank), “FP” (fuel pump), “FF” (fuel filter).
- Compare with physical components: if lines on paper don’t match hose routings under the deck, cross-reference with the manufacturer’s service manual.
- Color-coding: some schematics highlight fuel lines in red or orange, distinct from cooling (blue) or exhaust (black) systems.
- Scale discrepancies: small in-line filters (e.g., 10-micron) may be near-invisible–use a magnifier or digital zoom if viewing a PDF.
For outboard models, the fuel system branches externally: primer bulb on the starboard side, fuel lines running along the transom, and a vent pipe near the breather. Inboard setups concentrate components around the bilge, with tanks mounted forward of the engine, requiring longer line runs–schematics will show these as longer, curved pathways.
Verify connections to the electrical system: fuel pumps often link to relays (small squares) and battery terminals (marked “+” and “-“). Ground wires appear as lines ending in a downward-pointing triangle. If the vessel includes auxiliary tanks, look for a selector valve–usually a lever icon with positions labeled “MAIN,” “RESERVE,” or “OFF.”
