Start by locating the outdoor compressor unit–critical for heat exchange. The condensing coil wraps around its exterior, often concealed behind a protective grille. Remove the grille cautiously to avoid damaging the thin aluminum fins. Inspect for debris or corrosion along the coil, particularly near the bottom where moisture accumulates. If resistance readings from the capacitor exceed ±6% of its rated value (e.g., 35 μF for a 30 μF unit), replace it immediately to prevent compressor failure.
The indoor air handler divides into three primary sections: the blower assembly, evaporator coil, and electronic controls. The blower wheel, typically a cross-flow or centrifugal type, mounts directly behind the filter access panel. Remove the filter first–a clogged filter reduces airflow by up to 30%, forcing the system to overwork. If the wheel shows signs of imbalance (unusual noise or vibration), check the motor shaft for wear; most models use a 24VDC shaded-pole motor with a lifespan of 8-12 years under normal conditions.
Electrical diagnostics require a multimeter set to continuity mode. Test the thermistor’s resistance at room temperature (25°C); values should align with the manufacturer’s chart (±10%). Common models use NTC (negative temperature coefficient) thermistors–deviation indicates a faulty sensor, often causing erratic cooling cycles. For the PCB, inspect solder joints for microfractures, especially near high-current relays. Failed relays create a distinct “clicking” noise; replace the entire board if overheating discolors components near the power supply regulator.
Refrigerant lines demand precise handling. The liquid line (smaller diameter) connects to the indoor unit’s expansion valve, while the larger suction line carries vapor back to the compressor. Check insulation integrity–moisture infiltration accelerates corrosion in copper tubing, leading to leaks. Use an electronic leak detector (sensitivity
Reassembly requires torque specifications. Over-tightening flare nuts (exceeding 12-15 ft-lbs) warps the sealing surface, while under-tightening risks refrigerant escape. Apply a thin layer of refrigerant oil (e.g., POE 32) to new O-rings before installation. For fan motors, lubricate sleeve bearings with SAE 20 non-detergent oil annually–failed bearings account for 18% of service calls. Always verify line sets are level; improper slope traps oil in the horizontal run, starving the compressor of lubrication.

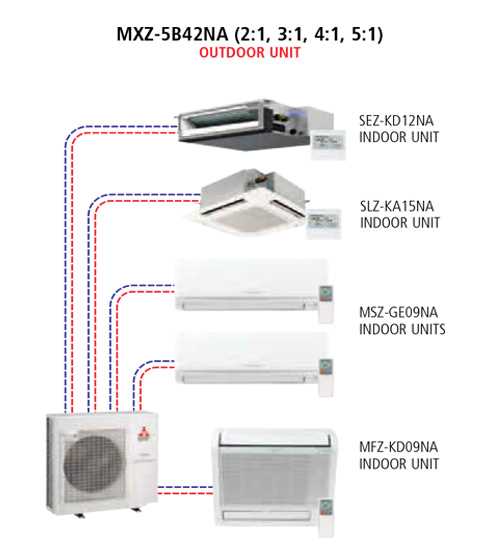

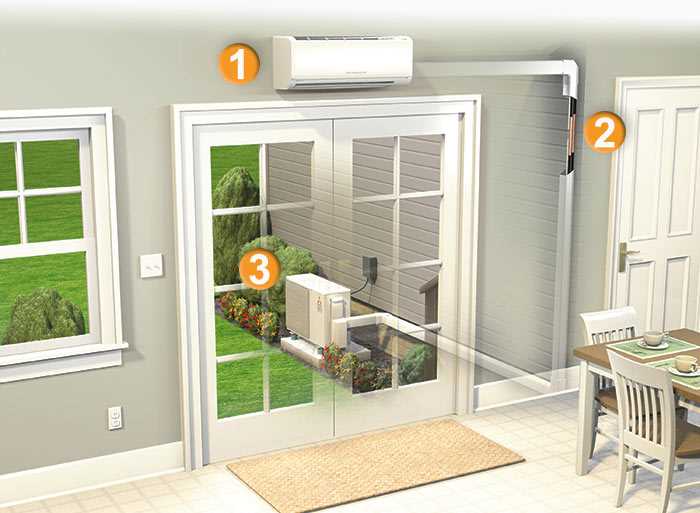

Understanding Your Climate Control System’s Internal Layout
Begin by locating the indoor unit’s blower assembly–typically housed behind the front grille. Remove the screws securing the cover to access the evaporator coil, drain pan, and air filter. The evaporator coil (model numbers MUZ-A09NA, MSZ-A12NA, or MSZ-FH18NA) connects to refrigerant lines via flare nuts; check for torque specs (18-22 ft-lbs) to prevent leakage. Label each component’s position with painter’s tape before disassembly to ensure correct reassembly–mismatched alignment can cause airflow obstruction or cooling inefficiency.
For the outdoor condenser, focus on the compressor and fan motor (part codes KM09Y-03361 and KM09Y-03363). The fan blade should have a minimum clearance of 3mm from the shroud to avoid vibration damage. Use a multimeter to test the start capacitor (rated 35-50µF, 450V)–a faulty capacitor will show infinite resistance. The expansion valve (TXV, model SUZ-KA09NAC) regulates refrigerant flow; clean its bulb sensor with isopropyl alcohol if frost patterns appear uneven across the evaporator.
Critical Elements Inside Climate Control Wall-Mounted Units
Locate the evaporator coil first–it’s positioned behind the front grille, typically secured by clips or screws. Dust accumulation here reduces airflow, forcing the system to work harder. Use a soft brush or low-pressure air to clean the fins without bending them. Check for corrosion or frost buildup, which indicates refrigerant issues or a faulty defrost cycle.
The blower wheel sits adjacent to the coil and requires inspection every 6–12 months. Remove the front panel to access it–spin the wheel manually to detect wobbling or debris lodged between blades. Unbalanced wheels create excessive noise and vibration, wearing out the motor bearings prematurely. Lubricate the motor ports with manufacturer-approved oil if specified in the technical manual.
- Air filter: Usually a slide-out mesh or pleated panel near the intake. Replace or wash every 30–60 days depending on usage–clogged filters drop efficiency by 10–25%.
- Thermistor: Mounted near the coil or drain pan. Measures temperature and triggers defrost cycles. Test resistance with a multimeter against the unit’s specs (±5% tolerance).
- Drain pan: Positioned below the coil to collect condensate. Ensure the pan isn’t cracked and the drain tube is clear–algae growth can cause overflow.
Examine the control board last–it’s often behind a service panel on the right side. Look for burnt components, swollen capacitors, or loose connections. Capacitors should read within 10% of their rated microfarads; anything lower requires replacement. PCB traces can corrode over time–clean with isopropyl alcohol and a cotton swab if oxidation is visible.
Locating and Understanding the Outdoor Compressor Unit’s Core Components
Begin by identifying the compressor–the heart of the external assembly–positioned at the rear or side, depending on the model variant. This cylindrical or rectangular metal block operates under high pressure and is typically encased in a protective housing with cooling fins. Check for the manufacturer’s label near the refrigerant lines for exact specs: common R410A or R32 systems require specific torque values (e.g., 35–55 Nm) when servicing connections.
Key components to inspect:
- Condenser coil: Wrapped around the compressor, usually aluminum or copper tubing with thin fins spaced 1.5–3 mm apart. Clean with low-pressure water (max 1,500 PSI) at a 30° angle to avoid bending fins.
- Fan assembly: Axial blade configuration (typically 9–12 blades) with a motor rated 20–50 W. Listen for unusual humming–bearings may need lubrication if friction exceeds 45 dB.
- Expansion valve (or capillary tube): Located near the refrigerant inlet/outlet. Frost accumulation here signals clogging; require evacuation and nitrogen purge at 200–300 PSI.
- Terminal block: Houses electrical connections–verify wire gauge (12–14 AWG for 20–30A circuits) and torque screws to 1.5–2.0 Nm to prevent arcing.
Locate the service ports (larger liquid/gas, smaller for pressure testing) on the refrigerant lines–use a manifold gauge set with color-coded hoses (red/blue/yellow) to measure subcooling (8–12°F for R410A). The defrost control board, if equipped, is mounted behind a removable panel; reset button resets after 120 minutes if frost sensors detect 45 minutes.
Troubleshooting Without Disassembly
- Check for debris blockages–leaves, dust, or insect nests reduce airflow by up to 30%. Clear intake vents with a soft brush or compressed air (
- Inspect the fan blade for cracks–even a 2 mm chip unbalances rotation, causing vibration at 500–700 RPM thresholds.
- Measure capacitor voltage–start capacitors (35–60 μF) should read within ±5% of labeled value. Replace if bulging or leaking oil.
- Verify condenser coil temperature drop: inlet (100–130°F) minus outlet (85–100°F) = 15–30°F ΔT. Values outside this range indicate restriction or low refrigerant.
Step-by-Step Guide to Accessing and Replacing the Air Filter
Power off the indoor unit using the remote control or wall switch to prevent airflow disruption. Locate the front grille–typically held by clips or screws–on the central air handler. Release the fasteners with a screwdriver (Phillips #2 for most models) or press the tab locks inward if no tools are required. Lift the grille upward and set it aside; avoid forcing it to prevent bending the mounting brackets.

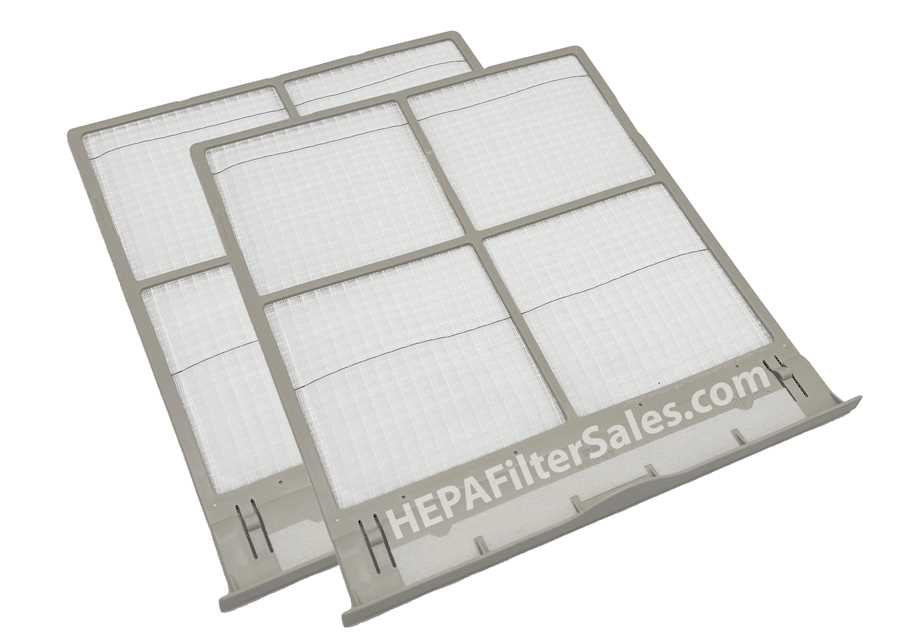

Slide the foam or mesh filter out from its slot, noting its orientation–arrows printed on the frame indicate airflow direction. For reusable filters, rinse under lukewarm water (max 35°C) with mild detergent, shake off excess moisture, and air-dry completely (minimum 12 hours) before reinstalling. Disposable filters should be replaced every 3–6 months, depending on usage; check the manufacturer’s label for the recommended type (e.g., MERV 8–11 for residential units).
Align the new or cleaned filter with the guides inside the unit, ensuring the airflow arrows point toward the blower. Reattach the front grille by reversing the removal steps–press firmly on all sides to secure the clips or tighten screws to 3 Nm torque. Restore power and test operation for 5 minutes to confirm proper airflow; listen for unusual noises which may indicate misalignment.
Troubleshooting Common Issues Using the Wiring Schematic
Locate the indoor unit’s terminal block first–marked as TB1–where the primary power and communication lines converge. Verify 230V AC between L (live) and N (neutral) using a multimeter; readings below 220V indicate voltage drop issues in the supply circuit or faulty connections at the breaker panel. If voltage appears stable, proceed to check the signal wires (S1, S2) for 12V DC–absence suggests a defective control board or interrupted low-voltage loop.
Examine the outdoor compressor’s capacitor by discharging it through a 20kΩ resistor before testing. Compare the measured microfarads (µF) against the nameplate rating; deviations exceeding 10% confirm failure. If the capacitor checks out, probe the start and run windings of the compressor motor (resistance below 1Ω or above 20Ω typically indicates shorted or open windings). For inverter-driven models, inspect the DC bus voltage at the inverter bridge–readings should stabilize between 320V and 350V DC after startup.
Thermostat miscommunication often stems from incorrect wiring at the wall unit. Cross-reference the colored wires (R, Y, G, W, C) with the schematic’s terminal assignments:
| Wire Color | Terminal | Expected Signal |
|---|---|---|
| Red (R) | 24V Power | 22-26V AC |
| Yellow (Y) | Cooling Call | 0-5V DC (active) |
| Green (G) | Fan Relay | 0V or 12V DC |
| White (W) | Heating Call | 0-5V DC (active) |
| Blue (C) | Common | Ground reference |
Voltage discrepancies on Y or W suggest a defective relay or thermostat.
Blower motor failures frequently result from thermal overload trip. Reset the motor’s internal protector by unplugging the system for 30 minutes–if the issue persists, measure winding resistance (standard range: 5-20Ω for ECM motors). For PSC motors, confirm the capacitor’s phase shift (typically 4-8µF) and ensure the run capacitor maintains voltage after disconnecting power (bleed-off should occur within 60 seconds).
Defrost cycle malfunctions link to either the defrost thermostat or the reversing valve solenoid. At temperatures below 32°F, probe the thermostat’s closed contacts for continuity–open circuits require replacement. Verify the solenoid’s 24V AC activation signal using a non-contact voltage tester; absence indicates a faulty defrost board or misrouted wiring from the PCB.
Communication errors between indoor and outdoor units manifest as flashing LED codes. Decode the sequences using the schematic’s legend:
- Solid red: Normal operation standby
- 1 flash: Indoor sensor fault
- 2 flashes: Outdoor sensor fault
- 3 flashes: DC bus voltage error
- 4 flashes: IPM (inverter module) protection
Trace the corresponding data line (typically a twisted pair labeled A and B or TX/RX) with an oscilloscope–waveform distortions point to corroded connectors or severed wires.
High-pressure cutout trips often correlate with clogged condenser coils or refrigerant issues. Test the cutout switch’s continuity while the system runs–if it opens intermittently, clean coils with a fin comb and check refrigerant pressures (ideal: 275-325 PSI on the high side). Low pressures suggest undercharge; verify subcooling (10-15°F for R410A) against superheat (5-20°F) to isolate leaks or metering device faults.
When replacing any module, ensure static discharge precautions–ground yourself and handle PCBs by the edges. Desoldering sensors or capacitors requires a temperature-controlled iron (350°C max) to avoid trace damage. After installation, recalibrate sensor offsets via the service menu (accessed by holding the MODE and UP buttons for 5 seconds) to restore baseline readings.
