Start by identifying the model year and serial number of your cart–these details dictate compatibility for replacement units. Locate the serial plate, typically mounted beneath the driver’s side dashboard or near the rear axle housing. For pre-2015 models, the carburetor assembly follows a single-barrel configuration, while 2016 and newer variants integrate a dual-throttle body setup. Verify the engine displacement; 286cc and 350cc engines demand distinct fuel pumps, air filters, and ignition coils. Misalignment here leads to poor performance or component failure.
Consult the manufacturer’s official service manual for torque specifications–exhaust manifolds require 18-22 ft-lbs, while cylinder head bolts demand a staged tightening sequence starting at 10 ft-lbs, increasing incrementally to 25 ft-lbs. Avoid aftermarket gaskets unless explicitly rated for high-compression applications; OEM seals (part #X-43928 for head gaskets) maintain consistent sealing under 2,500+ RPM loads. For fuel system repairs, replace the inline fuel filter (part #Y-58214) every 100 operating hours or when pressure drops below 3.5 PSI.
Electrical troubleshooting begins with the voltage regulator. On 2010-2019 models, check the rectifier (part #Z-37562) for heat damage–discoloration indicates diode failure. The starter motor (part #A-62415) should draw no more than 120 amps during engagement; higher readings point to worn brushes or armature issues. Use dielectric grease on all connector terminals to prevent corrosion, particularly in humid climates where condensation accelerates oxidation.
For braking systems, measure pad thickness–replace at 3mm or less. Rear drum brakes (part #B-71923) require shoe adjustment every 50 hours or when pedal travel exceeds 2 inches. Hydraulic lines must meet SAE J1401 standards; aftermarket rubber hoses degrade under ethanol-blended fuels, causing spongy pedal feel. Always flush the system with DOT 3 brake fluid when servicing.
Exhaust components corrode faster with short-trip usage. Inspect the muffler (part #C-82911) for internal baffle collapse–audible popping during deceleration signals backpressure buildup. Replace gaskets (part #D-28456) if exhaust leaks are detected near the manifold junction. For cold-weather operation, ensure the choke cable (part #E-47362) engages fully; a stuck choke enriches the mixture, fouling spark plugs within 20 minutes of idling.
Practical Reference for Golf Cart Component Mapping

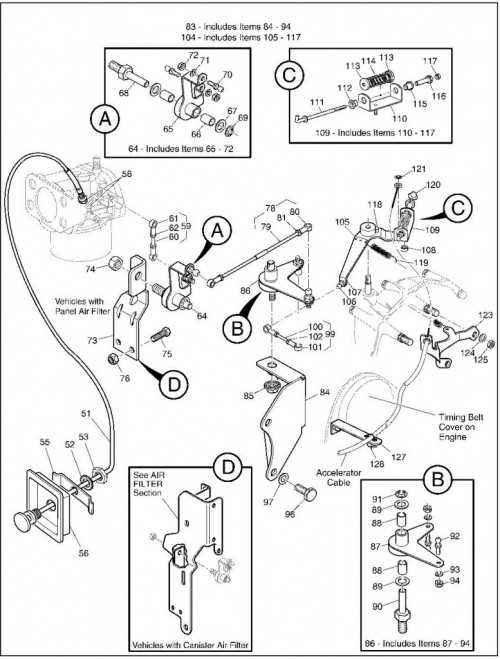

Begin by locating the engine assembly schematic–typically found beneath the seat or inside the service manual cover. The carburetor linkage should be your first checkpoint; verify its alignment with the throttle cable using a 7/16-inch wrench. Misalignment here causes irregular idling or stalling, especially on inclines.
Examine the fuel pump next. A clogged filter (part #K5820) restricts flow, leading to hesitation during acceleration. Replace it every 100 operating hours, even if the mesh appears clean–microscopic debris accumulates over time. Pair this with an inline pressure gauge to confirm output never drops below 3.5 psi.
For the exhaust system, trace the routing from the manifold to the muffler. Corrosion at connection points (common near the rear axle) creates rattling or loss of power. Apply high-temperature silicone sealant (e.g., Permatex 26B) to threads before reassembly–this prevents seizing in future disassembly.
The brake assembly diagram is critical for troubleshooting uneven pad wear. Measure both rear calipers: a difference exceeding 0.5mm indicates a faulty slave cylinder. Bleed the system using DOT 4 fluid, starting with the wheel furthest from the master cylinder. Avoid reusing copper washers–they compress permanently after one use.
Inspect the rear leaf springs by marking their position with a paint pen before removal. Uneven sagging often stems from fractured shackles (part #G234), not worn springs. Lubricate bushings with graphite powder–never grease, which attracts dust and accelerates wear. Test ride after adjustment should show no “clunking” noises under 15 mph.
For electrical components, a multimeter is indispensable. Check the voltage regulator by probing the battery terminals while the engine runs–readings should stabilize between 13.8–14.4V. Any fluctuation suggests a failing alternator diode; replace the rectifier assembly as a unit (never attempt individual diode repairs).
When reassembling, torque all fasteners in a star pattern using a calibrated wrench. Critical values: flywheel nut (90 ft-lbs), exhaust manifold bolts (25 ft-lbs), and wheel lugs (75 ft-lbs). Label removed components with their original position (e.g., “left caliper, outer pad”)–this eliminates trial-and-error during reinstallation.
Finding the Powerplant Layout for Your Electric Golf Cart Variant
Start by accessing the official manufacturer’s service manual for your 2000–2024 vehicle. Navigate to the “Technical Resources” section under the support portal–use your serial number to filter results. The engine assembly is typically listed under “Chapter 3: Propulsion System” or “Section 4: Mechanical Components,” depending on the model year. Manuals for 2010–2015 units may label this section as “Primary Drive Unit,” while 2016+ variants often rebrand it as “Core Power Module.”
For immediate visual reference, download the exploded-view PDF from the OEM’s dealer-only portal. If access is restricted, third-party aggregators like GolfCartKing or Partstree offer alternative schematics–verify the vendor’s credibility by cross-checking part numbers against the original documentation. Note that schematics for 8-volt and 12-volt configurations differ in crankshaft orientation and carburetor placement, despite similar external housing.
Key Components to Identify
| Component | OEM Part Code (2018–2024) | Location on Layout |
|---|---|---|
| Cylinder Head | 19057G01 | Top-right quadrant, adjacent to exhaust manifold |
| Flywheel | 19165G02 | Below magneto, enclosed by cover plate |
| Governor Linkage | 28011G10 | Front-left side, connected to throttle body |
| Piston Assembly | 19060G05 | Central shaft, beneath cylinder head |
If printed schematics are unavailable, direct measurement of your cart’s engine bay yields critical data. The 344cc single-cylinder block is positioned 14 inches from the rear axle on pre-2020 models, shifting to 12 inches on 2021+ units due to frame revisions. Use a digital caliper to confirm bore diameter (70mm) and stroke length (90mm)–deviations suggest aftermarket modifications or wear.
For offline access, extract the schematic from a physical parts catalog. Retailers often include fold-out layouts in the appendix–search for “Model-Specific Engine Breakdown” or “Drive System Exploded View.” Key identifiers: the carburetor is labeled as “Air-Fuel Mixing Unit” (pre-2015) or “Vapor Inlet Assembly” (2016+), while the camshaft appears under “Timing Gear Set.” Mislabeling occurs in knock-off manuals; always validate with a torque specification table (e.g., cylinder head bolts: 18 ft-lbs).
Alternative Verification Methods

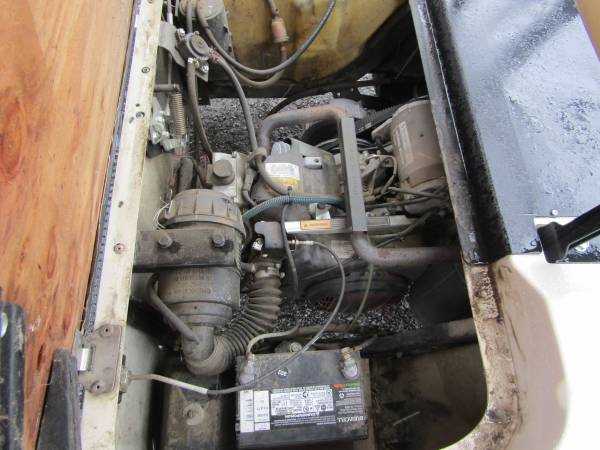

When digital and printed sources fail, disassemble the cowl panel to expose the engine housing. Mark each component with a paint pen before removal–use the serial plate on the crankcase (located above the dipstick) to trace the correct OEM catalog. The ID code, formatted as “TX-YYYY-XXXXX” (Y=year, X=sequence), directly links to the exact schematic via cross-reference tools like Partstree or GolfCartPartsDirect. Ignore generic layouts; even minor year-to-year changes (e.g., 2014 vs. 2015 governor springs) affect reinstallation tolerances.
Identifying Key Components in the Fuel System Schematic
Locate the carburetor first–positioned near the engine block–marked by a small, metallic housing with intake and outlet ports. Verify its model by checking the manufacturer’s stamp, typically found on the side or underside. Common variants include float-type or diaphragm models, each requiring distinct maintenance steps. A clogged carburetor often causes erratic idling or failure to start; inspect the jets and passages with compressed air rather than metal tools to avoid damage.
The fuel pump appears as a rectangular or cylindrical unit attached to the engine or frame, connected by two fuel lines. Mechanical pumps feature a lever or diaphragm actuated by engine vacuum, while electric versions include wiring. Test operation by disconnecting the outlet line and cranking the engine–fuel should pulse steadily. Weak flow indicates a failing diaphragm or sediment accumulation; replace the pump if pressure drops below 2-4 PSI.
Fuel Filter and Lines
Trace the fuel lines from tank to engine, noting the inline filter–usually a small cylindrical canister with brass fittings. Replace filters annually or if fuel starvation occurs; sediment inside accelerates wear on the carburetor. Use ethanol-compatible lines (marked “SAE J30R9”) for lasting durability; avoid vinyl tubing, which degrades under fuel exposure. Crimping or cracking in lines demands immediate replacement to prevent air leaks or fuel seepage.
The fuel tank occupies the rear chassis, secured by straps or brackets. Check for corrosion along seams and the filler neck, especially in older units. Drain sediment through the petcock or low-point drain; yearly flushing prevents varnish buildup. Vents in the cap must remain unobstructed–blockages create vacuum locks, stalling fuel flow. If rust is present, coat interior surfaces with a fuel-compatible sealant after thorough cleaning.
Examine the throttle linkage and choke assembly next. The choke plate on the carburetor should move freely between open and closed positions when manually actuated. Sticky linkage or cable tension often mimics fuel issues; lubricate pivot points with dry-film lubricant. Adjust idle and mixture screws according to service manual specifications–typically 1.5 to 2.5 turns out from seated for baseline settings. Incorrect adjustments cause hesitation or black smoke emissions.
Diagnostic Checks
Use a fuel pressure gauge to test pump output; connect it between the pump and carburetor inlet. Normal readings fall between 3-6 PSI for most models. Low pressure signals pump failure, while high pressure indicates a blocked regulator or return line. For carburetors, spray carb cleaner into the air intake during cranking–if the engine starts momentarily, the issue lies upstream in the fuel delivery system.
Inspect electrical connections for fuel injectors (if equipped) or ignition components. Corrosion on terminals disrupts current, mimicking fuel problems. Clean contacts with dielectric grease, but avoid excessive application near moving parts. Replace spark plugs if fouled with dry or wet deposits–consistent fuel mixture issues often trace back to ignition irregularities.
