Replace the combustion chamber assembly (Part #100-1018) every two heating seasons if the unit operates above 8 hours daily in chlorinated conditions. High-cycle environments corrode nickel-plated steel faster; inspect the flame rollout switch (Part #100-1020) at six-month intervals to prevent false shutdowns.
Ensure the gas valve assembly (Part #100-1022) maintains an inlet pressure between 7–10 inches W.C. for natural gas or 11–14 inches W.C. for propane. Deviations beyond ±1 inch trigger error code IF; recalibrate annually using a U-tube manometer with ±0.1-inch precision. The igniter electrode (Part #100-1024) requires a 0.125-inch gap from the pilot tip–adjust with a non-marring brass feeler gauge to avoid ceramic fracture.
Flow sensor ducts (Part #100-1026) tolerate a minimum 40 GPM for 250,000 BTU models. Below this threshold, overheating trips OP; verify pump impeller integrity if baseline flow dips. Clean stainless steel tubes in the heat exchanger bundle yearly–use a nylon brush rated 60 grit or softer to prevent pitting. Scale buildup exceeding 0.02 inches degrades efficiency 3% per metric ton of dissolved solids.
When servicing the control panel (Part #100-1028), disconnect the 110V power bus first. Capacitors hold lethal charge; discharge through a 5-kilohm resistor before probing traces. Faulty relays (30A, SPST) cause sporadic ignition failures–swipe contacts with DeoxIT D100, never WD-40.
Substitute identical OEM seals with Viton equivalents only. Buna-N compounds degrade above 160°F and swell under bromine exposure. Replace the combustion blower wheel (Part #100-1030) every five years; blades warp under 60 Hz vibration–balance within 2 grams tolerance using a bubble-level attachment on a V-block jig.
Understanding the Components Layout for Gas-Powered Water Heating Equipment
Locate the combustion chamber assembly first–it sits at the unit’s core, typically framed by a rectangular housing made of corrosion-resistant metal. Inside, you’ll find the burner tray, where gas ignition occurs, and the flame sensor, positioned near the center for optimal detection. Verify the sensor’s alignment with the burner ports before proceeding; misplacement leads to erratic shutdowns.
Critical Internal Mechanisms and Their Positions
Trace the gas valve’s path starting from the inlet pipe near the base. The valve regulates fuel flow into the manifold, which distributes gas evenly across the burner tray. Adjacent to the valve, identify the pressure switch–its tubing connects to the combustion chamber to confirm proper ventilation. A faulty switch triggers automatic shutdowns; test continuity with a multimeter if issues arise.

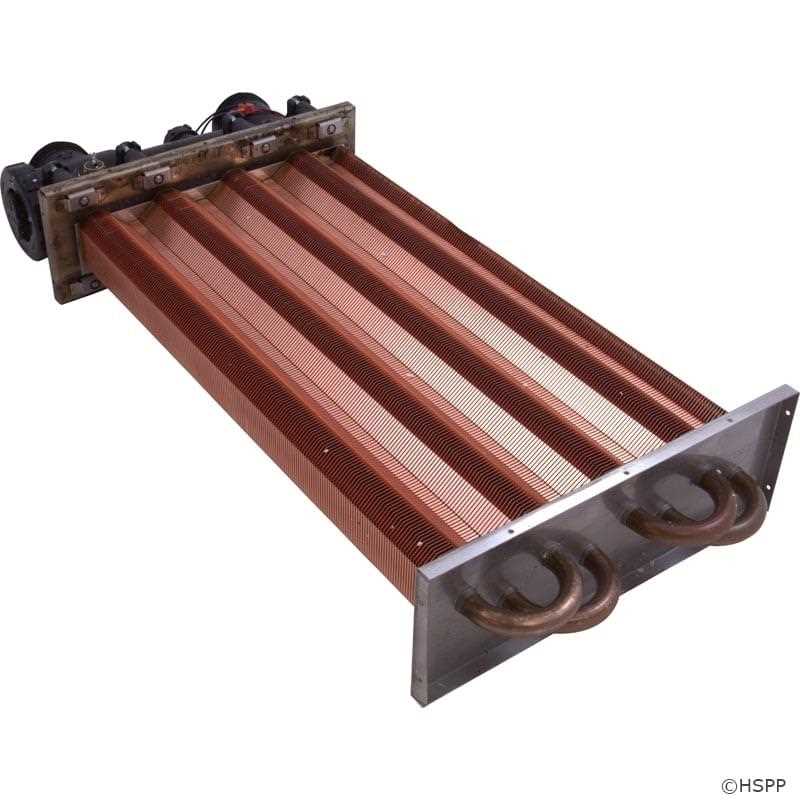

The heat exchanger occupies the upper section, constructed from cupronickel for thermal efficiency. Inspect the finned tubes for scaling or corrosion, as debris buildup reduces heating performance. Below the exchanger, the blower motor forces air through the chamber; ensure its impeller spins freely and that the fan blade is unobstructed. Lubricate the motor bearings annually if not sealed.
On the control panel side, find the igniter–either a spark electrode or hot surface model–and its wiring harness. Check for cracks in the ceramic base or carbon deposits, as either disrupts ignition. Nearby, the safety high-limit switch monitors temperature; if the unit overheats, it cuts fuel supply immediately. Reset it manually after cooling if tripped.
Examine the exhaust venting system, starting with the draft hood atop the unit. Ensure the flue passages are clear, as blockages cause carbon monoxide buildup. The vent pipes should slope upward at least ¼ inch per foot for proper drainage. Replace corroded sections promptly–galvanized steel deteriorates faster than stainless steel alternatives.
External Components and Routine Maintenance Access Points
Identify the condensate drain near the bottom–blockages here lead to water backup into the combustion chamber. Flush it quarterly with vinegar to dissolve mineral deposits. On the exterior, the thermostat probe extends into the water line; its sleeve must sit tight to avoid inaccurate readings. Calibrate the probe if temperature fluctuations exceed ±2°F.
Finally, inspect the door gasket for gaps; a compromised seal lets cold air infiltrate, reducing efficiency. Replace worn gaskets using high-temperature silicone adhesive. Keep a spare fuse (typically 5x20mm) on hand–the control circuit uses a dedicated fuse that blows during power surges.

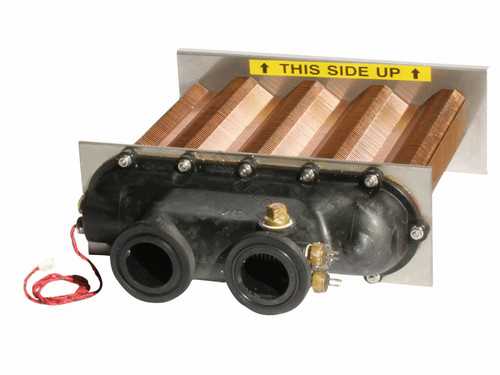

Finding the Right Schematic for Your H-Line Heat Exchanger Variant
Start by identifying the exact model number printed on the unit’s data plate–typically located on the side panel or above the combustion chamber. For H-250 through H-400 variants, the number will include a suffix like “ED2” or “FD3” indicating electrical or forced-draft ignition. Cross-reference this with the official manufacturer’s repair manual index, where diagrams are grouped by these suffix codes rather than general capacity ratings.
- H-150/200: Look for page 12 of the 2018 service guide; exploded views are grouped under “Low-NOx” labels if equipped with a ceramic burner assembly.
- H-250/300: Diagrams appear in section 3A; tray components like gas valves and manifold assemblies are color-coded by fuel type–red for natural gas, blue for propane.
- H-350/400: Use page 28 for high-output models; pressure switch and blower motor schematics are fanned out with separate callouts for left- and right-hand configurations.
If the data plate is missing, measure the cabinet width: 18 inches indicates an H-150/200, 22 inches an H-250/300, and 26 inches an H-350/400. Next, check the flue collar diameter–3-inch collars belong to atmospheric models, while 4-inch collars denote induced-draft units with integrated exhaust fans. These dimensions narrow schematics to three possible illustrations per model cluster.
- Download PDFs directly from the OEM portal by entering the serial number; filenames reflect revision dates (e.g., “H300FD2_RevB_2022.pdf”).
- Search third-party aggregators by part number prefixes: “CVA” for combustion chambers, “SVR” for safety valves, “PMP” for circulating pumps.
- Request schematic CD #P-N8000 through authorized distributors–it contains layered DWG files compatible with AutoCAD for precise component tracing.
For legacy units built before 2009, diagrams are archived under “Classic Line” nomenclature; ignition systems are annotated with “Millivolt” or “AC120V” suffixes. Flame rollout switches and thermocouples share identical part numbers across all models but are positioned differently–compare the wire harness routing to confirm correct placement in the schematic.
Double-check gasket thicknesses when ordering seals; H-300 uses 3mm door gaskets, while H-400 requires 5mm. Torque specifications for manifold bolts appear in the lower-right corner of each illustration–use a ¼-inch socket for corner screws, ³⁄₈-inch for middle screws. Color-coded push pins in the schematic mark high-wear items: orange for anode rods, green for heat exchangers, yellow for ignition modules–which helps prioritize maintenance kits.

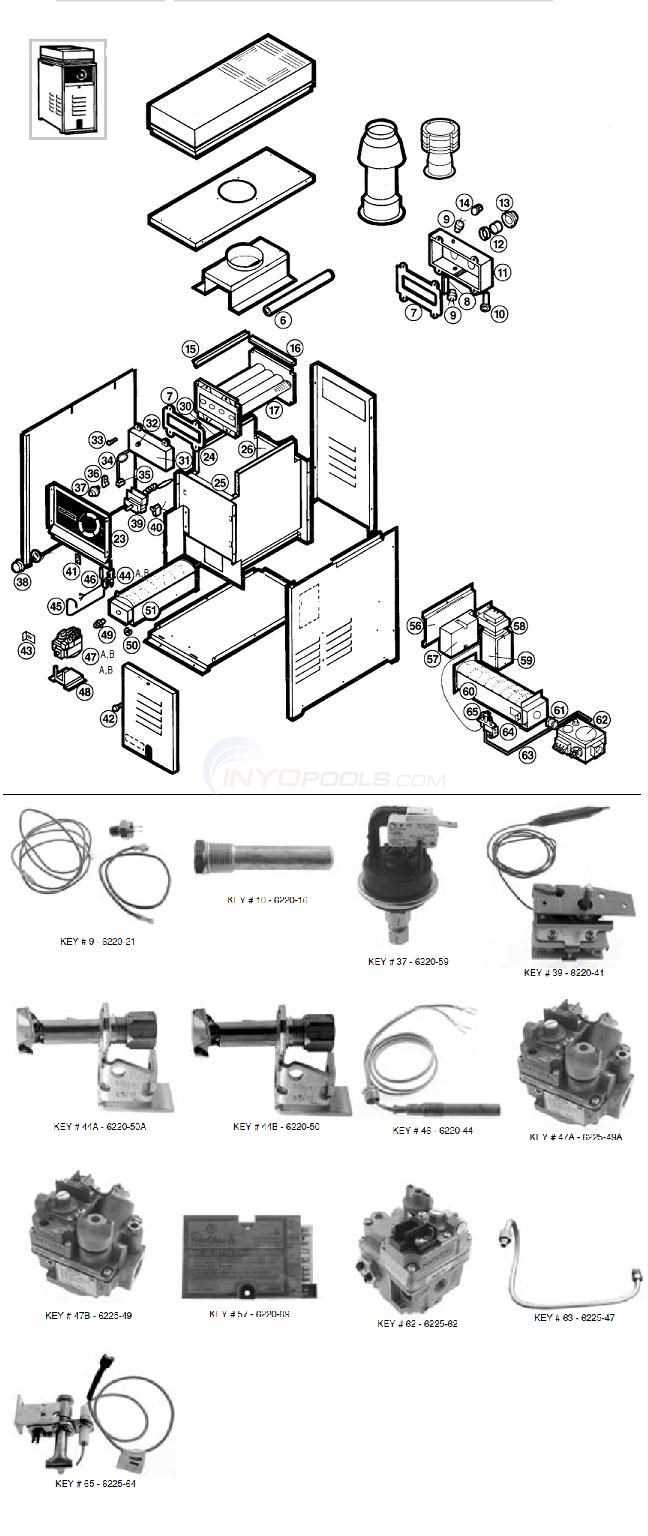

Step-by-Step Guide to Locating Critical Elements in the H-Line Combustion Unit Exploded View
Begin by securing the technical schematic from the manufacturer’s official documentation–either the printed manual or an authorized PDF. Verify the revision number matches your model to avoid discrepancies in component placement. The leftmost section typically depicts the burner assembly, with the flame sensor, ignition electrode, and gas valve arranged in a vertical sequence. Trace the gas inlet line upward to confirm its connection to the valve, noting the orientation of the solenoid actuator.
Next, focus on the heat exchanger core, positioned centrally in the diagram. Identify the finned tubes and the water inlet/outlet ports by cross-referencing their labeled identifiers (e.g., “IN” for intake, “OUT” for discharge). The exchanger’s housing may include a pressure switch port–locate it on the rear panel, adjacent to the combustion chamber. Check for any secondary heat shields or insulation layers between the exchanger and housing, as these affect thermal efficiency.
Examine the control module at the top of the schematic. Key subcomponents include the display interface, circuit board, and wiring harness terminals. Note the color-coding of wires leading to sensors (e.g., thermistors, flow switches) to simplify troubleshooting. If your unit includes a remote diagnostics port, its location is usually marked near the power supply connections.
For safety-critical items, prioritize the high-limit switch and pressure relief valve. The high-limit switch is typically mounted on the exchanger’s surface, while the relief valve connects to the water discharge line. Use the table below to match labeled identifiers with their functional roles:
| Label | Component | Primary Function |
|---|---|---|
| TH-1 | Thermistor (Water) | Monitors output temperature; triggers shutdown if overheating detected |
| PS-1 | Pressure Switch | Verifies adequate water flow before ignition |
| GV-2 | Gas Valve (Secondary) | Modulates fuel supply based on demand |
| HL-1 | High-Limit Switch | Interupts operation at critical temperature thresholds |
Inspect the combustion blower assembly at the base of the schematic. The blower motor couples directly to the fan wheel, often secured with a snap ring or set screw. Verify the exhaust vent path, ensuring no kinks or obstructions in the flue pipe connection. The intake air filter, if present, will be housed in a removable compartment–clean or replace it if airflow readings deviate from specifications.
When verifying electrical connections, follow the wiring diagram’s dashed lines to identify grounding points. The main power cord should route to a terminal block with strain relief; ensure no exposed conductors exist. For units with frost protection circuitry, locate the freeze sensor–it’s usually embedded in the water jacket or connected to an external probe. Confirm its resistance values against the service manual’s calibration chart.
Finally, document each component’s condition using a checklist before reassembly. Photograph disassembled sections to maintain alignment during reinstallation. Pay special attention to gasket surfaces, particularly around the burner tray and heat exchanger seals–replace any compromised gaskets to prevent leaks. For units equipped with optional accessories (e.g., remote timers, Wi-Fi modules), cross-reference their mounting brackets in the exploded view to avoid misalignment.
