Start with the OEM catalog specific to your model–reference the serial number plate, typically mounted near the engine housing or under the operator’s seat. Variants like the RM48 or TC21 series feature distinct blade spindle assemblies, demanding exact match replacements to avoid imbalance during operation. Third-party suppliers often mislabel bearings or belts; verify measurements with calipers before ordering.
Hydraulic systems on ride-on units require specialized seals–check part numbers against service manual illustrations, focusing on the pump drive couplings and control valve solenoids. Failure to replicate original specs risks fluid leaks or uneven cutting performance. For electrical components, test continuity on switches and wiring harnesses with a multimeter before replacing fuses or relays.
Cutting decks use high-carbon steel blades–opt for factory-reconditioned units to maintain balance and edge retention. Aftermarket blades often lack proper heat treatment, leading to premature dulling. Lubricate pivot points on height adjustment mechanisms with lithium-based grease to prevent seizing under load. Check pivot bushings for wear every 200 operating hours; replace if lateral play exceeds 1.5mm.
Air filtration systems demand regular servicing–install a primary paper element alongside a secondary foam pre-cleaner for dust-heavy environments. Refer to the labeled airflow diagram in the maintenance section to avoid reversing filter orientation. Cooling fins on engines clog quickly; clean with compressed air every 50 hours, targeting the cylinder head fins and radiator screens.
Transmission belts on hydrostatic units differ by width and tooth count–measure old belts with a string and tape, then cross-reference against manufacturer tolerance charts. Avoid universal replacements; incorrect profiles cause slippage or premature failure. For steering linkages, inspect ball joints for corrosion and repack with marine-grade lubricant to extend service life in wet conditions.
Technical Schematics for Commercial Turf Equipment
Locate the cutter deck assembly blueprint first–this section identifies the spindle housings, belts, and pulleys. The spindle (often labeled as S340-A or similar) connects directly to the drive belt, which should match a 4L850 or 5L900 measurement. Verify belt tension using a deflection gauge: apply 10 lbs of force mid-span; ½ inch deviation is optimal. Replace belts showing cracks deeper than 1/16 inch.
Exploded views of the hydrostatic transmission reveal O-rings (part code HYD-22X) and charge pump filters. These components fail silently–check for fluid contamination (metallic particles indicate internal wear). Drain the system every 200 hours, replacing filters with manufacturer-approved equivalents (micron rating ≤10). Synthetic blends (ISO 46) extend pump life by 30% compared to mineral oils.
Electrical schematics focus on the ignition module and safety switches. Trace the PTO circuit: the switch must disengage within 0.3 seconds of release. Loose connectors (check for tarnished pins) cause intermittent failures–clean with contact cleaner, then apply dielectric grease. The fuse box diagram pinpoints AM/FM relays (typically 20A slow-blow); test with a multimeter set to continuity mode before replacing.
Blade mounting hubs require precise torque: 65 ft-lbs for single-blade decks, 75 ft-lbs for triple configurations. Use a locking washer (PN BW-12T) to prevent loosening. Balance blades within 1 gram; unbalanced rotors vibrate above 1,200 RPM, accelerating spindle bearing wear. Inspect shear bolts annually–replace with hardened steel variants if shearing occurs more than twice per season.
Fuel system diagrams differentiate between carbureted and EFI models. For carbureted units, adjust the idle mixture screw (turn clockwise until engine stalls, then back out 1.5 turns). EFI systems display fault codes on the diagnostic port (OBD-II adapter compatible); code P0234 indicates turbocharger over-boost–inspect wastegate solenoid resistance (should read 10-20 ohms). Always purge fuel lines after component replacement to remove air locks.
Finding the Cutting Deck Component in Maintenance Schematics
Begin by identifying the deck housing section in the equipment’s exploded view. Most technical manuals group the rotary blade system near the lower center, labeled with numeric references like “15-22” or “B-7” depending on model year. Trace hydraulic lines or belt paths if present–they lead directly to the spindle mounts or gearbox assembly, where blades attach. Older rotary models often show the deck underside in a separate sub-diagram, marked with arrows indicating bolt patterns.
Key Identification Markers
Look for circular or oval cutouts in the deck’s cross-section–these typically house the blade spindles. The spindle assembly usually appears as a vertical shaft with two to four bolts securing it (e.g., 1/2″ or M12 fasteners). Some schematics highlight the entire deck in light gray with blade hubs in red or yellow for visibility. If the diagram includes a side view, measure blade clearance references–commonly 3.5″ to 5.5″ from deck base to cutting edge.
For walk-behind units, the blade unit may be positioned in a detached side view with labels like “rotary cutter” or “impeller assembly.” Verify part numbers next to these components–match them against the model’s serial plate to confirm compatibility before ordering replacements or disassembly.
Locating Critical Drive Components in Compact Groundskeeping Equipment
Begin by inspecting the deck assembly for the primary drive belt–typically a reinforced V-belt (SAE J636 or ISO 4184) with a width between 12.7mm and 15.9mm. Verify the belt’s condition against manufacturer tolerances: cracks deeper than 1mm, fraying exceeding 2mm on edges, or glazing on the underside indicate replacement urgency. Consult the OEM service manual for exact specifications; deviations beyond ±3% in length require immediate adjustment to prevent slippage and uneven blade rotation.
Examine pulley alignment using a straightedge or laser alignment tool. Misalignment of more than 0.5mm between the engine crankshaft pulley and the transaxle input pulley will accelerate belt wear. Check for lateral runout on all pulleys–values above 0.2mm warrant replacement. Prioritize inspection of the tensioner pulley; a seized bearing generates heat signatures detectable with an infrared thermometer (readings above 60°C suggest failure).
Track the serpentine belt path from the crankshaft to the mower deck via idler pulleys. Key checkpoints include:
| Pulley Type | Diameter (mm) | Groove Count | Critical Inspection Point |
|---|---|---|---|
| Crankshaft | 76–89 | 2 | Keyway integrity |
| Tensioner | 60–70 | 1 | Spring tension (8–12 Nm) |
| Blade spindle | 44–55 | 1–2 | Bearing play (≤0.1mm) |
| Transaxle input | 50–65 | 2 | Spline wear |
Identify the secondary deck drive belt–a narrower profile (8–10mm) connecting the PTO clutch to blade spindles. This belt often uses a cogged underside for grip; replace if teeth are worn by more than 30% or if cooling fins on the clutch housing exceed 70°C during operation. Avoid substitute belts without OEM-compatible tensile strength (minimum 1,200 N/mm²); aftermarket options may snap under peak torque.
Measure pulley groove wear with a groove gauge. Depth reductions below 85% of original specification (commonly 9mm) necessitate pulley replacement to maintain belt seating. For multi-groove pulleys, ensure even wear; a 0.3mm discrepancy between grooves creates uneven load distribution. Clean grooves with a wire brush to remove debris–accumulated grass clippings act as abrasives, doubling wear rates.
Document belt tension metrics using a deflection gauge. Typical benchmarks for a 100mm span: 5–7mm deflection under 45N force for primary drive belts, 3–5mm for deck belts. Seasonal adjustments are critical; belts stretch up to 0.8% after initial installation. Recheck tension after 10 hours of runtime, then every 25 hours. Over-tightening causes premature bearing failure, while under-tensioning leads to slippage and overheated belts (exceeding 80°C).
Inspect pulley flanges for cracks or deformation. A bent flange–often from debris impact–creates a “chattering” noise during operation and quickly damages belt edges. Replace any pulley with flange deformation exceeding 0.5mm. For plastic idler pulleys, check for heat warping; warped pulleys must be discarded, as they cannot be trued.
When replacing components, match OEM part numbers for belts (e.g., Gates 4L520) and pulleys. Cross-reference with the machine’s serial number; early models (pre-2018) use a single-groove crankshaft pulley, while later units incorporate dual grooves. Store new belts flat in climate-controlled conditions (15–25°C, ≤50% humidity) to prevent premature rubber degradation. Apply dielectric grease to pulley bores during installation to inhibit corrosion.

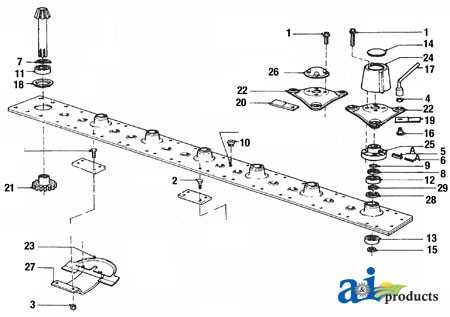

How to Interpret the Cutting Unit Casing Exploded View for Precision Maintenance
Start by locating the reference number key in the lower-right corner of the schematic. Each component aligns with a unique identifier–cross-reference these with the legend to avoid confusion between similar-looking elements like spindle mounts and belt tensioners. Note that identical numbers in different positions often indicate symmetrical parts for left and right assemblies.
Identify the main housing plate first. This central piece anchors the entire module and typically appears as the largest single item in the upper third of the diagram. Check for sub-assemblies attached to it–blade retention brackets, pulley guards, and anti-scalp rollers will radiate outward from this base. Verify the orientation: mounting holes should align with field observations of the physical unit.
- Locate all fasteners–hex bolts, flange nuts, and washers–grouped around each sub-component. Count them twice: missing or mismatched hardware during reassembly leads to misalignment.
- Examine the blade spindle clusters next. Each assembly consists of a shaft, bearings, seals, and a retention collar. The exploded view separates these into individual pieces, but they install as a unit. Look for dashed lines indicating assembly sequence or hidden interfaces.
- Trace the drive belt path from the pulley to the motor. The schematic marks belt guides, idlers, and tensioners with distinct symbols–solid circles for fixed mounts, arcs for adjustable tensioners. Measure belt length if replacing: the diagram omits this detail.
Check for shaded or hatched areas on the housing components. These denote wear plates or reinforcements–critical for durability but often overlooked. Compare these regions against the actual hardware for signs of erosion or deformation.
Inspect the side discharge chute separately if included. The diagram splits it into chute frame, deflector, and locking latch. Each piece interacts at specific angles; the view labels these with angle indicators–use a protractor during installation to match them precisely.
- Confirm electrical components–switches, solenoids, wiring harness connectors–positioned near the motor assembly. The schematic uses color-coded lines for circuits; verify voltages against the service manual before testing.
- Locate adjustment points for cutting height. The exploded view distinguishes between fixed spacers and adjustable lift links using different line weights–thicker lines for structural, thin for movable parts. Note thread direction: left-hand threading appears on some linkage rods.
- Look for small yet critical elements like grease fittings, gaskets, and O-rings. These often cluster near pivot points and blade seals. The diagram magnifies these in inset boxes–check quantities carefully, as missing even a single seal compromises performance.
Label each extracted component during disassembly with the corresponding reference number from the diagram. Use masking tape and a permanent marker–avoid relying on memory, as over 40 individual pieces exist in a typical cutting module.
Before reassembly, verify torque specifications for all fasteners. The exploded view does not include these values–refer to the torque table in the technical manual. Over-tightening distorts housing plates; under-tightening risks vibration and component detachment.
