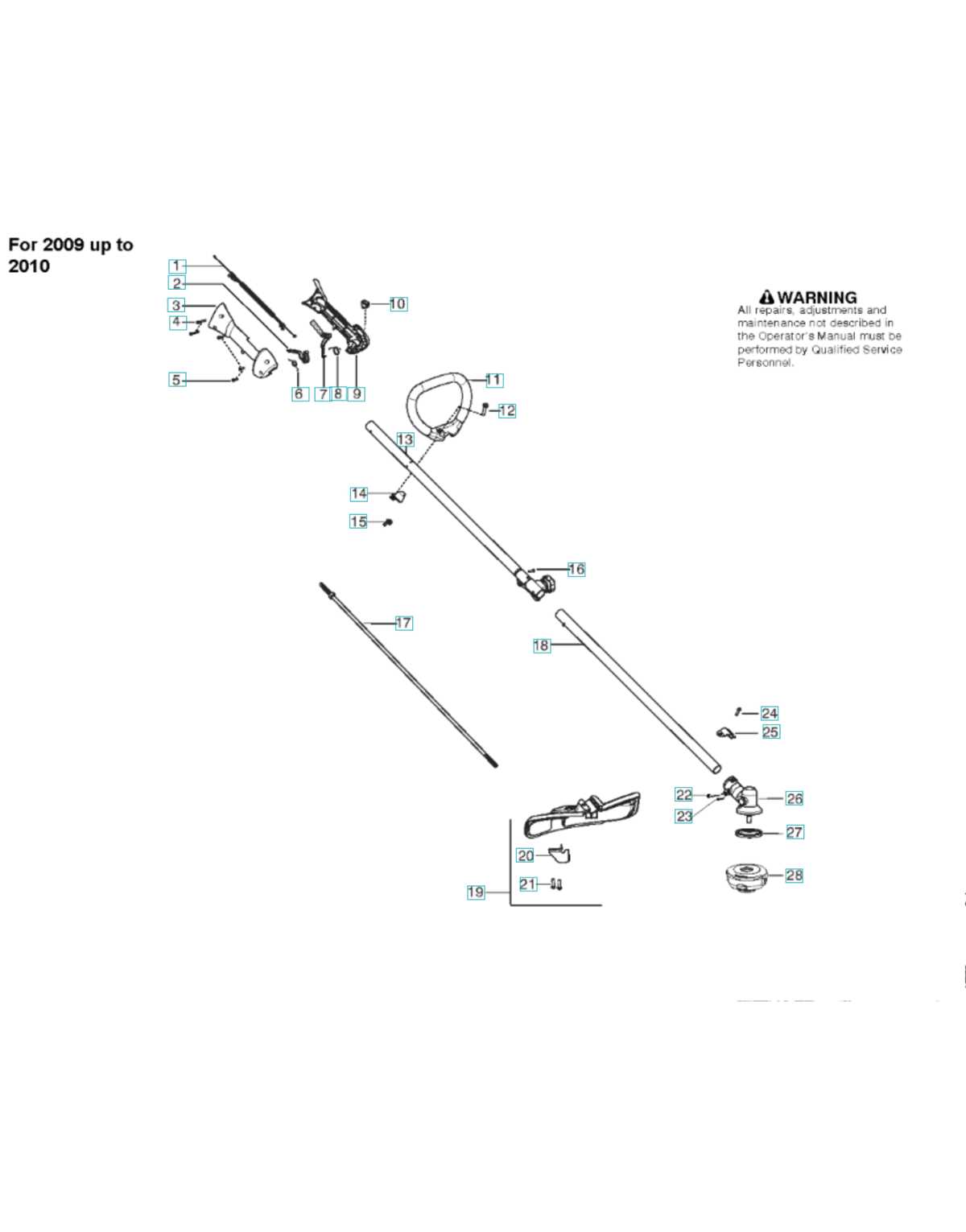

To quickly locate replacement components for your 28cc curved-shaft model, reference the exploded-view schematic available on the official manufacturer’s parts portal under model code HQ-SE128LD. This document divides the unit into seven primary assemblies: the powerhead (engine block, starter, and carburetor housing), cutting attachment (shaft tube, gear case, and cutting head), fuel system (lines, filter, and tank assembly), ignition module (spark plug and flywheel), air filtration (pre-cleaner, main filter, and intake manifold), drive components (clutch drum, drive shaft, and flexible cable), and final hardware (fasteners, covers, and protective shields). Each section includes part numbers laser-etched on the components themselves; compare these numbers against the schematic to confirm compatibility before ordering.
Critical wear-points demand immediate attention: the clutch drum (part #532182618) often fractures after 40–60 hours of operation, while the flexible drive cable (#532196341) stretches beyond repair after 80 hours, especially if subjected to side-loads during cutting. The nylon gear (#503242303) inside the cutting head requires lubrication every 10 hours–use Klüber ISO 220 grease–or the teeth strip within 50 hours. For engines stalling at idle, inspect the diaphragm (#530070989) inside the carburetor; micro-tears cause erratic fuel flow. Replace the air filter (#532182710) every 25 hours or at the first sign of discoloration–clogged foam restricts airflow, leading to premature piston ring wear.
Order spares through verified distributors only: authorized dealers stock OEM components with embedded QR codes linking directly to the exploded-view diagram, while third-party listings on consumer platforms frequently substitute substandard alloys for genuine hardened steel bearings (crankshaft bearing #532182613). When disassembling, document fastener torque specs–critical bolts include the cylinder head (M6×20, 9 Nm) and flywheel nut (M10×1.25, 25 Nm). Use a feeler gauge (.020”–.025”) to verify spark plug gap after swapping ignition coils (#530095682). If the primer bulb (#532194440) cracks, replace the entire fuel line assembly–splicing repairs fail within weeks.
For precise alignment of the cutting head, remove the gear case cover and align the spline engagement marks etched on the drive shaft and gear–misalignment causes binding and rapid gear failure. Lubricate the shaft tube inner assembly with silicone-based tube grease during reassembly; petroleum-based products degrade nylon bushings. If vibration exceeds noticeable thresholds, check the harmonic balancer (#503240001)–a cracked ring dampens engine balance, increasing wear on crankshaft seals (#530086469). Store unused blades (metal 3-tooth blade #532182759) in VCI paper to prevent corrosion; rust on the blade arbor hole voids the manufacturer’s warranty.
Essential Schematic Reference for Your Trimmer: A Hands-On Approach
Locate the engine assembly under component #545174001–this section includes the ignition coil, flywheel, and carburetor linkages. Mark each bolt size on a notepad before disassembly: M6 for the flywheel cover, M5 for the carburetor screws. Reusing stripped fasteners voids warranties, so replace any with visible thread damage immediately. Keep the flywheel nut at 18 Nm torque to avoid rotor misalignment, a common oversight that causes erratic starting.
Check the drive shaft housing (#537179201) for play by gripping the flex shaft near the clutch. If movement exceeds 2mm, inspect the lower bearing (#531009701) and replace the entire assembly if grooves appear on the shaft. Avoid partial repairs; cracked housings often hide internal stress fractures that worsen under load. Lubricate the shaft with 5g of marine-grade grease during reassembly, but never exceed this amount–excess disrupts clutch engagement at high RPM.
Electrical System Breakdown
Trace the wiring harness (#517187801) from the kill switch to the ignition module. Use a multimeter set to 20kΩ to test continuity across black (ground) and white (trigger) wires–readings above 5kΩ indicate corrosion in the connectors, typically at the handle joint where moisture accumulates. Clean contact points with 600-grit sandpaper, then apply dielectric grease to prevent oxidation. Replace the entire harness if wires show external cracking, as splices often fail under vibration.
The air filter (#545012301) requires inspection every 10 hours of use. Rinse the foam element in warm soapy water, then saturate with SAE 30 oil–avoid household oils, which gum under heat. Compressed air at 30 PSI max clears debris without damaging the filter mesh. Replace the element if holes exceed 0.5mm, as particulates bypassing the filter score the piston within 20 hours of runtime. Always reinstall the filter housing with the arrow pointing toward the engine to maintain airflow direction.
Cutting Head Maintenance
Disassemble the bump-feed spool (#502511301) by removing the retaining bolt with a 10mm socket. If the line jams, replace the spring (#501512501)–cost is $2.50, but failure causes uneven cutting that bends the shaft. Wind 0.095-inch trimmer line clockwise in equal layers, leaving ¼” of headspace to prevent overheating. Torque the retaining bolt to 8 Nm; overtightening strips the plastic threads. For metal blades (#537171001), balance them using a static balancer–an imbalance above 0.5g creates harmonic vibrations that damage the gearbox.
Gearbox lubrication (#503507201) demands molybdenum disulfide grease. Remove the grease fitting near the drive cup, pump in 10cc of lubricant, then rotate the shaft by hand to distribute evenly. Skip this step and the gears will seize within 50 hours, often mid-cutting. Reinstall all protective covers before operation–exposed shafts catch debris and snap under load.
How to Find the Right Schematic for Your 128LD Trimmer
Begin by visiting the manufacturer’s official service portal–husqvarna.com/us/parts-and-service/. Enter the exact model code (e.g., 532 18 30-04) in the search bar to pull up the precise breakdown. If the portal fails, check the product’s original paperwork; the serial number often links directly to the correct revision of the schematic. Avoid third-party databases unless they explicitly cite the OEM source–non-verified charts frequently omit updates like spring-loaded retainers (PN 532 18 30-09) or revised fuel line routing.
- Use the model’s full designation printed on the engine housing–not the retail sticker. Variants like 128LD (532 18 30-04) and 128LDx (532 18 30-23) share 70% of components but differ in carburetor linkages (PN 532 18 19-02 vs. 545079101).
- Cross-reference with the emissions label (usually riveted near the exhaust). The EPA code (e.g., E1711020801) confirms the production batch, revealing whether your trimmer uses the newer starter cord (PN 537 13 54-02) or older version.
- For European markets, swap the last digits of the serial for 99 (e.g., 532 18 30-99)–this unlocks region-specific schematics that detail metric fasteners and adjusted muffler specs.
When salvaging individual pieces from a printed manual or dealer-provided PDF, verify the revision date. Post-2018 schematics split the throttle cable assembly into two diagrams–earlier versions lump it under “controls.” If replacing the air filter housing (545103201), note that late-model units integrate a one-way valve absent in pre-2015 drawings. For carburetor rebuilds, only schematics dated 03/2020 or later include the updated diaphragm (532 18 19-22) compatible with ethanol-blended fuels.
Locating Key Wear Components with the Illustrated Guide
Begin by locating the air filter assembly in position 12 on the schematic–this foil-backed element (OEM #532169565) clogs after 25–35 operating hours and requires a replacement pair; cross-reference the twin pack with aftermarket equivalent STENS 285-430 for 15% cost savings without compromising airflow efficiency. Keep cut-resistant gloves within reach during removal to avoid direct skin contact with the sharp intake cowling’s edge, identified in the same sectional view.
High-Frequency Service Items
| Position | Component | OEM Reference | Lifespan (hours) | Torque Spec |
|---|---|---|---|---|
| 7 | Spark plug NGK BPMR7A | 532182701 | 40–60 | 10–12 Nm |
| 34 | Cutting head drive gear | 532121252 | 120–180 | 8–10 Nm |
| 48 | Throttle cable | 532181791 | 80–100 | n/a |
Remove the clutch cover at charts segment 18 to access the centrifugal clutch–inspect the three shoes (part #532184461) for 0.008″ minimum lining thickness; replace as a complete unit if scoring exceeds 0.015″ depth. Lubricate the needle bearing during reassembly with lithium-based grease (NLGI #2), ensuring 2–3 mg is applied to the race before aligning the flywheel timing keyway marked in red on the exploded view.
Reconstructing Your Trimmer: Precise Component Reassembly Guide
Begin with the powerhead assembly by securing the clutch bell onto the crankshaft. Ensure the drive gear teeth align with the clutch pads–misalignment causes slippage. Torque the retaining nut to 12–15 Nm; over-tightening risks thread stripping. Slide the centrifugal clutch onto the shaft next, verifying the springs are intact. Replace springs showing wear (outer diameter
- Cylinder head: Install the gasket dry–no sealant required. Align the exhaust port with the muffler mounting holes before torquing bolts in a cross pattern (5–7 Nm).
- Carburetor: Connect the fuel line first, then the air filter housing. Ensure the choke lever moves freely; bind indicates improper linkage alignment. Adjust the idle screw to 2.5 turns out from lightly seated for baseline settings.
- Throttle assembly: Route the cable through the handle housing, leaving 2–3mm slack at full extension. Test pull resistance–sticky movement signals frayed inner wire.
Finalize the shaft assembly by inserting the driveshaft into the outer tube, splines engaged. Secure the gear case with three screws (3–4 Nm), then attach the trimmer head. Press the spool until it clicks–verify free rotation by hand. Lubricate the shaft with 3–5g of SAE 30 oil before sliding the lower tube into the powerhead. Cross-check all fasteners against a torque reference chart for this model’s OEM specifications.
