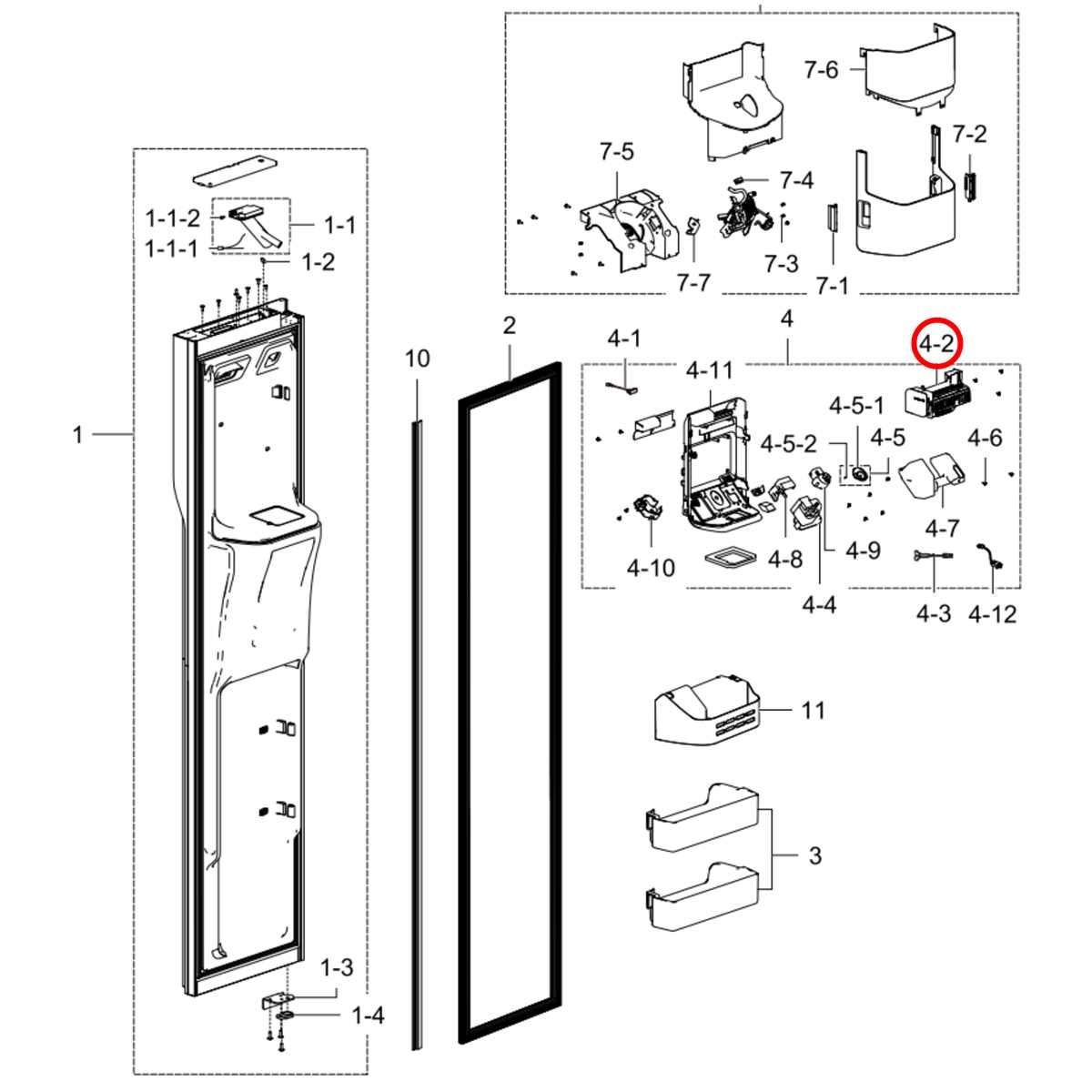

Identify malfunctioning components in your frost-free appliance by referencing the official exploded view for model RF28HMEDBSR. Focus on the motor assembly (part #DA97-15312A) and the water valve (part #DA97-14337A)–these fail most frequently, typically within 36-48 months of use. Replace both simultaneously to avoid repeated disassembly.
Download the technical schematic directly from the manufacturer’s service portal (requires serial number verification). Print and laminate the diagram to prevent moisture damage during repairs. Pay particular attention to harness connectors–corrosion here mimics auger failure but resolves with contact cleaner and dielectric grease.
For side-by-side units (e.g., model RS25J500DSR), the control board (part #DA41-00670A) often misdiagnoses low water flow. Test the thermistor resistance (should read 5kΩ at 32°F) before ordering replacement parts. Use a multimeter with temperature compensation to avoid false readings.
Label all removed fasteners and small components with masking tape and a marker–tightening sequences vary by sub-assembly. The cube tray (part #DA97-16333A) and ejector arm (part #DA97-16334A) require precise alignment; misalignment results in jamming within 7-10 cycles. Verify proper installation by manually rotating the auger before reattaching the front panel.
Understanding Your Refrigerator’s Freezing Component Breakdown
Check the water inlet valve first if the dispenser isn’t producing cubes–this component regulates flow from the home supply line and often fails due to sediment buildup or electrical issues. Locate it behind the lower back panel; a multimeter will confirm voltage presence (typically 120V AC) during activation cycles.
Examine the harvest motor assembly next–it drives the ejector blades that release frozen chunks into the storage bin. Remove the front cover of the modular unit to inspect gears and cams for wear or misalignment; lubricate pivot points with food-grade silicone if movement feels stiff.
The thermostat sensor tucked beneath the mold tray dictates freezing cycles–if cubes form inconsistently, test resistance with a multimeter (expected range: 6-12 kΩ at 32°F). Replace it if readings deviate or the sensor appears corroded; calibration is not adjustable, so accuracy depends on exact OE specifications.
Look at the fill cup and water distribution tube–clogs here cause incomplete freezing or oddly shaped cubes. Disconnect power, remove the rear access panel, and flush the tube with warm water to clear mineral deposits; a straightened paper clip can dislodge stubborn debris without damaging the thin plastic walls.
Inspect the ejector blades and mold tray for cracks or rough edges–these surfaces must remain smooth to release frozen contents efficiently. Clean them with a soft cloth and vinegar solution to remove scale, then apply a light coat of vegetable oil to prevent sticking; avoid petroleum-based lubricants that can contaminate the supply.
Verify the control module mounted behind the front panel–this circuit board manages cycle timing and diagnostics. Check for burned components or loose connectors; resetting via the display menu (hold both temperature buttons for 8 seconds) often resolves intermittent issues, but persistent errors may require firmware updates or replacement.
The storage bin level switch triggers automatic refills when the reservoir is low–if freezing cycles run excessively, test its functionality by manually pressing the lever. Ensure the bin sits level; misalignment can prevent proper contact with the actuator arm, leading to overproduction or underfilling.
Locating Critical Elements in a Freezing Module Blueprint
Begin by isolating the water inlet valve on the schematic–this component is typically marked near the rear panel and connects directly to the household supply line. Its role is to regulate flow into the internal reservoir, so verify its position relative to the solenoid and pressure switch. If the valve appears downstream of a filter, note the path; blockages here often disrupt cycle initiation.
Trace the evaporator assembly next, identifiable by its serpentine tubing pattern or a labeled coil section. This segment interfaces with the thermostat and defrost heater; mismatches between these elements frequently cause irregular freezing or overflow. Check for a bridging thermistor–if present, it should align with the mid-point of the coil to ensure accurate temperature readings.
The auger motor and blade assembly demand scrutiny, especially where the gear mechanism interacts with the mold. Look for a coupling or spline connection; wear here manifests as grinding noises or incomplete harvests. Confirm that the motor’s wiring terminates at the control board with secure connectors–loose fits here introduce intermittent failures.
Examine the dispenser module last, focusing on the actuator switch and chute flap. These activate during user demand; misalignment here leads to jams or unresponsive output. Cross-reference the micro-switches with the wiring harness–corrosion or bent terminals disrupt signal integrity and are a primary failure point in older units.
Step-by-Step Guide to Locating the Water Inlet Valve in Refrigeration Units
First, unplug the appliance from the power source to ensure safety. Remove the rear access panel by unscrewing the fasteners–typically four to six Phillips-head screws–located along the lower back edge. Set the panel aside carefully to avoid damaging attached wires.
Identify the refrigeration compartment’s lower section, where the water supply line enters the unit. Trace the tubing backward until it connects to a small, rectangular component secured with two screws or a bracket. This is the solenoid-controlled valve responsible for regulating water flow to the dispenser and freezing system.
Inspect the valve’s electrical connections: two thin wires (often red and white) attached via spade terminals. Label these with masking tape if replacing, but avoid tugging or bending them during inspection. The valve itself sits behind the plastic cover near the compressor, adjacent to a small drainage tube.
For models with a bottom-mounted freezer, slide out the lower drawer or remove the base grille to access the valve. Use a flashlight to illuminate the area, as shadowing can obscure the valve’s position. In side-by-side configurations, the valve is usually behind the left or right kickplate under the fridge.
Measure the valve’s dimensions if purchasing a replacement–most are 3-4 inches long with a ¼-inch threaded inlet. Confirm the model number stamped on the valve body matches the unit’s specifications. Mistaking it for the dual-valve assembly (used in some premium models) will prevent proper installation.
Reconnect the water supply after servicing by tightening the compression nut fingertight, then an additional ¼ turn with a wrench. Check for leaks by running the dispenser for 30 seconds before reassembling panels. Residue drips after this test indicate a faulty valve sealing surface.
If the component fails to activate during dispensing, use a multimeter to test continuity across the terminals. Resistance should read between 200-500 ohms. Higher or infinite readings signal an internal coil failure, necessitating full replacement rather than repair.
Reinstall the rear panel by aligning it with the screw holes, then securing tightly. Avoid overtightening, which can crack plastic housing. Restore power and run a test cycle to confirm consistent water flow and proper ice production or dispensing.
Step-by-Step Guide to Swapping the Freezer Component’s Temperature Sensor with a Manufacturer Schematic
Unplug the appliance and relocate it to a well-lit workspace. Remove the shelving units and storage bins obstructing access to the rear panel. Use a ¼-inch nut driver to detach the screws securing the back cover–typically four to six, depending on the model variant. Keep fasteners organized in a magnetic tray to prevent loss. Locate the sensor, a small cylindrical probe attached to the evaporator assembly, often marked with colored wires (red and white or blue). Disconnect the wire harness by pressing the release tab; avoid pulling the wires directly.
Consult the schematic to verify the sensor’s resistance range, usually between 10–15 kΩ at room temperature. A multimeter set to ohms (Ω) mode should confirm functionality–readings outside the specified range indicate failure. If replacement is needed, note the sensor’s orientation: the sensing bulb must press firmly against the molding cavity. Apply thermal paste (if supplied with the new component) to ensure accurate temperature readings. Align the new probe precisely as the original, securing it with the retaining clip or screw.
| Tool/Material | Recommended Specifications |
|---|---|
| Nut driver set | ¼-inch, magnetic tip |
| Multimeter | Auto-ranging, ±1% accuracy |
| Thermal paste | Silicon-based, non-corrosive |
| Wire harness release tool | Plastic, 3mm tip |
Reconnect the wire harness by aligning the connector tabs–listen for a click to confirm engagement. Reattach the rear panel with screws, ensuring no gaps that could compromise insulation. Slide shelves and storage compartments back into position, verifying proper alignment with guide rails. Power the unit and initiate a test cycle: press the dispenser lever three times within two seconds to activate forced defrost. Monitor for consistent cube formation over the next 90 minutes–irregular shapes or slow production may signal residual air in the water line or incorrect sensor placement.
For models with dual evaporators, cross-reference the schematic to distinguish between the fresh-food and freezer sensors. The freezer probe is smaller (≈20mm) and positioned lower on the assembly. If error codes persist (e.g., 21E or 40E), inspect the control board for damaged traces or burnt components–these often correlate with sensor failures. Clean residual frost from the molding tray with a soft cloth to prevent false temperature readings during troubleshooting.
