Start by locating the pressure chamber–typically the most robust cylindrical section near the base of the unit. This element houses the internal seals and pump mechanism, and its integrity determines consistent output. If leaks occur, check the O-rings where the chamber connects to the wand adapter; replacement kits include both sealing components and often a torque specification (usually 8–12 Nm). Avoid over-tightening, as this warps the threads and causes misalignment with the spray lance.
The nozzle assembly consists of three critical subcomponents: the strainer, the flow regulator, and the tip. The strainer prevents debris from clogging the regulator, which modulates droplet size. Swap the tip depending on the task–fine mist tips (0.2–0.4 mm) for herbicides, coarse droplets (0.8–1.2 mm) for fertilizers. Clean each component with acetone after use; residual chemicals crystallize and block pathways within hours. Store disassembled pieces in a mesh bag to prevent thread damage.
Inspect the wand handle grip for cracks–polypropylene fatigue occurs after 70–80 hours of use. The trigger valve integrates a spring-loaded diaphragm; if response feels sluggish, disassemble and soak the diaphragm in soapy water for 10 minutes to dissolve chemical buildup. Lubricate pivot points with silicone grease (avoid petroleum-based products–they degrade rubber seals). When reassembling, align the notch on the trigger shaft with the corresponding groove in the valve body; misalignment leads to inconsistent spray patterns.
Examine the harness straps for frayed stitching; replace straps if fabric integrity drops below 60%. The pump crankshaft connects to the piston rod via a cotter pin–wear here translates to reduced pressure. Replace the pin annually, or sooner if the piston stroke feels gritty. On the underside of the tank, note the vent valve; flush it monthly with distilled water to prevent blockages that disrupt airflow and cause tank collapse during operation.
Visual Guide to Backpack misting Unit Components

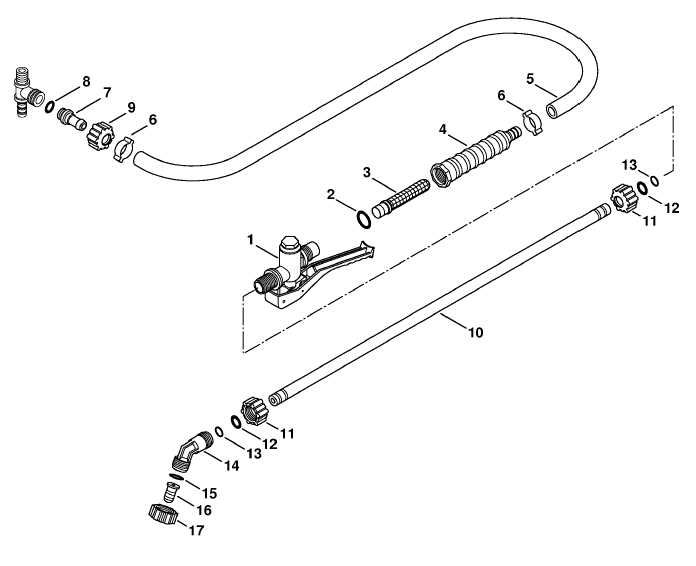

Refer to the exploded view schematic before attempting repairs–each model variant (425, 475, or 476) lists component positions in sequential order from handle base to nozzle tip. The pump assembly sits directly beneath the tank, identifiable by its aluminum housing stamped with three vibrational dampeners on the underside.

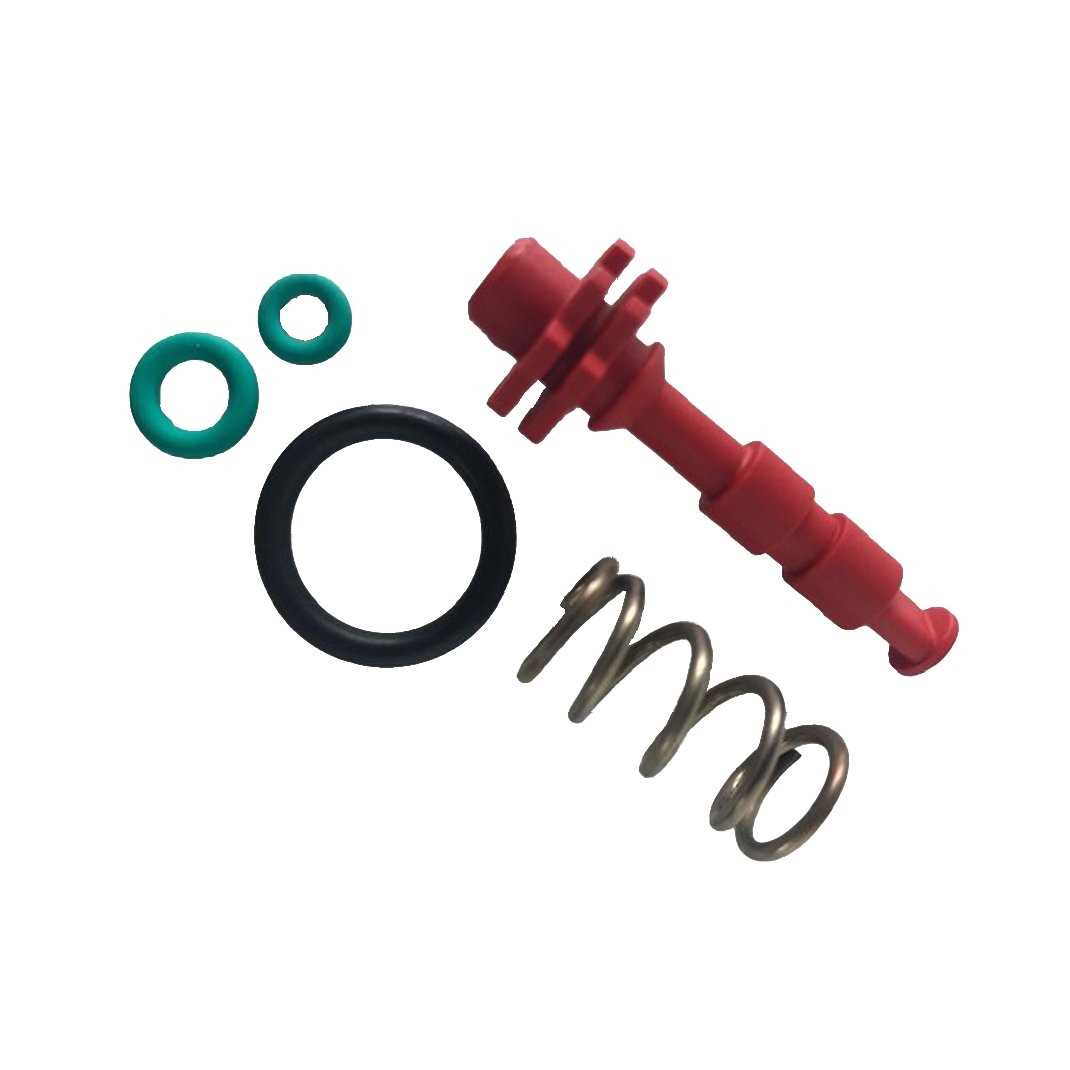

Replace seals every 40 operational hours; the diaphragm (item 12 on most schematics) deteriorates fastest when exposed to emulsifiable concentrates. Use only Viton seals for oil-based formulations–standard Buna-N seals degrade within 12 hours under these conditions.
Pressure adjustments rely on the unloader valve (position 18), a spring-loaded piston with dual O-rings. If misting appears uneven, first check this valve’s seating surface for calcium deposits–clean with a 3mm brass wire brush, not abrasive cloth which scores the chrome plating.
Wear-Prone Subcomponents
Annual replacement should include: intake filter screen (mesh 80-micron), wand tip orifice (ceramic, not brass, for extended service life), and wand trigger assembly–look for stress cracks along pivot points after 700 trigger cycles. The tank vent valve (item 7) requires disassembly if improper starts occur; soak components in distilled vinegar for 90 minutes before reassembly.
Lubricate the piston rod with PTFE spray every 25 operational hours–allow a 10-minute dwell time before operation. Avoid petroleum-based lubricants on diaphragm surfaces; these cause swelling and premature failure within 50 hours. Keep spare nozzle tips (FP110 standard size) stored in original packaging–ambient humidity corrupts internal thread seals.
Assembly Sequence Verification
After reassembly, pressurize the unit without chemical solution–listen for air hissing at joints. A 12 psi leak rate is acceptable; anything above requires immediate disassembly to check seal compression ratios. The prime pump valve (item 22) must sit flush within the gasket groove–any protrusion blocks consistent flow and necessitates re-seating.
Calibrate wand flow rate by timing output interval: 1.4 liters per minute (6-second pour) indicates proper function. If output exceeds 2 liters/minute, inspect the pressure regulator diaphragm housing–the Belleville spring (item 19) often loses tension after 150 operational hours and requires precise re-tensioning using a torque wrench set to 8 Nm.
How to Recognize Critical Elements of a Portable Pressure Unit
Start by locating the wand assembly–this rigid tube connects directly to the pump housing and typically extends 20–24 inches for reach. Check the trigger mechanism; it should depress smoothly without sticking and lock into place when engaged. A faulty trigger often indicates worn seals or misaligned springs, which can disrupt pressure regulation.
The tank, usually polyethylene, holds between 3 to 5 gallons and must have a secure lid with an integrated gasket. Examine the gasket annually for cracks or compression; a compromised seal leads to leaks during operation. Look for a pressure gauge near the lid–it should read between 15–40 PSI when pressurized, with the needle holding steady under normal conditions.
Inspect the pump cylinder–it sits at the base of the backpack and contains the piston, which moves vertically to build pressure. Remove the cylinder cap to verify the piston’s condition; scratches or pitting suggest debris entry, requiring cleaning or replacement. Lubricate the piston rod lightly with silicone grease every 50 hours of use to prevent corrosion.
The harness straps distribute weight across shoulders and waist, reducing strain. Adjustable buckles should lock tightly without slipping; padding on the back panel must be intact to prevent chafing. Test the straps by fully filling the tank–if the unit shifts when walking, tighten the waist belt first, then the shoulder straps.
Filter screens protect internal components from clogging. Locate the intake screen inside the tank near the pump inlet and the outlet screen on the wand’s tip. Both require cleaning after each use with water, and replacement if mesh tears exceed 0.5mm. Failure to maintain screens causes inconsistent spray patterns and pump strain.
Identifying and Marking Minor Components on Backpack Pump Schematics
Begin by obtaining a high-resolution schematic of the equipment; a printout scaled to 150–200% enhances visibility of diminutive elements. Use a fine-tip permanent marker (0.3–0.5mm) to assign numeric or alphanumeric codes directly onto the printout, correlating each label to a separate list detailing function, material, and typical wear points. For components under 5mm–such as washers, O-rings, or valve springs–employ a jeweler’s loupe (10x magnification) and angle the light source at 45 degrees to reduce glare while tracing edges. Cross-reference each marked item with the manufacturer’s exploded view, ensuring placement accuracy within ±1mm.
Organizing Identification Workflow
- Group components by subassembly (e.g., pressure regulator, wand trigger mechanism, tank sealing system) to maintain logical progression.
- Prioritize items prone to frequent replacement, tagging them with a red border or asterisk on the schematic for rapid spotting.
- Create a two-column table in your reference guide: left column lists labels, right column specifies tool needed for service (e.g., “T-8 Torx” for housing screws).
- For threaded or interference-fit connectors, note thread pitch (e.g., M5x0.8) or insertion force (e.g., “3–5Nm”) alongside the label.
- Scan the annotated schematic at 600 DPI and store it as a layered PDF, allowing toggling of labels for training or troubleshooting.
How to Break Down Your Portable Pump Unit for Cleaning and Checks
Before handling any assembly, discharge pressure by engaging the trigger until resistance stops. Place the device on a stable, flat surface and disconnect the power source–whether battery, fuel line, or electric cord. Use a 10mm wrench to loosen the tank collar, turning counterclockwise until it separates from the main housing. Slide the cylinder upward, exposing the internal shaft and sealing components. If resistance occurs, gently rotate the housing while pulling to avoid damaging threads. Keep all removed fittings in order, labeling each with masking tape if reattachment isn’t immediate.
Accessing Critical Wear Components
Remove the filter screen by prying it gently from the intake port with a flathead screwdriver–avoid excessive force to prevent warping. Inspect the gasket rings visible near the base; replace if cracks, flattening, or brittleness appear. Detach the piston rod by unscrewing its retaining nut at the lower end with pliers, then lift it out. The rod and barrel often accumulate residue; brush stubborn buildup with a stiff nylon brush dipped in isopropyl alcohol. For stubborn deposits, use compressed air at 40 PSI to dislodge particulate, tilting the cylinder to prevent contaminant re-entry. Dry components immediately with lint-free cloths to prevent corrosion.
Check the valve plate beneath the pump head for mineral scaling or pitting–sand lightly with 400-grit abrasive paper if surfaces feel rough. Lubricate O-rings and piston seals using silicone grease applied sparingly to avoid attracting dust. Reassembly requires precise alignment–ensure the piston rod is fully retracted before reattaching the pump head, securing bolts alternately in a cross pattern to distribute pressure evenly. Test for leaks by pressurizing with water before reintroducing liquids.
