Start by locating the motor assembly–the core of your unit–mounted at the center of the rail. Identify the drive gear housing and confirm its connection to the trolley via the J-arm. If misalignment occurs during operation, check the sprocket and chain tension first; incorrect settings cause 70% of rattling or uneven movement issues. Use a 7/16″ wrench to adjust the tension bolt until a 1/4″ sag remains when pressing the chain midpoint.
The logic board, positioned beneath the light cover, requires inspection if erratic behavior persists. Examine the antenna wire for fraying–damage here disrupts signal reception from remotes. Replace the 12V battery backup immediately if the system fails during power outages; degraded cells lose capacity within 2-3 years, leaving the safety sensors inoperable. Verify sensor alignment by measuring the beam path–ensure the yellow LED on both units illuminates steadily without flickering.
For the lift mechanism, focus on the torsion spring assembly if the door struggles to stay balanced. Measure the spring’s wire diameter: 0.225″ for standard models, 0.25″ for heavy-duty. A torque wrench set to 180 inch-pounds is mandatory when re-tightening the winding cone bolts–improper tension risks spring failure. Replace the cable drums if worn grooves are visible; even minor wear increases resistance by 30%, straining the motor.
When sourcing replacements, cross-reference part numbers stamped on the housing with the OEM manual’s exploded view. Third-party gears may lack heat-treated teeth, reducing lifespan by 40%. The limit switch screws–adjustable with a flathead–should be set so the door stops 2″ above the floor when closing. Test safety reversal by placing a 1.5″ obstruction (e.g., a block of wood) under the door; failure to reverse within 2 seconds indicates limit switch miscalibration.

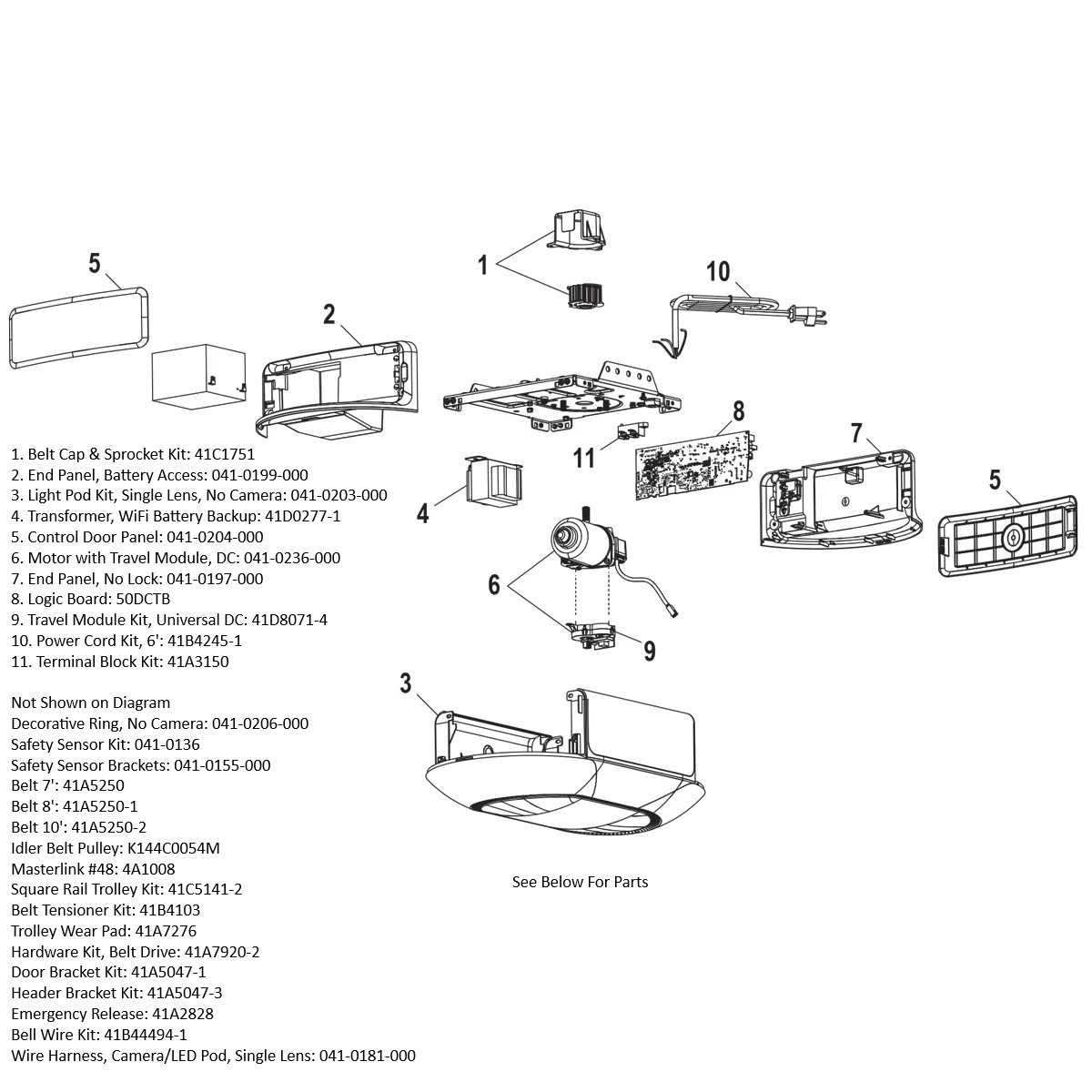

Understanding Your Motorized Entry System Component Layout
Before disassembling your automated barrier mechanism, locate the product label on the underside of the motor housing–this contains the model number, essential for sourcing exact replacements. Models LW500, PD752D, and WD832KEV share similar drive train configurations but differ in rail length and force settings, so verify compatibility.
Primary assemblies include:
- Motor assembly: Houses the brushless DC motor, worm gear, and capacitor–critical for torque conversion. If humming occurs but no movement, test capacitor resistance (should read 5-20 MΩ). Replace if outside tolerance.
- Trolley carriage: Connects to the barrier arm via a 3/8″ threaded rod. Lubricate the nylon rollers monthly with PTFE spray to prevent wear-induced misalignment, which causes erratic travel.
- Safety sensors: Infrared pair requires precise alignment (±2°). Clean lenses with isopropyl alcohol; debris as small as 0.5mm disrupts signal transmission.
- Logic board: Controls radio frequency (315MHz or 390MHz) and force adjustment. For intermittent remote issues, resolder antenna connection points or recalibrate limits using the learn button.
Rail and Drive Mechanism Breakdown
Models equipped with a belt drive (e.g., MYQ1PG) utilize a toothed neoprene belt–inspect for fraying at splice points. Chain-driven units (B550) require quarterly lubrication of the #40 roller chain with SAE 10W-30 non-detergent oil. Apply sparingly to avoid attracting dust that accelerates wear.
Disengage the trolley for manual operation using the red emergency release cord–this bypasses the drive sprocket but leaves the limit switch engaged. If the barrier doesn’t stay shut, adjust the down-force screw (1/8″ turns clockwise) until resistance increases without binding. For belt-driven variants, tension is adjusted via the idler pulley tensioner bolt (requires 5mm hex key). Proper tension deflects 1/8″ under finger pressure.
Electrical Troubleshooting Guide
Check these components in sequence for power failures:
- Plug unit into a dedicated 20A circuit–shared circuits cause voltage drops that trigger thermal overload.
- Verify transformer output (24V AC at terminals 1/2 and 3/4 on the logic board). Low voltage (below 22V) indicates a faulty transformer or loose wire nut.
- Inspect the wall control wires for continuity. Shorts in the bell wire (horizontal activation) cause rapid blinking LEDs; replace with 18 AWG solid copper wire.
- Test safety sensors with a multimeter. Working units show 2-6Ω resistance; infinite resistance means a broken wire or failed LED/phototransistor.
Remote malfunctions often stem from button membrane wear. Desolder the existing tactile switch and replace with an Omron B3F-4055 equivalent (digikey part #SW976-ND) or reprogram a universal remote. Erase all codes first via the learn button (hold 6 seconds until LED flashes), then re-sync transmitters within 30 seconds.

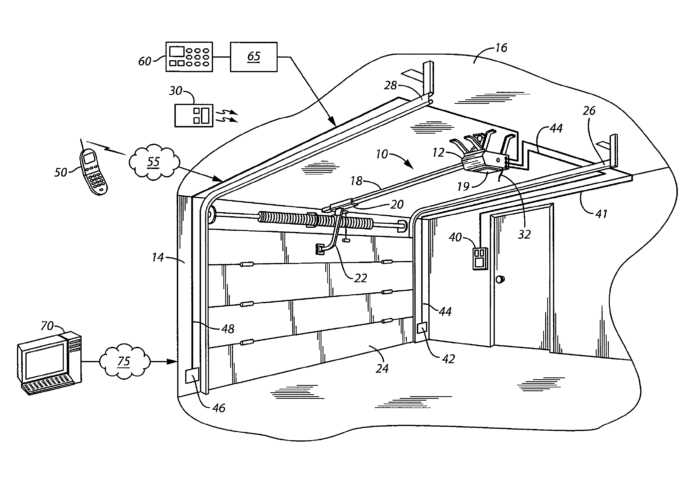

How to Pinpoint Critical Elements in Your Automatic Gate Mechanism Schematic
Start by locating the motor unit–marked as a compact, rectangular block near the top of the illustration. This component drives the chain or belt and is often labeled with voltage specifications (e.g., 120V or 240V). Verify its positioning relative to the rail assembly; misalignment here can cause operational failures.
Trace the rail system next–it appears as a horizontal, elongated structure extending from the motor to the mounting bracket. Check for secondary labels indicating T-rail or universal design compatibility, as this dictates replacement kit requirements. A bent or corroded rail segment will disrupt smooth travel, so inspect for wear signs.
The emergency release cord hangs as a red handle or rope, typically near the trolley. Confirm its connection to the disengagement lever, which should activate with a single downward pull. If this mechanism is stiff, lubricate the linkage points with silicone-based spray to prevent jamming.
Observe the safety sensors–paired infrared devices positioned 4-6 inches above the floor. These are critical for reversing action; if misaligned, the system may fail to close properly. Test functionality by waving an object in the beam’s path–if the motor doesn’t reverse, recalibrate the sensors using adjustment screws.
Identify the control board–usually a small circuit panel beneath the motor housing. Look for capacitors, relays, and micro-switches; bulging capacitors or scorched traces indicate failure. Replace damaged components with identical voltage ratings to avoid electrical hazards.
Examine the limit switches–small levers along the rail that halt motion at preset points. If the mechanism stops prematurely, adjust the screws incrementally while testing opening/closing cycles. Incorrect settings can force the motor to strain, reducing lifespan.
Step-by-Step Guide to Interpreting an Automated Entry System Schematic
Locate the legend first–it’s typically positioned at the bottom or side of the blueprint. Match each symbol to its corresponding label: gears are often marked with “G,” wiring harnesses with “WH,” and circuit boards with “CB.” Verify the scale if dimensions matter; residential units usually list measurements in inches, while industrial models may use millimeters. Cross-reference numbered callouts with the bill of materials to confirm quantities and avoid ordering excess stock.
| Symbol | Component Type | Common Location | Notes |
|---|---|---|---|
| ⚙️ | Motor assembly | Lower rear housing | Check for viscosity markings if lubrication is needed |
| ▱ | Control module | Upper chassis | Handle with ESD precautions |
| ⏚ | Ground wire | Near power inlet | Corrosion-resistant coating should be intact |
Trace power pathways from the terminal block outward. Solid lines indicate direct current flow, while dashed lines show signal routes or secondary functions. Highlight sections where connectors intersect–these points are prone to wear and warrant close inspection. For models with safety sensors, note the alignment arrows; misalignment triggers error codes in most firmware versions, typically LED flash patterns of three short followed by two long pulses.
Key Components for Repair and Where to Find Them on Your System Blueprint
Locate the torsion spring assembly at the top of the wall-mounted unit, adjacent to the header bracket–its position is critical for counterbalance. If the coiled mechanism shows signs of wear or corrosion, replace it immediately to prevent sudden failure, which can damage the entire lifting mechanism.
The drive gear housing sits within the motor enclosure, typically secured by three or four screws. Check the diagram’s exploded view for the exact alignment of the worm gear and spur gear–misalignment during reassembly leads to uneven operation or motor strain. Mark the original gear teeth engagement point before disassembly.
Examine the limit switch track, a slender rail running parallel to the rail system. It regulates open/close cycles; a faulty switch causes the motor to overrun. The track’s mounting holes correspond to adjustment slots in the main unit–verify calibration by manually sliding the trolley to ensure smooth engagement with the limit tabs.
For the remote receiver module, refer to the internal circuitry section of the blueprint–it’s usually nestled beneath the light lens cover. Signal interference often stems from loose antenna wiring; resolder connections if corrosion is visible. The module’s dip switches must match the handheld transmitter’s settings to restore functionality.
The rail sections connect via interlocking joints–inspect each segment for bends or worn rollers. Replace damaged sections rather than straightening them, as compromises in structural integrity reduce load capacity. Lubricate the steel channels sparingly to avoid attracting debris that clogs the roller path.
Identify the emergency release cord near the trolley assembly–its red handle should hang 6–8 feet above floor level for accessibility. Test the mechanism monthly by pulling downward; if resistance is excessive, inspect the cable’s routing for kinks or fraying where it attaches to the carriage.
Battery backups (if equipped) reside in a compartment beneath the motor housing. Remove the panel using a hex driver, then check voltage with a multimeter–SLA batteries degrade after 2–3 years regardless of usage. Label the polarity before disconnecting wires to avoid reverse installation, which risks frying the control board.
