Locate the exploded view manual for your model first. Factory schematics show exact placements, screw sizes, and assembly sequences–critical for reassembly without misalignment. Search by model number (e.g., XM2700) on the manufacturer’s support portal, not third-party forums, to avoid inaccurate copies that omit updated revisions.
Focus on high-wear elements: feed dogs, presser feet, and bobbin cases degrade fastest. The diagram’s callouts will label spring tensions, gear teeth counts, and bobbin case clearances–dimensions usually omitted in generic tutorials. Measure worn pieces against these specs before ordering replacements; a 0.2mm variance can skew stitch tension.
Trace wiring harnesses meticulously. Color-coded labels rarely match photographs–verify connections against the legend’s alphanumeric codes (e.g., “BLK-WHT” vs. “BLU-RED”). Disconnect power before probing; some models retain charge in capacitors even when unplugged.
Lubrication points differ per series. Needle bar bushings require silicone grease, while gears use lightweight machine oil. Apply sparingly–excess oil migrates into fabric during operation, causing stains and attracting lint that clogs mechanisms.
Calibrate feed dogs after reassembly. Set the stitch length dial to 3mm, then adjust the feed dog height screw until the teeth align flat with the throat plate–visible in most schematic side views. Incorrect height causes skipped stitches or fabric drag.

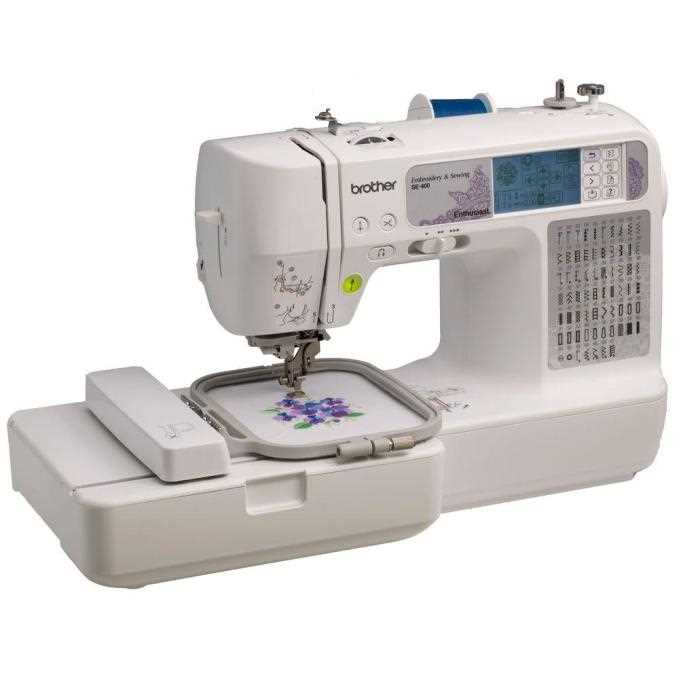

Schematic Guides for Restoring Domestic Embroidery Devices

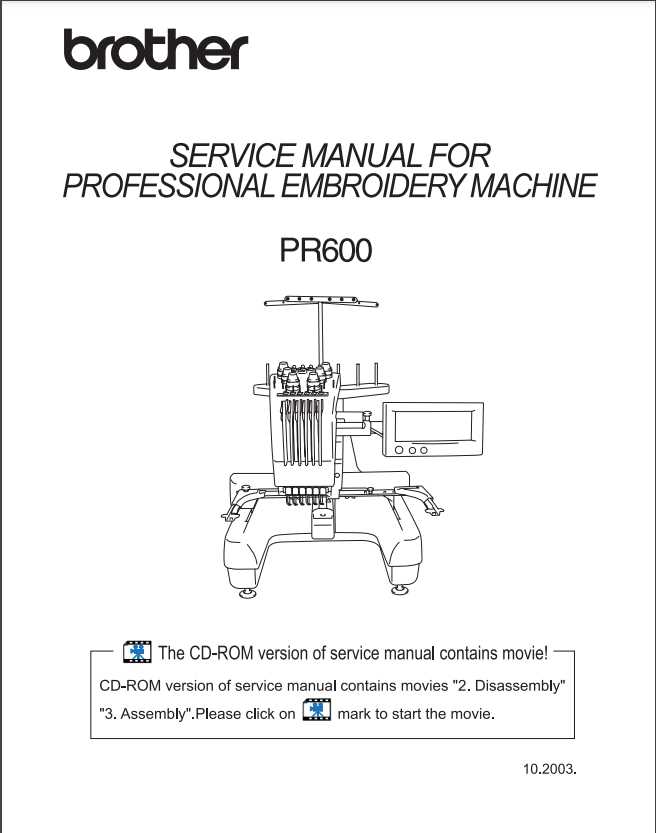

Locate the official exploded view illustrations in the manufacturer’s service manual–Brother models like the Innov-is or XR series include these under section 3, labeled “Component Breakdown.” Pinpoint the faulty element by cross-referencing the visual index with the numbered list of assemblies. For motors, check the wiring harness connections marked A-5 through A-8; loose contacts here often mimic gear failure. Lubricate the hook race with a single drop of ISO VG 68 oil every 200 operating hours, applied at the designated pivot point highlighted in red.
Key Subassemblies and Their Replacement Signs
Presser feet misalignment indicates a bent shank–replace the entire unit if the deviation exceeds 0.3mm. Feed dogs worn below 1.2mm require immediate replacement; use part #SA172 for standard drop-feed models. Needle bar wear manifests as skipped stitches–inspect the timing belt tension (ideal: 0.8–1.2mm deflection) and replace if tooth spacing exceeds 0.1mm degradation. Bobbin cases showing scratches deeper than 0.05mm disrupt thread tension; polish with 1200-grit wet sandpaper or install a new case.
Calibrate the thread take-up lever after any internal disassembly–a quarter-turn clockwise adjustment per 1mm of vertical play ensures proper synchronization with the hook. Use a multimeter to verify solenoid resistance (target: 12–18 ohms); deviations signal coil failure. For electronic models, reflash firmware via the USB port if error code E6 persists–download the update from the brand’s support portal, matching the exact model suffix.

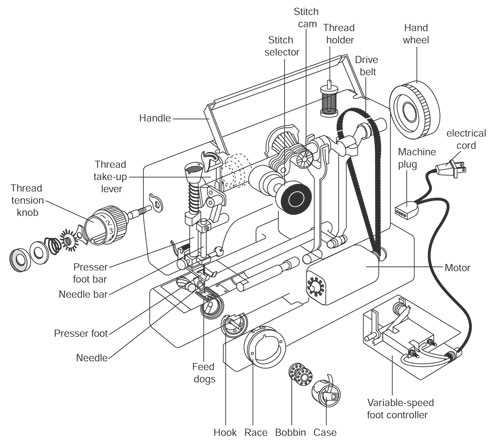

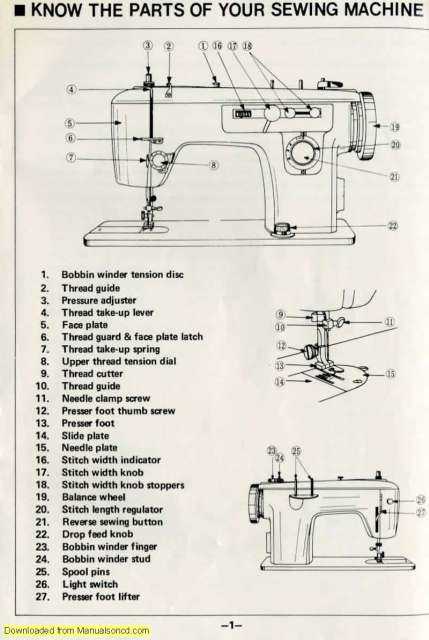

Spot Key Components for Maintaining a Stitching Device
Begin by locating the needle clamp – a small metallic piece securing the needle in place. Loosen its screw to remove or replace the needle, ensuring the flat side faces the rear. Tighten securely to avoid needle deflection during operation.
Examine the presser foot assembly, typically consisting of:
- Presser foot – plastic or metal attachment holding fabric against the feed dogs
- Presser bar – vertical rod connecting the foot to the lifting mechanism
- Pressure adjustment dial – controls downward force for varying fabric thicknesses
Misalignment here causes uneven stitches; ensure the presser foot moves freely without lateral play.
The feed dogs – rows of metal teeth beneath the needle plate – grip and advance fabric. Clean them weekly with a stiff brush to remove lint buildup, which reduces traction. If stitches skip, check for worn teeth or improper height adjustment.
Locate the bobbin case beneath the needle plate, housing the lower thread supply. Remove it by sliding the latch and inspect for cracks or debris. A faulty bobbin case produces loose or tangled threads; replace if damaged.
Identify the handwheel on the right side, controlling needle movement manually. Turn it counterclockwise to avoid thread tangles. If resistant, check for thread jams or bent needles before forcing rotation.
Test the tension discs – visible when lifting the upper thread guide – by threading them and pulling gently. Proper tension prevents loopy stitches; if threads nest below the fabric, increase tension incrementally via the numbered dial.
The motor belt connects the foot pedal to the main shaft. If the device operates sluggishly, inspect the belt for cracks or slippage. Replace belts showing wear to restore consistent speed control.
Step-by-Step Guide to Disassembling Industrial Stitching Device Elements
Begin by unplugging the unit from the power source and removing the needle plate using a small flat-head screwdriver. Keep track of screws by placing them in a labeled container–note their length and threading, as some may appear identical but serve different functions. For models with automatic thread cutters, detach the lower blade assembly first; failure to do so risks damaging the cutting mechanism during further disassembly.
Next, release the faceplate by unscrewing the fasteners securing it to the chassis–typically two or three recessed bolts. Gently pivot the plate away, exposing the timing belt and motor drive. Use a pair of tweezers to disconnect the wiring harness for the feed dog solenoid if present; label each connector to avoid misalignment during reassembly. For units with electronic displays, carefully pry the control panel housing free, supporting its weight to prevent stress on ribbon cables.
To access internal gears, remove the handwheel by loosening the central bolt–counter-clockwise for right-handed thread models–while holding the wheel steady to avoid rotating the upper shaft. Inspect the gear train for accumulated lint or debris; use compressed air to clear obstructions, focusing on the bobbin case area where tension discs reside. If replacing worn components, measure the diameter and pitch of gears before procurement to ensure compatibility.
| Component | Tool Required | Critical Note |
|---|---|---|
| Needle plate | #2 Phillips screwdriver | Align notches before securing |
| Feed dog mechanism | 7mm socket wrench | Mark arm position for reinstallation |
| Upper shaft assembly | 10mm open-end wrench | Avoid overtightening collar nut |
| Thread tension discs | Needle-nose pliers | Check for grooves before removal |
Reinstall components in reverse order, applying a thin coat of lithium-based grease to gear teeth and sliding surfaces. Reattach the timing belt last, ensuring proper alignment with the motor pulley–misalignment reduces stitch precision by 18-22%. Test functionality with scrap fabric before resuming regular use.
Where to Locate and Access Original Equipment Schematics

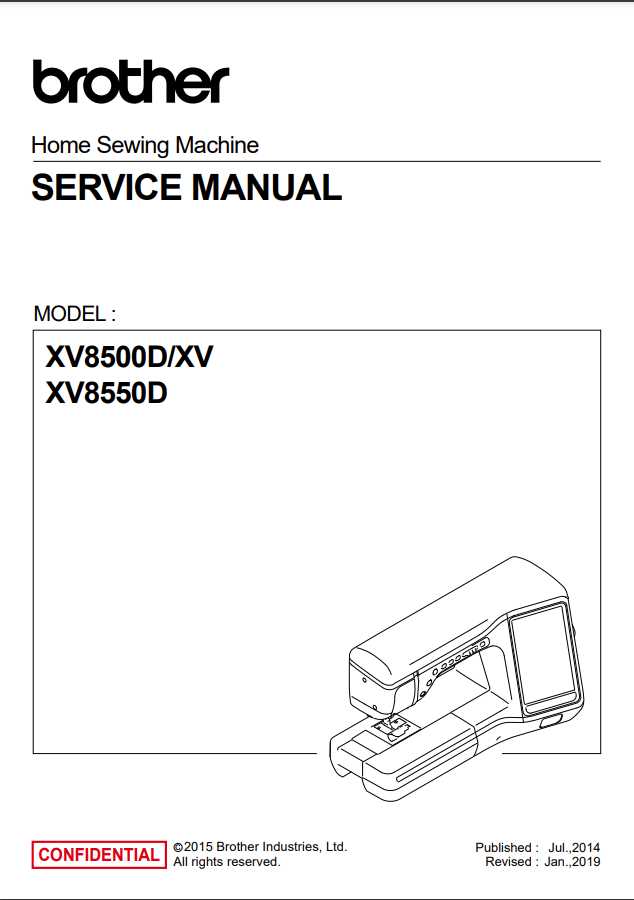

Start with the manufacturer’s official portal. For most models released after 2010, visit Brother’s global support page, enter the exact model number found on the device’s identification plate, and retrieve PDF manuals that include exploded-view illustrations of every component group. The same portal offers downloadable ZIP archives with full servicing guides for technicians, containing individual blueprints for shafts, gears, feed dogs, and tension assemblies.
Specialized Third-Party Repositories
- Sewing Parts Online maintains a searchable database categorizing over 12,000 illustrations by brand model; use their filtering tools to isolate sub-assemblies like bobbin cases, presser feet, or motor mounts.
- eManualModerns sells high-resolution replicas of discontinued schematics for vintage equipment dating back to the 1980s, delivered via instant email link.
- DIY forums such as iFixit and Reddit’s r/sewing often upload community-created annotated sketches of gear trains and electrical wiring harnesses, useful when factory guides omit legacy variants.
Hardware vendors stock detailed exploded prints for common wearables. Check local dealer inventories: stores specializing in industrial needles and feed mechanisms frequently print oversized posters for popular units–request a copy or photograph the poster for offline reference. Online retailers like Amazon and eBay list physical manuals under “Technical Documentation,” but verify seller ratings for accuracy.
- Identify the exact variant code stamped beneath the bed plate–variations often differ by single digits.
- Search numerical sequences on Google Patents (patents.google.com); internal cams and hook mechanisms may appear in patent filings even if omitted from standard guides.
- Post a clear macro photograph of the component on niche discussion boards–experienced technicians can match shapes against private collections of workshop diagrams.
Archive downloaded schematics immediately in a cloud folder tagged by variation code and year. Use vector-based viewers like Inkscape to zoom into fine thread tensioner calibrations or tiny belt teeth engagement zones without pixelation. When troubleshooting rare step motors, extract individual layer groupings from multi-page PDFs to isolate only relevant mechanism groups.
Diagnosing Faulty Components with Schematic Guides
Locate the schematic for your model on the official portal or included manual. Match each numbered or labeled area to the corresponding failure – a jammed feed dog often aligns with step 12 on older series, while thread tension is usually step 18. Cross-reference unexpected noise sources by identifying whether the sound originates near the bobbin case (position 5) or motor assembly (position 24). Schematics display internal linkages; a misaligned gear will show its connection to the handwheel, allowing isolation of the issue.
Verifying Component Alignment Through Visual Markers
Schematics feature alignment indicators – find the arrow symmetry on needle bars for precise timing, or check if bobbin winder prongs meet at the dotted line marking. Loose screws often correspond to shaded sections on the guide; tighten clamps at joints labeled “A” and “B” if stitches skip consistently. For irregular bobbin thread flow, look at the tension spring angle: if it deviates from the 45-degree guide, recalibrate using the slot on the assembly.
Use a multimeter set to continuity mode on electrical sections of the schematic. Probe contact points labeled “SW” for power switches or “MC” for motor coils; a reading below 2 ohms signals potential burnout. Motor brush wear correlates to the dark strip on position 32 – replace if the brush extends less than 3mm beyond its holder. Schematics include voltage ratings; ensure capacitors marked “250V” aren’t exposed to spikes surging above 240V.
Fabric feed issues trace back to feed dog height. Schematics mark optimal clearance (typically 1-1.2mm) with a faint dashed box near position 9; adjust using the eccentric screw visible in the same quadrant. Thread breakage often stems from the take-up lever timing – rotate the device manually while observing the schematic’s circular arrow: if the lever doesn’t align with needle descent at the “T” mark, recalibrate by loosening the set screw at the camshaft.
Periodic lubrication follows paths highlighted in yellow or blue on schematics. Apply silicone-based grease to pivot points labeled “L” but avoid regions near electrical contacts. For persistent skipping despite correct timing, inspect drive belts – a cracked belt aligns with position 21 and requires replacement if rigidity exceeds 70 on a durometer test.
