Before attempting any repairs or maintenance on a hot water heating unit, locate the pressure valve–typically a brass fitting near the top. This safety mechanism releases excess pressure, preventing catastrophic failure. Standard residential models operate between 12-25 PSI; anything above requires immediate attention. Check the valve every 6 months by lifting its lever slightly–water should flow briefly then stop. If it continues dripping, replace it.

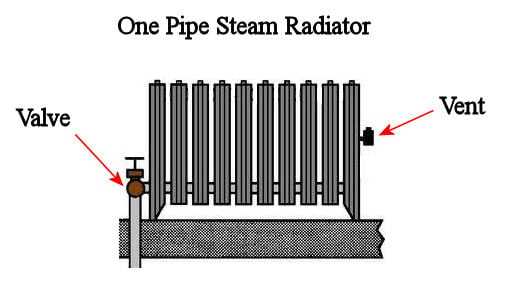

Inside the assembly, the air vent sits at the highest point, often near a pipe elbow or on the top plate. This conical device regulates air expulsion from the system. Corrosion or mineral buildup can block its tiny opening, causing gurgling noises or uneven heating. Clean it annually using white vinegar–soak for 2 hours if deposits are visible. Replace vents with a #40 orifice rating for systems exceeding 200,000 BTUs.
The supply header–a horizontal pipe feeding multiple sections–connects to individual risers via union fittings. These threaded couplings allow sectional disassembly without cutting pipes. Inspect unions for leaks; a monkey wrench with teflon tape applied clockwise (3-4 wraps) resolves minor weeping. For major failures, swap out unions–avoid over-tightening as cast iron threads strip at 30 ft-lbs torque.
At the base of each riser, the supply valve controls water flow. Older systems use gate valves prone to sticking; newer installations feature ball valves for reliability. Test valve operation monthly by cycling from fully open to closed–resistance indicates buildup. Flush valves annually by attaching a garden hose to the drain cock, running water until clear. Note that boiler pressure should stabilize at 180°F during operation–any temperature drop signals circulator pump failure.

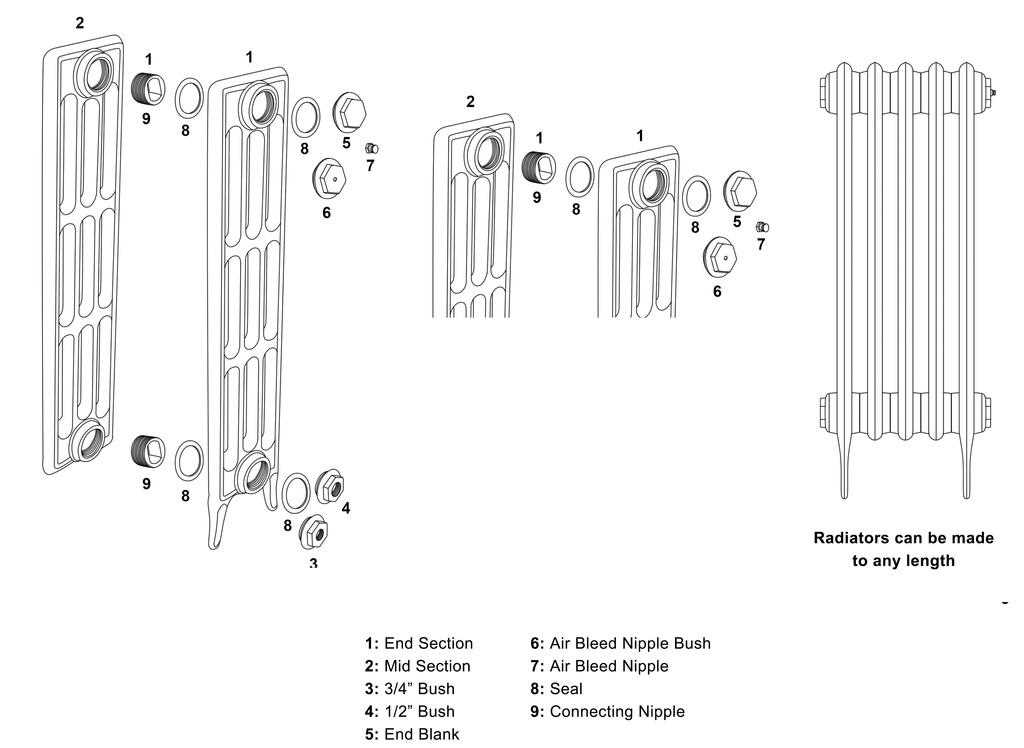

For sectional cast iron units, nipple connections between segments require periodic tightening. Use two pipe wrenches–one to counter rotational force–to avoid damaging the taper threads. Check for white crystalline deposits (calcium carbonate) which expand threads; apply oxygen-safe thread compound during reassembly. Sections with hairline cracks often leak behind paint–detect them by running fingers along seams when the system is cold.
Illustrated Breakdown of Heating Element Components
Begin by locating the intake valve–typically brass or stainless steel–positioned at the base of the unit. Ensure the supply line’s pressure matches the manufacturer’s specs (12–25 psi for residential systems) to prevent uneven heat distribution. For older models, check the packing nut; a quarter-turn with a 14mm wrench often resolves minor leaks without full disassembly.
Critical Assembly Zones
Focus on the air vent: a conical, temperature-sensitive component near the top outlet. If hissing persists after the unit reaches operating temperature (160–180°F), replace it–substandard vents fail within 3–5 years. Below, the diverter valve (if present) regulates flow between sections; a stuck valve causes cold spots–apply penetrating oil and cycle the system 5–10 times to free it. For fin-and-tube configurations, verify fin spacing: bent fins reduce efficiency by up to 30%; straighten them with a fin comb (0.016” gap tolerance).
Examine the union joint connecting the element to the supply line. Corrosion here indicates galvanic reaction–use dielectric unions or PTFE tape on threaded fittings to prevent future failures. On cast-iron units, inspect the push nipples: hidden cracks often form near the header threads. A visual check isn’t enough–tap lightly with a screwdriver; a dull thud signals internal fractures requiring sectional replacement. Always isolate the system (drain to 8” below the lowest component) before servicing to avoid thermal shock.
Key Elements in a Heating Unit Breakdown Layout
Start by locating the inlet valve–typically positioned at the top or side of the assembly. It regulates flow into the chamber and should display manufacturing marks (e.g., “Danfoss” or “Honeywell”) for easy verification. Check for threading direction: left-handed threads require counterclockwise rotation to open, unlike standard right-handed fittings. If corrosion is present, replace immediately to prevent leaks under pressure.
Next, examine the air vent. Smaller than a dime, this component sits opposite the inlet, often near the unit’s upper edge. Models like the Hoffman #40 or Maid-O-Mist feature a float mechanism; a hissing sound during operation confirms proper air expulsion. If silent or spitting water, disassemble and clean the internal needle valve–clogged vents cause uneven heating and trapped gases.
The heart of the system lies in the heater coil. Cast iron variants dominate older models, while finned tubes appear in modern installations. Measure fin thickness: anything below 0.015 inches warrants replacement due to reduced efficiency. For sectional units, count the number of risers–each narrow vertical passage should align perfectly with its neighbor to maintain consistent thermal conduction.
Inspect the supply pipe union. This threaded coupling connects the main line to the heating element and often bears hexagonal flats for wrench engagement. Apply pipe dope sparingly–excess sealant can break down under heat, leading to joint failure. Look for stress cracks near the coupling’s base; these signal fatigue from thermal cycling and demand whole-unit inspection.
Don’t overlook the thermostatic trap, if equipped. Mounted near the outlet, its bellows expand or contract based on condensate temperature. Test by placing a cloth under the discharge: continuous water flow indicates trap failure. Models with adjustable settings (e.g., Sarco or Armstrong) allow temperature tweaking–set between 180°F and 200°F for optimal performance.
Critical Hidden Features
The pressure relief device may be concealed under a metal cap. This spring-loaded valve prevents dangerous over-pressurization by venting at approximately 15 psi. Test annually by lifting the lever briefly–steam should escape forcefully. If discharging water instead, replace immediately as sediment has compromised its function.
Finally, verify the end cap integrity. Cast iron units often have a removable plug at the bottom, secured with tapered threads. Look for pitting or white mineral deposits–these indicate slow leaks. Use a brush to clean threads before reinstalling; Teflon tape is optional but recommended for older systems with worn threads.
Locating and Swapping Out a Defective Heating Unit Air Bleed Valve
Shut off the heating supply and allow the system to cool completely–this prevents burns and ensures pressure equalizes before handling components. Identify the air bleed valve by its small, often cylindrical or conical brass fitting protruding from the side of the heat emitter, typically positioned vertically or at a slight upward angle. Use a flashlight to inspect the valve for visible corrosion, mineral buildup, or water leaks around its base, which confirm failure.
- Locate the valve on the opposite side of the supply inlet–commonly near the top of the panel.
- Check for a manual screw or slot on the valve head; some models require a specialized key.
- If moisture drips from the valve when closed, replace it immediately–ongoing leakage indicates internal seal degradation.
Removing the Old Valve and Installing a Replacement
Drain residual water from the unit by opening the bleed valve until airflow stops, then closing it again. Place a shallow container beneath the valve to catch spillage. Grip the valve body firmly with adjustable pliers–avoid overtightening, as brass is soft. Rotate counterclockwise until the valve detaches; if frozen, apply penetrating oil and wait 10 minutes before retrying.
- Wrap the threads of the new valve with PTFE tape twice in a clockwise direction to ensure a leak-proof seal.
- Hand-tighten the new valve until snug, then finish with pliers, turning an additional ½ to ¾ turn–avoid cross-threading.
- Reopen the heating supply, monitor for leaks for 5 minutes, then purge air by gently reopening the valve until steady water flow confirms proper venting.
Verification and Troubleshooting
Check for even heat distribution across the panel after 30 minutes of operation; cold spots suggest trapped air and require re-bleeding. If hissing persists beyond the initial purge, inspect the replacement valve’s orientation–some models require seating in a precise upward angle. For stubborn systems, verify the pressure gauge reads 1–2 psi; excessive pressure overloads vents, causing premature failure.
Step-by-Step Guide to Removing and Installing Heat Emitter Supply Valves
Shut off the main boiler and allow the system to cool for at least 30 minutes before proceeding. Attach a pipe wrench to the valve body just below the packing nut–apply steady pressure counterclockwise while holding the adjacent piping with a second wrench to prevent twisting. If resistance persists, apply penetrating oil along the threads, let sit for 10 minutes, then retry. Avoid excessive force; stripped threads or cracked fittings require full section replacement.
Drain residual water by opening the bleeder screw or slackening the union nut at the lowest connection. Place a shallow tray beneath the valve to catch drips. Inspect the removed valve’s mating surfaces for pitting, corrosion, or old sealant residue–any imperfections will compromise the new seal. Clean both the valve seat and pipe end with a wire brush, then wipe with a lint-free cloth dampened in isopropyl alcohol to remove debris and oil.
Wrap the male threads of the new valve with PTFE tape, starting at the second thread from the end. Apply three full wraps in a clockwise direction, ensuring the tape covers the entire thread length without overlapping the pipe’s end. For larger diameters (1/2″ and above), consider using thread sealant compound in addition to tape–apply a thin bead along the tape’s outer edge to fill voids.
| Valve Type | PTFE Tape Wraps | Sealant Requirement | Torque (ft-lb) |
|---|---|---|---|
| Brass angle valve < 3/8″ | 3 | None | 12–15 |
| Brass straight valve 1/2″ | 3 | Optional | 18–22 |
| Cast iron gate valve ≥ 3/4″ | 4 | Recommended | 25–30 |
Hand-thread the new valve onto the pipe until snug, then use two wrenches–one on the valve, one on the pipe–to tighten. Follow the torque values in the table; overtightening can distort the valve body or crack female threads. For sweat connections, heat the joint evenly with a torch until solder melts at contact points, then slide the valve into place and hold until solder solidifies.
Reconnect the supply line, ensuring the union nut aligns perpendicular to the valve outlet. Slowly open the boiler feed valve while monitoring for leaks–if seepage appears, shut off and retighten the suspect joint. Once pressure stabilizes, purge trapped air through the bleeder screw until a steady stream of water confirms full flow. Cycle the valve open and closed twice to verify smooth operation before replacing decorative escutcheons.
Common Mistakes to Avoid
Over-applying thread sealant can clog valve internals, causing restricted flow. Reusing gaskets or washers from previous installations often leads to immediate leaks–always replace with identical new components. Attempting to install a valve without stabilizing the pipe may loosen nearby joints, requiring time-consuming system rechecks. Confirm local code requirements; some jurisdictions mandate dielectric unions between dissimilar metals to prevent galvanic corrosion.
