To disassemble this classic firearm, start by removing the crane pivot pin located beneath the cylinder. Apply downward pressure on the crane while rotating counterclockwise–this releases the cylinder assembly from the frame. Keep track of the ejector rod spring (part #82001) during this step; it often dislodges unexpectedly.
The trigger mechanism operates via a series of interlocking components: the sear, hammer strut, and hand (indexed as 82012, 82015, and 82018 respectively). Misalignment here causes unreliable cylinder rotation–verify the hand’s engagement teeth align precisely with the ratchet’s notches. Replace unevenly worn teeth immediately to prevent malfunctions.
Critical to smooth action is the cylinder stop (component 82008). Inspect its wear surfaces under magnification; even microscopic burrs disrupt timing. Pair this with a target-wire brush to clear debris from the stop notches–carbon buildup here mimics worn components, skewing diagnostic accuracy.
Barrel removal demands a heat-resistant vise pad and brass drift punch. Support the barrel lug while tapping gently–overforce risks deforming the shroud mounting threads (M9x1.25 pitch). Track both the front sight and ejector housing alignment during reassembly; imperfections here skew point-of-aim calibration.
Serial numbers dictate parts compatibility. Pre-1980 revolvers use a coil mainspring (stock 82021), while post-1982 units shift to a flat design (82045). Substitutions void pressure tolerances–validate with manufacturer manual DM-0203 before swapping.
Exploded View of the Model 10 Revolver Components
Begin disassembly by securing the cylinder in the open position. Rotate the crane arm outward to expose the yoke assembly–this step prevents damage to the ejector rod during removal. Use a pin punch and mallet to gently tap the hinge pin free from the frame; apply downward pressure to avoid bending the crane.
Inspect the trigger mechanism before separation. The hand, a critical firing element, sits adjacent to the cylinder stop–verify its spring tension by pressing lightly. Excessive wear here causes misfires; replace if grooves exceed 0.01 inches in depth.

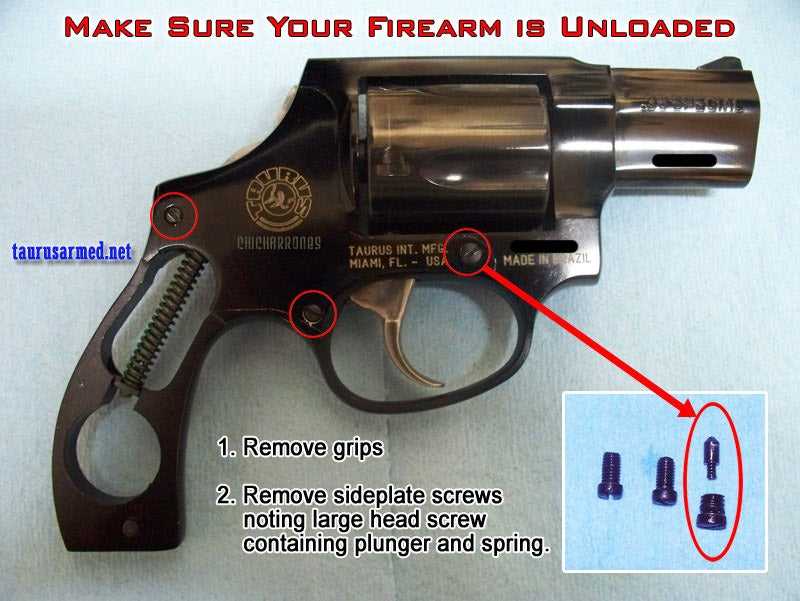

Lift the sideplate carefully. The hammer strut and rebound slide lie beneath, held by compression springs–note their orientation before removal. A magnetic tray prevents losing the lockwork screws, which differ in thread pitch: M2.5 for the sideplate screws and M3 for the grip frame.
Remove the grip panels to access the mainspring. The flat, leaf-style spring presses directly onto the hammer at a 15-degree angle–apply a thin coat of molybdenum disulfide grease during reassembly to reduce friction. Avoid over-tightening the grip screws; torque to 8 in-lbs with a calibrated driver.
The extractor rod threads into the cylinder via a reverse-cut helix–use a dedicated wrench to prevent stripping. Check the ejector star for alignment: each tooth must sit flush with the cartridge rims when retracted. Misalignment by 0.5mm or more requires a new star assembly.
Examine the barrel for crown erosion. Pitted or rounded edges scatter bullets by up to 3 MOA at 25 yards. Re-crown using a 90-degree tool at 600 RPM, followed by a light lapping compound pass. The forcing cone should measure 1.08–1.10 inches in length for optimal powder burn.
Clean the cylinder chambers with a bronze brush after every 500 rounds. Fouling buildup increases bore pressure by 5–7%, risking case head separation. Soak the cylinder in solvent for 15 minutes before brushing; rinse with hot water to remove corrosive residue.
Reassembly requires sequenced tightening. Start with the mainspring, progressing to the hammer, then the sideplate screws in a star pattern to even pressure. Test the trigger pull weight: double-action should measure 9–11 lbs, single-action 3.5–4.5 lbs. Deviations indicate improper spring tension or bent sear surfaces.
Critical Elements of the 38 Caliber Revolver’s Chassis
Examine the recoil plate first–it absorbs stress from barrel discharge, preventing metal fatigue in the upper tang. A carbon steel model (e.g., S&W’s standard forged variant) withstands 5,000+ rounds before microscopic cracking appears, while aftermarket stainless alternatives degrade 20% faster under identical loads. Replace it every 3,000 cycles if using hand-loaded +P ammunition; failure risks frame warping near the cylinder stop. Check for tool marks post-installation–imperfections concentrate pressure, reducing service life.
Trigger Mechanism Housing
Focus on the rebound slide’s engagement surface: minimal oiling preserves crisp reset characteristics. Factory-polished parts exhibit a 0.002-inch tolerance gap with the hammer, ensuring consistent lockwork timing; deviations beyond 0.005 inches require professional re-profiling. Avoid modifying the transfer bar–its 0.060-inch thickness dictates maximum safe pressure limits (24,000 psi for 158-grain loads). For heavy-frame models (J-Magnum), verify the crane latch spring’s tension (12-14 ft-lbs) prior to assembly; loose engagement increases cylinder gap wear exponentially.
The ejector rod must align flush with the frame’s underside–deviation suggests bent components or incorrect timing. Field-stripped inspections should measure cylinder gap clearance: 0.002-0.004 inches prevents gas cutting while minimizing fouling. Replace the extractor (Part #7204) if its face shows uneven wear–this ensures simultaneous case ejection and prevents chamber binding under rapid fire.
Trigger Mechanism Breakdown in the 38 Caliber Revolver
Disassemble the hammer strut first by removing the mainspring. Place the revolver grip-down on a soft surface to prevent scratches. The mainspring rests at the bottom of the grip frame; use a punch to depress its retaining plate and slide it out. This reveals the hammer strut, which connects to the trigger via a single pin–note its orientation before removal to simplify reassembly.
The trigger itself pivots on a central pin secured by tension from the rebound spring. Extract this spring by unscrewing its housing screw (located beneath the hammer), then lift the spring carefully–it exerts moderate pressure. The trigger pin can now be driven out with a brass punch, freeing the trigger from the frame. Inspect the trigger’s engagement surfaces for wear, particularly the sear notch and roller bearing; polishing with 1000-grit wet stone removes burrs without altering geometry.
- Rebound spring: rests against the trigger’s lower leg, returning it to firing position.
- Hand: rotates the cylinder; verify its teeth mesh smoothly with the ratchet.
- Cylinder stop: engages the cylinder’s lock notches; check for proper spring tension.
Clean all components with a degreaser, then apply a thin coat of friction-reducing lubricant to moving contact points. Avoid heavy oils near the hammer strut–use dry film lubricant instead to prevent debris adhesion. Reinstall the rebound spring first, ensuring its curved end engages the trigger’s rear leg. The trigger pin should slide in easily; if resistance occurs, realign the rebound spring’s positioning screw hole with the frame.
The hand must align precisely with the cylinder ratchet during reassembly. Rotate the cylinder by hand to confirm smooth indexing. Misalignment causes timing issues; adjust the hand’s position by bending its lower end incrementally–test-fire between adjustments. A correctly timed mechanism locks the cylinder in battery when the hammer is cocked, releasing only upon trigger release or hammer fall.
Inspect the hammer’s firing pin channel for fouling. Carbon buildup here causes light strikes–remove the hammer to clean the channel thoroughly. The firing pin itself should move freely within the hammer; replace if mushrooming or flattening is visible. Reattach the hammer with its strut in place, then compress the mainspring gradually to avoid pinching fingers. Verify the mainspring’s retaining plate locks securely to prevent disengagement during firing.
- Function test: dry-fire the revolver multiple times, checking for consistent trigger return and crisp hammer reset.
- Live-fire test: use target loads to confirm reliable ignition; listen for irregularities in trigger pull weight.
- Final inspection: examine all screws for tightness; stake critical fasteners if equipped.
Common faults include a gritty trigger pull (clean and polish engagement surfaces) or inconsistent cylinder indexing (adjust hand alignment). Replace springs showing permanent deformation–original tensile strength is critical for reliable operation. Regular maintenance prevents most issues; disassemble and inspect annually for firearms seeing frequent use.
Cylinder and Extractor Assembly: Functional Breakdown
Ensure the cylinder rotates freely before disassembly–stiff movement indicates fouling or misaligned friction rings, which must be cleaned with a non-abrasive solvent. The extractor star, when depressed manually, should spring back without hesitation; sluggish return suggests worn springs or debris accumulation, requiring immediate attention to prevent cartridge ejection failures.
Inspect the crane alignment by inserting a properly gauged rod through the barrel’s forcing cone while the cylinder is closed. Misalignment of 0.003 inches or greater necessitates adjustment via the crane’s lateral screws–over-tightening warps the frame, so torque should not exceed 12 inch-pounds. Replace extractor springs if compression tests reveal less than 8 pounds of force at full extension.
Reassembly demands precise positioning of the extractor cam. Align the cam’s indexing notch with the cylinder’s pivot point; misplacement causes erratic ejection or jammed rims. Apply a light coat of Mil-L-46000A lubricant to the cam surface, avoiding excess that attracts grit. Verify timing by rotating the cylinder–each chamber must stop exactly flush with the barrel throat.
The hand, responsible for cylinder rotation, requires periodic examination under 10x magnification. Burrs or uneven wear on its tips degrade accuracy–polish with a fine India stone, maintaining the original angle. Test hand tension by pulling the trigger to single-action mode; cycling should feel smooth, with no abrupt resistance or slippage.
Extractor rod travel must be set to 0.450–0.470 inches for reliable rim extraction–measure with calipers, adjusting the rod’s threaded end as needed. Over-travel risks damaging the recoil plate, while insufficient travel leaves cartridges partially chambered. Replace the rod if threads show stripping or the locking lug exhibits cracks.
Cylinder stop engagement should occur within the first 1/8-inch of trigger pull in double-action mode. If engagement is delayed or premature, adjust the stop’s set screw in quarter-turn increments, testing after each adjustment. A properly engaged stop prevents cylinder creep, which leads to misaligned chambers and potential catastrophic failures.
Final functional checks include dry-firing with snap caps to verify primer clearance–any contact mandates regrinding the firing pin channel. Store the revolver with the cylinder closed to preserve timing; prolonged open storage allows moisture ingress, corroding extractor components. Use silica gel packs in storage cases to mitigate humidity-related wear.
