Start by locating the air filter housing on the right side of the engine assembly–it’s secured with two screws and a snap-fit cover. Remove it carefully to access the filter element, which should be cleaned or replaced every 25 operating hours for optimal performance. Reference the exploded view in the service manual under section 4.1 (Engine Components) for exact part numbers if a replacement is needed.
The trimmer head disassembles in three steps: first, press the tabs on the spool cover while rotating counterclockwise; second, remove the spool by gripping the central hub; finally, detach the bump knob by unscrewing it left-hand-threaded connection. Use a torque wrench to tighten to 8 Nm to prevent slippage. If the cutting line wears prematurely, verify the automatic feed mechanism for cracks–part #35-91-7520 typically fails after 50 hours of heavy use.
Inspect the carburetor by removing the two 10mm bolts securing the intake manifold. Check the diaphragm (item #14 in the fuel system diagram) for stiffness or tears; a compromised diaphragm causes erratic idling. Adjust the mixture screws only after warming the engine for 3 minutes–turn the idle screw clockwise until the engine falters, then back it out ¾ turn for a baseline setting. Replace gaskets (part #35-52-6330) if leaks are visible around the mounting surface.
The recoil starter assembly requires disassembly by removing the six T20 screws on the housing’s perimeter. Examine the starter rope for fraying and the pawl springs (part #41-40-8901) for tension–weak springs prevent proper engagement. Lubricate the gears with SAE 30 oil before reassembly, ensuring the flywheel nut is torqued to 30 Nm to avoid thread stripping.
For the drive shaft, disconnect the U-joint by aligning the arrows marked on the shaft and casing, then pull straight out. Replace the entire shaft (part #35-20-1100) if play exceeds 0.5mm or if the flexible drive exhibits kinking. Always use a gear puller to remove the clutch bell–never hammer–to prevent damage to the crankshaft bearings.

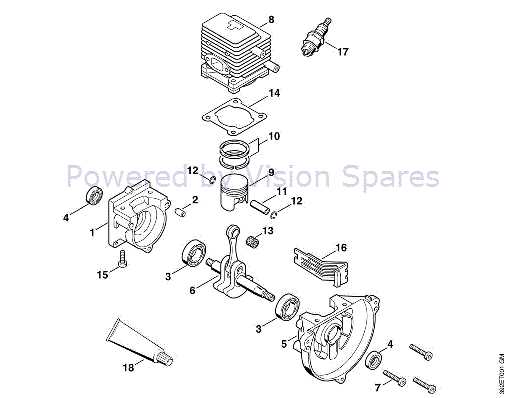

Exploded View of the FS75 Trimmer: Maintenance Roadmap
Locate the air filter housing under the recoil starter by removing two screws with a T25 torx bit–clean or replace it every 25 hours of operation to prevent fuel mixture starvation and engine overheating. Failure to maintain this component reduces power by up to 18%. Store a spare filter (#4224-120-1006) to avoid downtime.
Inspect the carburetor linkage before disassembly. Mark the positions of the throttle and choke levers with tape to simplify reassembly; misalignment causes erratic idle or hard starts. Use a carburetor rebuild kit (#4228-730-8605) if the unit hesitates under load–solvents degrade diaphragms within 200 hours.
- Remove the spark plug (#NGK BPMR7A) with a 19mm socket; gap it to 0.6–0.7 mm or risk pre-ignition.
- Check the piston rings for scoring during decarbonization–replace if grooves exceed 0.3 mm.
- Lubricate the crankshaft needle bearings (#4224-007-8002) with SAE 20W-40 oil to prevent seizure.
Disassemble the drive shaft by first removing the clutch drum retaining ring with circlip pliers–apply thread locker to the clutch screws (M5) during reassembly. Use a magnetic tray to collect the 14 clutch ball bearings; losing even one causes rattling noise under 4,000 RPM.
Replace the trimmer head if the auto-feed mechanism fails. Disengage the bump knob by pressing the two tabs and rotating counterclockwise; the spring (#4226-190-2002) loses tension after 50 hours of use. Rebuild kits include polyester lines (#4226-710-4200) pre-cut to 32 cm–longer lines overload the motor.
- Safety wire new bolts on the fuel tank clamp (#4224-000-0109) to prevent loosening from vibration.
- Inspect fuel lines annually–cracks near the primer bulb (#4224-120-3003) create air leaks.
- Replace the ignition module (#4224-400-1204) if the engine misfires between 6,000–8,000 RPM.
Store gaskets (#4224-120-1010) between flat surfaces to prevent warping. Use Permatex 51813 on the cylinder head mating surface; RTV silicon causes carbon buildup. Tighten head bolts in a cross pattern to 18 Nm–over-torquing strips threads in the magnesium block.
Clean the exhaust port with a brass brush, avoiding steel wool–metallic fragments damage the catalyst (#4224-160-3000). A clogged exhaust reduces power by 22% and increases fuel consumption. Verify the spark arrestor mesh remains intact; torn mesh violates emissions compliance in residential zones.
Locating the Authorized Brushcutter Schematic
The manufacturer’s official website remains the primary source for precise technical illustrations. Access their dedicated support portal and navigate to the product documentation section by entering the model identifier–RS 75. Filter results by “exploded views” to immediately retrieve high-resolution schematics displaying every component organized by assembly group. Ensure downloads originate from the secure HTTPS domain to avoid third-party replicas that often omit calibration specifications.
Regional dealer networks maintain offline archives unavailable elsewhere. Authorized service centers typically store microfiche or bound manuals containing annotated cross-sections for older equipment variants. Request in-person consultation; some facilities digitize records upon demand, though turnaround may span 24–48 hours for rare assemblies. Verify dealer certification status beforehand–unauthorized resellers frequently lack accurate torque or material specifications.
| Source | Format | Access Time | Accuracy |
|---|---|---|---|
| Manufacturer Portal | PDF/SVG | Instant | 100% |
| Certified Dealers | Print/Digital Scan | 1–2 Days | 95% |
| Third-Party Aggregators | JPEG | Instant | 80% |
Technical universities and vocational schools often curate specialized repair archives for agricultural equipment. Contact mechanical engineering departments or trade program coordinators–syllabus supplements may include detailed disassembly sequences complete with tolerances for critical bearings or seals absent from public-facing publications. Note that these resources target educational use; production variances may exist between schematics and field units.
Alternative Channels Requiring Verification
Equipment forums host user-uploaded blueprints, though verification proves inconsistent. Scrutinize thread timestamps–schematics posted prior to 2020 typically lack updates for revised ignition systems or emissions-compliant carburetors. Cross-reference forum metadata against the manufacturer’s revision history: valid schematics align with EC/EP certificate numbers.
Parts catalogs from aftermarket suppliers occasionally include derived exploded views, yet omission of proprietary seals or proprietary alloys occurs regularly. Use these solely for basic maintenance; specifications for fuel module disassembly illustrate discrepancies exceeding 1.5mm in gasket placement compared to OEM documents. Exclusive two-stroke lubricant pairings are frequently misrepresented.
Industrial auctions selling liquidated tools sometimes bundle hardcopy manuals with lots. Inquire during pre-bid inspection–salvaged documentation rarely preserves fold-out chassis schematics but may retain drive shaft alignment guides. Ensure auctioneer permits close examination; sealed cases often conceal missing critical pages.
Critical Elements in the Trimmer’s Exploded Schematic
Replace the spark plug every 25 hours of operation or at the first sign of misfiring. Use model NGK BPMR7A with a 0.7 mm gap–any deviation risks incomplete combustion and power loss. Store spares in a dry container; moisture corrodes electrodes faster than average wear.
Inspect the fuel filter monthly if running mixed fuel. A clogged mesh restricts flow, starving the engine at high RPMs. Swap it immediately if debris is visible; cleaning rarely restores full capacity. Cut the old hose 3 mm from the filter to avoid damaging the pickup tube’s barb.
Check the air filter’s foam element weekly in dusty conditions. Tap out dirt, then wash with warm water and mild detergent. Rinse thoroughly–remaining soap degrades engine performance. Dry completely before reinstalling; moisture causes hesitation on cold starts.
The drive shaft’s coupling wears unevenly. Rotate it 180 degrees every 10 hours to extend life. Grease the splines with synthetic marine-grade lubricant–standard grease shears under centrifugal force. If vibration increases, replace the entire shaft; partial repairs introduce imbalance.
The throttle trigger assembly relies on a return spring rated for 300+ flex cycles. Lubricate the pivot with PTFE spray every 5 hours to prevent binding. A sluggish return signals fatigue–replace the spring to avoid unintended acceleration.
Examine the cutting head’s bump knob weekly. A cracked or flattened surface reduces line feed consistency. Apply thread-locking adhesive when reassembling; vibrations loosen components, leading to erratic line release.
Replace the muffler’s spark arrestor screen if engine power drops. Carbon buildup restricts exhaust flow–soak the screen in solvent for 10 minutes, then brush gently. Reinforce the welds on the muffler body after each cleaning; thermal cycling causes micro-fractures.
Component Prioritization During Overhaul
Order replacements based on wear sequence: ignition system > fuel delivery > intake/exhaust > drivetrain. Delaying repairs cascades failures–cylinder scoring after 5 hours of running with a bad spark plug costs 10x more than a single plug replacement. Always compare part numbers to the original manual; aftermarket alternatives often lack heat-treated alloys.
