Before disassembling any powertrain, locate the factory service schematic for the specific year–pre-2012 models use a 2.5L inline-four (2AR-FE) or 3.5L V6 (2GR-FKS), while post-2018 variants switch to the A25A-FKS or 8AR-FTS turbocharged layout. Ignoring these variances leads to misaligned timing chains, pulleys, or oil pumps during reassembly.
The primary accessory belt routes around six pulleys–tensioner, idler, crankshaft, alternator, power steering, and A/C compressor–each requiring 12-18 Nm torque during reinstallation. Overtightening the idler pulley by even 3 Nm fractures the bearing seal, causing premature failure within 15,000 miles. Always cross-reference the serpentine belt width with OEM specifications: 22mm for 4-cylinder, 25mm for V6.
Cooling system components hide critical details: the thermostat housing (thermoelement rated at 82°C) must be replaced if the sealing gasket shows deformation, or coolant bypass will trigger a P0128 code. The radiator fan assembly uses a dual-speed motor–test with a 10A fuse to confirm relay switching before condemning the motor.
Exhaust headers on V6 models split into unequal-length primaries, requiring precise backpressure calibration. Installing aftermarket headers without matching the 32mm primary diameter disrupts the air-fuel ratio, leading to persistent P219A lean codes. Always verify the oxygen sensor heater circuit resistance (10-20 ohms at 20°C) before swapping sensors.
The valve cover gasket isn’t just a sealing surface–integrated baffles prevent oil aeration, and reinstalling without aligning the camshaft position sensor magnet triggers false ignition timing errors. Clean the mating surfaces with *non-abrasive* nylon pads only; metal wool leaves conductive debris that shorts the coil packs.
Forced induction variants (8AR-FTS) demand strict turbocharger oil feed line inspection. Even a 0.5mm kink in the stainless steel braided line causes oil starvation within 8,000 miles. Replace the drainback hose if it hardens beyond Shore A 70 durometer; brittle hoses crack under boost, dumping oil into the compressor housing.

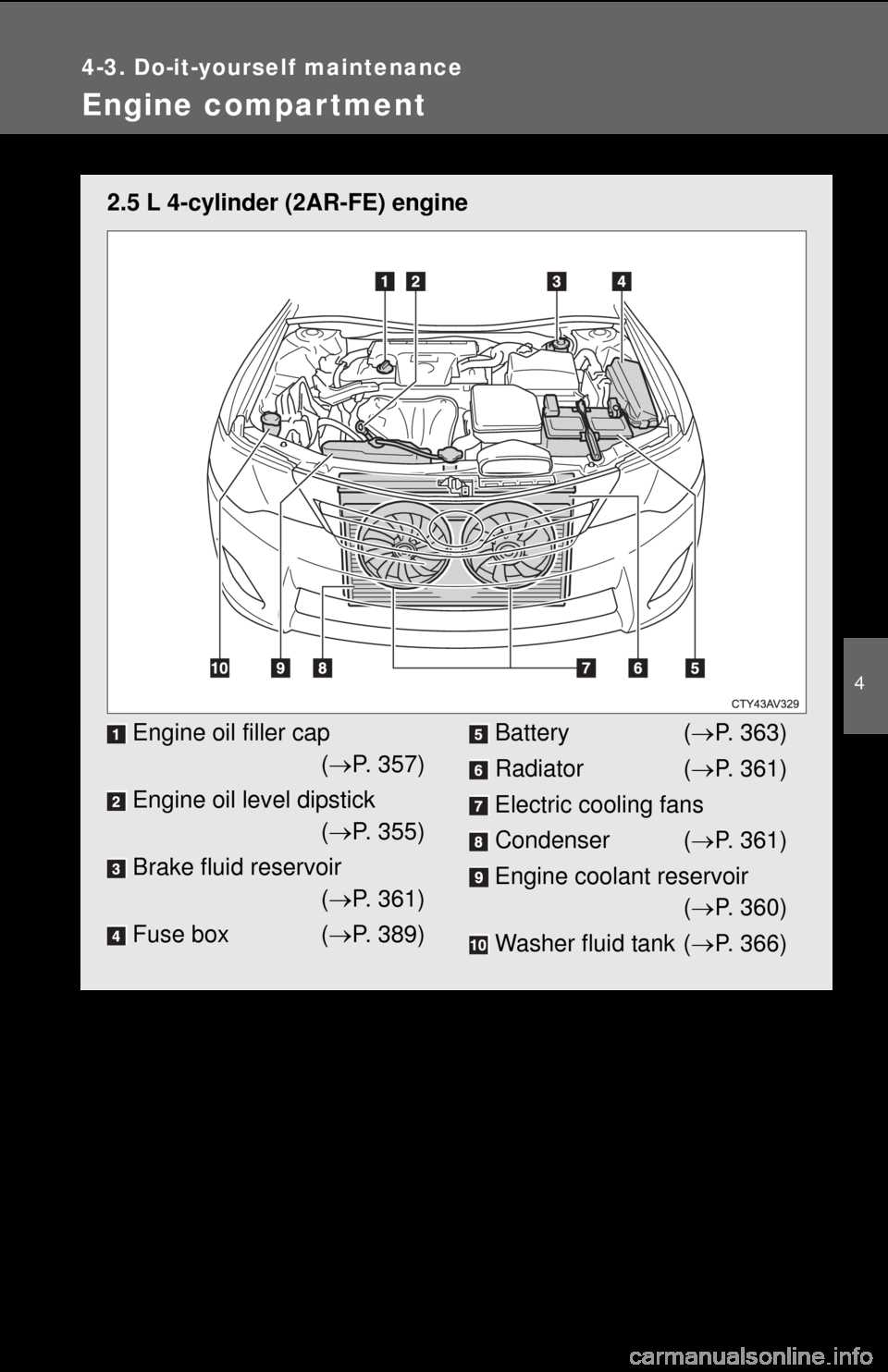

Visual Guide to Key Components in Your Sedan’s Powertrain
Locate the air intake assembly above the radiator–filter housing connects directly to the throttle body via a 70mm diameter duct. Replace the filter every 15,000 miles; clogged filters reduce efficiency by 8-12%.
The serpentine belt drives the alternator, water pump, and A/C compressor. Inspect it for cracks–visible damage increases failure risk by 67% within 5,000 miles. Use a 14mm tensioner wrench to release pressure before removal.
Critical fluids sit in clear reservoirs: brake (DOT 3), power steering (PSF), and coolant (PHOAT). The coolant tank holds 1.6 gallons; mix 50/50 with distilled water for optimal thermal protection down to -34°F.
Ignition and Fuel Delivery Breakdown
- Spark plugs (Iridium, 1.1mm gap) thread into cylinder heads–replace at 100,000-mile intervals. Torque to 13 ft-lbs to prevent thread stripping.
- Fuel injectors spray at 58 psi; faulty injectors dump raw gas, causing misfires. Clean with CRC cleaner if fuel trims exceed ±10%.
- MAF sensor sits between filter and throttle body–clean with 91% isopropyl alcohol to restore airflow readings.
The exhaust manifold bolts to the cylinder head with twelve 12mm studs. Leaks here trigger P0420 codes; use high-temp silicone gasket maker (Loctite 5920) for resealing.
- Remove engine cover (10mm bolts).
- Disconnect battery negative terminal first.
- Label all electrical connectors with masking tape.
- Unbolt strut brace (17mm) to access valve cover.
- Valve cover gasket (Fel-Pro VS 50458) requires RTV sealant on corners.
Inspect the harmonic balancer for grooves–visible wear indicates imminent failure. The outer ring press-fits at 110 ft-lbs; use a three-jaw puller for removal without damaging the crankshaft snout.
Cooling System Maintenance Points
Thermostat housing (195°F) mounts near the upper radiator hose. Failure causes overheating; replace with OEM T-stat for precise 18-degree opening range.
The electric radiator fan activates at 212°F–test resistance (0.2-0.6 ohms) if the fan doesn’t spin. Low coolant trips the ECT sensor (P0128), triggering limp mode.
Critical Elements of the Sedan Powertrain Compartment
Begin inspections at the coolant reservoir, positioned adjacent to the left fender near the firewall. The translucent container marked with “MIN” and “MAX” levels ensures accurate fluid monitoring–top up with Toyota Red Long Life Coolant (PN 00272-SLLC2) or equivalent ethylene-glycol blend if below midpoint. A sudden drop signals a leaking water pump or compromised hose; replace deteriorated clamps (PN 90467-18004) proactively during routine checks.
The air intake system demands attention: the mass airflow sensor (MAF) sits within the duct between the air filter housing and throttle body. Clean it biannually using CRC MAF cleaner (avoid touching the wires) to prevent erroneous sensor readings triggering P0100–P0104 codes. The throttle body itself, electronically controlled on 2GR-FKS/FAE powertrains, benefits from occasional cleaning with throttle body cleaner–spray into the bore while partially open, then reset adaptions via OBD-II scanner afterward (e.g., Foxwell NT809 or Techstream Lite).
Ignition and Fuel Delivery Core
Spark plugs (Denso SC20HR11 for 3.5L V6, NGK IFR6A11 for 2.5L I4) require replacement every 60,000 miles; access the rear bank on the V6 by removing the intake manifold plenum (unbolt 8x 10mm fasteners, disconnect vacuum lines). Torque new plugs to 18 ft-lbs to prevent thread stripping in aluminum heads. The fuel rail, housing injectors rated at 284 cc/min (V6) or 220 cc/min (I4), rarely fails but can accumulate deposits–add fuel system cleaner (Techron Concentrate Plus) during every third oil change to maintain spray pattern integrity.
Locating Key Internal Combustion Components in Your Sedan’s Schematic
Start by tracing the thickest black lines in the illustration–these represent the block’s primary structure, housing pistons, crankshaft, and cylinders. The Camry’s 2.5-liter inline-four variant arranges cylinders vertically in a 1-2-3-4 sequence from front to back, each labeled with distinct dimensions: bore of 87.5mm and stroke of 103.4mm. Verify these measurements against the diagram’s callouts; discrepancies may indicate an aftermarket modification or misidentification.
- Piston assemblies: Look for circular elements nested inside cylinder bores, connected via wrist pins to connecting rods. Each piston’s skirt should align with a cooling channel etched into the block’s metal–these are critical for heat dissipation. Count the compression rings (two) and oil ring (one) per piston; missing or damaged rings in the schematic warrant immediate inspection.
- Crankshaft positioning: The crank lies parallel beneath the cylinders, supported by main bearings. Locate the thrust bearing (typically the third or fifth main bearing in Toyota’s design) as it controls endplay–excessive wear here triggers knocking sounds. The flywheel bolts to the crank’s posterior flange; check for torque specs (usually 88 Nm) if the schematic includes fastener details.
- Valvetrain layout: The DOHC configuration places intake and exhaust camshafts atop the cylinder head. Identify the timing belt/chain path connecting them to the crankshaft sprocket–any misalignment in the diagram’s teeth count (210 for the 2GR-FKS variant) risks valve collision. Rocker arms bridge cams to valves; ensure hydraulic lash adjusters are depicted with oil passages for proper lifter operation.
Examine the schematic’s coolant pathways next. The thermostat housing (front of the head) routes 50/50 antifreeze mix through passages surrounding each cylinder. Locate the water pump impeller–its vanes should mirror the diagram’s orientation to prevent cavitation. A secondary circuit cools the EGR cooler if equipped; trace this line to confirm no blockages are illustrated.
Oil circulation starts at the sump, ascending via the pickup screen (mesh size: 150 microns) to the pump. The schematic must show a bypass valve rated at 60 psi; if omitted, oil starvation under high RPM is likely. Follow the main gallery line branching to the crankshaft main bearings, then upward to camshaft journals. Turbocharged variants include a dedicated feed line; verify its diameter (typically 6mm) matches the diagram.
- Cross-reference sensor placements with OEM documentation. The crank position sensor (CKP) mounts near the flywheel’s reluctor ring, while the cam position sensor (CMP) sits adjacent to the exhaust cam. Both connectors must align with the ECU’s wiring harness–miswires here trigger diagnostic trouble codes P0335 or P0340.
- Inspect the harmonic balancer at the crankshaft’s opposite end. Its rubber dampener should occupy 70% of the pulley’s diameter; cracks in the schematic suggest separation. The serpentine belt wraps over this pulley–confirm its grooves match the accessory drive configuration (usually six ribs for power steering, AC, and alternator).
- Locate the knock sensor embedded in the block’s valley. Its location varies by model year (2018+ models position it centrally), but it’s always below the intake manifold. The schematic must depict its single-wire connection; two-wire configurations indicate an aftermarket upgrade incompatible with direct port injection systems.
The intake manifold in the diagram should display individual runners with tapered bores (primary diameter: 38mm reducing to 32mm). Verify the throttle body’s bore size (60mm for naturally aspirated models) and cross-check with airflow monitors (MAF) if depicted. Exhaust manifolds cluster into a single flange but may show dual scrolls for turbo variants–confusion here risks misdiagnosing backpressure issues.

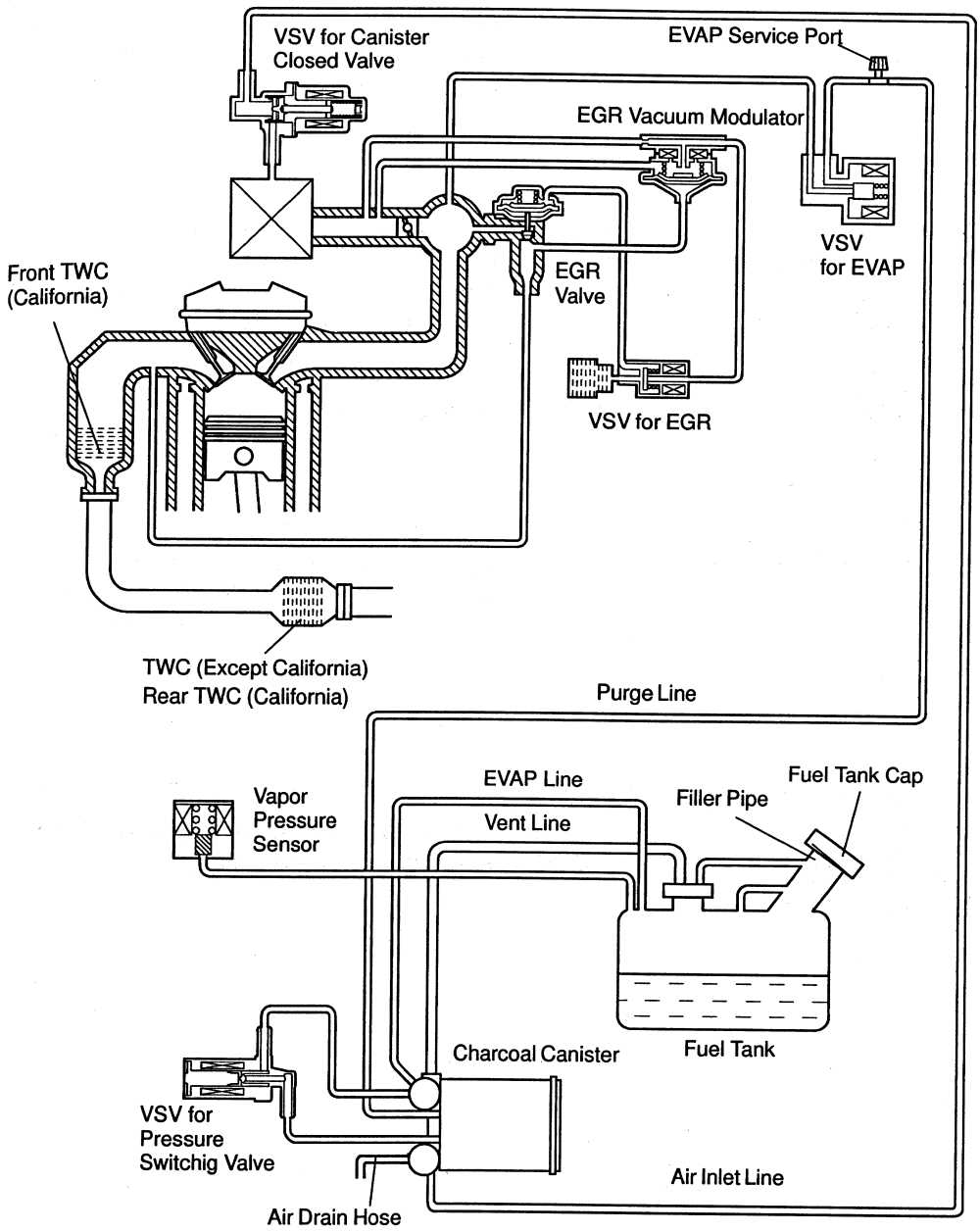

Secondary systems often omitted in schematics require verification. The PCV valve inserts into the valve cover’s rear; its one-way diaphragm must face downward. EVAP canisters route fuel vapors to the intake–trace this line to confirm no inadvertent disconnections. For hybrids, locate the inverter’s cooling loop branching from the radiator; its dedicated pump operates at 12V with a flow rate of 4.5 L/min.
