Start by locating the main chamber assembly at the base of your unit–this houses the critical basket strainer, a mesh insert designed to trap debris before it reaches the pump. Remove it by rotating the lid counterclockwise until it disengages; check for cracks or warping, as even minor damage accelerates wear on the filtration system.
The weir door, a floating flap on the intake side, regulates water flow to prevent air locks. Ensure it moves freely–binding often indicates misalignment or debris obstruction. Clean the hinge pin with a soft brush, avoiding lubricants that attract grime. If the door fails to pivot smoothly, replacement is necessary; original models use a 3-inch wide design, though aftermarket options vary by ±0.5 inches.
Examine the faceplate gasket, a rubber seal securing the unit to the pool wall. Warping or compression here causes leaks, reducing suction efficiency by up to 40%. Measure thickness: standard gaskets range from 0.25 to 0.375 inches. For replacement, select a durometer of 50-70 Shore A to balance flexibility and durability under chlorine exposure.
For internal disassembly, note the throat adapter connecting to the plumbing line–common failure points include threaded fittings stripped by overtightening (torque limit: 25-30 ft-lbs). Use Teflon tape on male threads, wrapping clockwise to prevent unravelling. If the adapter shows hairline fractures, verify material composition: PVC models require solvent-based cement, while CPVC demands heat-resistant primer.
Finally, inspect the lower body flange, where stress cracks frequently develop near screw holes. Reinforce high-wear areas with fiberglass tape applied in overlapping layers, curing for 24 hours before reinstallation. For persistent leaks, upgrade to a stainless-steel clamp system, rated for 1.5 times the maximum pump pressure (standard: 35-50 PSI).
Understanding Your Pool Surface Intake Components
Replace the basket every 12–18 months if exposed to heavy debris loads. Check for cracks along the rim–hairline fractures expand rapidly in chlorinated water, reducing filtration efficiency by up to 30%. Use a silicone-based sealant rated for submersion to patch minor damage; avoid household adhesives as they dissolve within weeks.
Identifying Wear on Flow-Regulating Elements
Examine the float valve assembly monthly. A sticking or misaligned float restricts water intake, causing pumps to run dry and overheat. Lubricate the hinge pin with food-grade silicone spray–never petroleum-based products–as they degrade PVC components. If corrosion appears on the spring mechanism, replace the entire valve unit rather than attempting repairs; compromised springs fail suddenly, risking pump burnout.
- Lid gasket replacement: Required every 24 months if pool chemistry fluctuates frequently. High pH levels (>8.0) cause gaskets to harden, while low pH (
- Weir door alignment: Adjust screws until the door swings freely but seals completely. A misaligned weir reduces surface debris capture by 40%. Test by pouring 1 liter of water through the intake; if flow slows before exiting the basket, recheck alignment.
- Faceplate screws: Tighten to 12–15 inch-pounds. Over-tightening strips threads; under-tightening allows water bypass. Use a torque screwdriver–standard Phillips screws shear at 80% of their rating when manually torqued.
Prime the system after any maintenance by filling the strainer housing with water before restarting the pump. Air trapped in the intake lines causes cavitation, increasing impeller wear by 7x. Monitor pressure gauges for 10 minutes post-startup; a pressure drop exceeding 5 PSI indicates residual air or a clogged basket.
Store spare components in UV-resistant bags away from pool chemicals. Exposure to chlorine tablets causes PVC to become brittle within 6 months, while direct sunlight fades plastic housings, reducing impact resistance. Label each part with installation date–critical components like O-rings and seals have manufacturer-recommended lifespans of 5 years regardless of visible condition.
How to Distinguish Popular Pool Surface Cleaner Models and Their Key Elements
Check the faceplate shape first–Dyna-Skim variants use a square opening, while SP1091L models feature a circular rim with angled sides. Remove the lid to inspect the weir door hinge; pivot points on older units sit flush with the housing, whereas newer designs use offset brackets for smoother oscillation.
Measure the basket threading: standard 4-inch openings fit most filtration systems, but high-capacity models have 5-inch collars with deeper grooves to prevent debris bypass. Examine the gasket seat; silicone compounds last longer than rubber, but only cleaners with dual-layer seals handle vacuum pressure without collapsing.
Key Differentiators in Housing Design
Early series housings curve inward at the base, creating stagnant zones where leaves collect. Mid-range designs introduced tapered walls–two degrees outward–to guide floaters toward the suction zone. Current premium models integrate ribbed channels inside the throat to break surface tension and prevent air locks during auto-fill cycles.
Inspect the intake port diameter: 1.5-inch connectors suit basic pumps, while 2-inch openings require high-flow setups. Thread patterns vary–unified coarse (UNC) dominates entry-level units, but premium assemblies use National Pipe Taper (NPT) for leak-proof seals under variable pressure. The mounting flange thickness reveals durability: 3mm aluminum resists warping better than 2mm steel in chlorinated environments.
Look for secondary drainage holes–absent in budget models, positioned below the basket in mid-tier cleaners, and relocated to the sidewall in pro units to prevent accidental backflow. The presence of a bypass valve near the base signals compatibility with saltwater systems, as it diverts corrosive brine away from sensitive internal components.
Functional Upgrades Across Generations
Entry-level cleaners rely on gravity-fed debris capture, while advanced models employ spring-loaded weirs that adjust suction based on water level fluctuations. Mid-tier designs add plastic reinforcement bars inside the basket to prevent collapse during heavy leaf loads, though this reduces usable capacity by 12%. Top-tier units feature perforated stainless inserts–these improve flow distribution but require weekly cleaning to maintain efficiency.
Check the lid’s locking mechanism: simple twist-on designs last 3-5 years, cam-lock closures double that lifespan, and magnetic seals in commercial-grade models ensure noise-free operation but need biannual re-greasing. The weir door’s balance determines energy use–lightweight polypropylene swings easily but wears faster, while composite vinyl stays intact longer but demands stronger pump pressure to remain effective.
Step-by-Step Guide to Taking Apart Your Pool Intake System for Cleaning
Turn off the filtration system and relieve water pressure by opening the air relief valve on the filter. Place a shallow container beneath the intake lid to catch residual water. Using a large flathead screwdriver or a dedicated lid tool, pry up the lid along its perimeter, working in small increments to avoid cracking the housing. Lift the lid straight upward to detach it completely.
| Tool/Material | Purpose |
|---|---|
| Flathead screwdriver (10–12″) | Leverage lid without damaging rim |
| 5-gallon bucket | Collect debris and water |
| Nitrile gloves (10 mil) | Protect hands from sharp edges |
| Plastic scraper | Remove calcium buildup without scratching surfaces |
With the lid removed, extract the basket by pulling upward while twisting slightly to disengage any stuck debris. Inspect the basket hole for cracks–replace if splits exceed 2 mm. Wipe down the interior throat with a damp microfiber cloth to remove algae and silt, focusing on the upper rim where biofilm accumulates. For stubborn deposits, use a plastic putty knife dipped in a 1:10 bleach solution–rinse immediately after 30 seconds. Reassembly follows the reverse order, ensuring the lid’s rubber gasket sits flush with the housing groove to prevent air leaks.
Locating Components for Pool Surface Collectors via Schematic

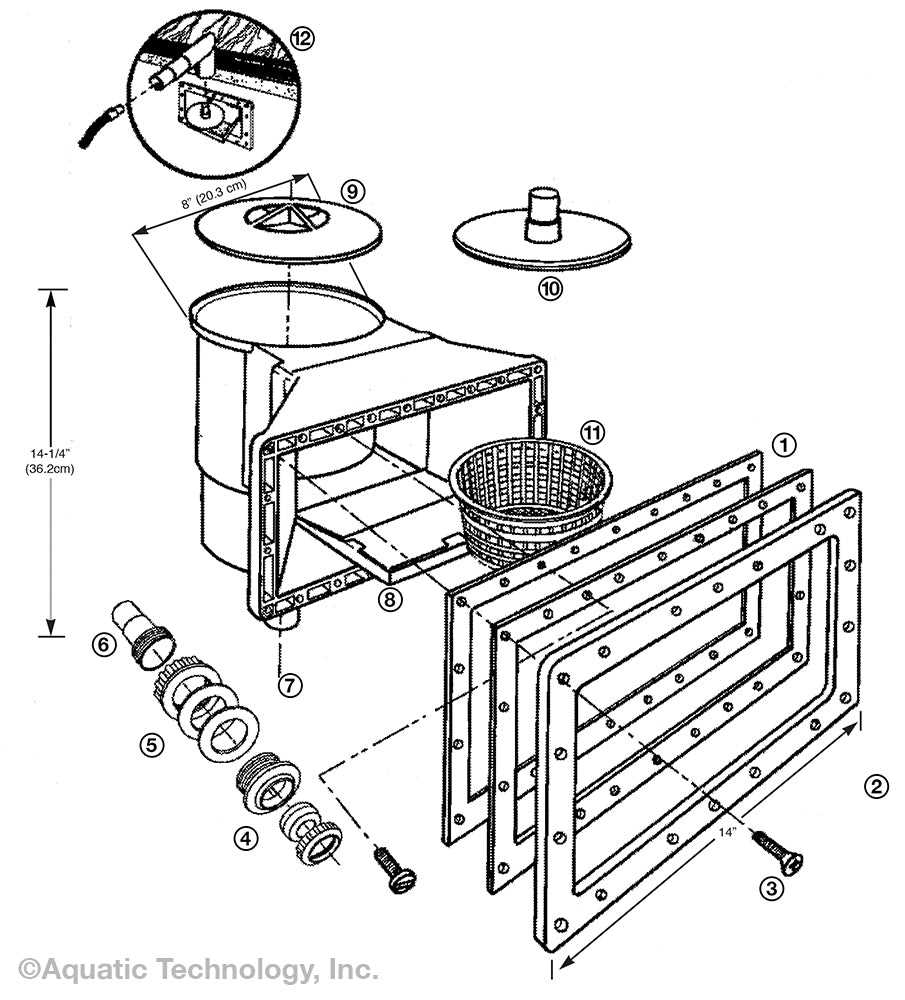

Begin with the manufacturer’s official portal–visit the support section of the brand’s site for exploded-view illustrations. Enter your model number (e.g., SP1091L, SPX1090C) to pull up matching schematics; these pages often link directly to purchase options for baskets, weirs, gaskets, and faceplates. Check the “Parts Finder” tool for real-time inventory at authorized distributors like Leslie’s Pool Supplies, InTheSwim, or PoolCenter.
Alternative Sources with Visual References
Specialty forums like TroubleFreePool or Reddit’s r/pools post member-uploaded breakout charts alongside vendor recommendations. Search threads tagged “collector lid replacement” or “basket o-ring” for user-verified sources such as Amazon Business, Walmart Marketplace, or eBay–but cross-check part numbers against the official schematic to avoid mismatches. Local pool service shops typically stock common spares; bring the diagram and ask for a “same-day pickup” quote.
Third-party rebuild kits from companies like Doheny’s or Royal Swimming Pool Supply group gaskets, screws, and seals in pre-packaged bundles; filter results by collector depth (standard 6″ or deep 9″ throats) and material (ABS vs. UV-stabilized plastic). Download the exploded PDF first to confirm every bolt size (¼-20, ⅜-16) and thread pitch before ordering–small discrepancies can halt reassembly.
